Hot Sale Magnetic Drill BJ-13 Drilling Range Diameter 13mm
$94.50-$133.10
V9225 magnetic for sale craigslist drill press bits set
- Category: >>>
- Supplier: Jiangsu Bestech Industrial Co. Ltd.
Share on (60832618450):
Product Overview
Description
Product Description

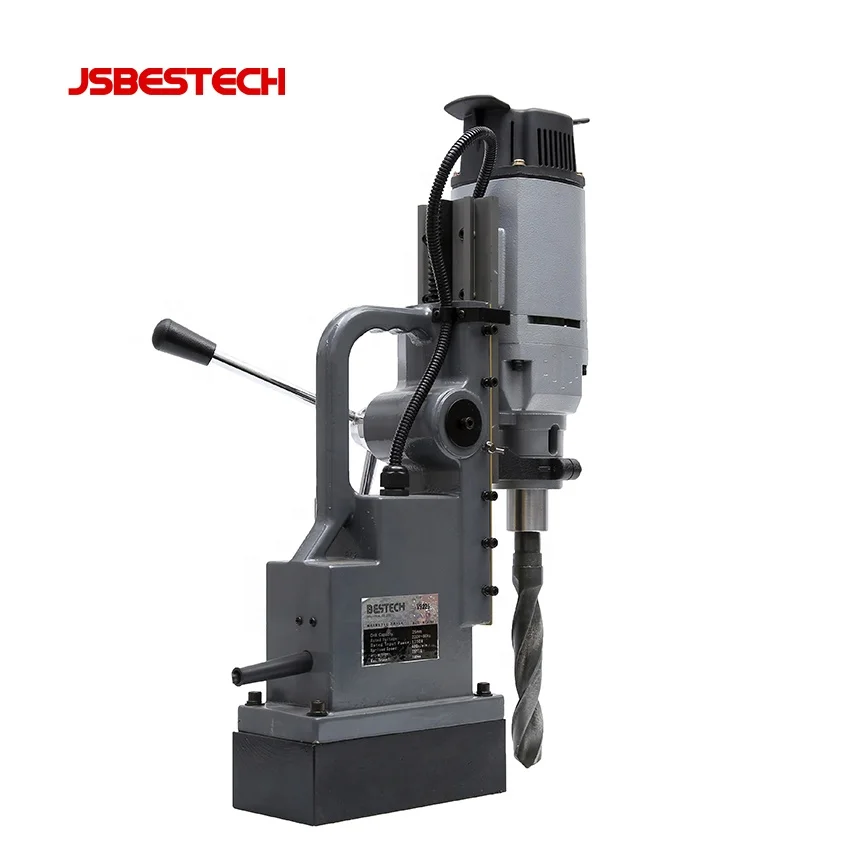

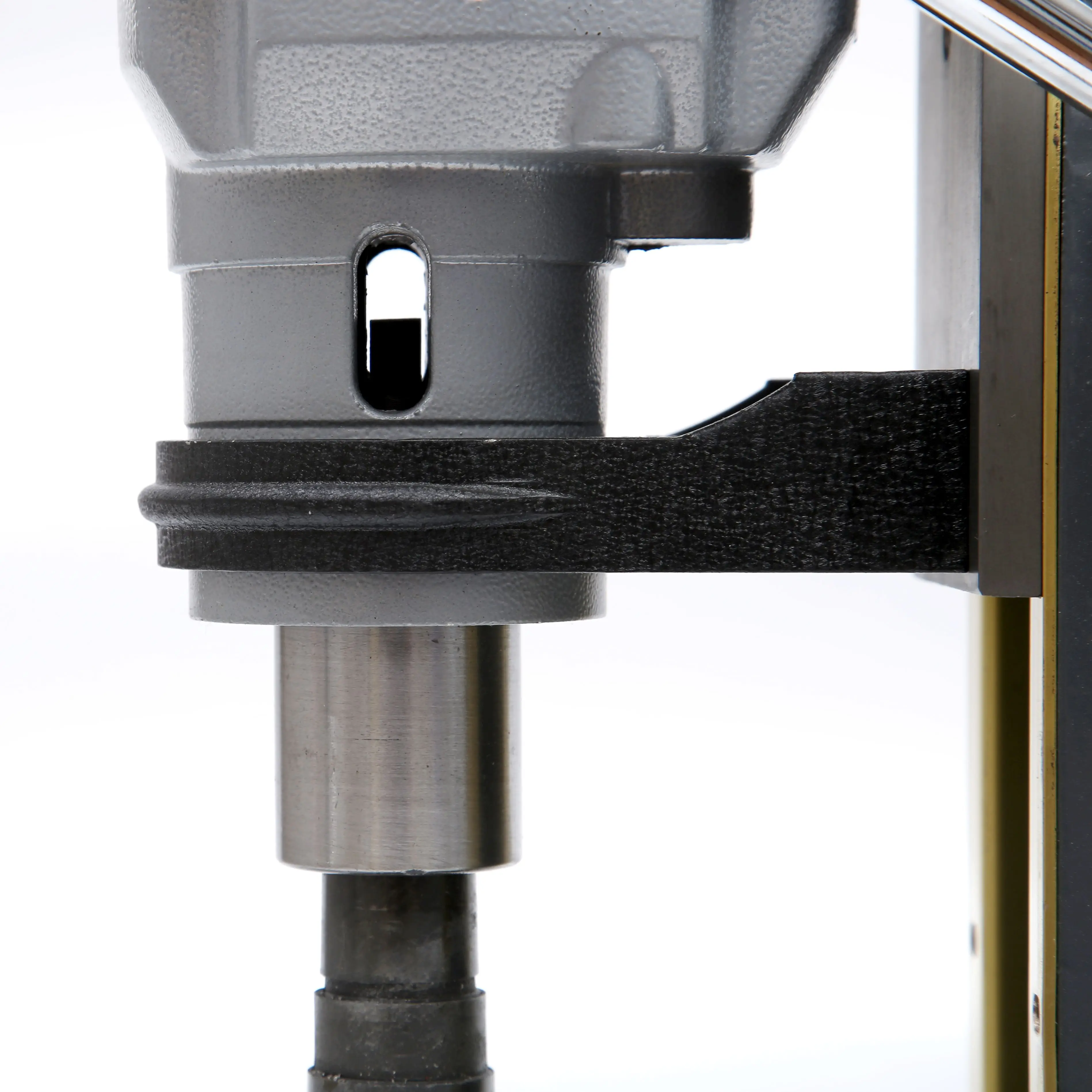

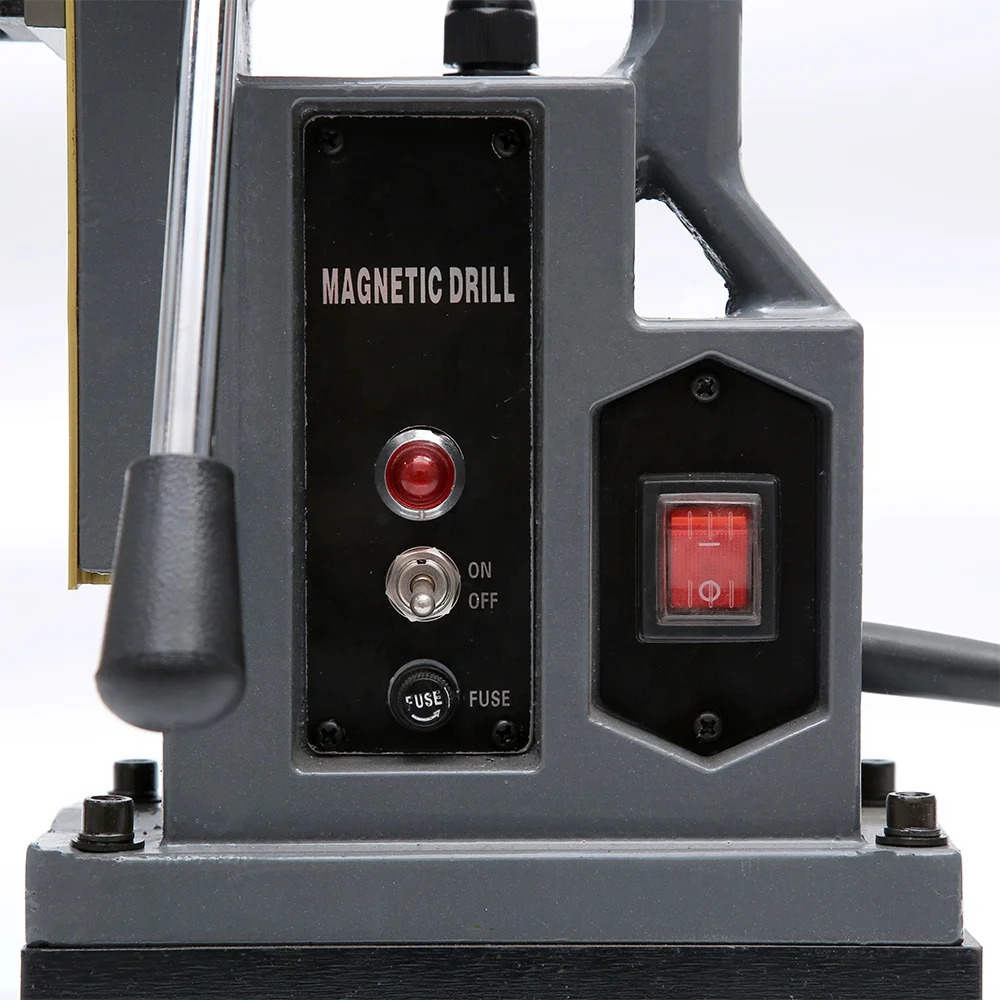

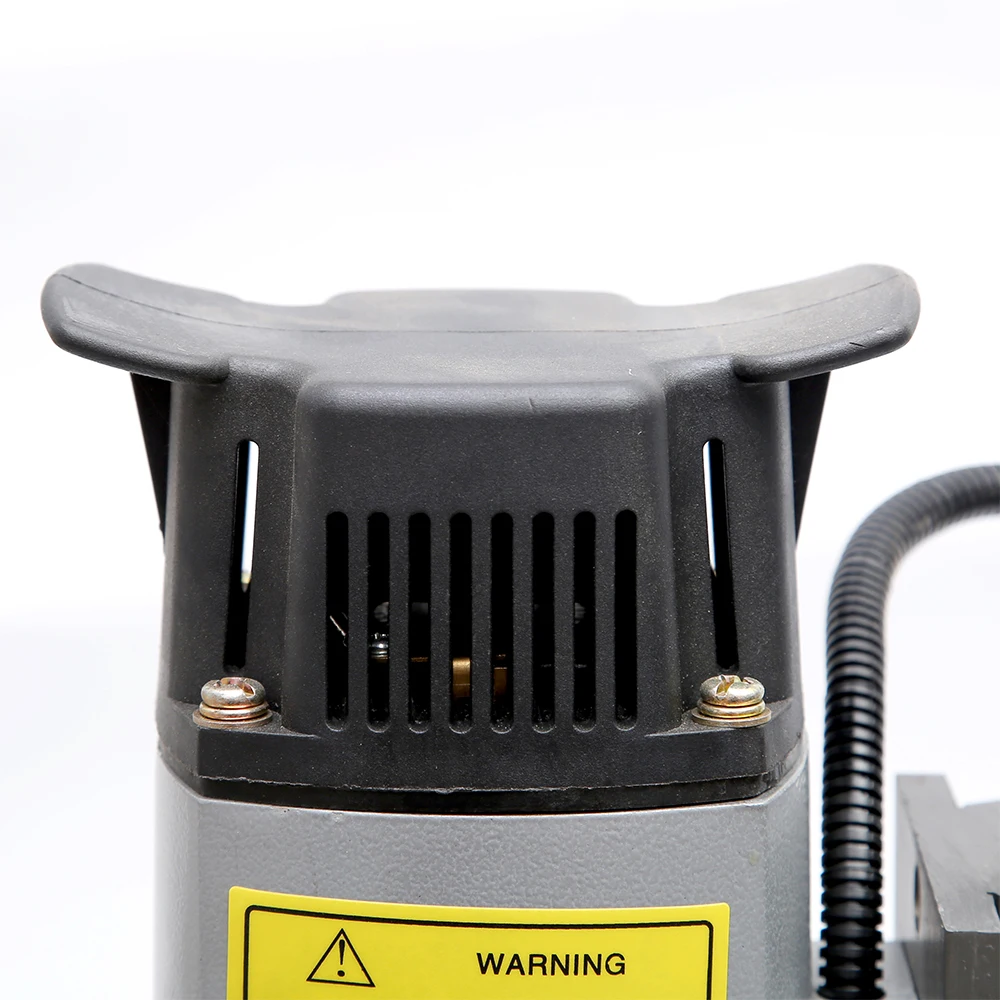

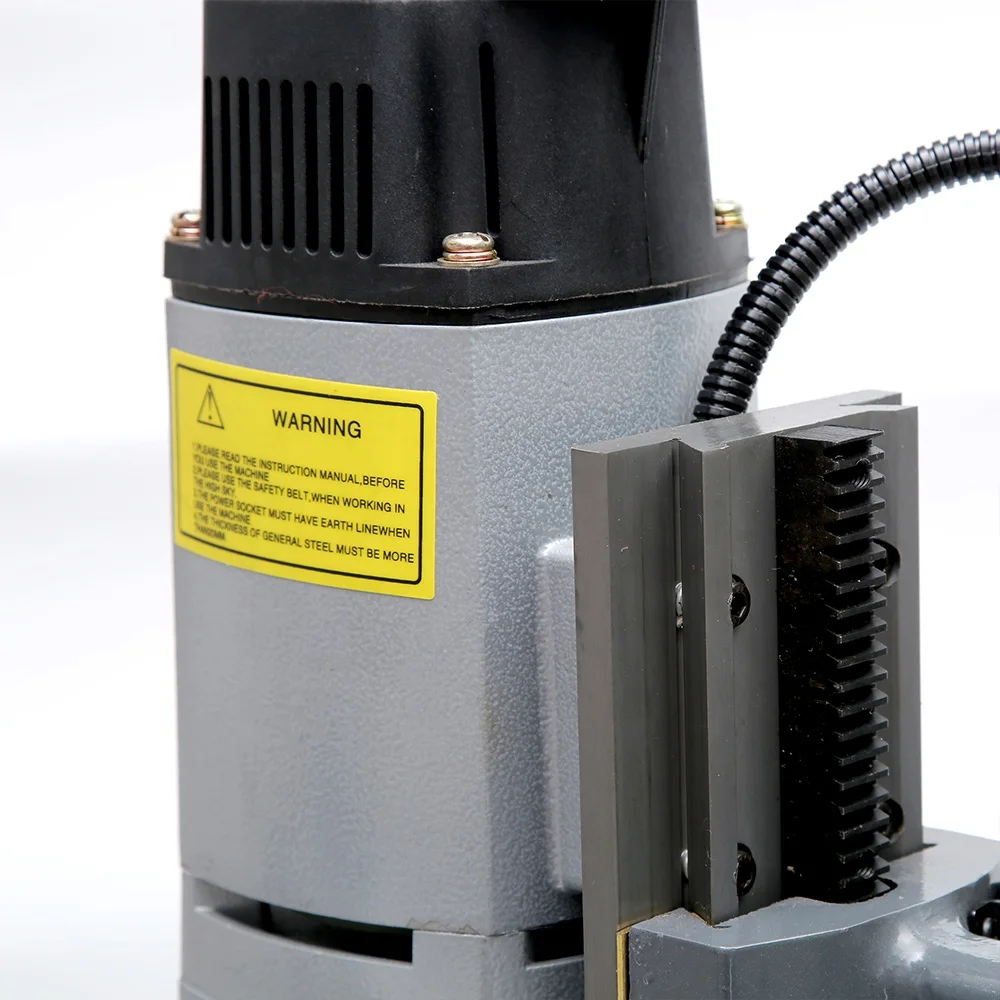

V9225 magnetic for sale craigslist drill press bits set
Magnetic drill is by using the principle of electric-magnet to absorb the rig frame and the swing drill mechanism onto the steel plate and then drill it. It's movable, characterized by hign efficiency, precision and convenient operation and safety, which is used on the occasion that electric hand drill and drill press are difficult to use.
Compare with the fire drill, the magnetic drill is more of high precision, which belongs to physical cutting and will not produce the chemical reaction and material deformation.
Magnetic drill is widely used in all kinds of complicated environment of steel structure drilling, especially suitable to the shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construciton, large equipment maintenance and all the pipeline engineering etc.
Compare with the fire drill, the magnetic drill is more of high precision, which belongs to physical cutting and will not produce the chemical reaction and material deformation.
Magnetic drill is widely used in all kinds of complicated environment of steel structure drilling, especially suitable to the shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construciton, large equipment maintenance and all the pipeline engineering etc.
Specification
Model | V9225 |
Characteristic | Overcurrent torsion protection, Magnetic induction lamp |
Rate voltage | 110V/230V |
Motor input power | 1200W |
Rated frequency | 50/60Hz |
No-load speed | 500r/min |
Max drilling diameter | 23/25 mm |
Max attraction | 12000N |
Max travel | 180mm |
Rated axis taper | MT2 |
N.W. | 18.3 kg |
Paper carton packing size | 390x190x480 mm |

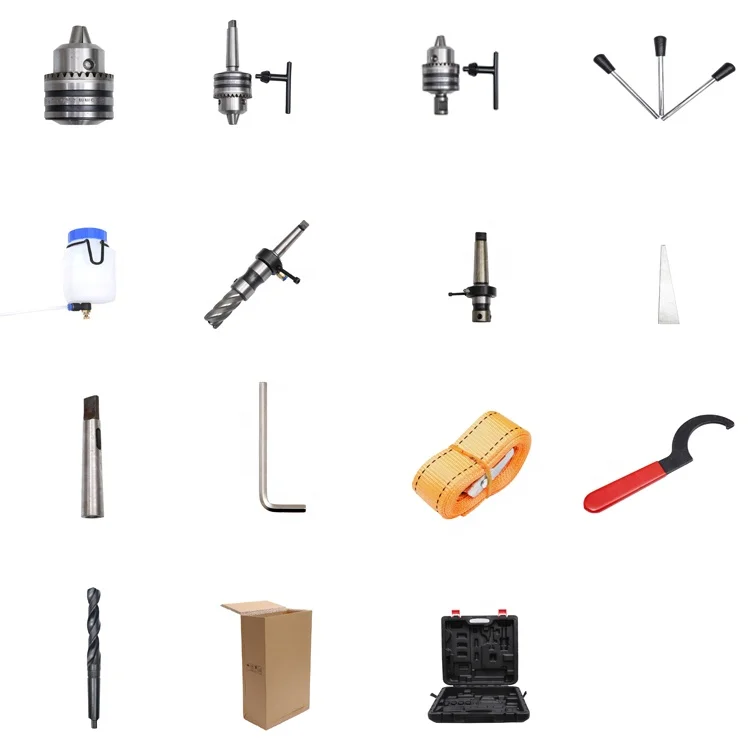

Standard Accessories | Handle, Safety lock, Carbon brush, Drill convention, Spanner,Fuse, Paper carton 39x19x48 cm |
Product packaging

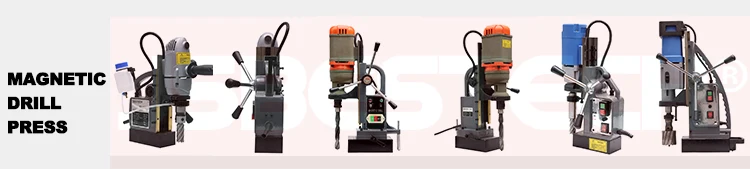

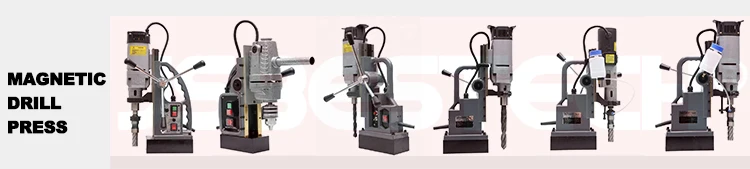

Similar products
Model | V9050 | V9116 | V9223 | V9225 | V9438 | V9445 |
Rated voltage | 110V/230V | 110V/230V | 110V/230V | 110V/230V | 110V/230V | 110V/230V |
Rated frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Motor input power | 1500w | 600w | 1200w | 1200w | 1050w | 1200w |
No-load speed | 100-500r/min | 650r/min | 500r/min | 550r/min | 0-500r/min 0-800r/min | 100-500r/min |
Max drilling diameter | 50mm | 16mm | 23mm | 28mm | 38mm | 45mm |
Max attraction | 15000N | 9000N | 12000N | 15000N | 12000N | 12000N |
Max travel | 180mm | 140mm | 180mm | 180mm | 180mm | 180mm |
Rated axis taper | Weldon shank 3/4'' | / | MT2 | MT3 | MT2 | Weldon shank 3/4'' |
N.W | 22kg | 11.5kg | 18.3kg | 18.9kg | 19.8kg | 19.6kg |
Paper carton packing size | 39x19x48cm | 34x17x39cm | 39x19x48cm | 39x19x48cm | 39x19x48cm | 39x19x48cm |
Model | AO-3200 | AO-3500 | W9032 | W9149 | MAB35 | MAB100 |
Rated voltage | 110v/230v | 110v/230v | 380v | 3800v | 110v/230v | 110v/230v |
Rated frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Motor input power | 1050w | 1050w | 1500w | 2000w | 1100w | 1800w |
No-load speed | 0-650r/min | 680r/min | 150r/min | 110r/min | 450r/min | 200/320/450/700r/min |
Max drilling diameter | 32mm | 35mm | 32mm | 49mm | 35mm | 100mm |
Max attraction | 8500N | 11000N | 15000N | 26000N | 10000N | 20000N |
Max travel | 120mm | 140mm | 200mm | 200mm | 100mm | 280mm |
Rated axis taper | Weldon shank 3/4'' | Weldon shank 3/4'' | MT4 | MT4 | Weldon shank 3/4'' | MT3 |
N.W | 11kg | 17.4kg | 41.5kg | 42kg | 11.5kg | 24.5kg |
Paper carton packing size | 35x16x33cm | 31x16x44cm | 49x23x63cm | 49x23x63xm | 31x16x44cm | 47x21x57.5cm |
Company Profie
FAQ
1.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
