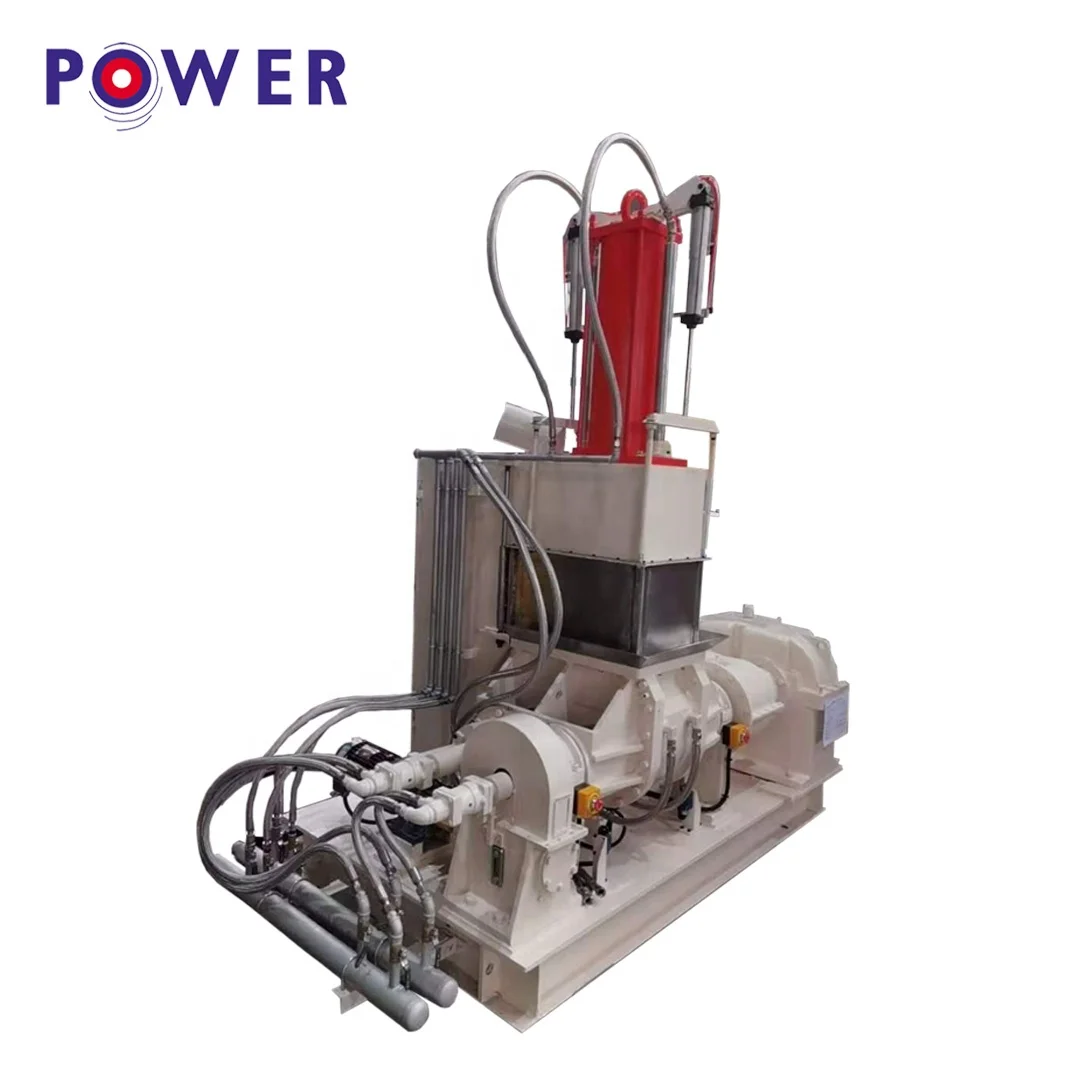

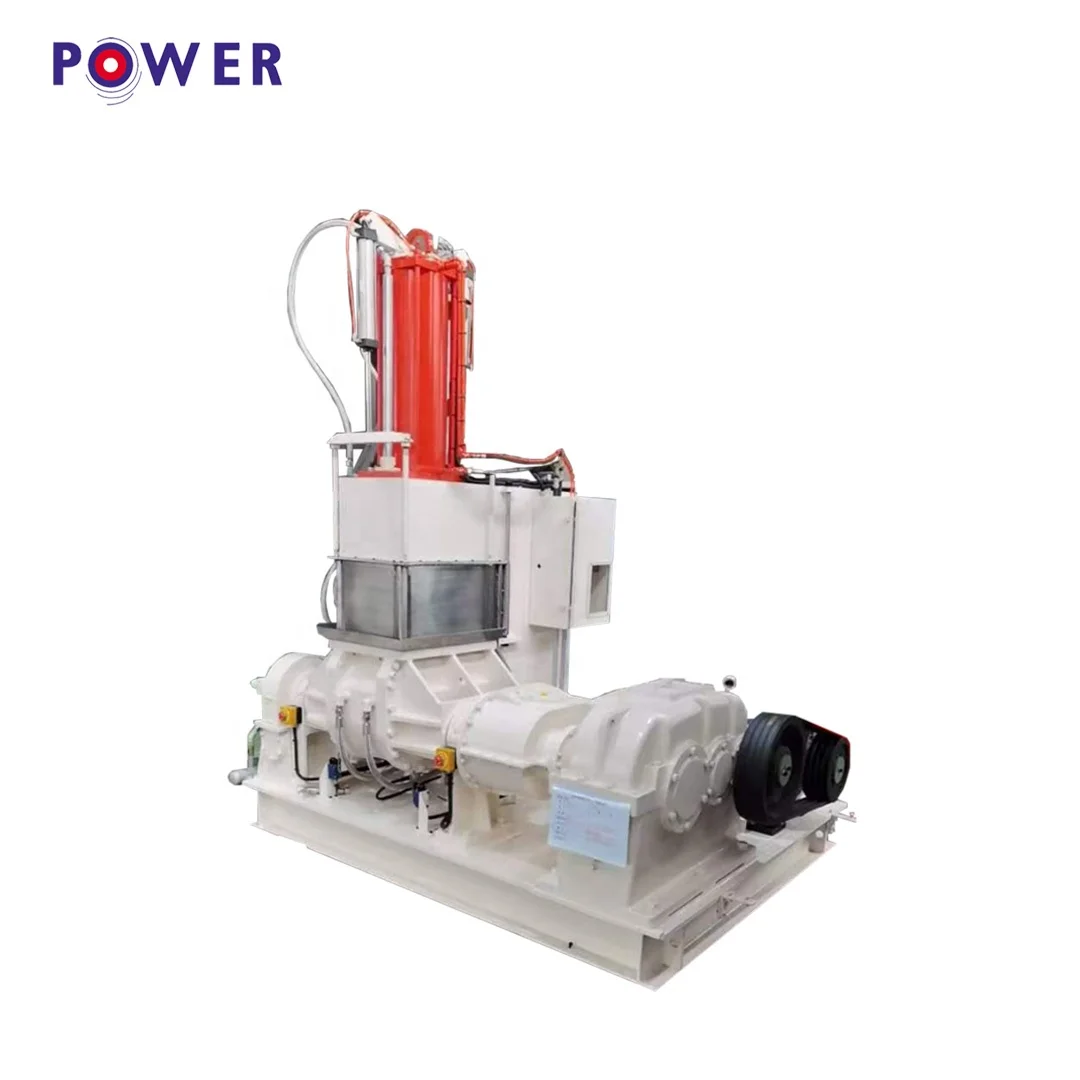

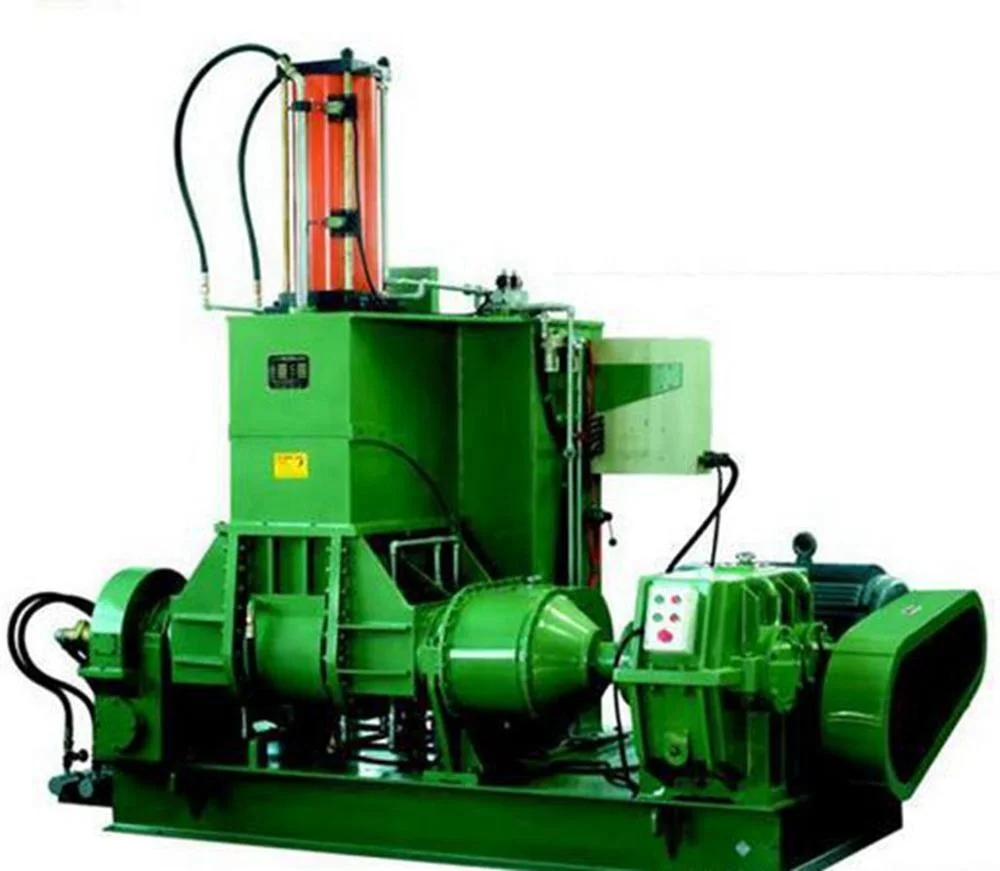

Suitable for EVA, rubber, synthetic rubber and other chemistry raw materials to be mixed , mediated and dispersed.
Product Feature:
1.Easy to install, no need to do foundation work in advance
2.Reasonable and convenient base for quick cleaning and inspection
3.High standard safety accessories
4.Low noise, high production efficiency
Product Description:
1.The transmission system adopts harden-gear speed reducer with a compacted structure for lower noise, longer production life and increased safety factor.
2.The mixing chamber is mainly made by alloy steel with harden treatment. The surface of internal chamber is with anti-wear alloy metal built up welding and plated with durable and anti-corrosion hard chrome.
3.The mixing chamber rotor adopts durable and anti-corrosion low carbon alloy steel. The cooling system is with the new faster and efficient forced circulation system.
4.The sealed structure adopts hydraulic pressing with reliable sealing effects.
Model Number
3L
55L
75L
Total Capacity
3L
55L
75L
Mixing Capacity
2.1L
42L
56L
Batch Time
About 10-12 times/hour
About 10-12 times/hour
About 10-12 times/hour
Driving Motor (KW)
30
132
132/160
Temperature Control System
Water cooling
Water cooling
Water cooling
Temperature Control Range
±5℃
±5℃
±5℃
Weight (KG)
3500
12500
14500
Dimensions (LXWXH)
2600*900*1818
4500*2500*4900
4800*2500*4900
Rotor Speed (Front)
35
35
35
Rotor Speed (Back)
30
30
30
Leak Proof Mode
Hydraulic seal device
Hydraulic seal device
Hydraulic seal device
Unloading Locking Device
Swing cylinder
Swing cylinder
Swing cylinder
Rotor Mode
Cutting 3 bladed/4 bladed shears. Customized requirements by different material
Gear Box
Cylindrical hard tooth surface
Hydraulic System
Multi-channel centralized lubrication oil pump. High effciency hydraulic station
Model Number
90L
110L
140L
Total Capacity
90L
110L
140L
Mixing Capacity
67L
83L
105L
Batch Time
About 10-12 times/hour
About 10-12 times/hour
About 10-12 times/hour
Driving Motor (KW)
185/220
280/315
450
Temperature Control System
Water cooling
Water cooling
Water cooling
Temperature Control Range
±5℃
±5℃
±5℃
Weight (KG)
17000
23000
27000
Dimensions (LXWXH)
4800*2500*4900
5500*2720*5400
5700*2720*5400
Rotor Speed (Front)
35
40
40
Rotor Speed (Back)
30
33
33
Leak Proof Mode
Hydraulic seal device
Hydraulic seal device
Hydraulic seal device
Unloading Locking Device
Swing cylinder
Swing cylinder
Swing cylinder
Rotor Mode
Cutting 3 bladed/4 bladed shears. Customized requirements by different material
Gear Box
Cylindrical hard tooth surface
Hydraulic System
Multi-channel centralized lubrication oil pump. High efficiency hydraulic station
