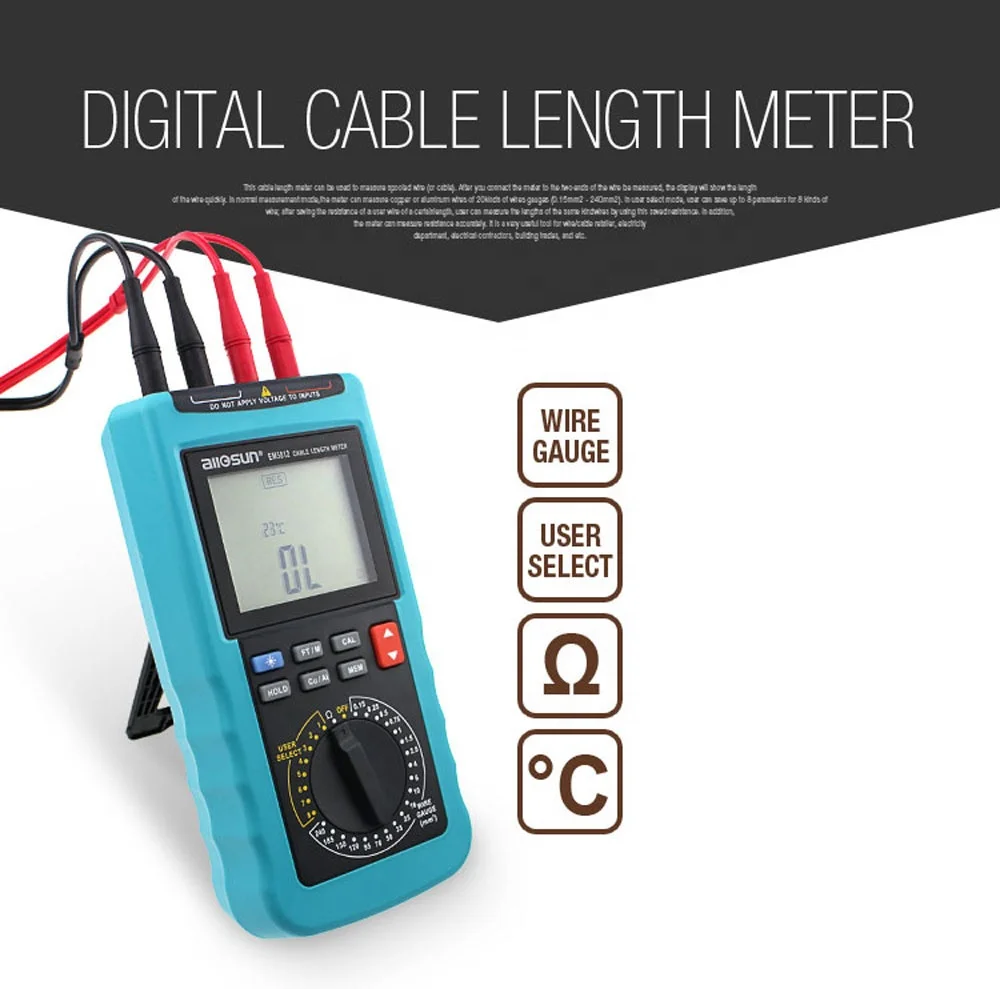

Allosun EM5812 cable length meter Digital Cable Resistance Tester 30KM/100000ft Wire Cable Length Tester Meter

Product Overview

Description

Please contact us to check the best shipping method.

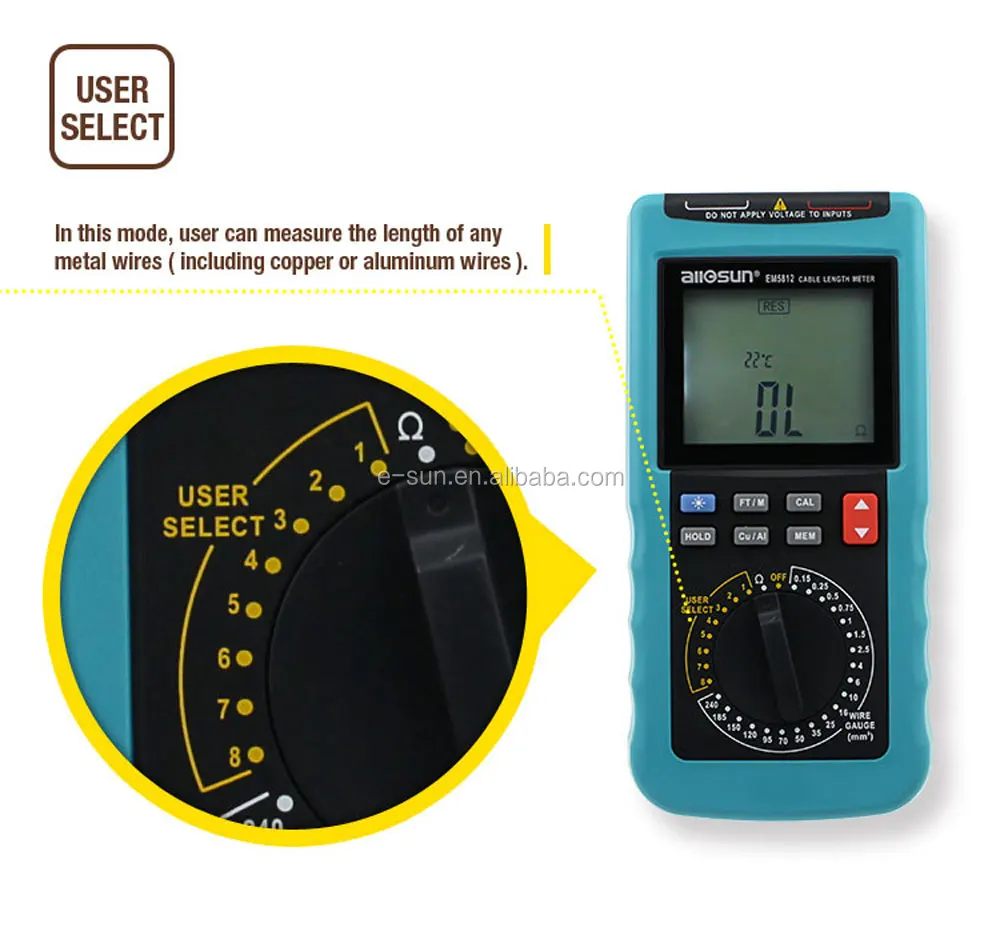

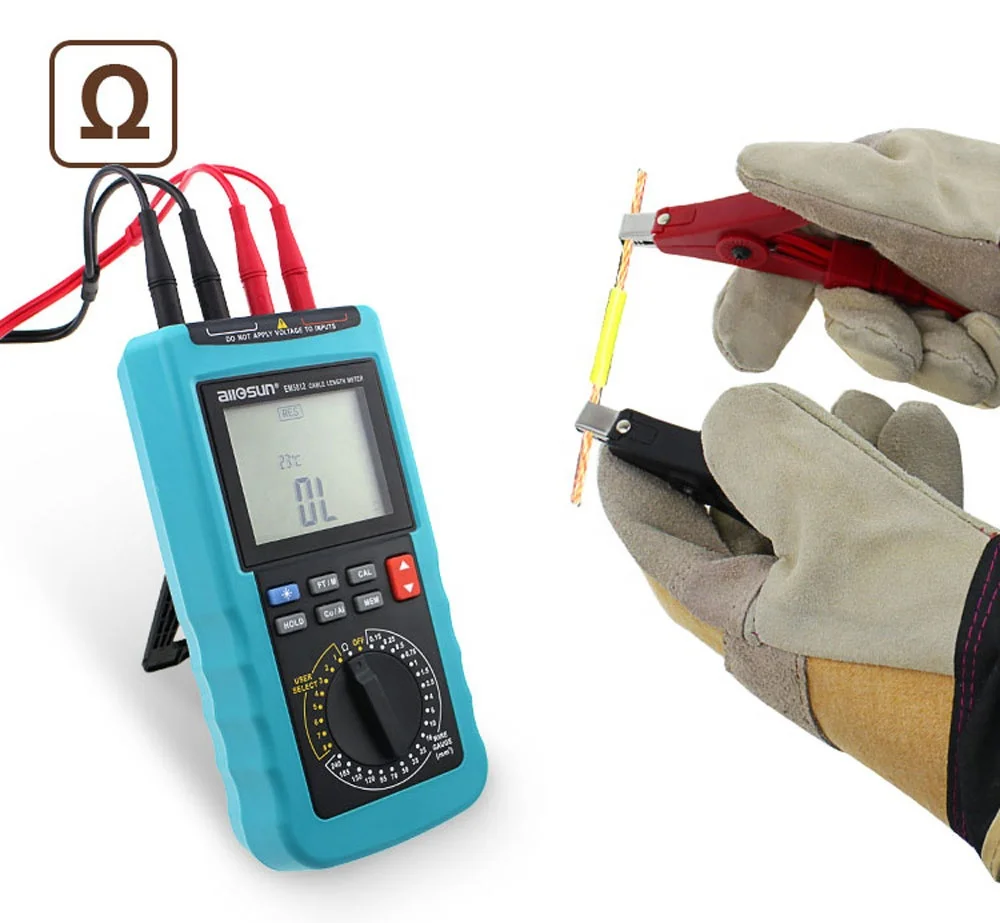

This cable length meter can be used to measure spooled wire (or cable). After you connect the meter to the two ends of the wire to be measured, the display will indicate the length of the wire quickly. In normal measurement mode, the meter can measure copper or aluminum wires of 20 kinds of wire gauges. In user select mode, user can save up to 8 parameters for 8 wire samples; after saving the resistance of a copper or aluminum wire of a certain length, user can measure the lengths of other wires of the same kind by using this saved resistance. In addition, the meter can measure resistance accurately. It Is a very useful tool for wire/cable retailer, electricity department,electrical contractors, building trades, and etc.





Features



1. Bulit-in buzzer, backlight and 4 1/2-digit display

2. Reads in feet and meters

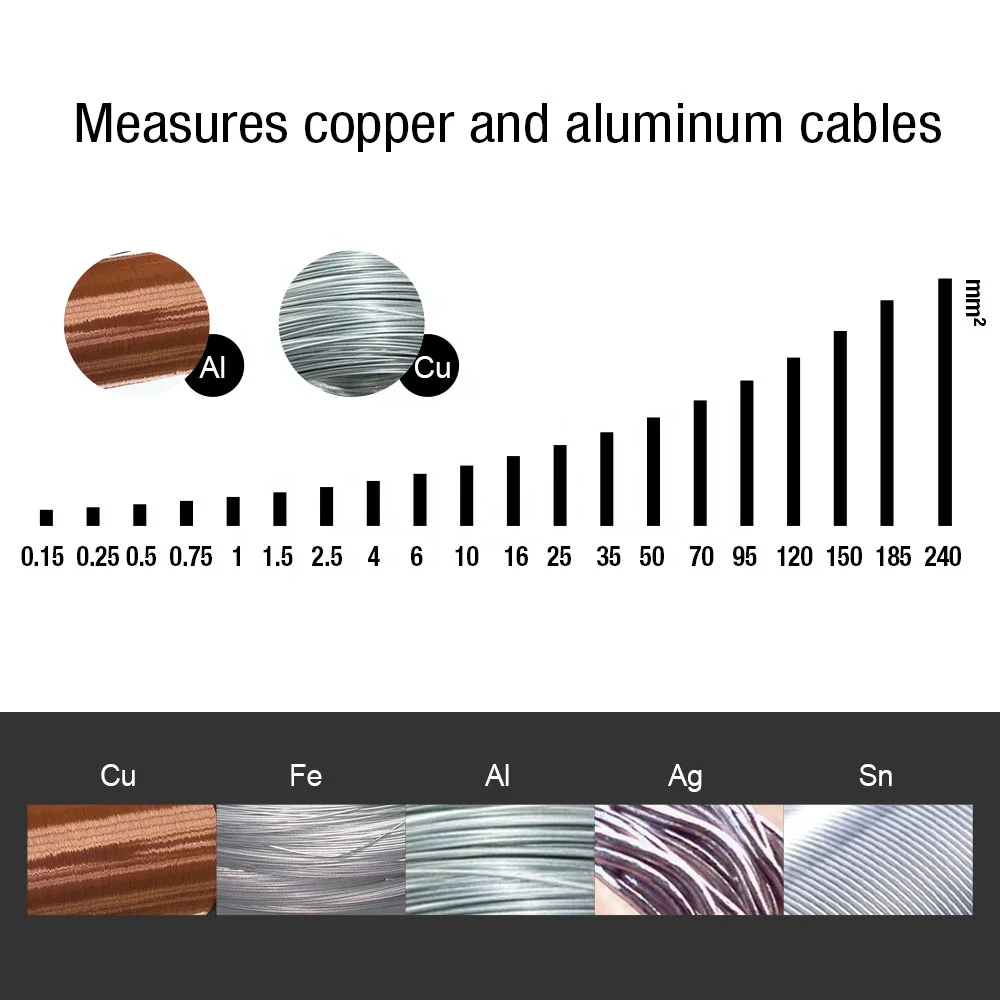

3. Measures copper and aluminum cables

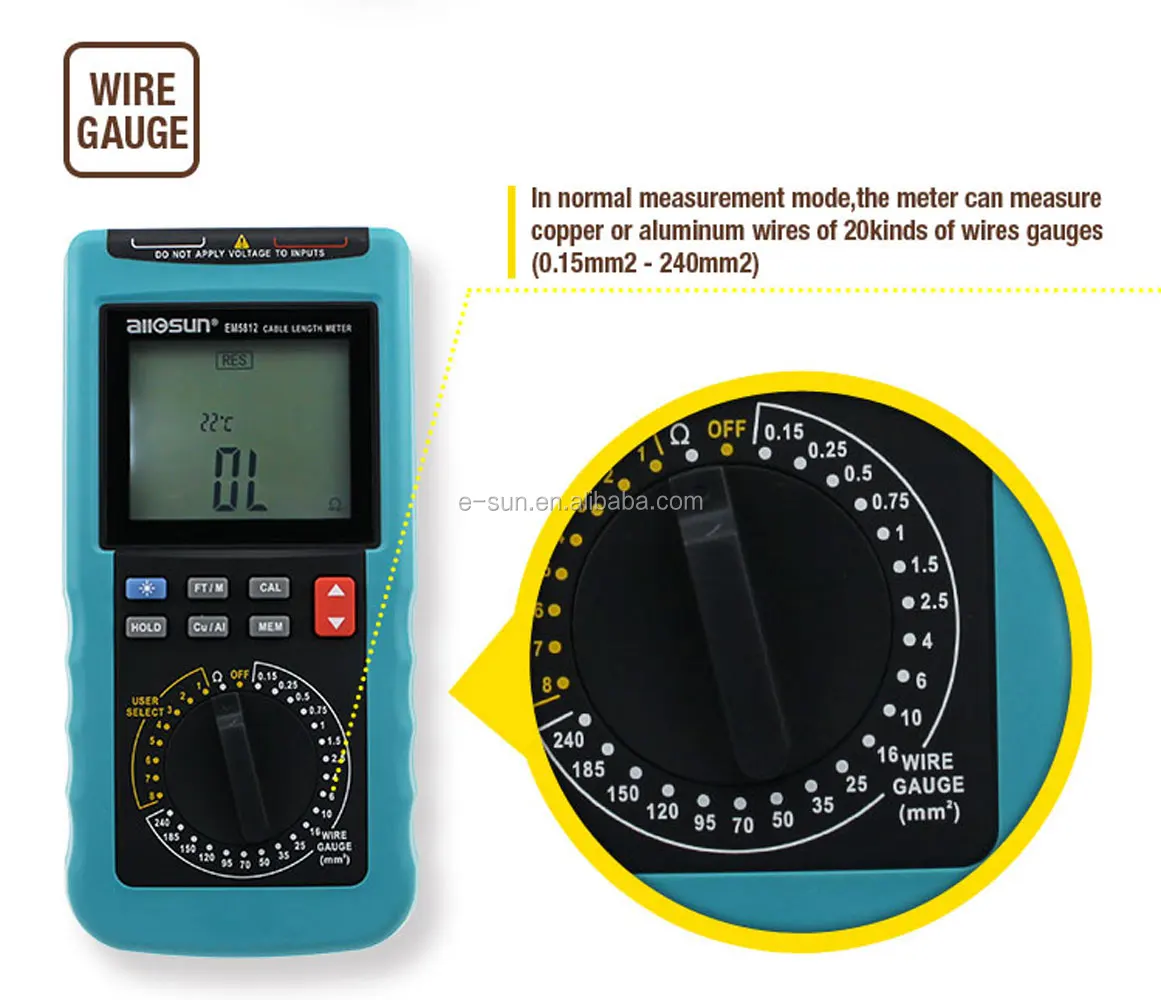

4. 20 pre-set wire gauge settings (0.25mm²-240mm²), 8 memory locations in user select mode

5. Automatic temperature compensation



Specification



Length Measurement Range: 0-100000ft, or 0-30000m

Length Measuring Ranges: 1000m/10000m/30km, or 1000ft/10000ft/100kft

Length Resolution: 0.1m/1m/0.01km, or 0.1ft/1ft/0.01kft

Length Mearsurement Accuracy: ±(1%rdg + 3ft or 1m)

Resistance Measurement Range: 0.1mΩ-1999.9Ω

Resistance Measuring Ranges: 1Ω/10Ω/100Ω/2000Ω

Resistance Resolution: 0.1mΩ/1mΩ/0.01Ω/0.1Ω

Resistance Measurement Accuracy: ±(1%rdg + 3 digits)

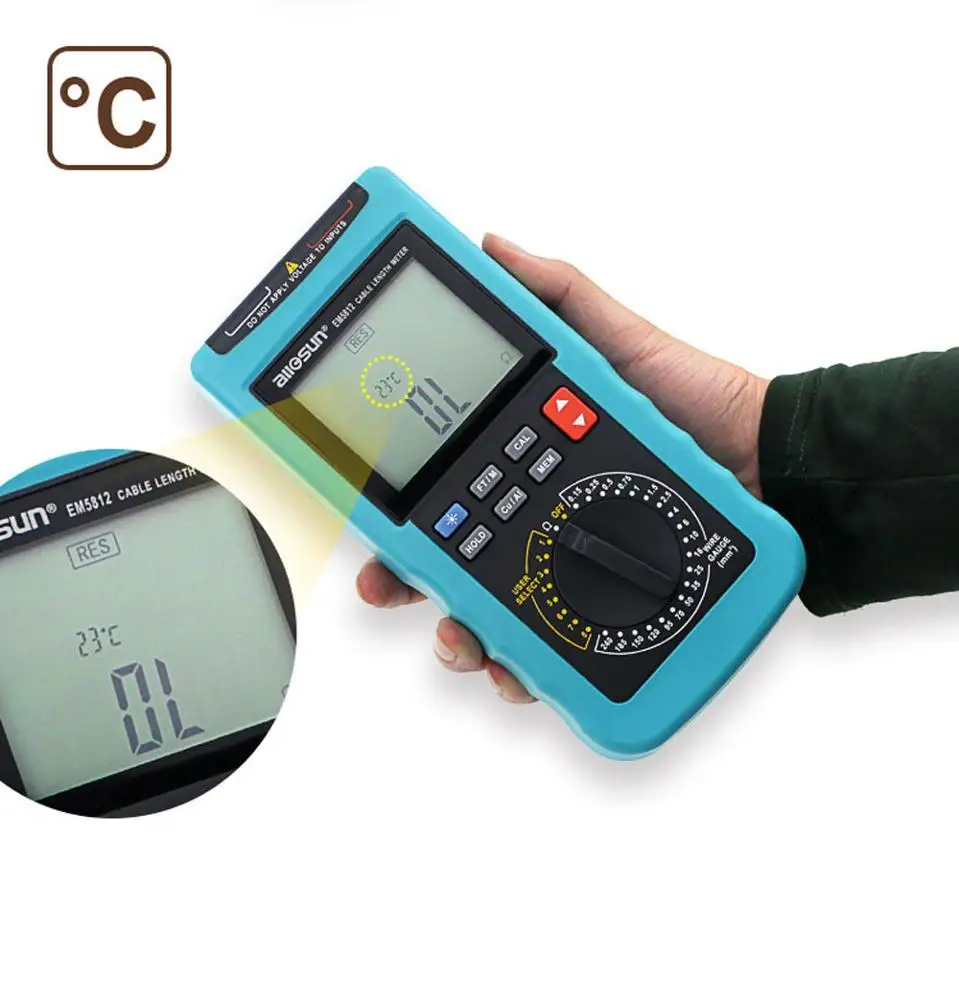

Temperature Measurement Range: 0°C to 40°C

Temperature Measurement Accuracy: ±1.5°C

Overload Protection: Max. 50V between terminals

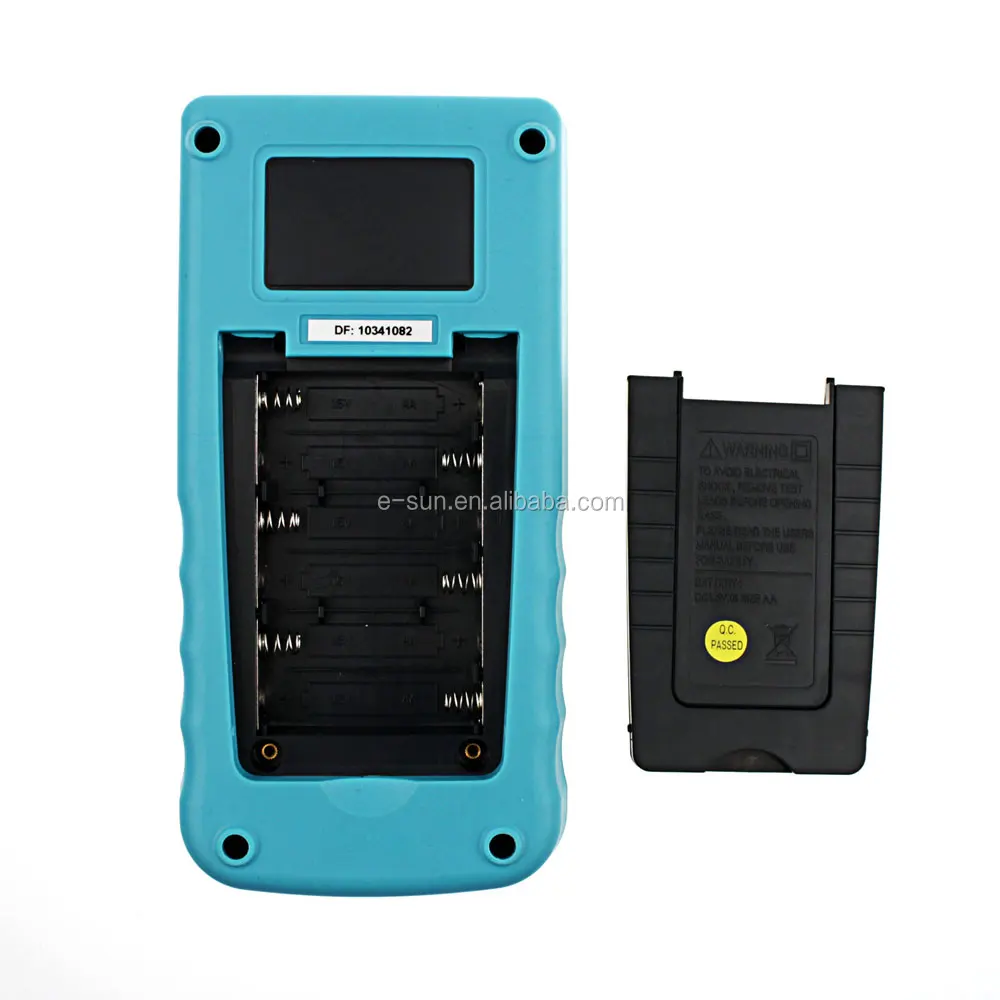

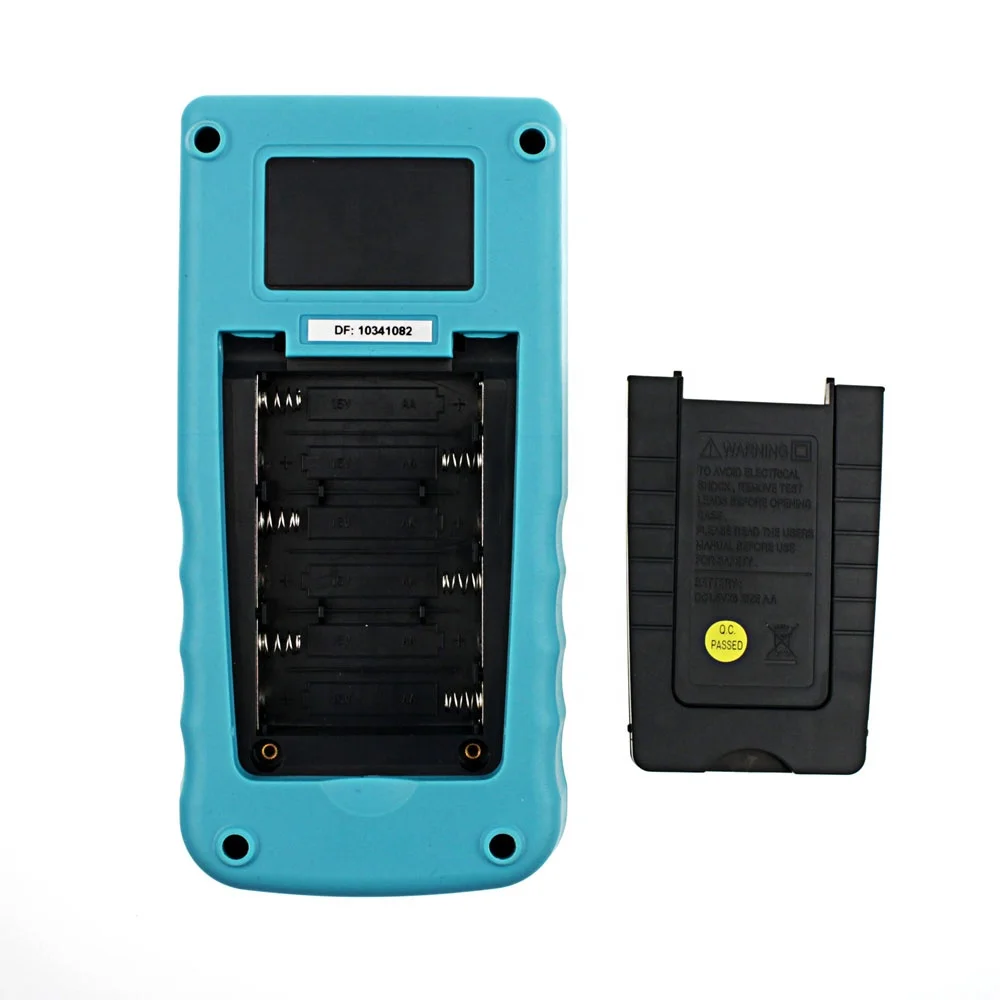

Battery: 1.5V, AA or equivalent, 6 pieces

Size: 198*98*56mm

Weight: about 518g

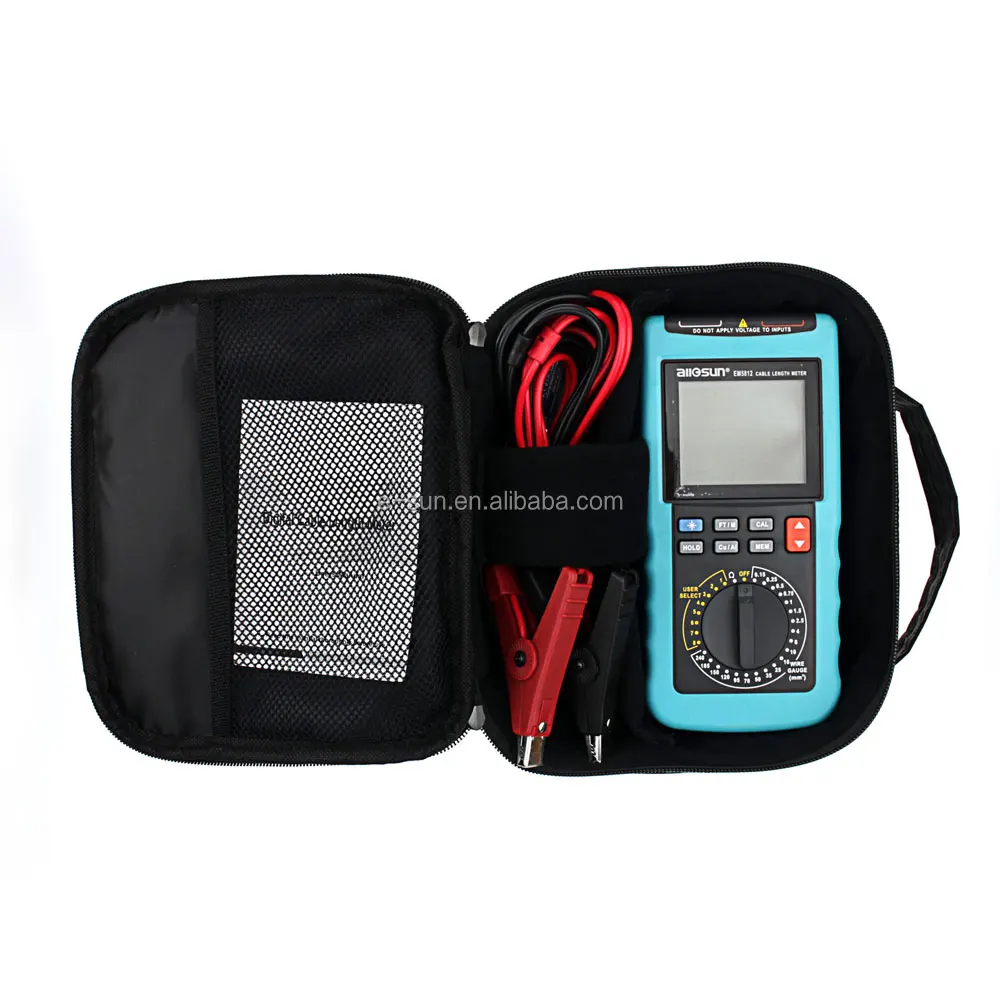

Accessories



Manual  x1

Test Lead with Alligator Clip  x1

Copper Rod  x1
