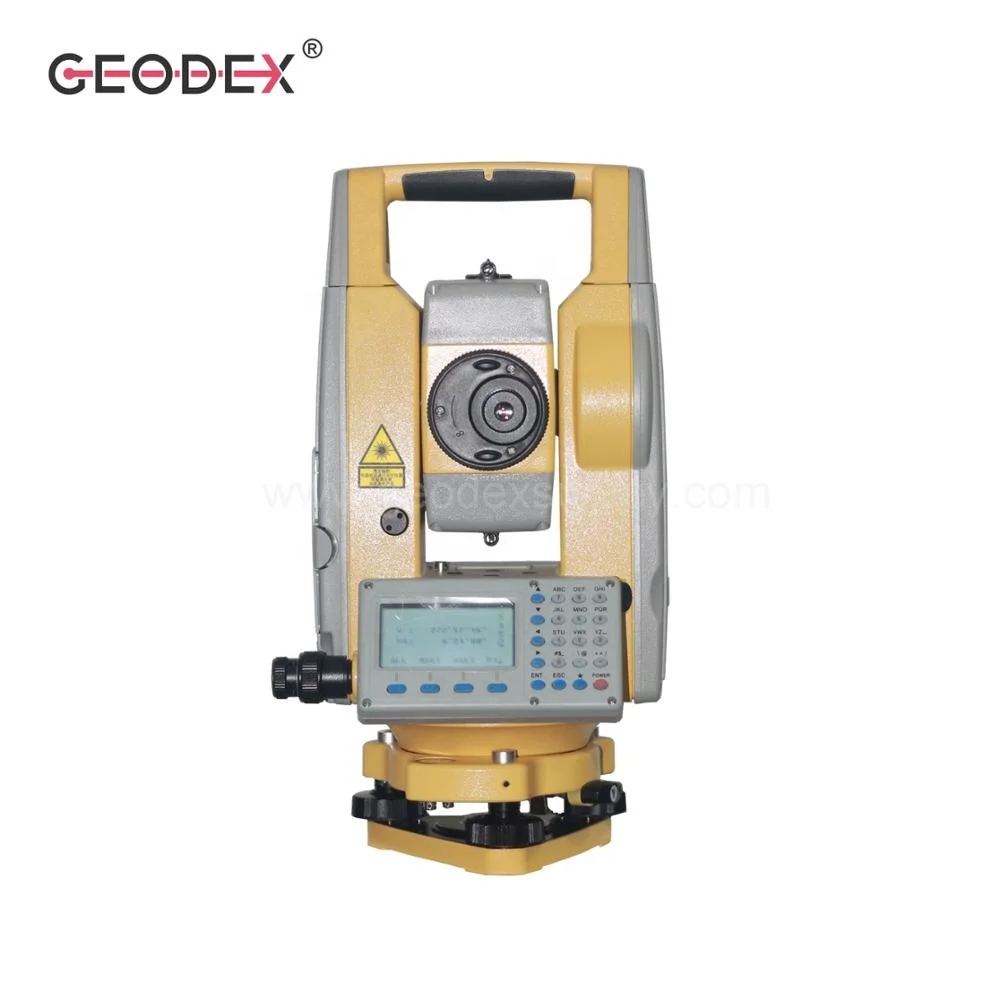

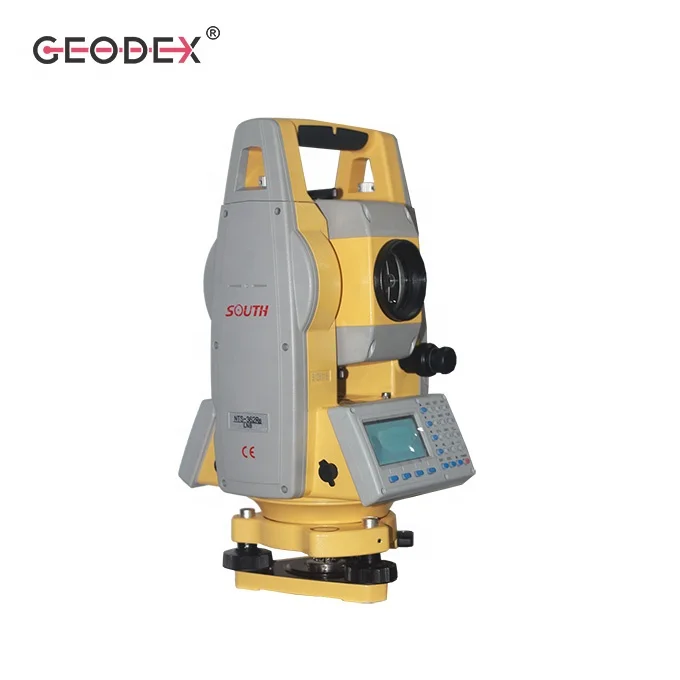

800m Reflectorless Measurement Total Station Geographic Surveying Equipment survey instrument for land road construction
- Category: >>>
- Supplier: Guangzhou Geodex Instrument Co. Ltd
Share on (60832801388):
Product Overview
Description
Features & Functions
Features
1. 2"AcCuracy
2. Long-Range Prism(5000m) and Non-Prism (1000m)EDM\u2029
3. Trigger Key, Hot key for faster operation\u2029
4. Cable-Free Connection byWireless Bluetooth orUSB Stick
5. Bigger internalmemory, Save 96000 data block
6. Longer operation Timeupto8 hours perbattery

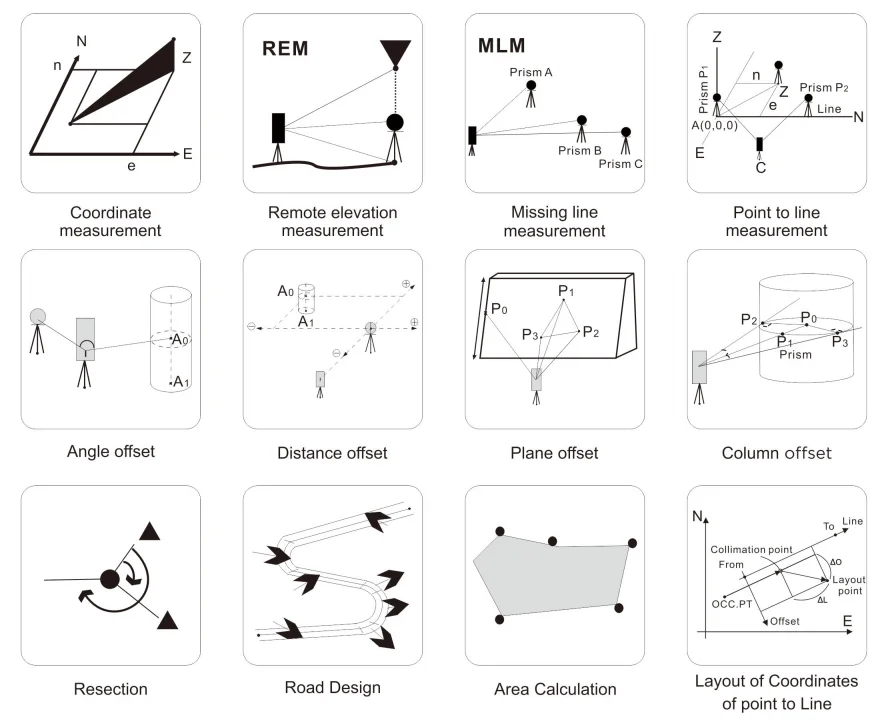

Main Survey Program onboard
Multiple on board Survey Programs competent to finish the surveying job easily
Standard Packing Componments
Main Unit | 1x |
Rechargeable Battery | 2x |
Charger | 1x |
Lens Cap | 1x |
Tool Kit | 1x |
Rain Cover | 1x |
Dryer | 1x |
USB Cable | 1x |
SD Card | 1x |
Reflector Sheet | 1x |
Shoulder Belt | 2x |
User Manual | 1x |
Technical Specifications
Telescope | ||||
Magnification/Resolving power | 30× / 3.5" | |||
Others | Objective aperture: 45mm 47mm | |||
Image: Erect, Field of view: 1°30', Minimum focus: 1m | ||||
Angle Measurement | ||||
Measuring method | Absolute encode | |||
Minimum reading | 1" | |||
Detection method | Horizontal: Dual Vertical: Dual | |||
Angular Accuracy | 2" | |||
Distance Measurement | ||||
Measuring Range | 5km (prism); 1000m (reflectorless) | |||
Distance Accuracy | Reflectorless: ± (5mm + 3ppm·D) | |||
Reflector: ± (2mm + 2ppm·D) | ||||
Measuring time | Fine mode: <1S; Tracking mode: <0.4s | |||
Display | Max: 99999999.9999m Min: 0.1mm | |||
Uint | m/ft | |||
Atmospheric correction | Auto correction, manual input | |||
Atmosphericrefraction and | Auto correction, manual input | |||
Prism constant correction | Auto correction, manual input | |||
Vial | ||||
Plate vial | 30"/2mm | |||
Circular vial | 8'/2mm | |||
Auto Vertical Compensator | ||||
Type | Dual axis liquid-electric | |||
Compensation range | ± 3' | |||
Accuracy | 1" | |||
Laser Plumment | ||||
Accuracy | ± 0.8mm/1.5m | |||
Laser class | II | |||
Laser wavelength | 650nm | |||
Interface and Data management | ||||
Display/Keyboard/control paner location | Graphic LCD, 192*96dots, 6 lines, digital, backlight/Alphanumeric keyboard with backlight/On both face | |||
Control paner location | on both face | |||
Data storage-Internal memory | 20000 points | |||
Data storage-plug-in memory | SD card, USB flash memory (max.16G) | |||
Data Communication | RS-232C, SD CARD, USB, MINI USB, Blue tooth (optional) | |||
Power supply | ||||
Type | Li-ion, Rechargeable | |||
Voltage | DC 7.4V 3400mah | |||
Continuous operation time | 16hrs | |||
General | ||||
Dust and water protection | IP55 | |||
Operating temperature | -20ºC to 50ºC | |||
Size and handle | 220 × 184 × 360mm | |||
Weight with battery & tribrach | 5.5kg | |||
Optional Accessories

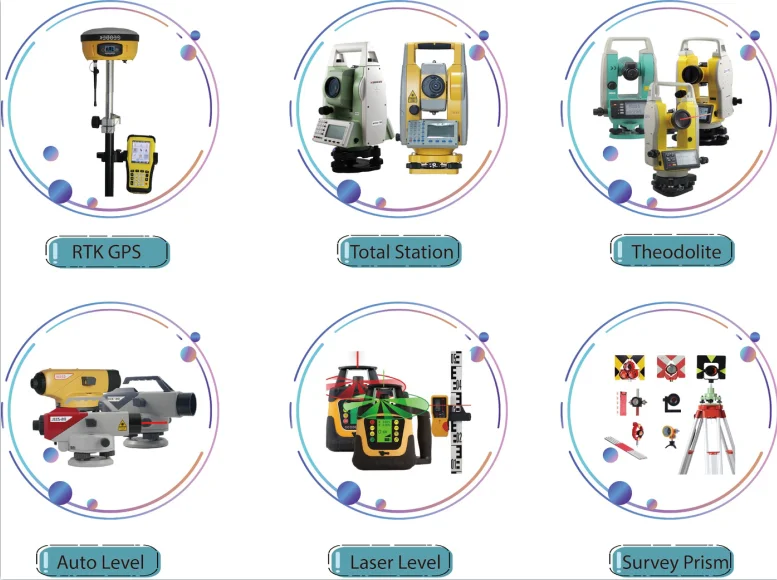

Full range of geodetic surveying instruments which we have been specializing includes Drone UAV, RTK GPS/GNSS Surveying System,handheld GPS/GNSS, Total Station, theodolite, automatic levels, digital level, laser level and Surveying Prisms, Surveying Accessories ect. Welcome to contact us.
