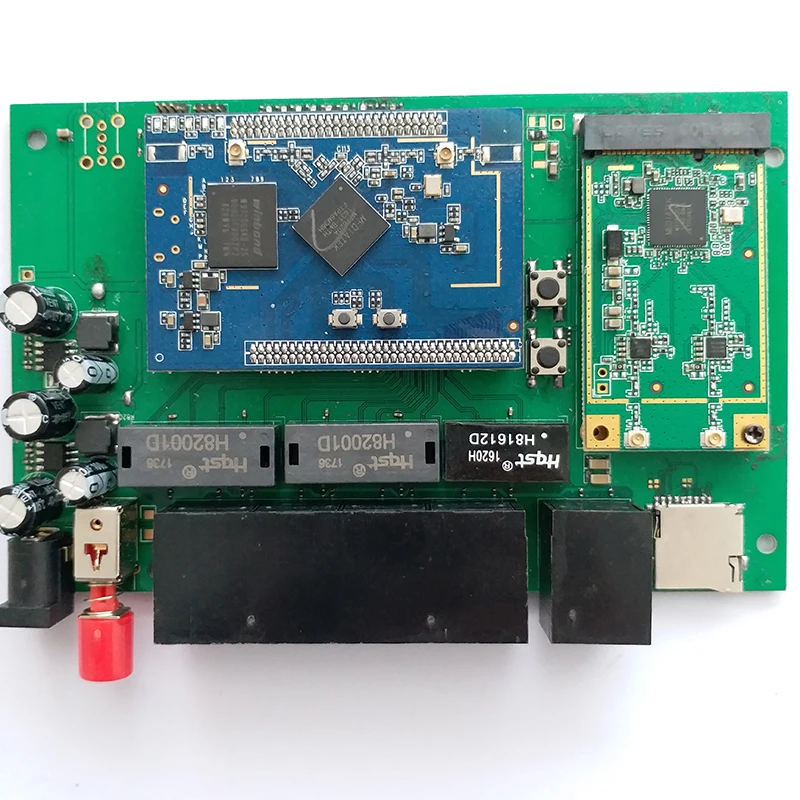

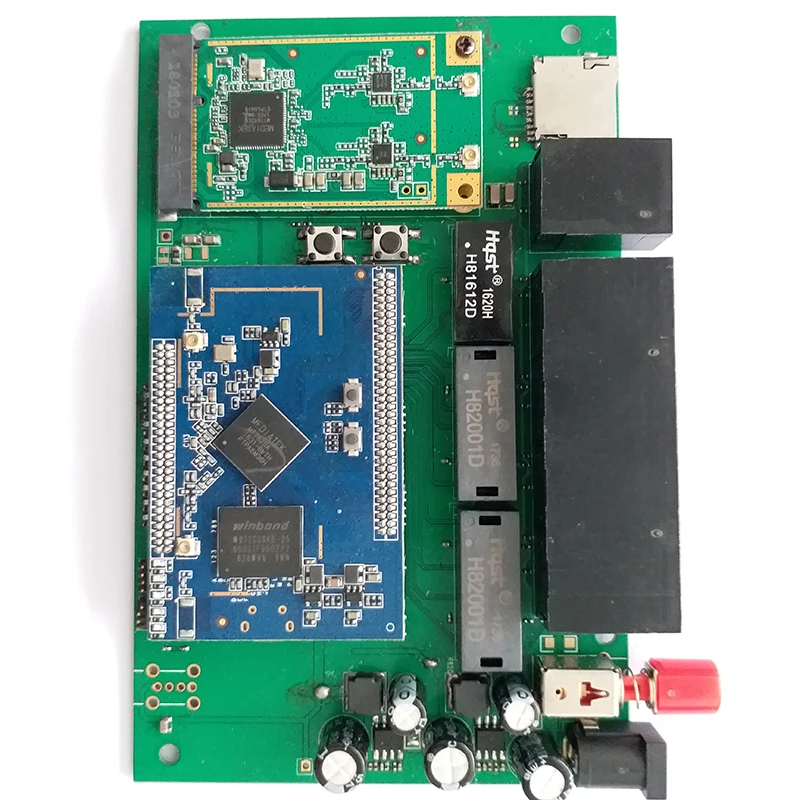

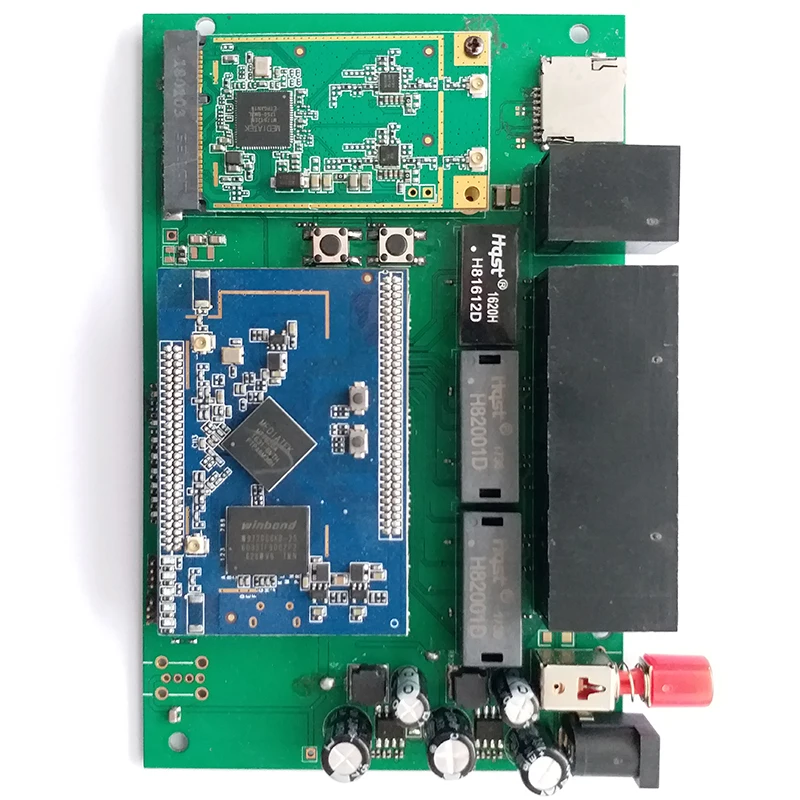

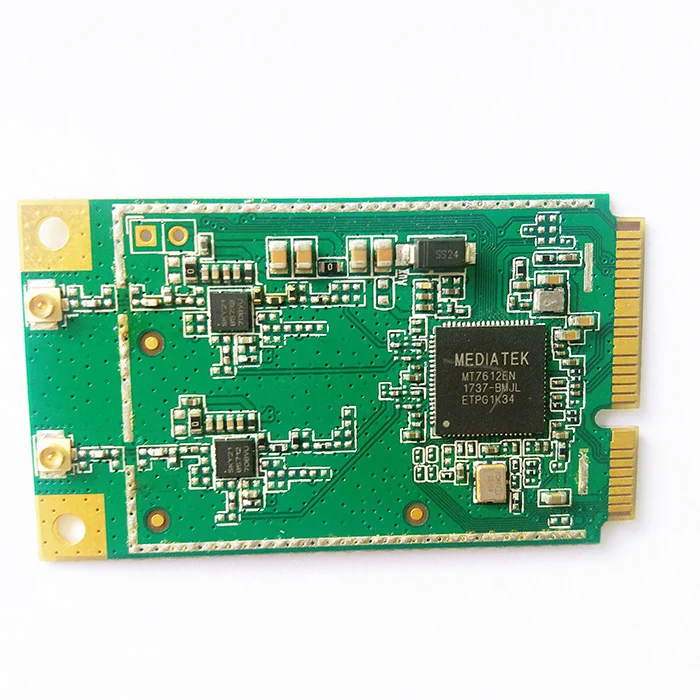

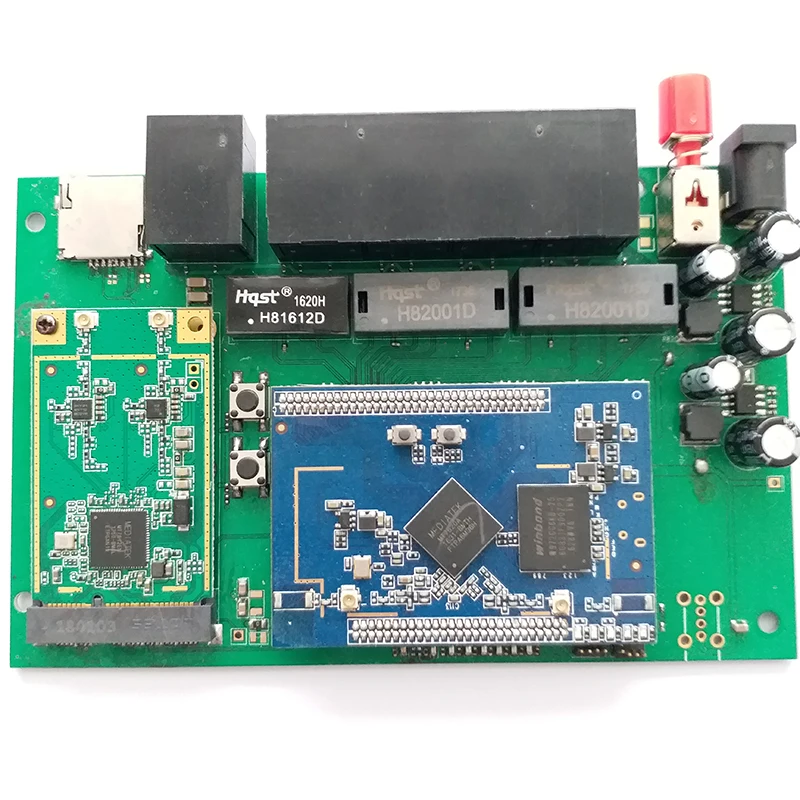

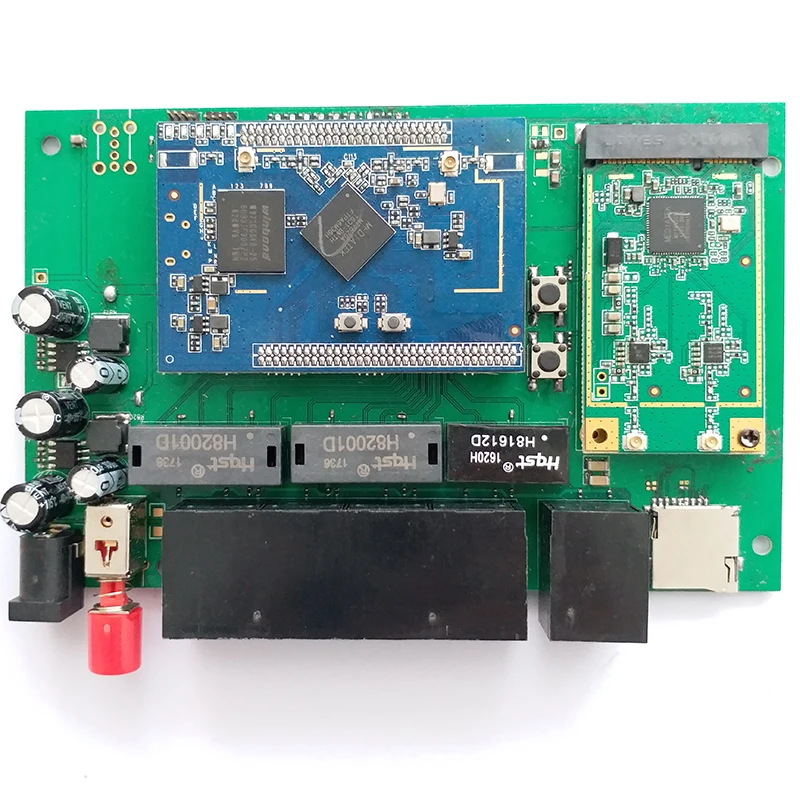

5Ghz MT7620A MT7612 5G Openwrt Wifi Module

Genaral Description

The MT7620A MT7612E wifi module includes an 802.11n MAC and baseband, a 2.4 GHz radio and FEM, a 580 MHz MIPS® 24K™ CPU core, a 5-port 10/100 switch and two RGMII.The MT7620 includes everything  needed to build an AP router from a single chip. The embedded high  performance CPU can  process  advanced applications  effortlessly,  such as routing, security and VoIP. The MT7620 also includes a  selection of interfaces to support a variety of applications, such as a USB port for accessing external storage.

Features

Embedded MIPS24KEc (580 MHz) with 64 KB I-Cache and 32 KB D-Cache

2T2R 2.4 GHz with 300 Mbps PHY data rate

Legacy 802.11b/g and HT 802.11n modes

20/40 MHz channel bandwidth

Legacy 802.11b/g and HT 802.11n modes

Reverse Data Grant (RDG)

Maximal Ratio Combining (MRC)

Space Time Block Coding (STBC)

16-bit SDRAM up to 64 Mbytes

16-bit DDR1/2 up to 128/256 Mbytes (MT7620A)

SPI, NAND Flash/SD-XC

1x USB 2.0, 1x PCIe host/device

1-port 10/100 SW and two RGMII

An optimized PMU

Green AP

 Intelligent Clock Scaling (exclusive)

 DDRII: ODT off, Self-refresh mode

 SDRAM: Pre-charge power down

I2C, I2S, SPI, PCM, UART, JTAG, MDC, MDIO, GPIO

Applications:

1.Routers

2.iNICs

3.NAS devices

4.Dual band concurrent routers

General Specification
