Milk filling bottling machine prices
- Category: >>>
- Supplier: Shenzhen Kisen Drinking Water Equipment Co. Ltd.
Share on (60832964033):
Product Overview
Description

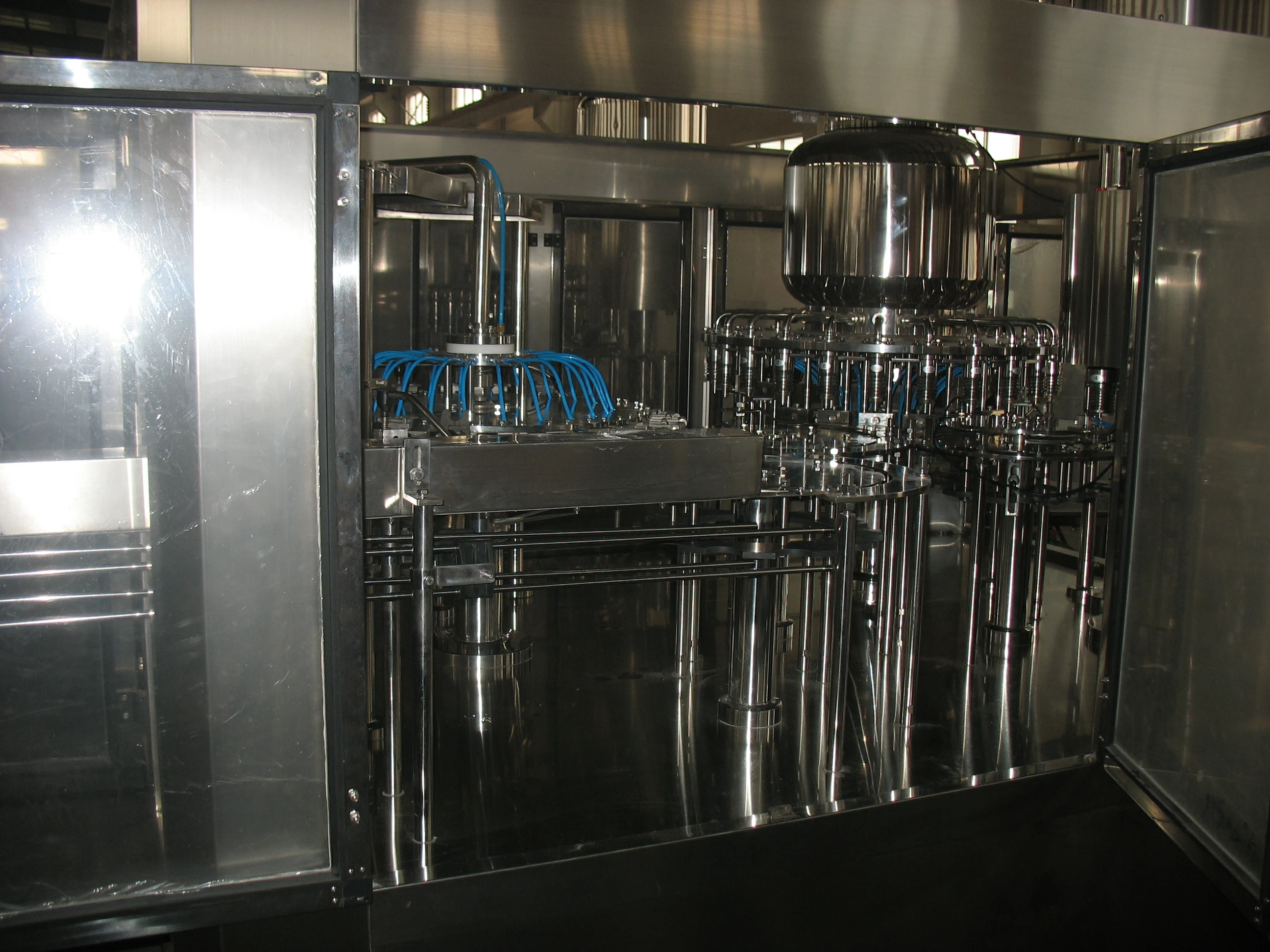

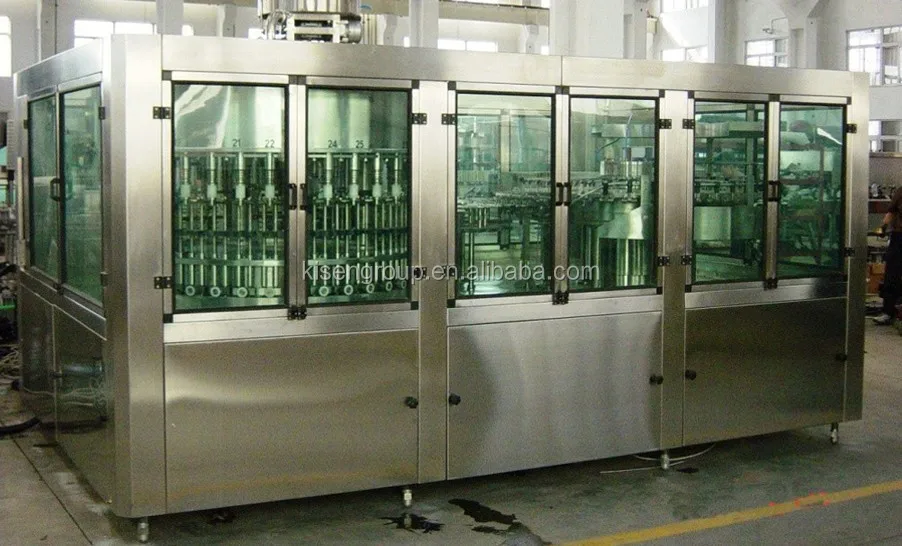

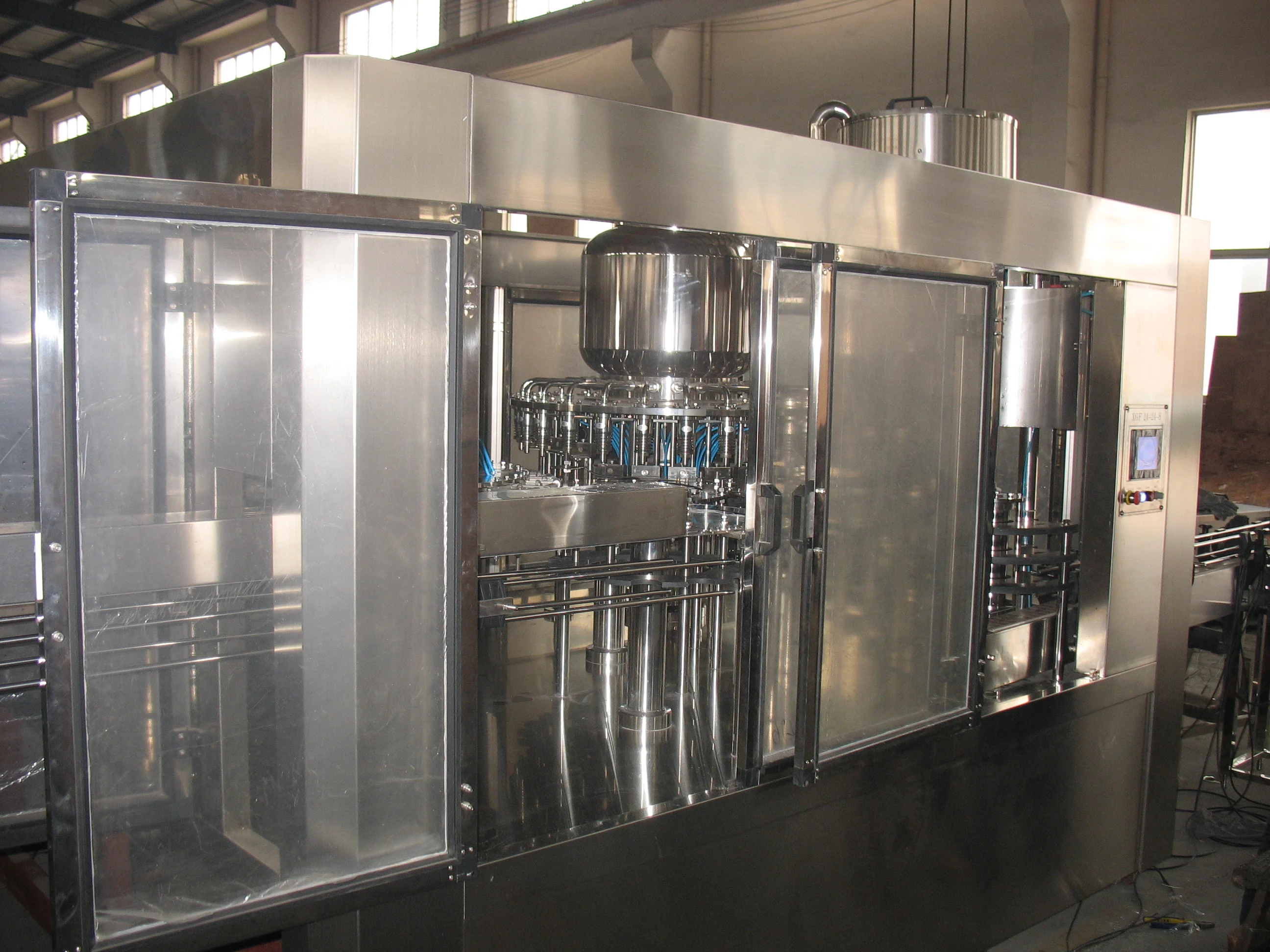

RCGF40-40-15 milk filling bottling machine prices
This milk filling bottling machine prices China shanghai,is a full automatic filling production line,the filling capping 3in1 machine can do filling-dropper inserting-capping,full customized according to products sample,with high speed and high precision.reasonable in design.and beautiful in appearance.As our main products,We have exported this machine to many countries before,we much experience in this machine
Main Description Of milk filling bottling machine prices
Rinsing
-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

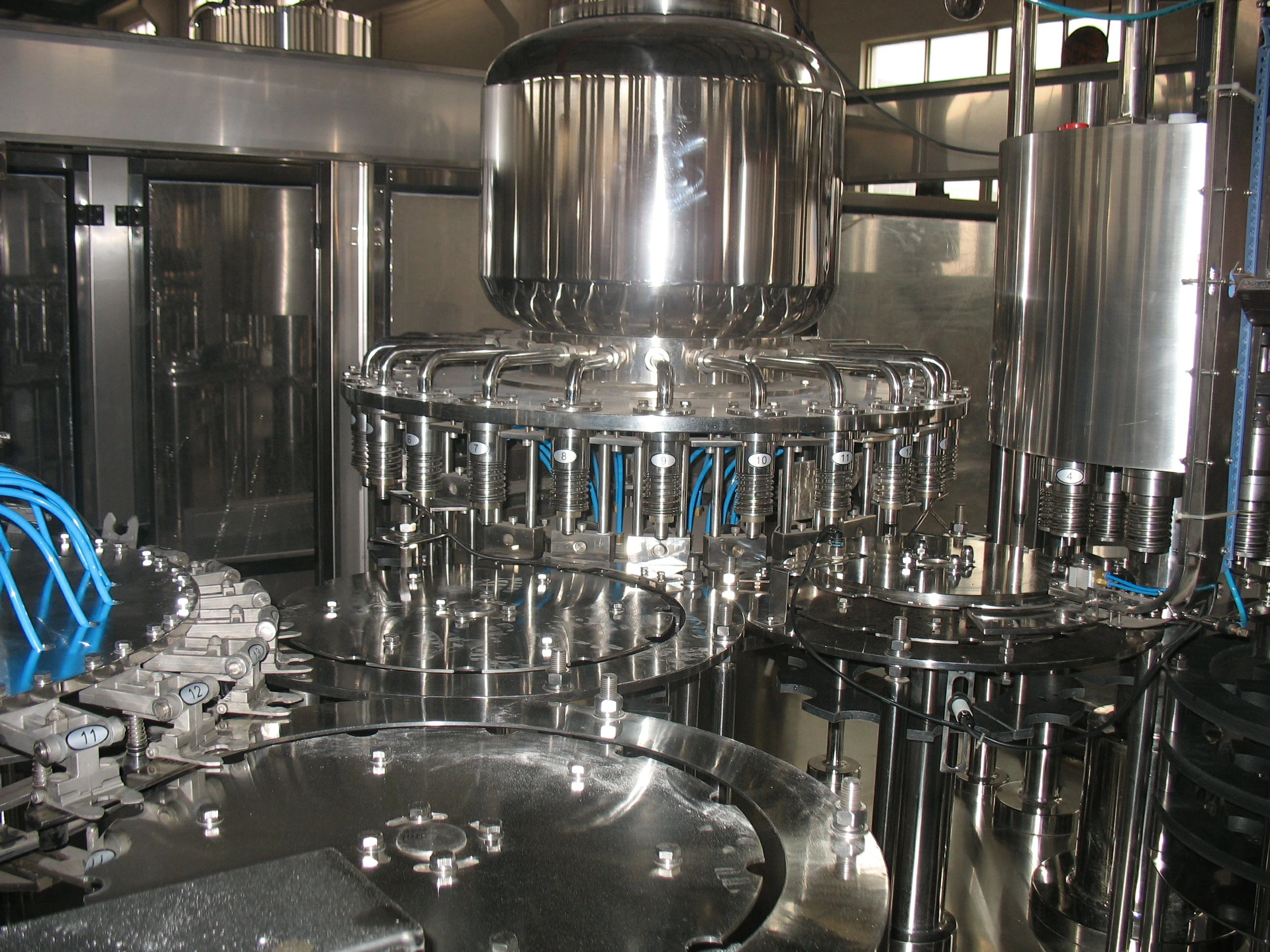

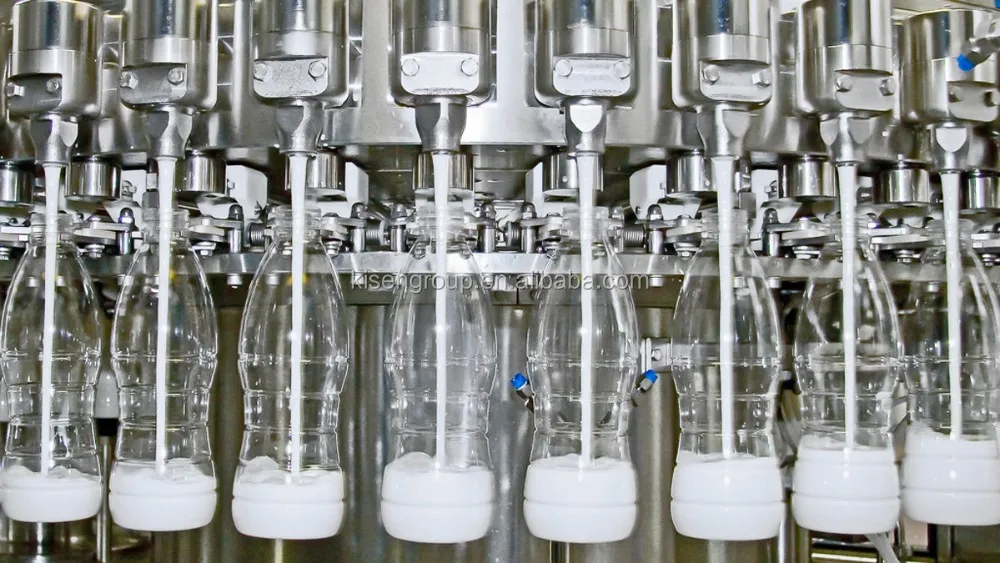

Filling
-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

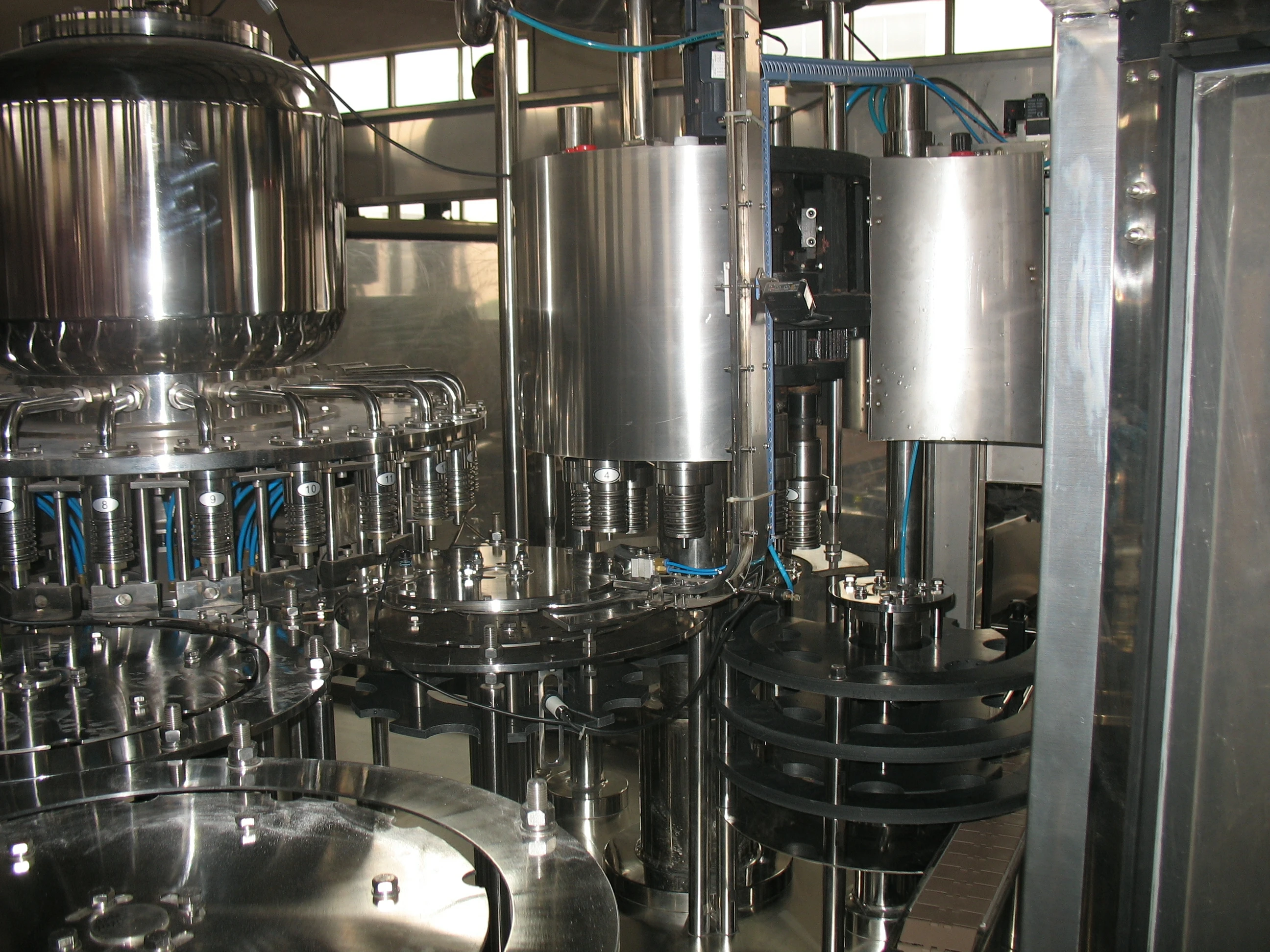

Capping
-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Model | RCGF 8-8-3 | RCGF12-12-6 | RCGZ18-18-6 | RCGZ24-24-8 | RCGZ32-32-10 | RCGZ40-40-10 |
Washing No | 8 | 12 | 18 | 24 | 32 | 40 |
Filling No | 8 | 12 | 18 | 24 | 32 | 40 |
Capping No | 3 | 6 | 6 | 8 | 10 | 10 |
Production capacity(500ml b/h) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 |
Installed Capacity(kw) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 |
Overall size | 2250*1800*2400 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 |
Related Products
PET Bottle Blowing Machine:
Small Bottle Filling Machine:
5Gallon Bottle Filling Machine:
Sachet Water Filling Machine:
Company Information
Shenzhen Kisen Drinking Water Equipment Co.,Ltd.was founded in 2016, It is the leading manufacturers and suppliers of water filter system,Ro water treatment plant/Mineral water plant,water bottling machines and liquid filling machine for the pure water, mineral/spring water carbonated drink, juice beverage,pet bottle blowing machine,plastic moulding machine and water pouch packing machine in South of China. We have been dedicated to make it easy for customer to open one water bottling plant.
We provide over 70 types of products, including water purification machine,Ro water purifier, bottle washing filling capping machine, blow molding machine, bottle labeling & packing machine and more.Moreover,Shenzhen Kisen Drinking Water Equipment Co.,Ltd. has found markets in over 60 countries Eritrea, Tanzania, Seychelles Libya, Morocco, Guinea, Liberia, Ghana, Nigeria, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of Congo, Zambia, Angola Botswana, South Africa, Mauritius, Iraq, Qatar,India, Sri Lanka, Burma,Russia, Malaysia, Philippines, Azerbaijan,Suriname, Peru,United States.
Our vision: Make it easy to start bottled water business.
Shenzhen Kisen Drinking Water Equipment Co.,Ltd. believes that only our customers achieve sustainably economic success and then we can develop and grow together. Our corporate philosophy and decision-making strictly follow this principle.
We listen carefully to our customers and study their ideas, and then offer high quality, customized and feasible products. Of course, it is far from enough.
We regard every customer as our partners, and provide service, support and advice for factory planning, installation, training, operation and product marketing from an integrated perspective, no matter if they buy individual components or complete production lines.
All the machines and equipments we sold have gone through goverment inspection before shipment, and come with regular spare parts and tools, and plus our excellent after-sales service, which in the long run, can avoid many expensive downtimes for our customers.
