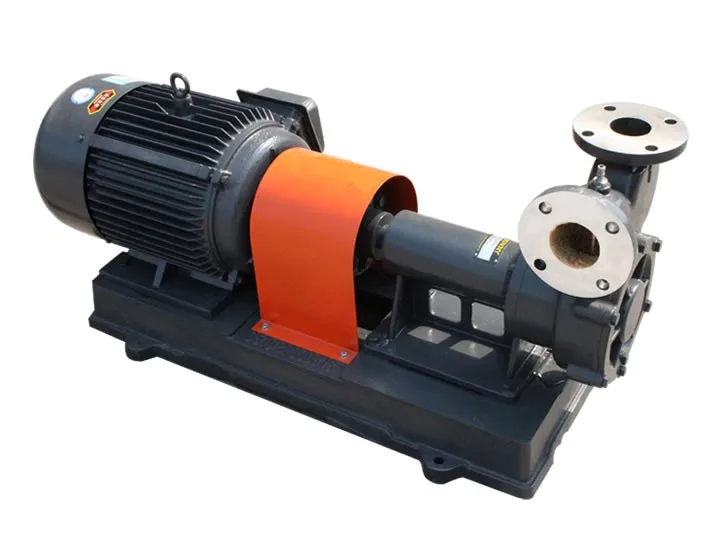

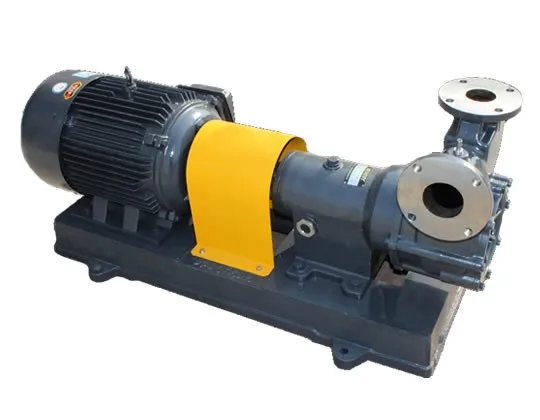

Stainless steel nano bubble nozzle, micro nano air bubble generator pump for ozone/oxygen water system

Product Overview

Description

Stainless steel nano bubble nozzle, micro nano air bubble generator pump for ozone/oxygen water system



Feature

* It can suck water while sucking gas and pressurize and mix them inside it. Ultra fine air bubble

20~30µ. It renders a good gas liquid solving effect.

* It has stable performances, high efficiency and low noise level, and its gas liquid solving efficiency

is as high as twice that of the traditional mode.

* When it is used in air suspension unit, air compressors, various mixers, high pressure air solving

tanks and releasers may be saved and thus the weakness of instable air supply and boiling of large

air bubble which likely occur in traditional working model will be eliminated.

* When it is used in ozone water preparing equipment, many mixers and large oxidation towers

may be saved and thus the cost for equipment will be greatly reduced. In addition, its gas liquid

solving ratio may exceed 95%.

* It is simple in structure and operation, easy in maintenance and durable and needs less components.

It has a good self suction capacity and a wide application range.



Applications

* Air suspension treating equipment, ozone water preparing equipment, and biological treatment

equipment.

* Feeding of heating or cooling medium for various temperature adjusting devices.

* Various filters: sucking or high pressure transferring low viscosity liquid from underground tank,

such as gasoline and various solvent.

* Misting treatment of clear water, pure water, foods, chemical solution and waste solution.

* Strict applications (continuous running, abruot variation in hydraulic pressure): such as small

scale stream boiler, high building water supply, high pressure water injection to high pressure tank,

and suction from vacuum tank.

* Sampling from river or tank, transfer foamable liquid, transfer liquid through long and horizontal

pipeline, where air pockets likely occur.



Working condition

* ZA and ZAL designed for clear and low viscosity liquid, or liquid containing extra-fine foreign

matters.

* ZAB and ZALB design for clear and low viscosity liquid, or explosive flammable liquid which

containing very little solids.

* Liquid temperature: -150C ~ 1200C

* Maximum ambient temperature: +400C

* Gas-liquid ratio 1:9 (Gas suction volume 8~10%)

* Inlet: horizontal, Outlet: Vertical



Specification

Item	20ZA-1SS	20ZA-1DS	25ZA-2SS	25ZA-2DS	40ZA-6SS	50ZA-12
Head of delivery	40M				50M
Flow rate	1T/Hr		2T/Hr		6T/Hr	12T/Hr
Water input size	0.75’’		1’’		1.5’’	2’’
Water output size	0.5’’		0.75’’		1.2’’	1.5’’
Power	0.55Kw		1.1Kw		3Kw	5.5Kw
Voltage	380V	220V	380V	220V	380V	380V
Speed	2900r/min
Size of Tank	φ200×320mm (3mm thickness)				φ273×720mm (3mm thickness)



Product show

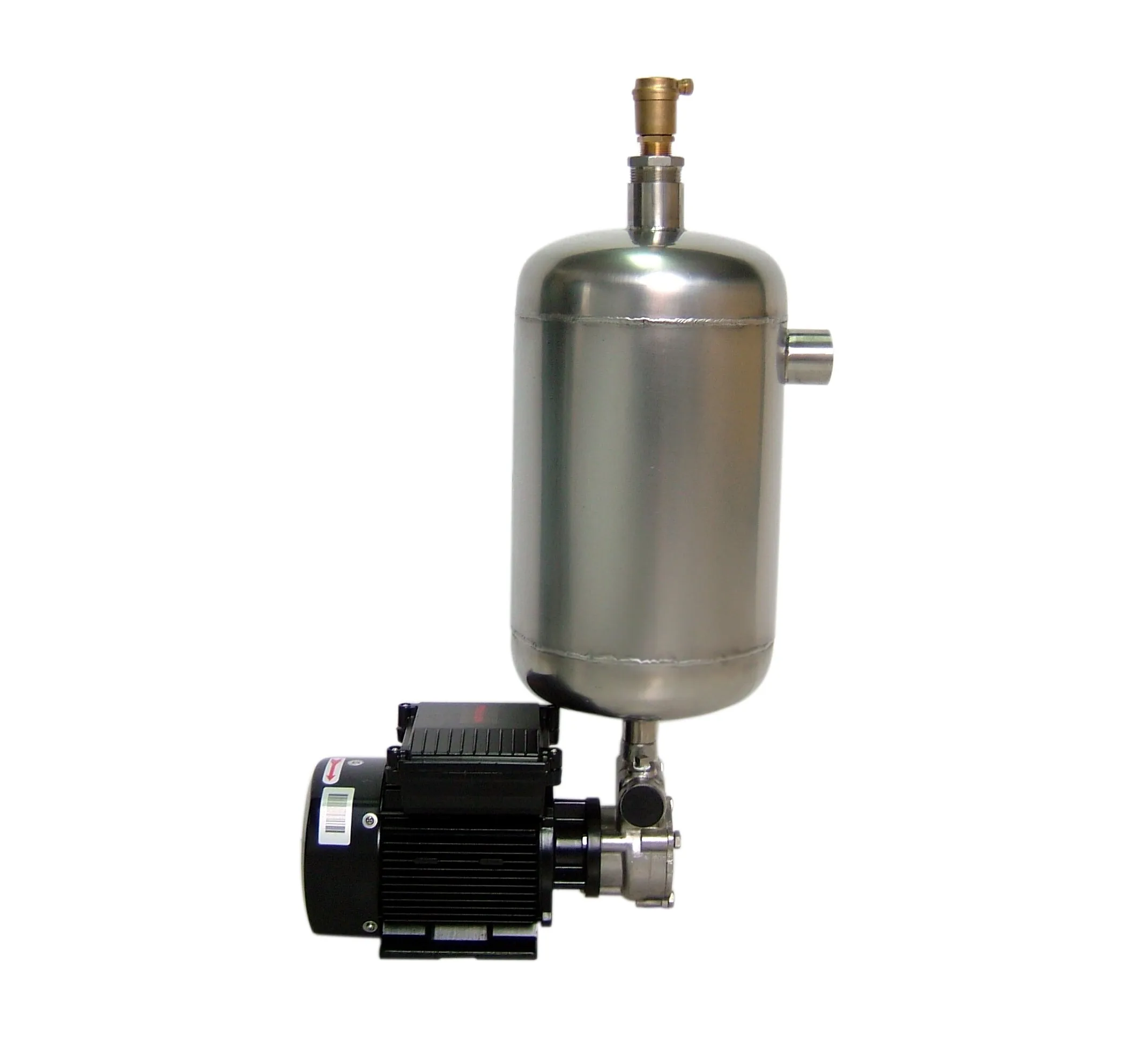

Mixing Tank



Nano Bubble Generator Assembled With Oxygen Or Ozone Machine For Water Treatment



Other mixing equipment

Air Diffuser With Diameter 100mm, 150mm, 180mm

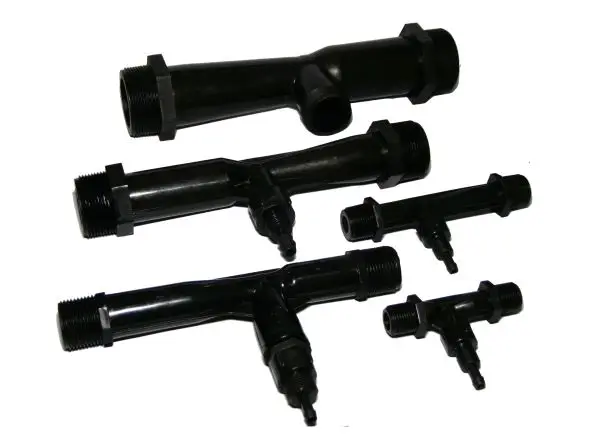

Venturi With Water Flow 0.05T/H-50T/Hr



Static Mixing Pipe

UV Tank

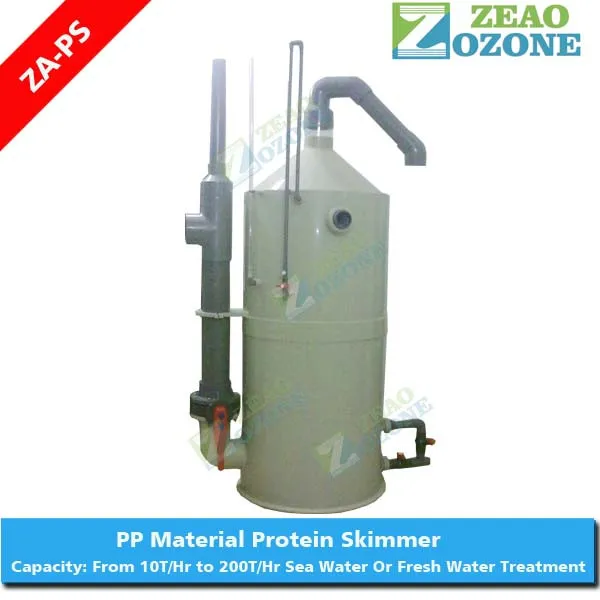

Sea / Fresh Water Aquaculture Protein Skimmer 10-200T/H



Packing detail

1.  Foam and carton for each unit

2.  Carton for small unit and wooden case for large unit.



Delivery term

1. By express. DHL / UPS / Fedex express usually takes about 3-5 working days

to the destination.

2. By sea or by air.

3. We will send out the goods within 3 working days for small conventional products

order after payment confirmed



Payment term

Welcome to pay by T/T, Western Union, Paypal, etc.



Quality guarantee

1.Committed to the standardization of the ozone market, Zeao make strict control of

every step from assembling to packing. All the products must be tested and qualified

before packaging.

2. The warranty is one year.
