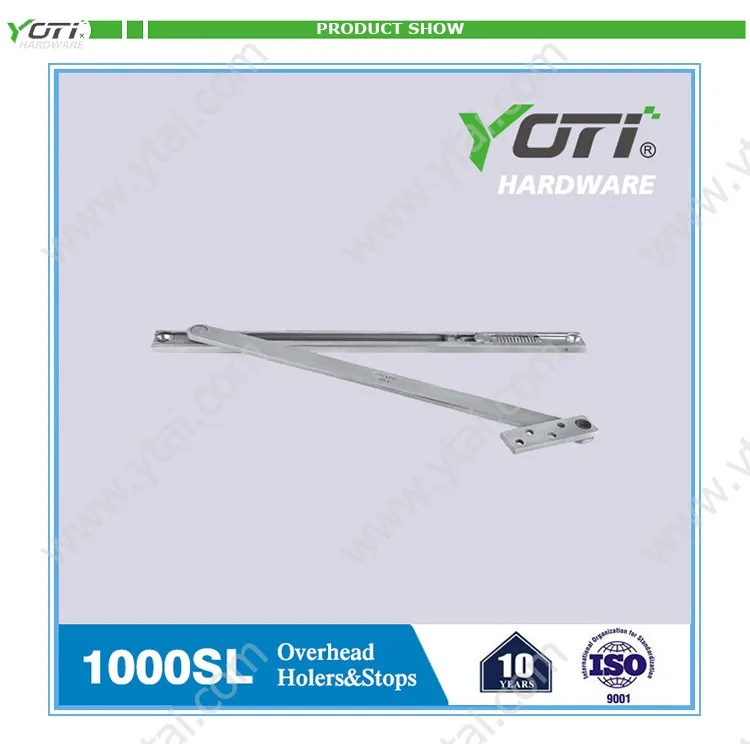

1000SL Series Concealed Mount Heavy Duty Slim Line Overhead Holders&Stops
1000SL Series Concealed Mount Heavy Duty Slim Line Overhead Holders&Stops

1000SL Series Concealed Mount Heavy Duty Slim Line Overhead Holders&Stops

Share on (60833014949):


Price:

Quantity:


Product Overview

Description


Product Description

◇ Concealed mount

◇ Heavy duty


◇  Slim line channel designed for aluminum store front doors

◇ Stop, hold-open functions available

◇ Single or double acting doors

◇ Non-handed

◇For Interior or exterior use on frequent traffic and heavy weight doors

◇ Standard installation from 85° to 110° of opening(5° increments)

◇ Shock absorbing spring provides 3° to 5° cushion before dead-stop

◇ 1-3/4" minimum door thickness


◇ Average weight per unit = 5 lbs.

\t
Door Frame Opening
\t
Model Number
\t
Hinges
or Offset Pivots
\t
Center Hung
\t
Hold Open
\t
Stop
\t
27" - 29-15/16"
\t
30" - 32-15/16"
\t
1011SL
\t
1021SL
\t
30" - 35-15/16"
\t
33" - 38-15/16"
\t
1012SL
\t
1022SL
\t
36" - 39-15/16"
\t
39" - 42-15/16"
\t
1013SL
\t
1023SL
\t
40" - 43-15/16"
\t
43" - 46-15/16"
\t
1014SL
\t
1024SL
\t
44" - 52"
\t
47" - 54"
\t
1015SL
\t
1025SL
