Micro Materials Depolymerizing Grinding Mill Model Turbo Mills
- Category: >>>
- Supplier: Shandong Alpa Powder Technology Co. Ltd.
Share on (60833055136):
Product Overview
Description
Products Description

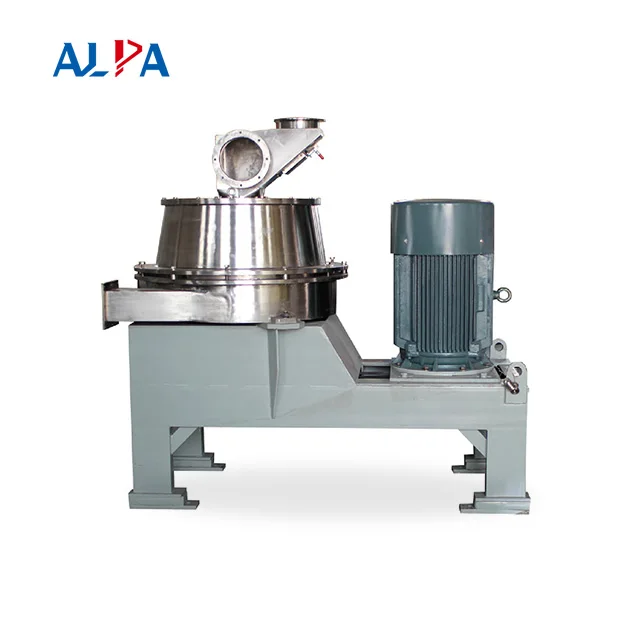

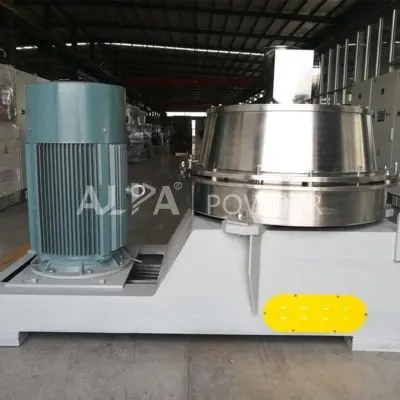

Micro Materials Depolymerizing Grinding Mill Model Turbo Mills
FEATURES AND ADVANTAGES
* Available D50:1～250μm
* Conic rotor and stator are installed, product fineness and output can be controlled by adjusting the gap between the rotor and the stator.
* The rotor and the stator are made of special wear-resistant steel and thus have long service life.
* The linear speed of grinding rotor can be up to 130m/s, high grinding effect.
* Large air volume and low grinding temperature, suitable for sensitization of heat sensitive and fibrous materials, uniform
product size.
* Powerful eddy current flow field, material is grinded instantly, material retention time in the chamber is short, no
temperature rise.
* Adjustable the gap between grinding rotor and ring gear, to achieve different grinding force.
* Suitable for depolymerizing nano and micron material.
* Alloy material rotor, high-speed dynamic balance, up to 6 layers of wear-resistant powder plate, guarantees excellent grinding effect.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* Multi-purpose machine, can realize coating and dispersing integration through external hot air source, full coating,
temperature controllable, free from environmental influence, good coating effect.
* Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
* Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.
* Conic rotor and stator are installed, product fineness and output can be controlled by adjusting the gap between the rotor and the stator.
* The rotor and the stator are made of special wear-resistant steel and thus have long service life.
* The linear speed of grinding rotor can be up to 130m/s, high grinding effect.
* Large air volume and low grinding temperature, suitable for sensitization of heat sensitive and fibrous materials, uniform
product size.
* Powerful eddy current flow field, material is grinded instantly, material retention time in the chamber is short, no
temperature rise.
* Adjustable the gap between grinding rotor and ring gear, to achieve different grinding force.
* Suitable for depolymerizing nano and micron material.
* Alloy material rotor, high-speed dynamic balance, up to 6 layers of wear-resistant powder plate, guarantees excellent grinding effect.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* Multi-purpose machine, can realize coating and dispersing integration through external hot air source, full coating,
temperature controllable, free from environmental influence, good coating effect.
* Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
* Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.
Working principle
WORKING PRINCIPLE
The material is uniformly fed into the grinding zone by feeding system and strongly impacted by the high-speed rotating grinding disc.
The grinding rotor is composed of a multi-layer grinding disc and a plurality of grinding blades, the material is subjected
to various grinding forces such as shearing, collision, friction etc and finished grinding.
to various grinding forces such as shearing, collision, friction etc and finished grinding.

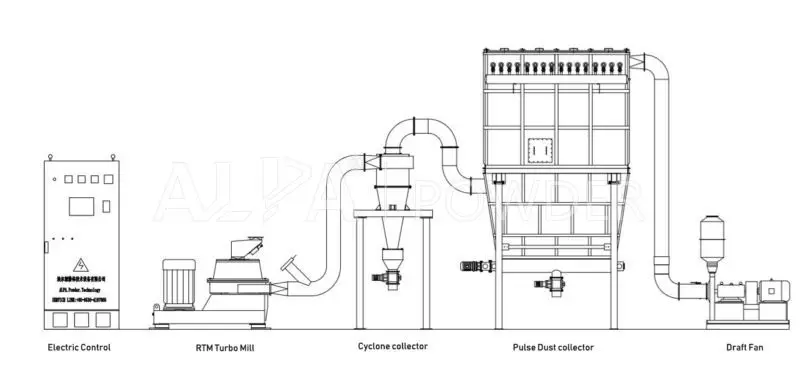

The qualified materials are collected into the collection zone with the ascending airflow, the coarse materials are returned to the grinding zone for secondary grinding.
Parameters
TECHNICAL PARAMETERS
Parameters/specifications | Rotor Diameter (mm) | Power (kw) | Rotate Speed (Max r/min) | Maximal Air Volume （m3/h） | Fineness （um） | Output(kg/h) |
RTM－300H | 300 | 18.5~22 | 7550 | 1600 | 5~250 | 30~800 |
RTM－500H | 500 | 45 | 4700 | 2400 | 5~250 | 80~2000 |
RTM－750V | 750 | 55~75 | 3000 | 3600 | 5~250 | 100~3000 |
RTM－1000V | 1000 | 90~110 | 2250 | 4800 | 5~250 | 200~4500 |
RTM－1250V | 1250 | 110~132 | 2250 | 6000 | 5~250 | 300~6000 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.

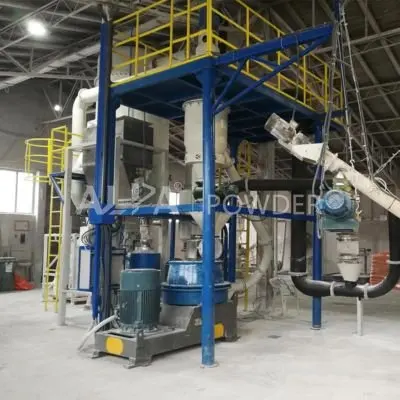

Engineering Cases
Related Engineering Case
Malaysia a mineral factory
light calcium carbonate dispersion and coating, output 1T/H, particle size D97:5-10μm, 2 sets of Roller Turbo Mill Production Line.
Serbia a mineral factory
heavy calcium carbonate coating, output 750KG/H, particle size D97:10μm, 2 sets of Roller Turbo Mill Production Line.
Cooperative Customers
Common choice of many well-known companies
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and
engineering technology research centers have selected ALPA.
More than 3,000 customers have chosen us.
FAQ
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
