Shipping to Israel Automatic Powder Coating Line Used Powder Sprayer Spray Paint Machine

Product Overview

Description

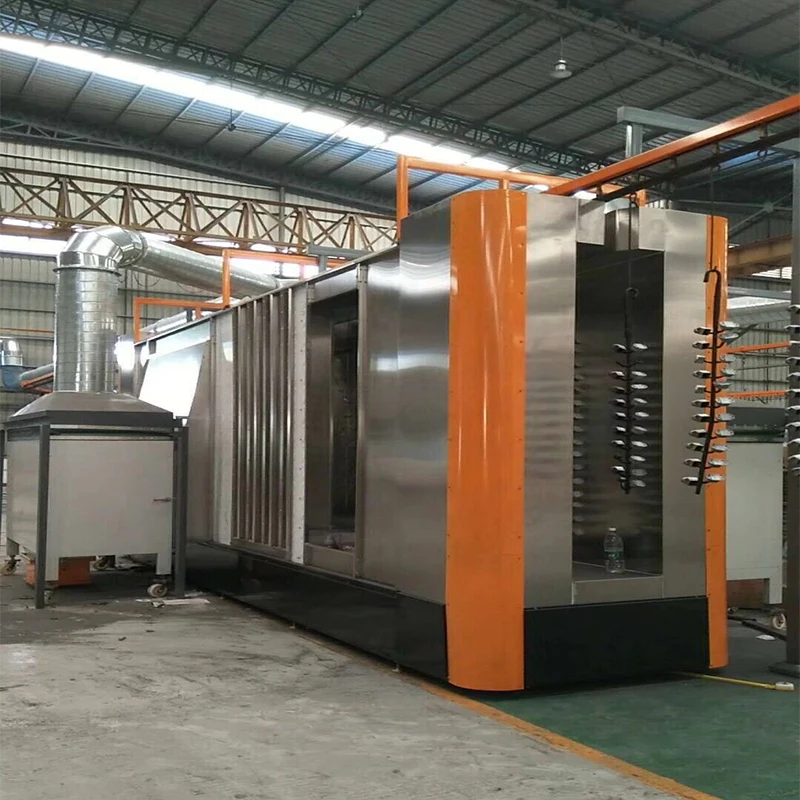

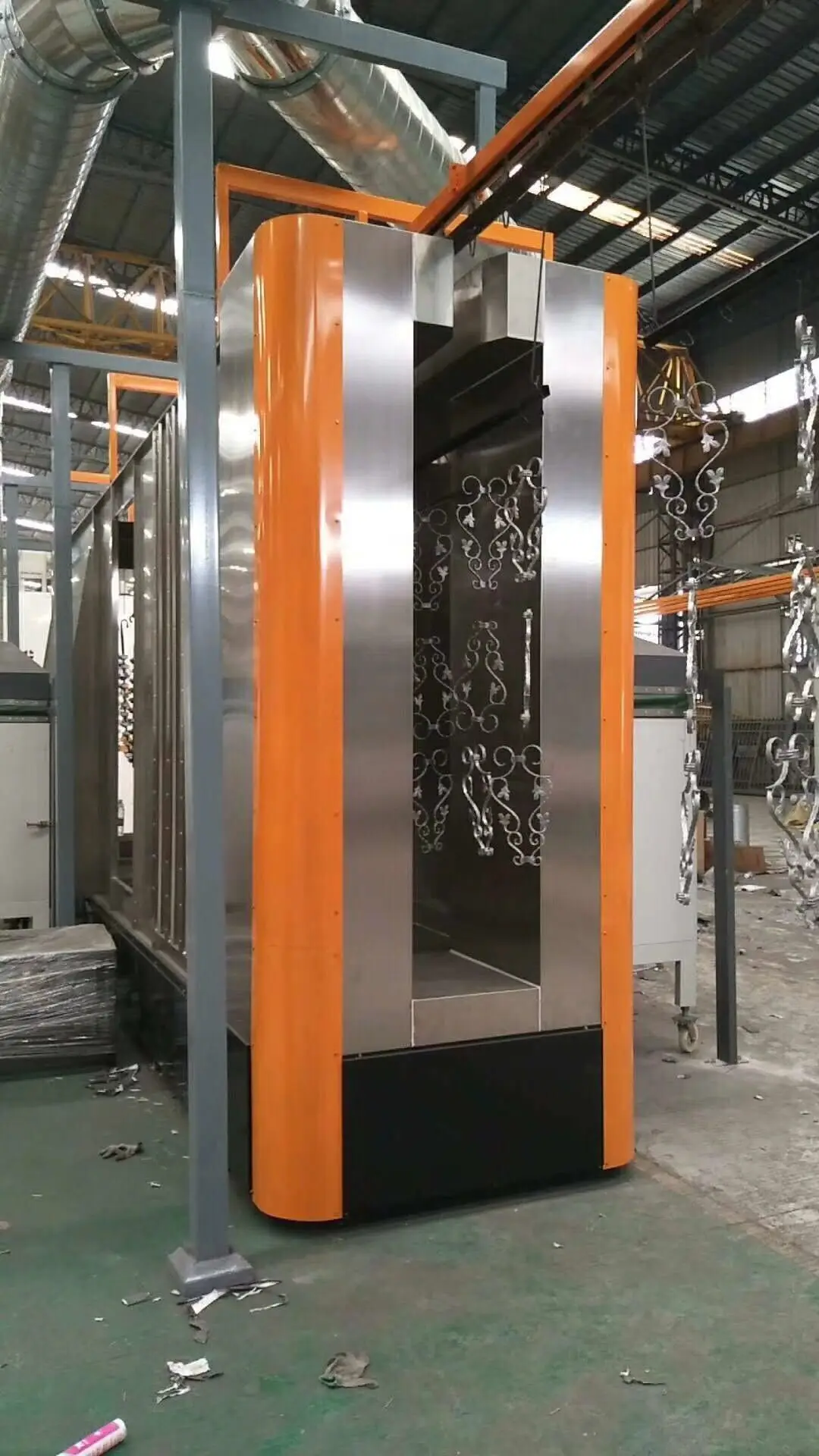

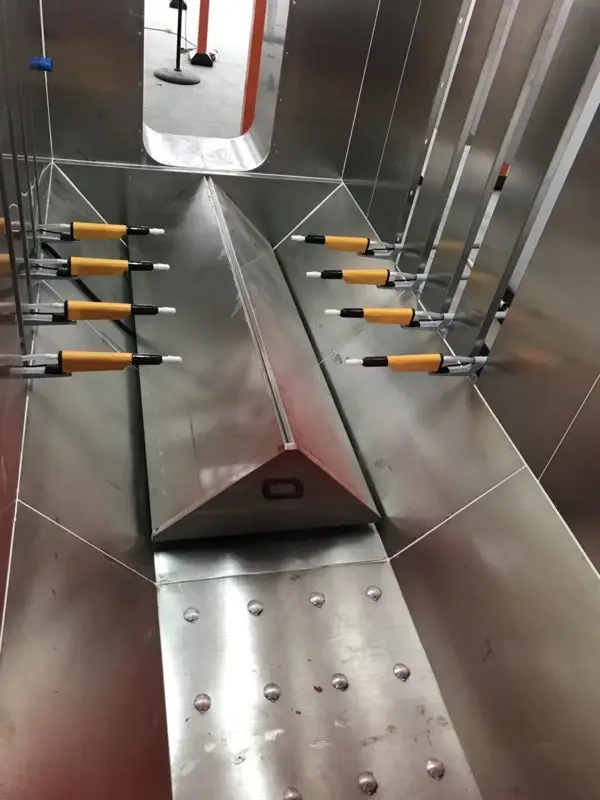

The Benefits of A Stainless steel Booth

Stable construction, smooth walled design;

High grade stainless steel;

Low powder adhesion easy to clean;

A horizontal booth floor which can be walked on;

Powder extraction belt as an option.

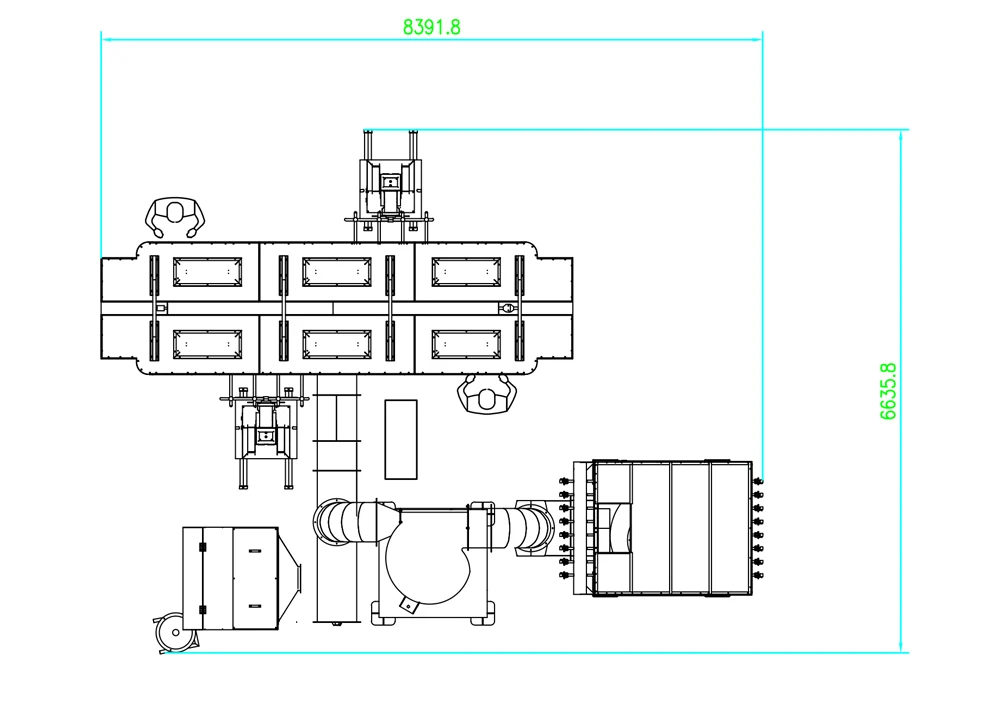

Design Drawing of Steel Powder Paint Booth

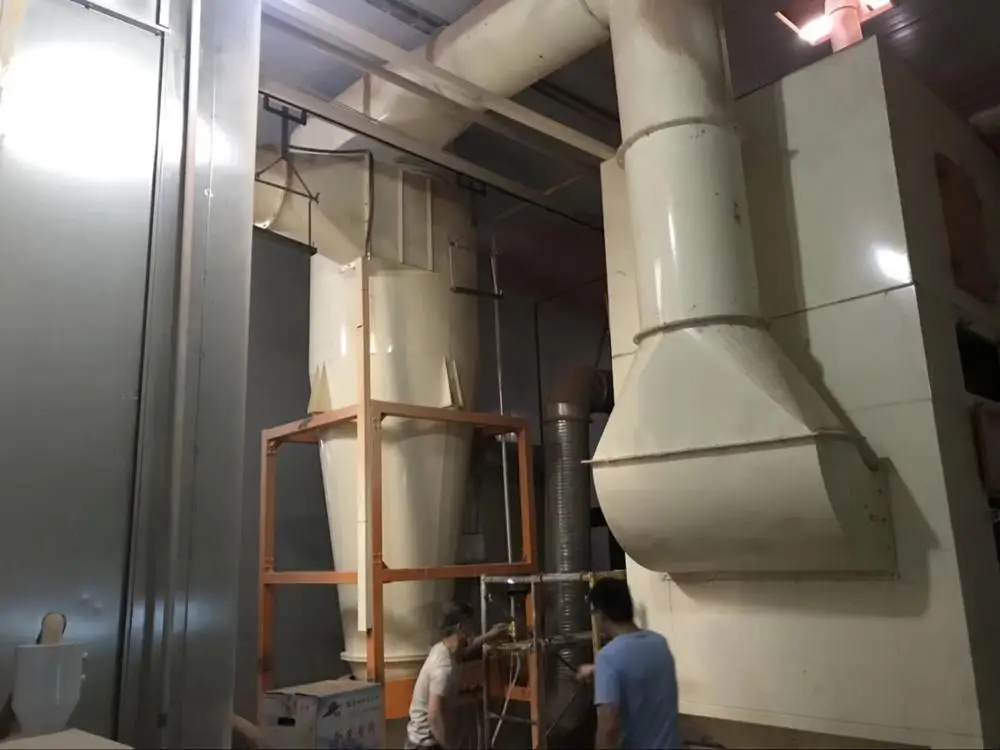

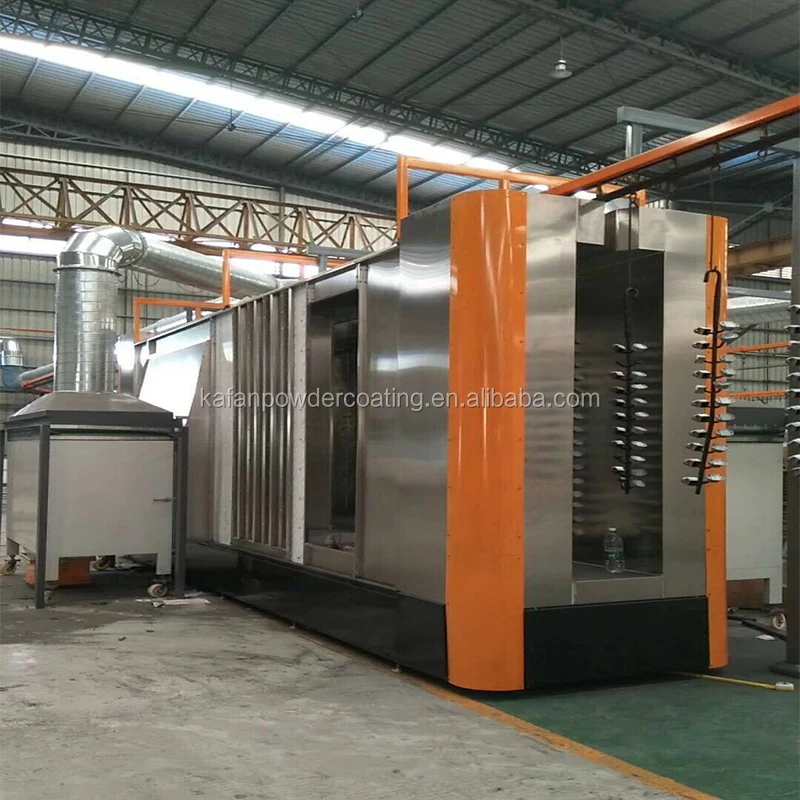

Mono-cyclong Powder Painting Booth

In the cyclone based powder coating plant & booth, over sprayed powder get collected in the Hopper and due to high velocity-suction, it get carried to cyclone. In the cyclone, with spiral action, Powder get collected in the container and air goes out through ducting. This collected powder can be reuse. High velocity suction is created with centrifugal fan. In this system cyclone provided are of single or twin design to achieve high efficiency of Collecting powder.



Technical Parameters(Size can customized according to request)

Model	KF-S-Basic Type	KF-S-Cyclone	KF-S-B-02
Work size	D6000*W800*2000	D6000*W800*2000	D6000*W800*2000
Overall size	D6000*W1200*2500	D6000*W1200*2500	D6000*W1200*2500

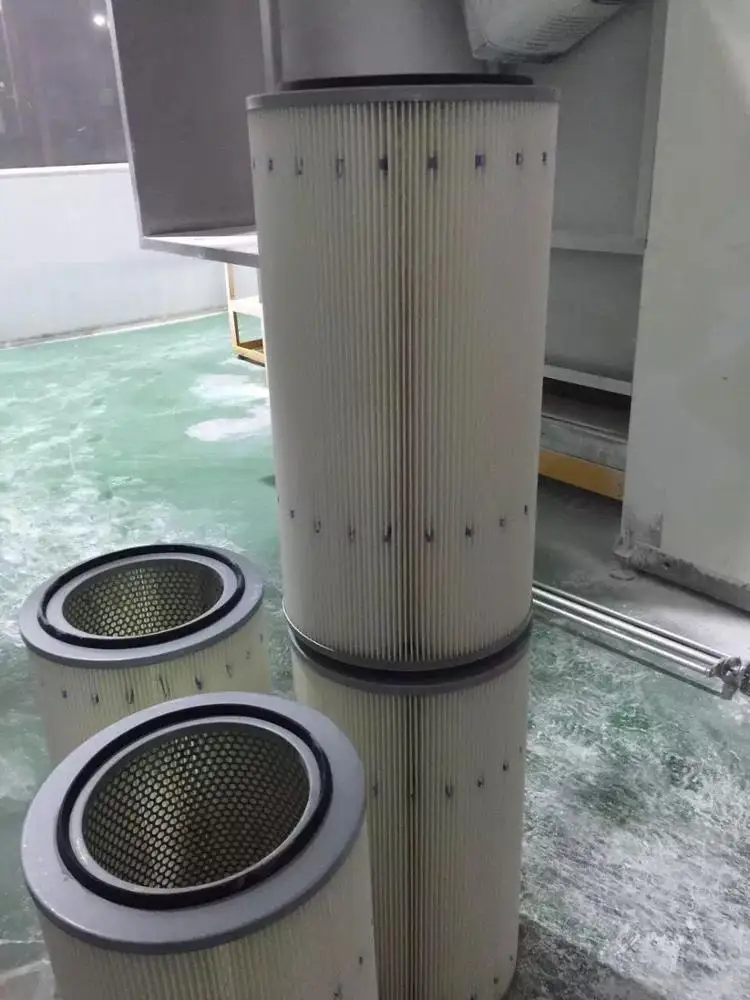

Recovery system	Cyclone/filters	Cyclone/filters	Cyclone/filters
Filter account	325*900mm,1 2pcs	9pcs	16pcs
Air consumption	10,200m3/h
Nominal power	3.5KW	15KW	15KW
Filter cleaning system	Pneumatic	Pneumatic	Pneumatic
Voltage	380V/415V	380V/415V	380V/415V
Frequency	50-60HZ	50-60HZ	50-60HZ
Weight	1250kg	1500kg	15700kg

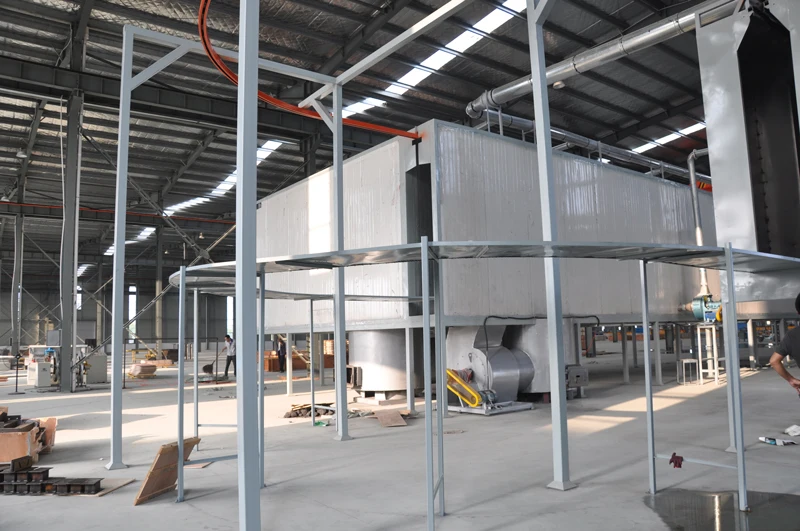

Powder Coating Set Process

1. Pretreatment/Sandblaster -- 2. Dry oven -- 3. Paint booth, auto gun, manual gun, reciprocators -- 4. Curing Oven -- 5.  Download workpieces











Package&Shipment

Every time a package is a reflection of the heart. The first layer of KAFAN uses high-quality pearl cotton entanglement, which is then bound in a wooden box to ensure that it will not collide and damage during shipping. When you receive our goods, you will be satisfied.





KaFan Company

Kafan is a new brand under COLO group, whose people has specialized in powder coating equipment for more than 10 years. Our CEO Sally has worked on world market for more than 15 years, whose knowledge and experience in the powder coating industry leads our team enlarged year by year. Our products covers:electrostatic powder coating gun, powder spray booth, powder coating oven, powder coating line and some spare parts. Such one-stop purchasing facilitate customers buy what they want.Whether for powder coating beginners or update projects, Kafan’s powder coating system optimize the application and operation. As an professional manufacturer, we devoted to supplying most innovative and reliable powder coating system solution with powerful production capacity and advanced technology. Kafan located in Hangzhou, China, we own a manufacturing base of 6000 square meters, around 150employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, admin department and finance department, etc.



Ours Certificates
