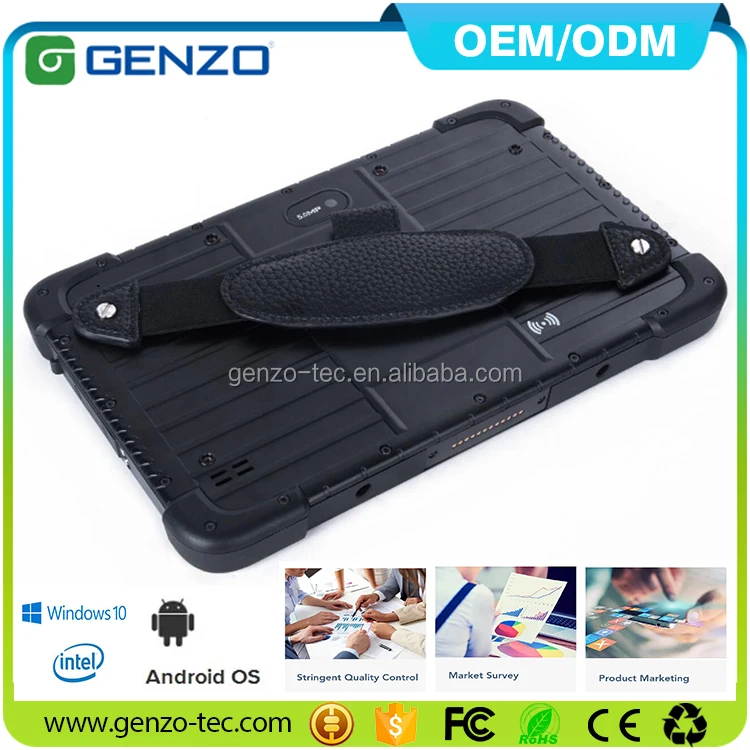

8 inch 4GB RAM 64GB SSD Rugged 4G LTE GPS For Industrial Tablet Windows 10 Tablet PC With RFID/2D Barcode Scanner

Share on (60833067322):


Price:RUB 41,994.82

Quantity:


Product Overview

Description

8 inch 4GB RAM 64GB SSD Rugged 4G-LTE GPS For Industrial Tablet Windows 10 Tablet PC With RFID/2D Barcode Scanner

Product Description

R&D,MANUFACTURE,INDUSTRY RUGGED TABLET & TERMINAL PRODUCTS SOLUTIONS PROVIDER

Features:

1.Support Win10/Win10 PRO/Android 5.1 system;
2.Support USB 2.0*1 (Host)for windows, Android   OTG  x1;
4.Support 4G-LTE;
5.Support GPS navigation U-blox NEO-7;
6.Rugged IP67 protection level;
7.Support high strength Glass Touch Panel And Stylus;

8.NXP NFC 13.56MHz /1D/2D Barcode Scanner Optional
9.Support Wrist Strap,Docking Charging Station and Car holder(bracket).



Specification

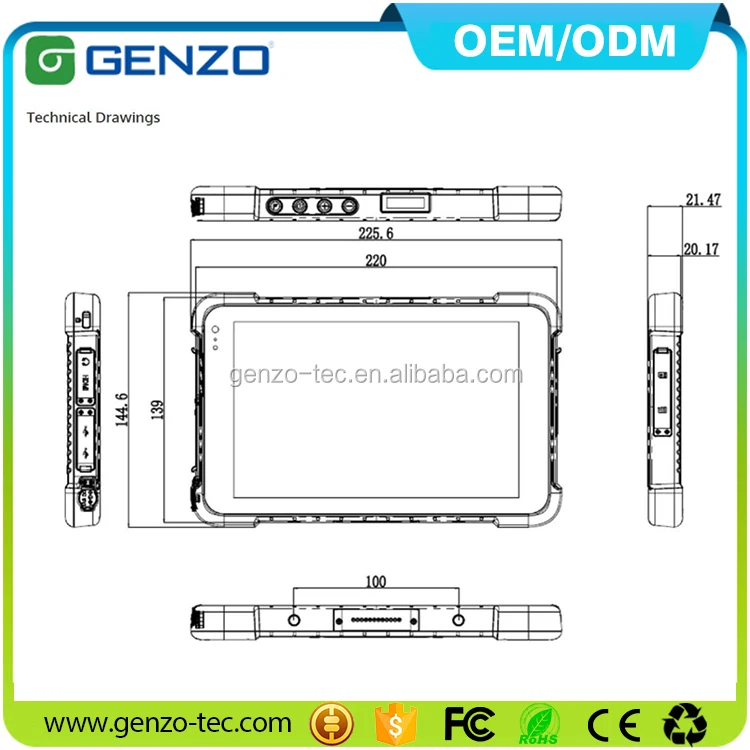

Size/Weight 220*143*14mm, Device Unit: 750g
CPU Intel® Atom™ x5-Z8350
OS Win10 home (Windows 10 Pro OS Optional),Android 5.1
LCD 8"   (16:10 1280x800 IPS) 400 Nit,
TP Multipoints Capacitive,G+G,10 points touch,support stylus(Only Windows OS) And Touch Gloves
RAM 4GB DDR3L
Flash 64GB        (32GB/128GB Optional)  , Support SDHC/SDXC   x1  Max:128G
Wi-Fi 802.11 a/b/g/n (2.4G/5.8G dual band wifi)
Camera Front 2.0MP with indicator light+Back 5.0 MP
BT BT4.2 (BLE) class1.5 transmission distance:10m
Battery

3.7V/7800mAH,If Choose 3G Network,the battery is 8500mAh.

9hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video)

Speaker Embedded 8Ω/0.8W BOX waterproof speaker  x 1
Sensor G-sensor,Light sensor,range sensor,gyroscope,Electronic compass
3G Optional
4G-LTE LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
NFC

Support 13.56 mhz   Optional

1D/2D

1D MOTO  SE655/2D Scanner MOTO SE4710/MOTO 2707 Optional

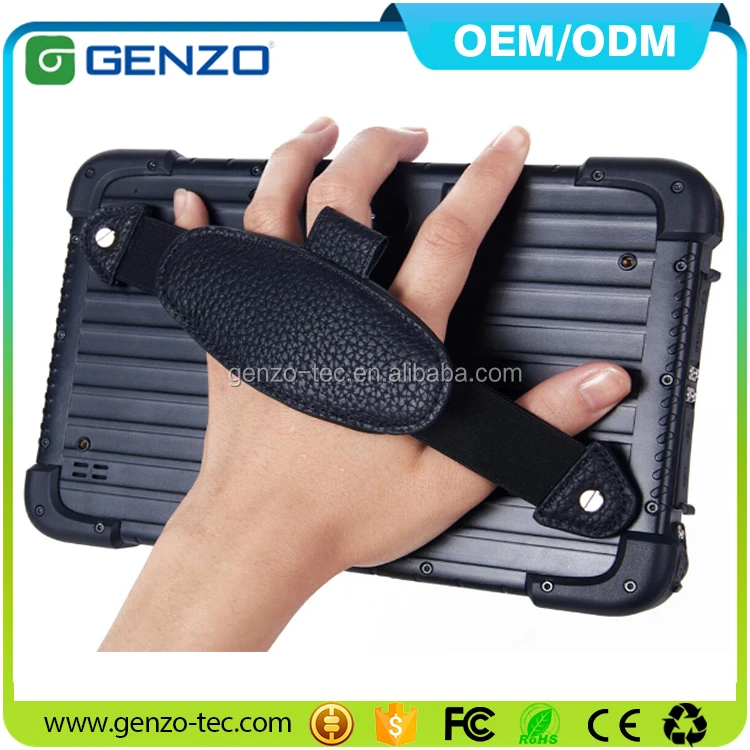

Straps Extensible belt on the back case, convenient to hold
Writing pen Support capacitive hand writing pen Only Windows OS
GPS U-blox NEO-7,support:GLONASS,QZSS,GPS;Capture sensitivity::-160 dBm;Cool Start Time:<30 seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz (configurable)

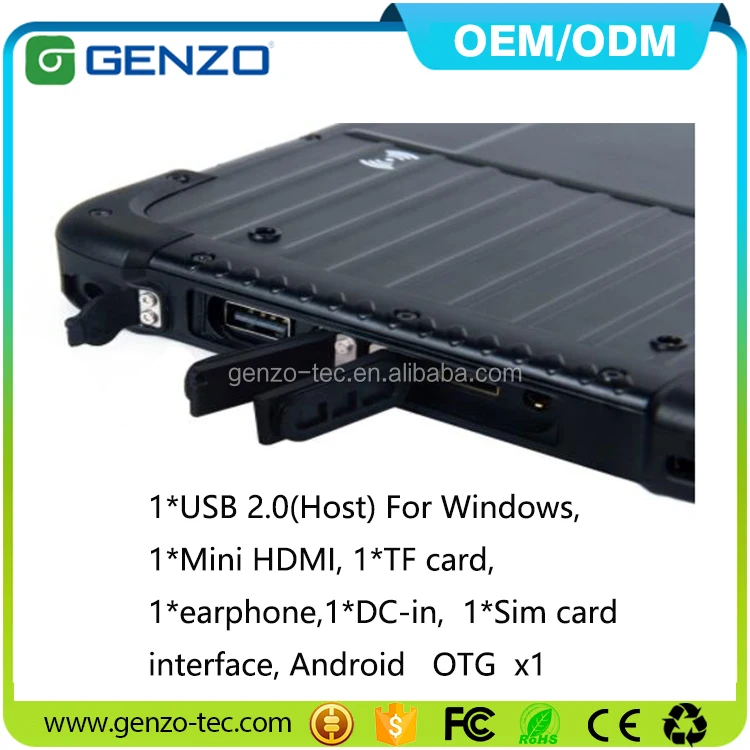

Port

SIM card*1 ,     3.5mm  standard earphone jackx1,   DC 5V 3A 3.5mm Power connector  x1,   HDMI 1.4a  x1,

USB 2.0*1(Host)for windows,  Android OTG  x1,     12pin Pogo Pin x1 (Support Docking Charging Station)

Key

Power key x1,power key x1,Volume + - x2

USB connector USB 2.0*1 (Host)for windows ,      Android   OTG  x1
Drop Height

1.2m floors, in operation status,  Sample work well.

Operate Temperature

-10 °C to 50 °C (-20 °C to 60 °C optional)

Store Temperature

-30 °C to 70 °C,

Humidity

95% Non-Condensing

IP67

Method name:short time submerging test
test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then,the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min

After test,there is no water leakage in sample.

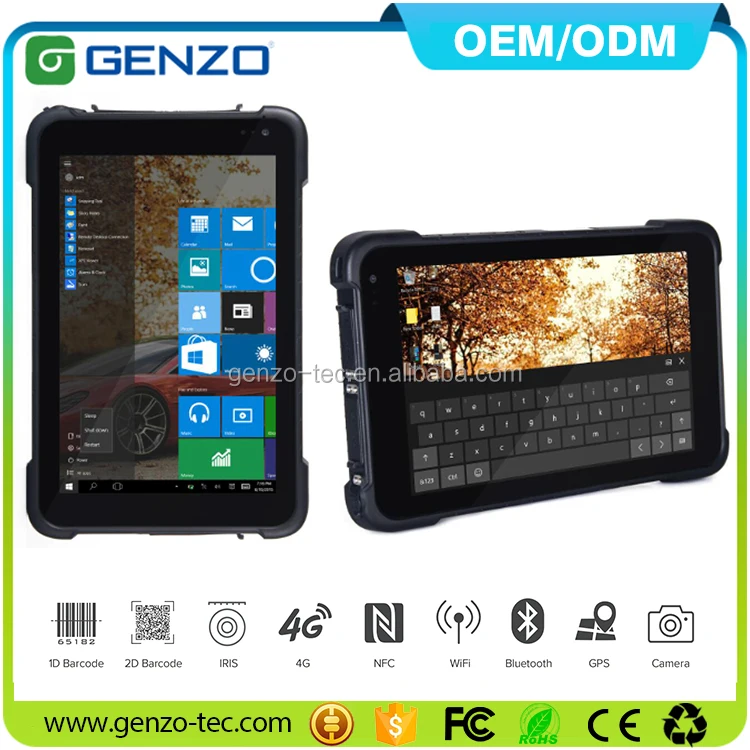

Product Pictures

CDGD1HHolder20 Other Modles3M-3M

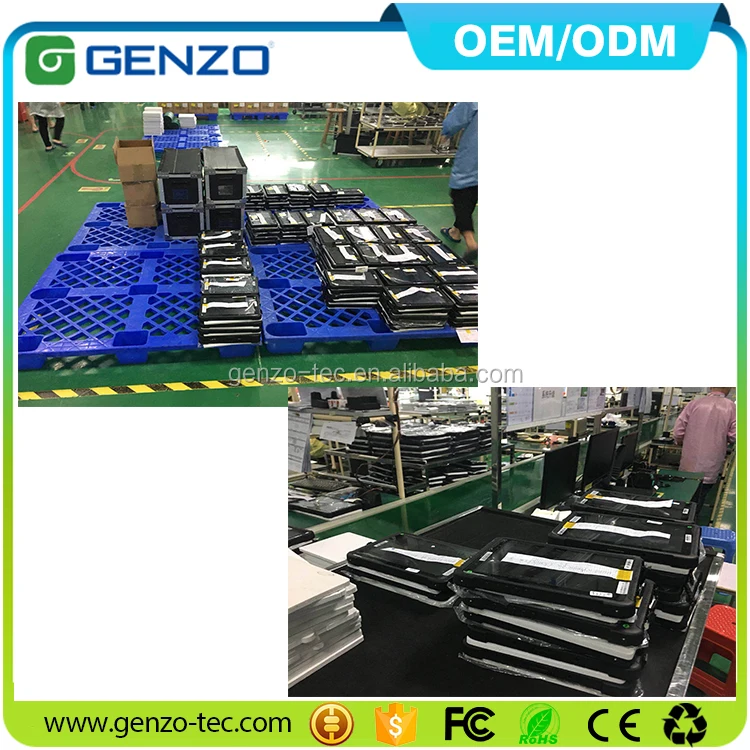

Packaging Shipping






Company Pntroduction

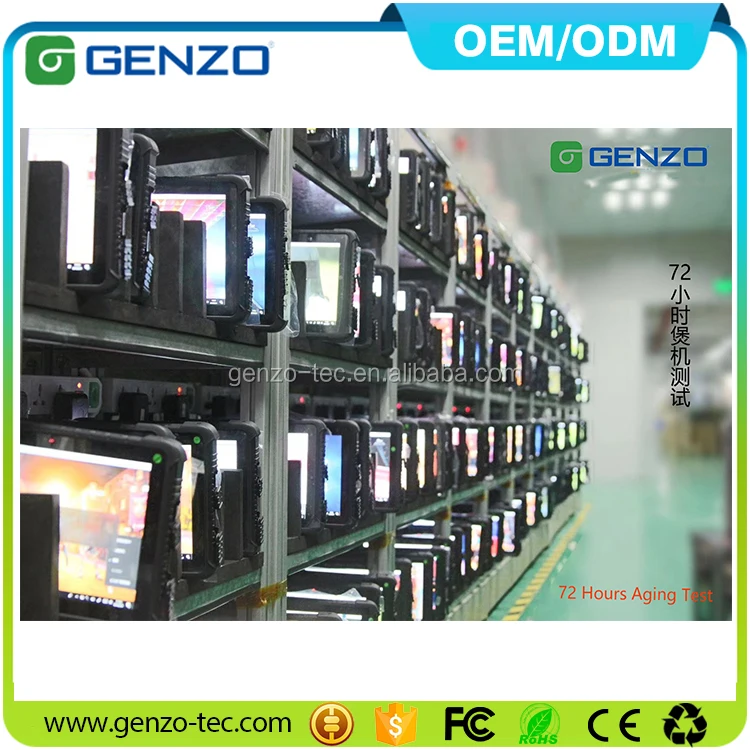

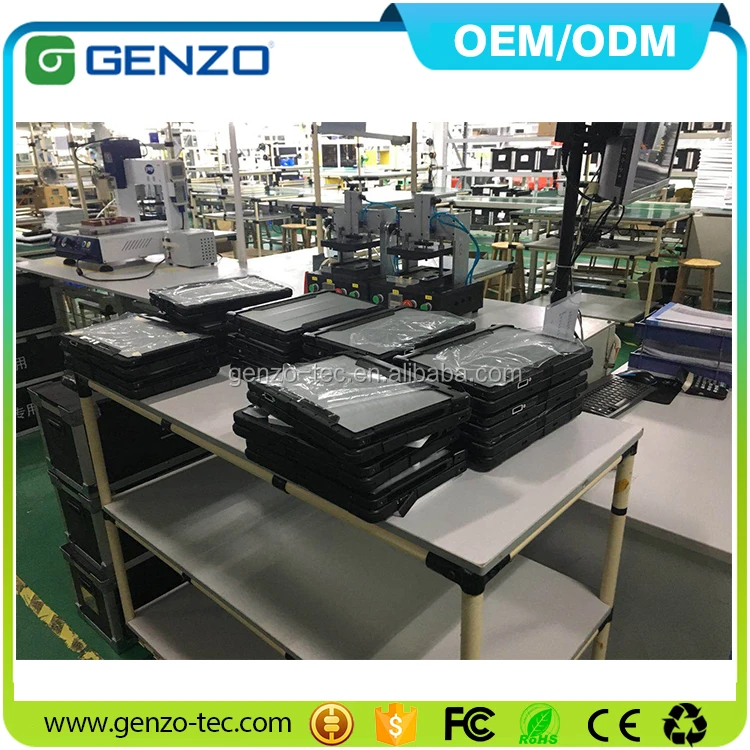

Factory Pictures






Certificate




Our Service

OEM&ODM:

We accept OEM&ODM for customer's request. It includes:


1. Burn customer's logo name as Boot Animation name.

2. Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR file for customer's own design.

4. Usuer Manual,customer can choice different languages and put them together.

5. Customer's Master Carton design are acceptable.



6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.





Warranty:

For all our products,we offer 14 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.



Why choose us?


1. We are China leading
Rugged Tablet & PDA  manufacturer.


2. Alibaba Gold Supplier.


3. Inspected by the inspection of Bureau Veritas Certification.


4. 100% QC inspection before shippment.


5. Best quality & service with competitive price.



FAQ



1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").


2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.


3.Q: How can I get some samples?
   A: We are honored to offer you samples.


4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our
        factory has gained CE, FCC, ROHS certification.
