FG-TH series professional machine vision led back light for industrial inspection emitting





    We are professional manufacturer of machine vision led lights. We have a wide range of our products, high quality, long service life, low price. We are direct marketing manufacturer. Now, we are looking for the agents and wholesalers all over the world sincerely. Expecting your joining!

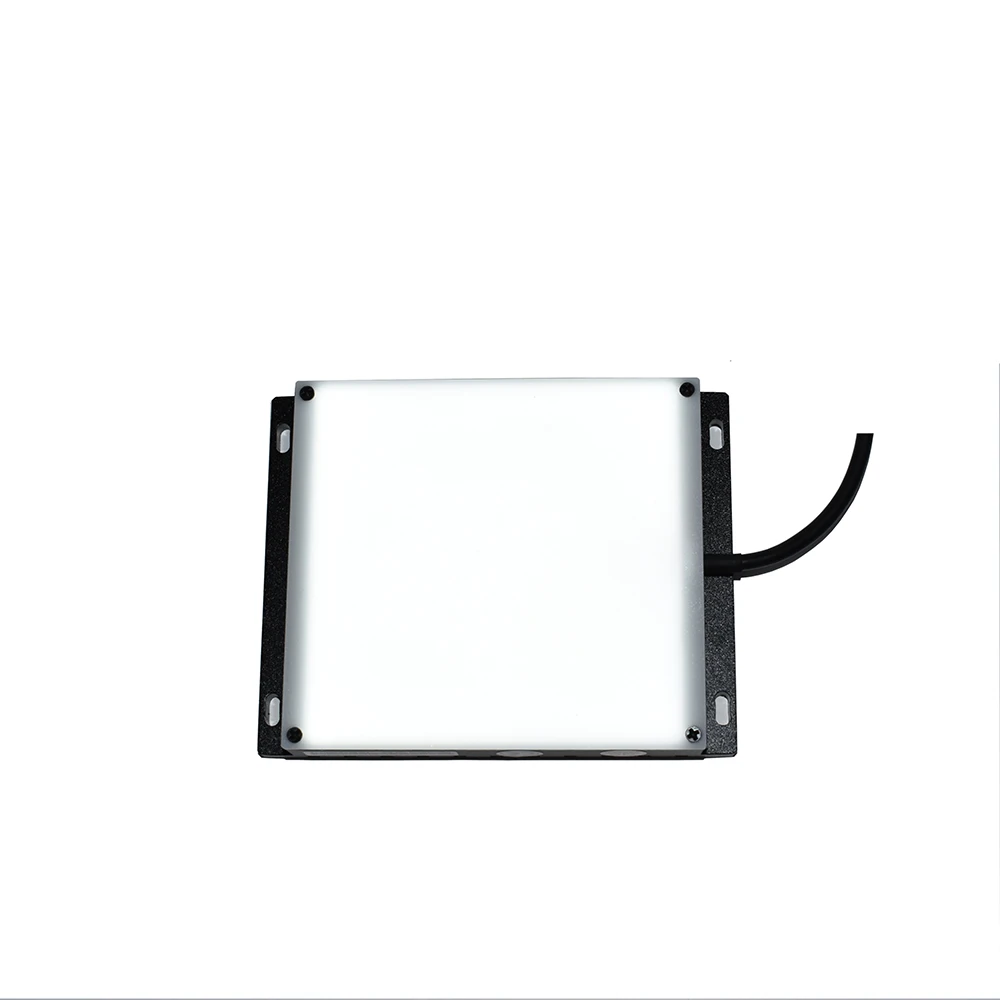

Back Light


    Back light adopted drawing die, high efficiency heat dissipation of the bottom and sides. Small imported LED chips were arranged in high density, improved the uniformity of light, make it possible to design in multiple dimensions, and faster in developing new products.


Technical Index
Color (Wavelength)
Red:620-630nm
Green:525-530nm
Blue:465-470nm
White color temperature: 6600-7000K
UV:365/385nm
IR:850/940nm
Operating environment
Temperature: 0 to 50 ℃, Humidity: 20% to 85% RH
Life time
100,000hrs theoretical service time(Depends on the operating environment, not a guarantee.)
Compatible Control Unit
 Analog Controller, Digital Controller, Constant Current Controller
Optional Accessory
1. Lights source and lens adaptor.
2. Diffusion plate, Polarizing plate.(Opational transmittance:60%,70%,80%,90%)
3. Extension cable: 1m/2m/5m/10m/15m(2 kinds of materials of the shell of wire:PVC of hardness;silicone of softness.)
Warranty
One year warranty, Free samples and technical support(buyers pay for the freight)
Lights customization
Provide design and development service according to individual needs of customers. Reach the best image effects.


Selection Guide:

FG
TH
**
**
R/G/B/W/IR
Fugen
Back Light
Lighting Length
Lighting Width
Color

Lights customization: We provide design and development service according to individual needs of customers, to reach the best image effects.

Details Images

Features

-Available to be combined to any size of emitting area.
-Optional different transmittance diffused plate, incase different field demand.
-Adopted reflow soldering technology, easier installation of sides and front.
-More quickly in developing new dimensions, lighter, larger heat dissipating area.

Application Areas

-Inspect the level of liquid level and the impurities in liquid.
-Inspect the products outline and the distance between products.
-Inspect the fuse, the height and the true position of connector terminals
-Inspect the damage of outer edge.
-Inspect the appearance dimensions under a large uniformity emitting area.

Inspect the medical bottle cap
Model: FG-TH5050*R/IR

Inspect the gap between terminals of connector
Model: FG-TH3030-R & FG-DR50-B(Ring light)

Inspect the characters on car keyboard
Model: FG-TH300300-R

Installation Process
Certificates
Company Introduction


Shanghai Fugen Automation Technology Co., Limited


Shanghai FG has been absorbed in providing customers with leading machine vision products more than 10 years.  We have more than 30 standard products series, and our laboratory was equipped many kinds of industrial lens, camera, lens, filter, etc. We devoted ourselves to offer the first class, and high cost-effective vision products to our customers, to meet the growing demand of global market. Our designers have rich experience about industrial design , in order to improve the quality of our lights, we adopted famous brands LED particles, equipped forging, wave-soldering, reflow soldering equipments. We are trying our best to make our products achieve international excellent quality standard.

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But you need pay for the the freight.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 50 pieces.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS etc., usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 y ears warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
