Emergency bls car ambulance dimensions

Product Overview

Description

Emergency bls car ambulance dimensions













Vehicle model	YLH5048XJH-V1	Drive type	4x2  LHD
Vehicle curb mass:(kg)	2180	Wheelbase(mm)	2933
Dimension of Patient's  compartment(mm)	2300×1770×1660	Overall dimensions (mm)	5010×2000×2650
F/R Wheel tread (mm)	1740 / 1704	Fuel tank capacity (L)	70
F/R Overhang (mm)	993 / 1089	Brake system	4 wheels disc brake
Fuel consumption (L)	9	GVW (kg)	3550
Enging	ISF2.8s5F148	Fuel type	Diesel
Displacement (ml.)	2780	Emission standard	Euro V
Maximum power (kw)	110	Gearbox	Manual 6 speed
Tires	215/75R16LT / 4	Max. speed (Km/h)	135
Standard configuration  of vehicle	1. FOTON Chassis BJ6508BDDDA-E5: 1unit  2. Anti-skidding floor in Patient's compartment: 1set  3. Integrated interior decoration: 1set  4. Partition wall: 1 set  5. Illuminating Light in Patient's compartment (light color can be changed): 1set  6. Transfusion bracket: 1set  7. Medicine and instrument cabinet in Patient's compartment: 1set  8. Long bench:1set  9. Supply system of oxygen: 1set  10. Inverted power supply: 1set  11. External power supply: 1set  12. Ultraviolet radiation disinfector light:1pc  13. Outside identifying light: 1set  14. Flash alarm light bar: 1set  15. Ventilation system: 1set  16. Doctor chair: 1set  17. Auto loading stretcher (Primary Stretcher): 1set  18. Adjustable scoop stretcher (Secondary Stretcher): 1set  19. Multifunctional operation panel: 1set  20. Fire Extinguisher: 2pcs  21. Crashworthy head restraint: 1set  22. Garbage bin: 1pc  23. Non-contact Interphone system: 1set  24. Special cabinet for stupefacient: 1set
Option	BJ5048XJH-V2  LHD + wheelbase : 3750 mm  Overall dimensions : 5990×2000×2650 mm  Dimension of Patient's compartment : 2450×1740×1665 mm

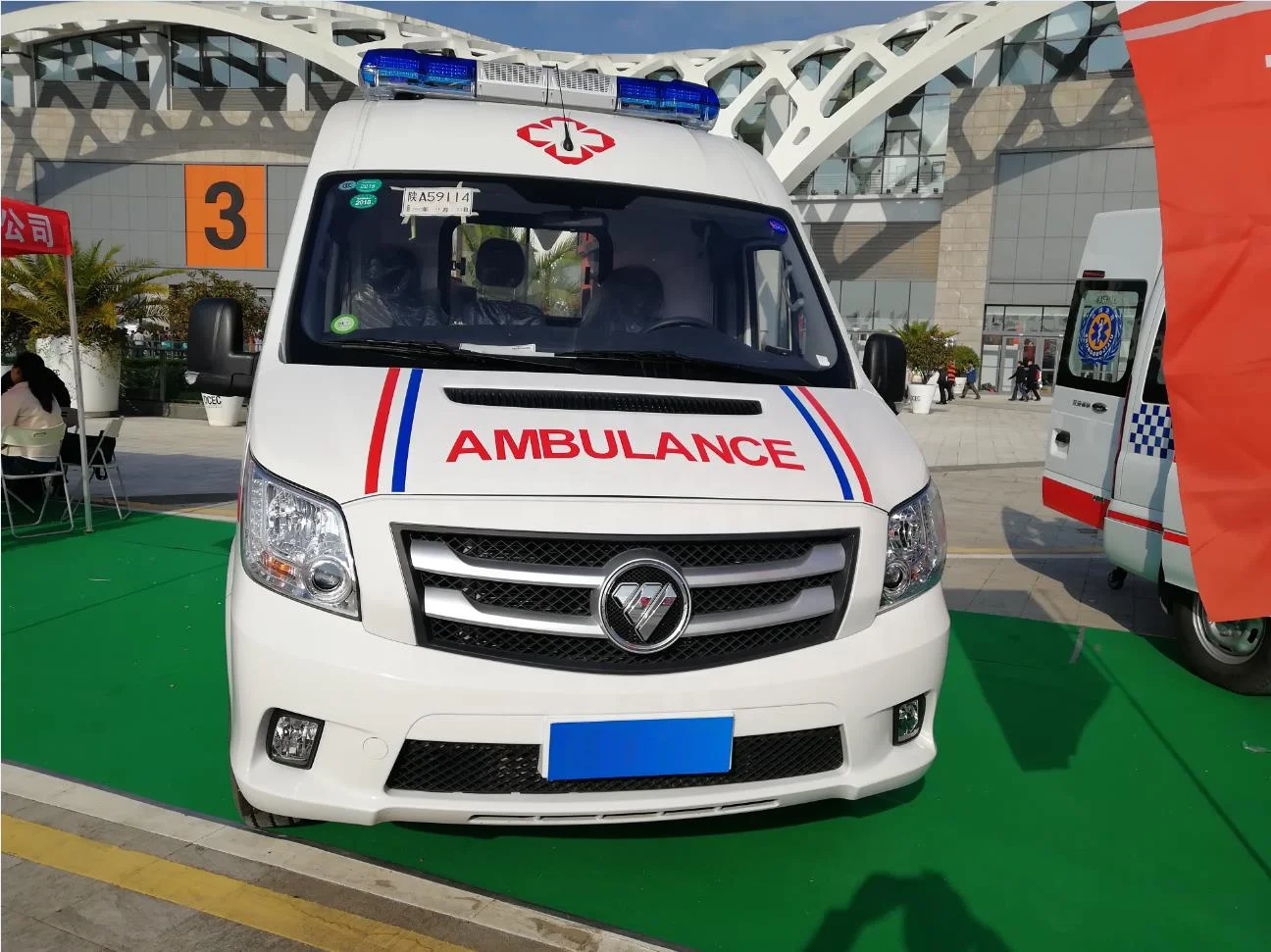

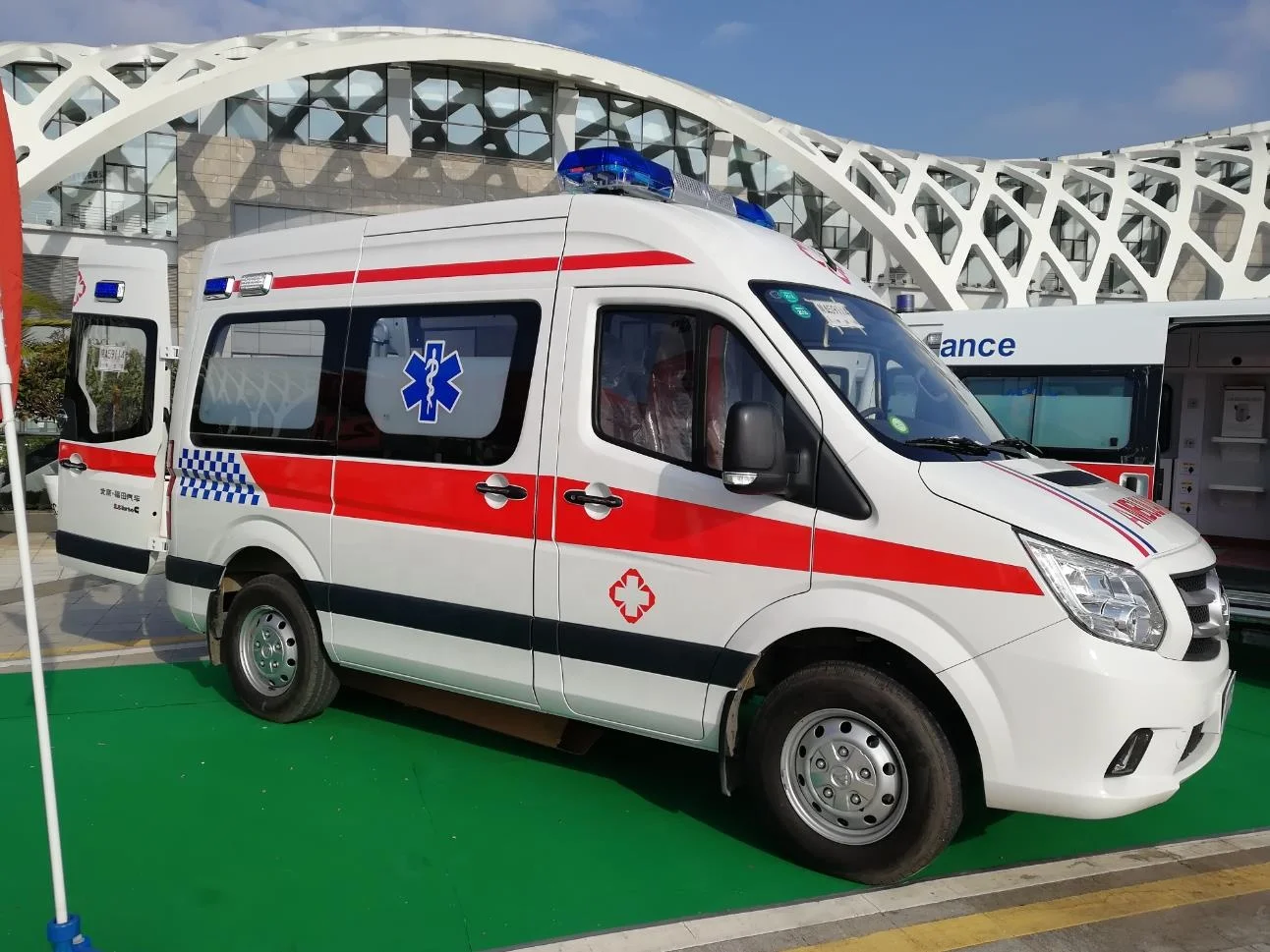

Overall View Of The Ambulance

The vehicle is suitable for long-distance transportation of patients or emergency treatment in areas with high population density.







1.  The size of the vehicle is small, and it can satisfy the entry of vehicles in small areas and narrow roads.

2.  This ambulance has good driving quality and plenty of power.

3.   The size of the vehicle is small (5m) , and it can satisfy the entry of vehicles in small areas and narrow roads.

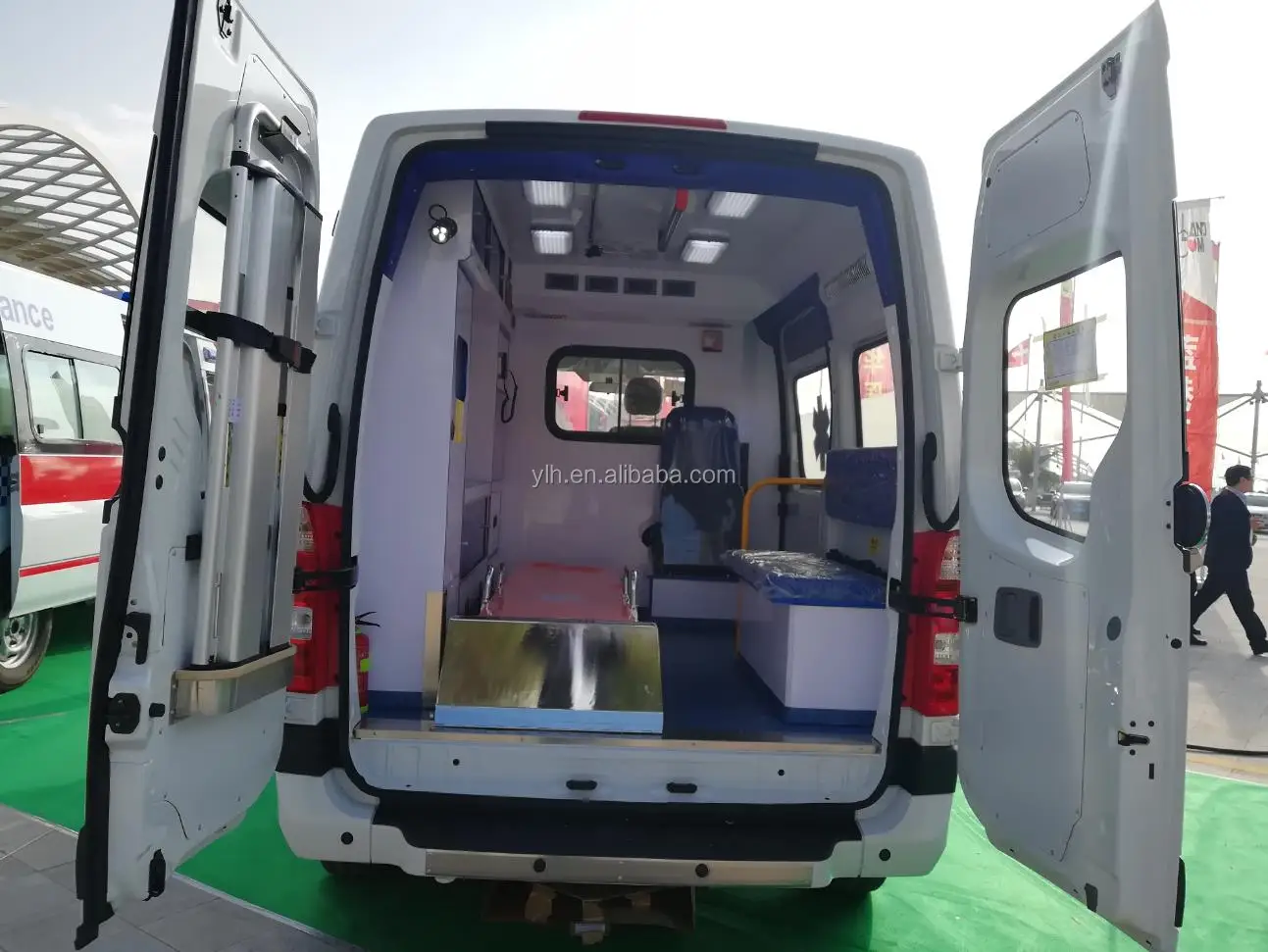

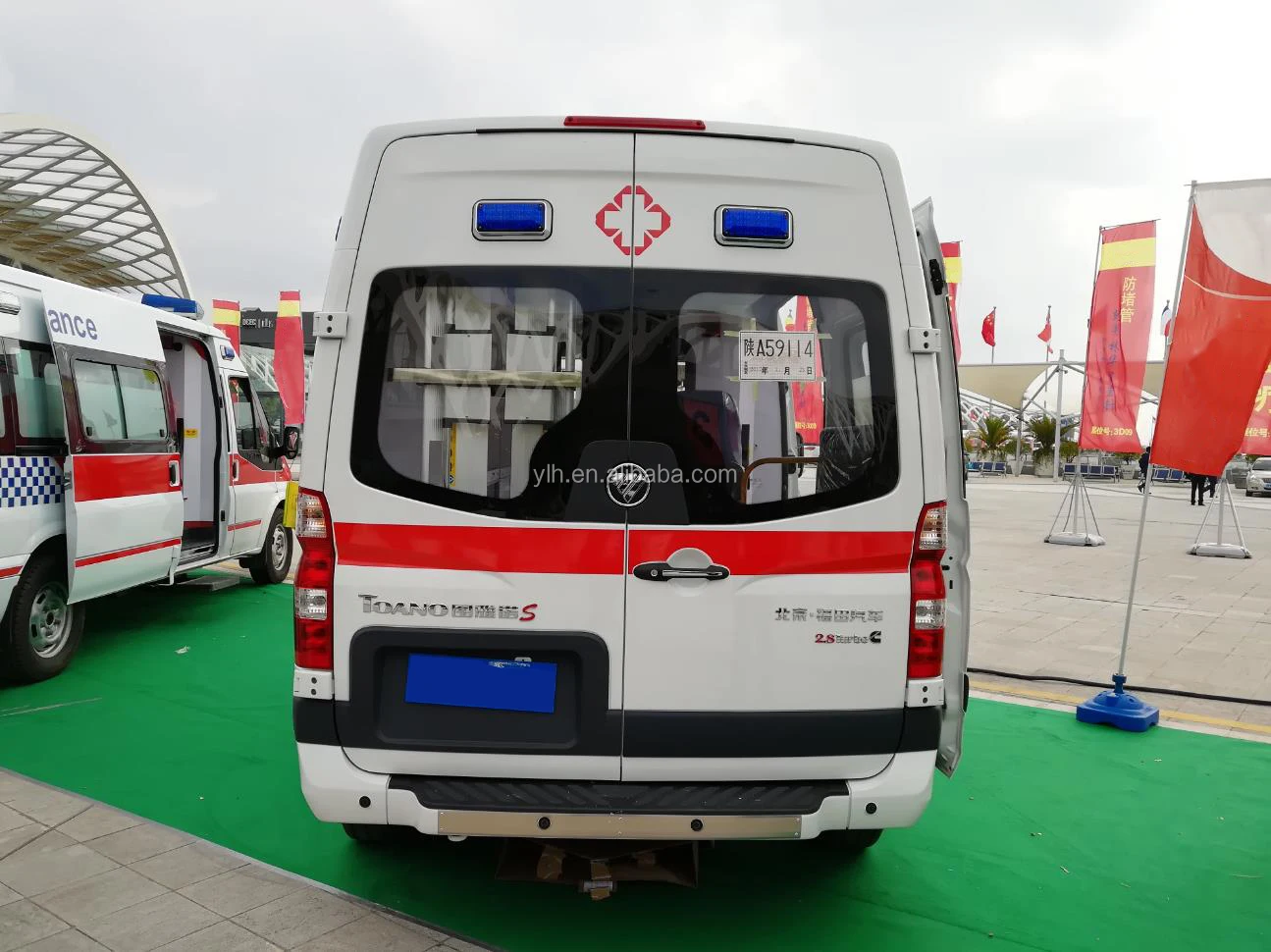

 Standard double back door satisfy the treatment and transit for the patient.

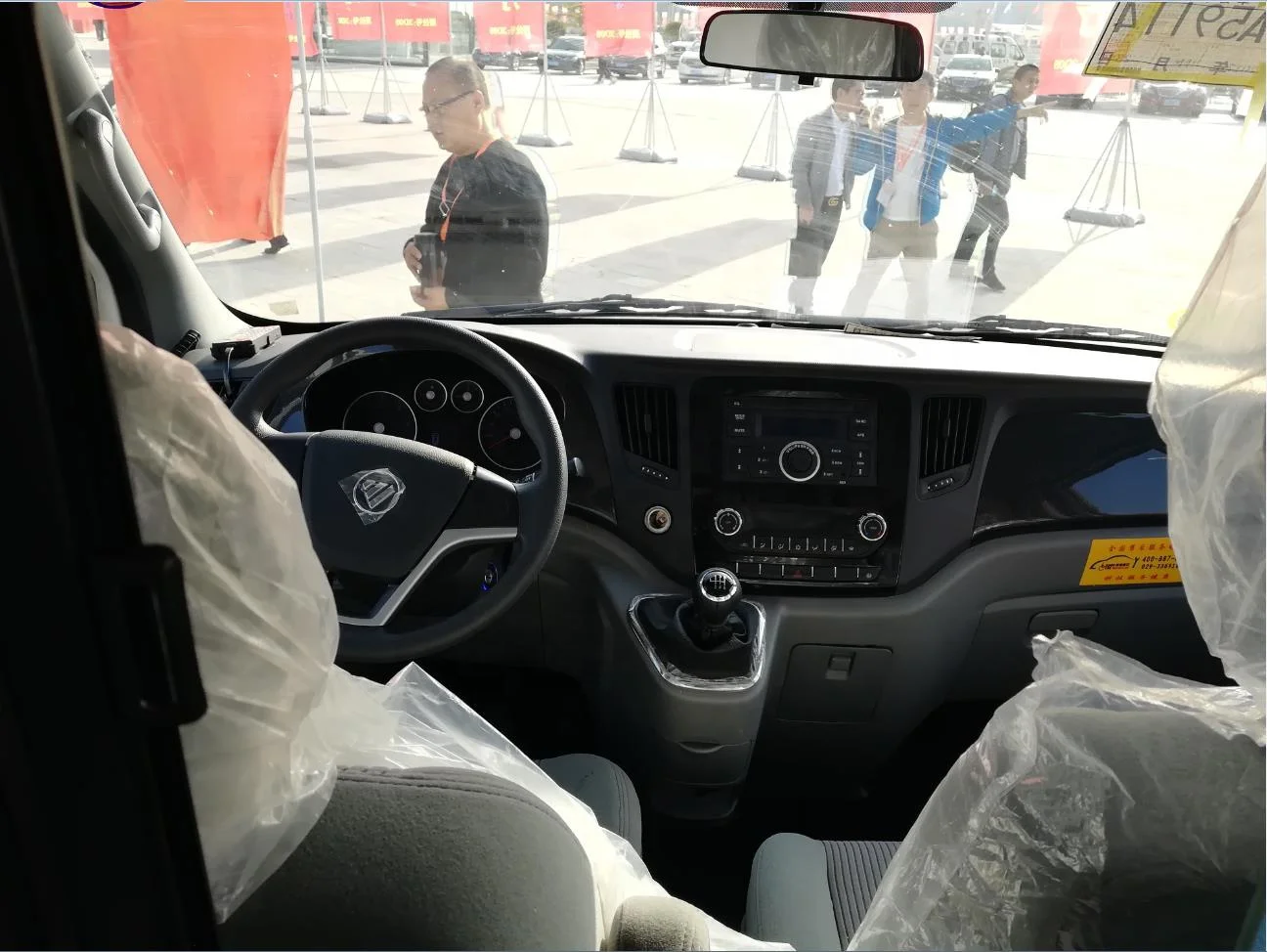

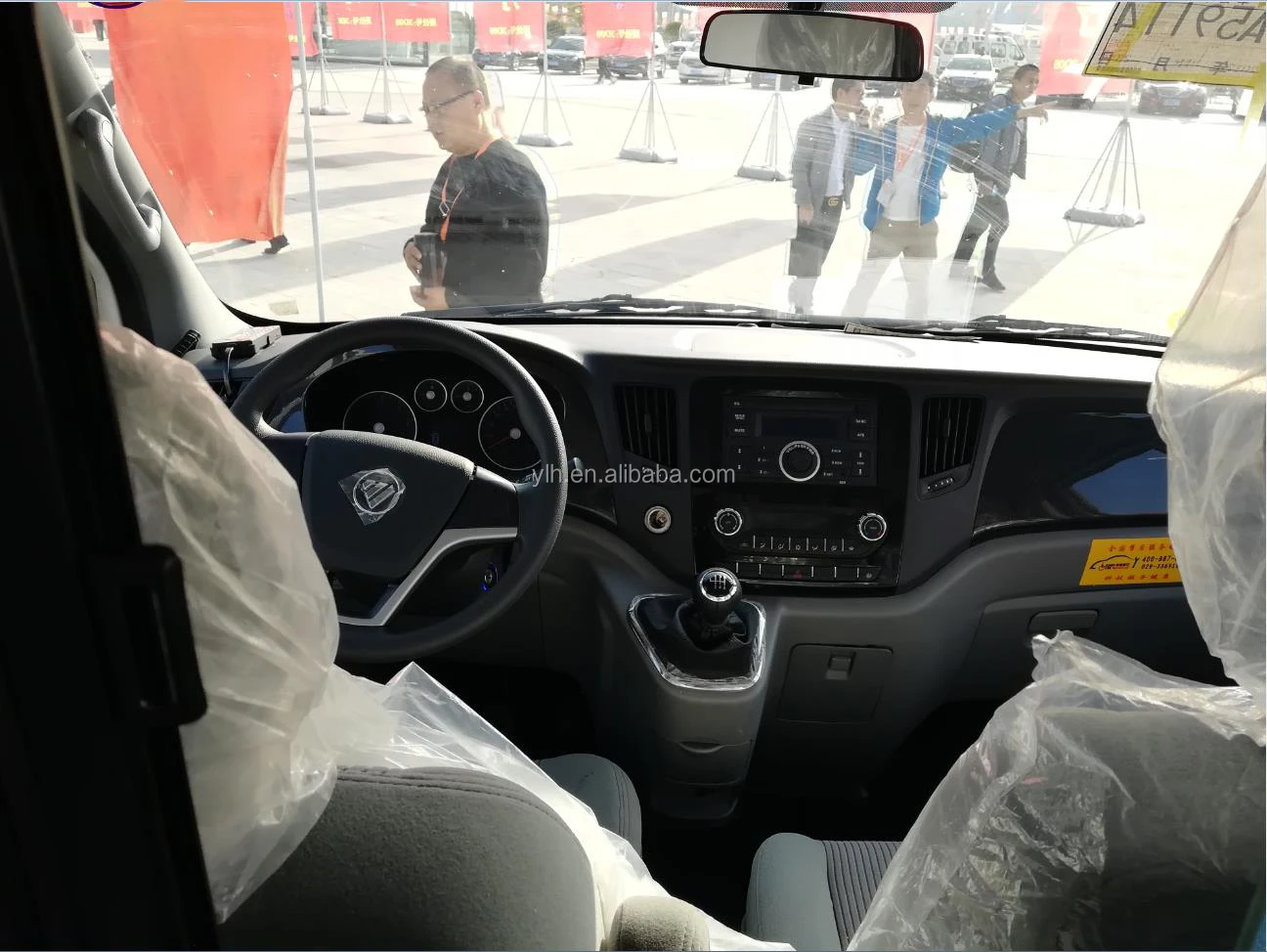

Cab

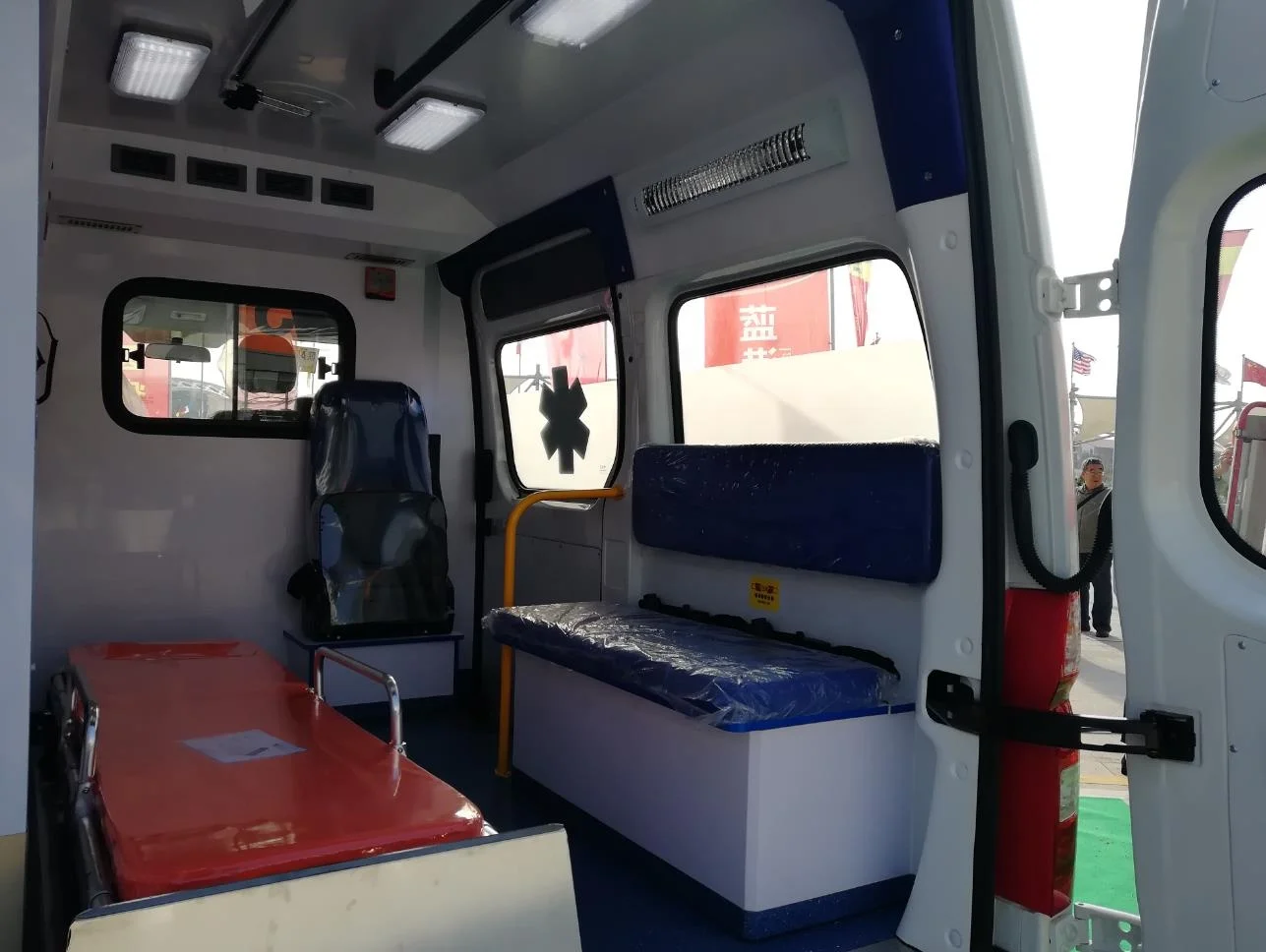

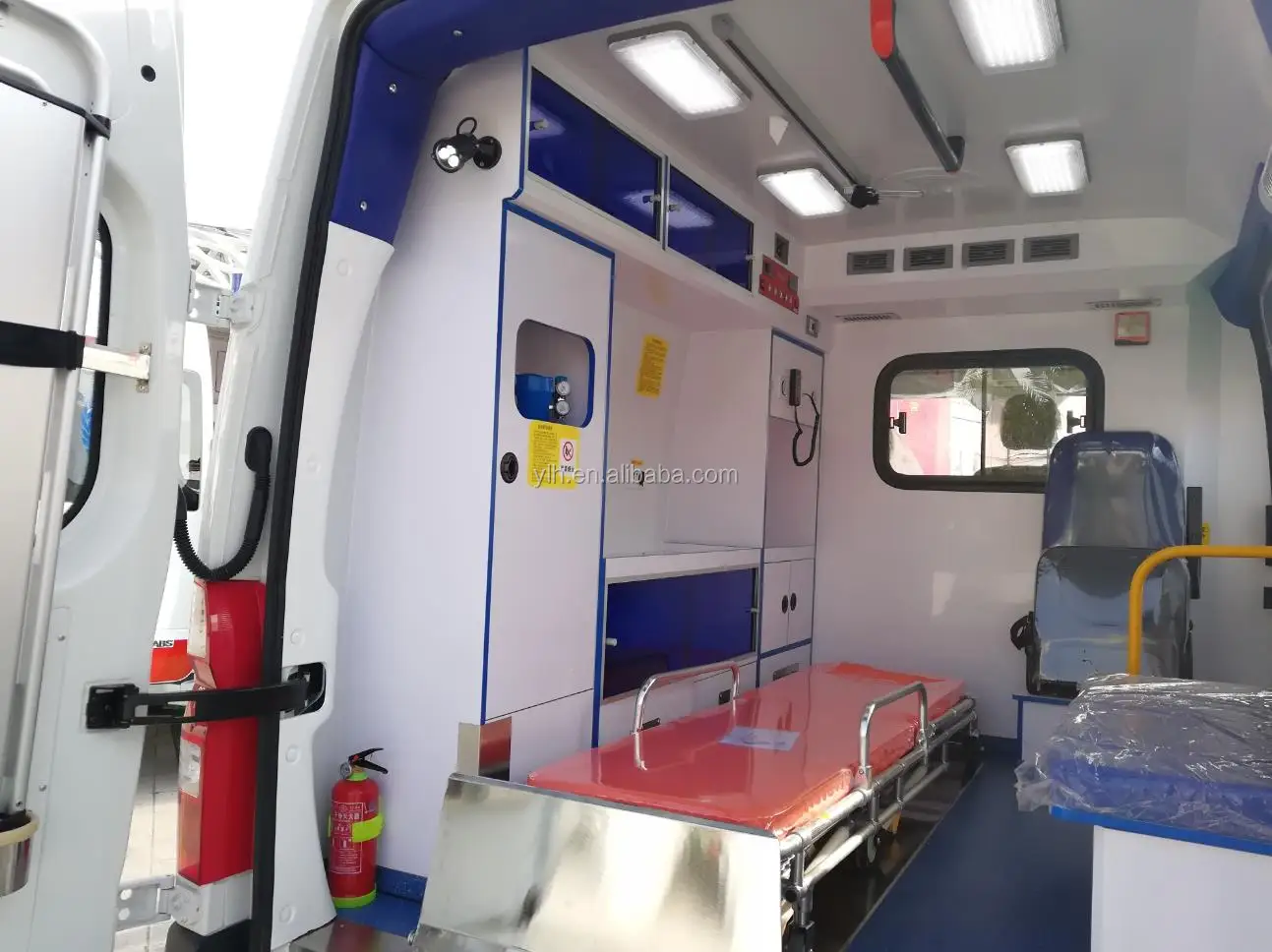

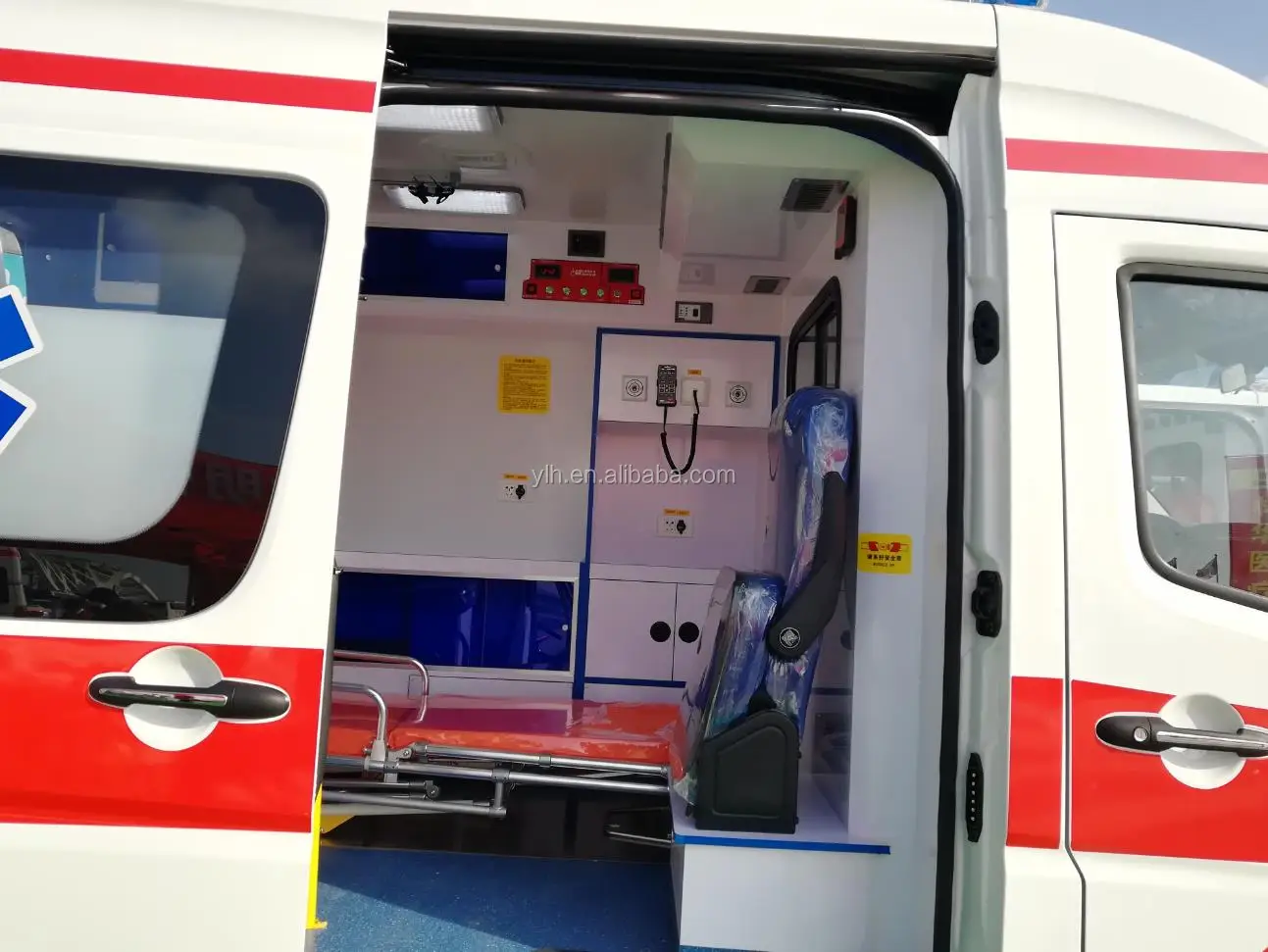

Internal View Of Equipments





1.  The space designed reasonable fully equipped with medical equipment.

2.  According to the needs of customers can choose a variety of medical equipment.









The vehicle is a new model, with better design and more advanced equipment expansion, and can be selected according to needs to meet the local medical needs of customers.









The size of the vehicle is small, and it can satisfy the entry of vehicles in small areas and narrow roads.



We have sold 200 of this model ambulance this year.





Medical Devices (Standard Configuration)





Optional Devices And Accessories
