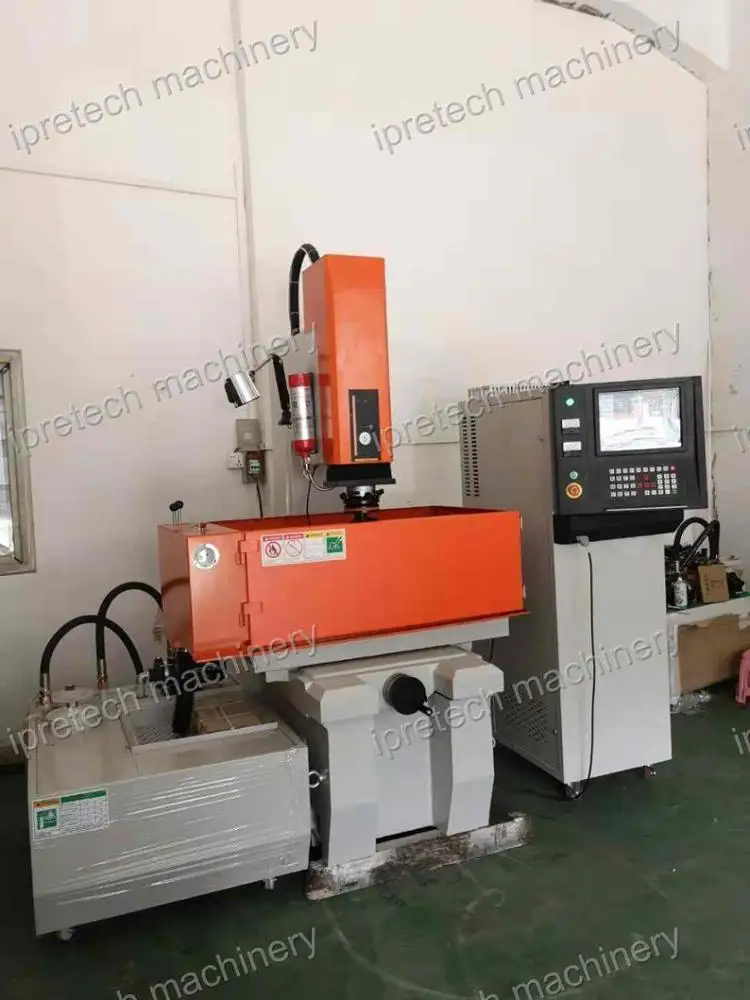

D7150 Conventional Ram Die Sinker Machine CNC EDM Wire Cut Rebuilt China EDM Machine Molds EDM drilling Machine
- Category: >>>
- Supplier: Ipretech Machinery Company Limited
Share on (60833172985):
Product Overview
Description
Product Description
Sinker EDM, also known as ram EDM, conventional EDM or plunge EDM, employs machined electrodes of varying shapes, sizes and materials to remove material from the workpiece. Sinker EDM allows us to machine complex 3-D shapes, blind cavities, intricate internal features, threads into hardened parts, and much more.
Detailed Images
EDM Technology
a. Pulse generator: Built-in
b. Driving system: full digital DC servo Drive, Military Class.
c. Program system: built-in expert database. Flexible automatic program system.
d. Built-in expert electrical discharging circuit include
e. EDM protection circuit
1. Copper electrode processing circuit and expert database.
2. Tungsten copper electrode processing circuit and expert database
3. Graphite electrode processing circuit and expert database
4. Tungsten steel electrode processing circuit and expert database
5. Beryllium copper electrode processing circuit and expert database
6. Steel to steel electrode processing circuit and expert database
7. hard alloy electrode processing circuit and expert database
1. fire alarm detection circuit
2. fluid level detection circuit
3. power cut protection circuit
4. power clutter restrain circuit
Packing & Delivery
Packing & Delivery
Wooden case
15-20 days for popular type, 20-30 days for complicated types or customized large size
Our Company
Trustworthy Factory and Exporter
Under the leadership of our boss Mr.JiaYi, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech Republic, Hungary and the United Kingdom.
