Portable DTH down the hole gold mining rock drilling rig
- Category: >>>
- Supplier: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.
Share on (60833249650):
Product Overview
Description
Product Description

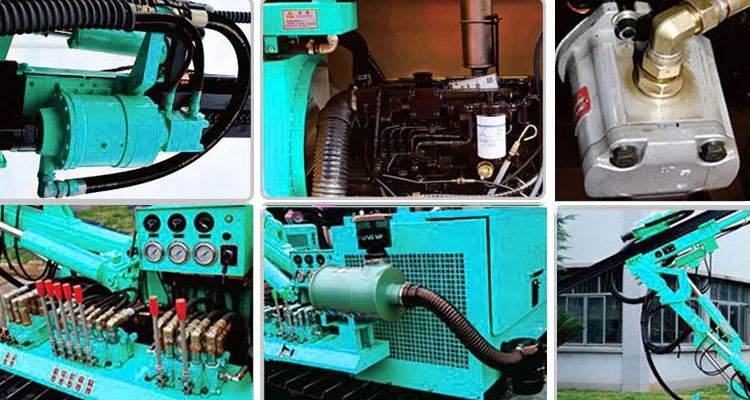

Product Features
1. Equipped with two motors and planetary gear gyrator, has the characteristics of large rotary torque, high efficiency and
durable.
2. Equipped with 40 kw yuchai four cylinder diesel engine, elastic coupling transmission, stable and reliable, with a pre-filter,oil bath type air filter and air filter level 3, vice water tank and is equipped with (antifreeze), greatly improving the diesel engine's adaptability to the environment.
3. Multi-way valve adopts two layers of double entry structure, location is reasonable, easy to operate.
4. The prefilter, oil bath type air filter and air filter level 3 for the diesel engine working under high dust environment provides the guarantee.
5. Power output gear box with double gear structure of mercury
6. Drill arm, novel structure, convenient adjustment, greatly improve the area of drilling, apply to drill horizontal hole low.
The lowest level hole height 300mm
7. Using engineering with walking motor, strong gradeability, low failure rate.
durable.
2. Equipped with 40 kw yuchai four cylinder diesel engine, elastic coupling transmission, stable and reliable, with a pre-filter,oil bath type air filter and air filter level 3, vice water tank and is equipped with (antifreeze), greatly improving the diesel engine's adaptability to the environment.
3. Multi-way valve adopts two layers of double entry structure, location is reasonable, easy to operate.
4. The prefilter, oil bath type air filter and air filter level 3 for the diesel engine working under high dust environment provides the guarantee.
5. Power output gear box with double gear structure of mercury
6. Drill arm, novel structure, convenient adjustment, greatly improve the area of drilling, apply to drill horizontal hole low.
The lowest level hole height 300mm
7. Using engineering with walking motor, strong gradeability, low failure rate.
To adapt to the rock hardness | 6~20 |
diameter of bore(mm） | 90~130(standard 90) |
Economic drill depth(m) | 25 |
Stand-alone gradeability(°) | 25 |
Propulsion mode | Motor |
Feeding stroke (m) | 3 |
Maximum lift capacity(KN) | 15 |
Rotary torque(N.M) | 1800 |
Rotary speed(r/min) | 0~90 |
Work pressure(MPA) | 0.7~1.6 |
Air consumption(m3/min) | 7~15 |
Main Power(kw) | 40 |
Drill arm horizontal pendulum Angle(°) | Left30 Right30 Special left90 |
Walking speed（km/h） | 2.5 |
Ground clearance(mm) | 300 |
Dimensions(mm) | 5260*2045*1950 |
Weight（kg） | 4200 |
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
