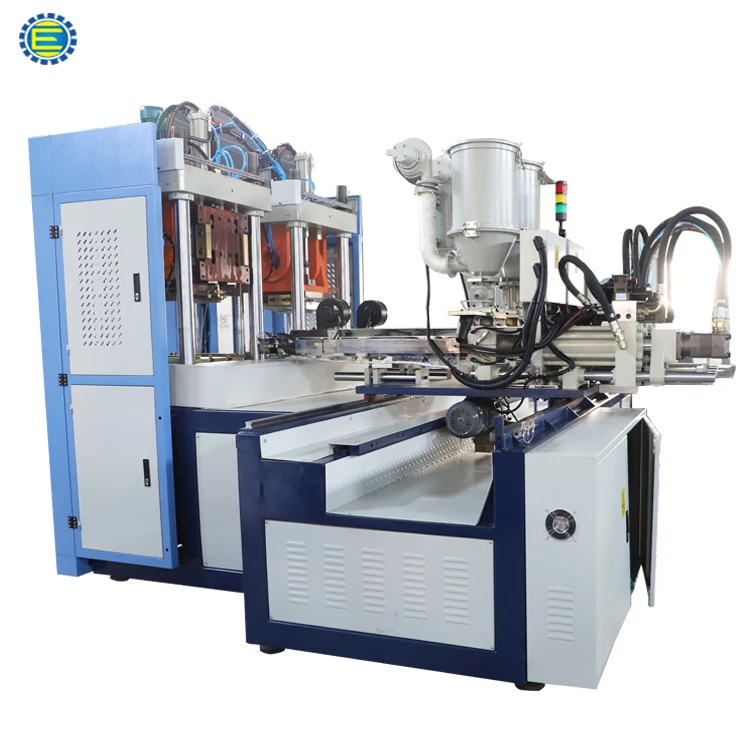

220Tons Automatic 2 Color Sport Shoe Sole Vertical Injection Molding Machinery
- Category: >>>
- Supplier: Dongguan Qiaoen Precision Machinery Technology Co. Ltd.
Share on (60833260524):
Product Overview
Description
Product Description
QE-TR220T-2
220Tons Automatic 2 Color Sport Shoe Sole Vertical Injection Molding Machinery
SPECIFICATIONS FOR 220 TON SOLES MACHINE | ||||||
Injection system | Station | / | 2 | |||
No. of screw | / | 2/4 | ||||
Clamping force | Ton | 220 | ||||
Basic iterms | Upper mold rotation degree | degree | 0-90 | |||
Screw Diameter | mm | 65 | ||||
Capacity of Injection | g | 860,860 | ||||
Hydraulic system | MAX. Pressure of system | Kgf/cm2 | 180 | |||
MAX. Power Consume | KW | 65 | ||||
Rate flow | KN | 125 | ||||
Machine dimension | Machine Dimension(L*W*H) | mm | 2300*3500*2700 | |||
Machine weight | Ton | 9.8 | ||||
Main Cento:

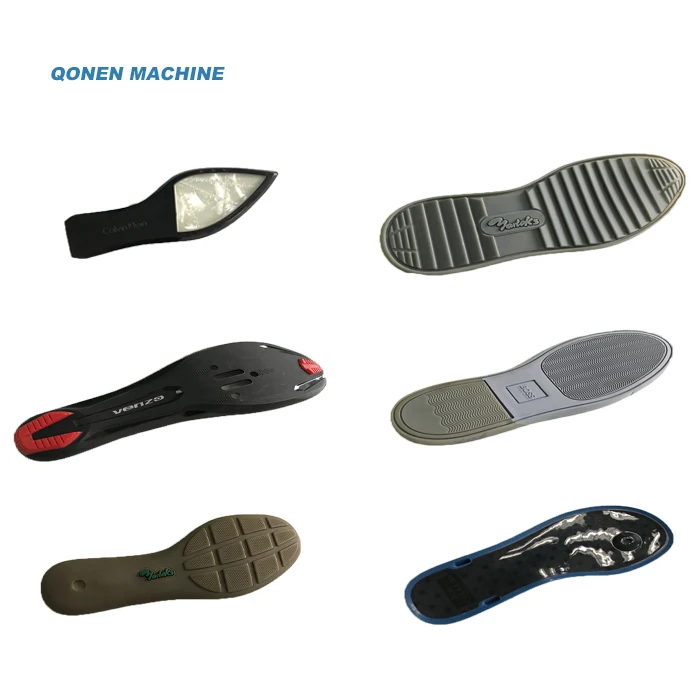

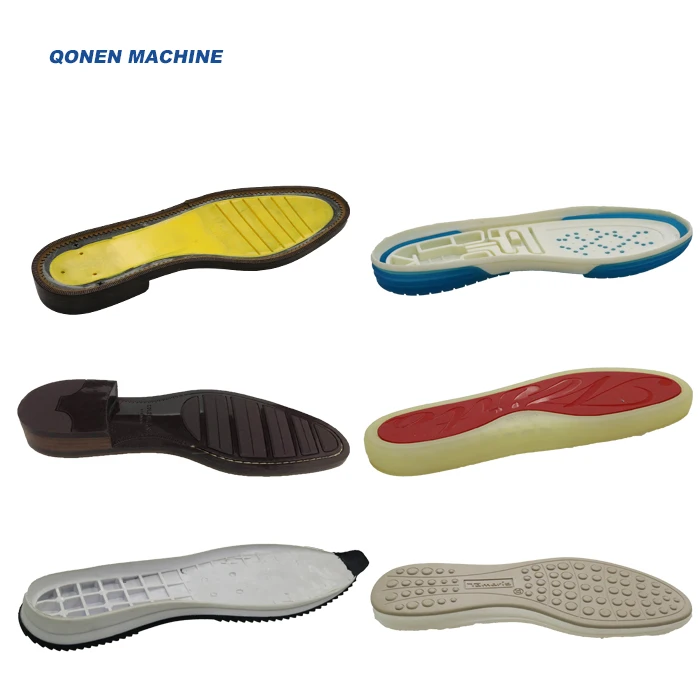

This machine for making both one and two color soles in thermoplastic material like TPU.TR.TPR.PVC.
The machine are strong,efficient,two hand safety protected(CE certificate),extremely simple to operate and
maintain,engineer overseas install and training available.
Advantages:
1.Strong compact structure and clamping force 220-320T make soles no edges.
2.Flexibility in PLC control to change colors and materials.
3.With servo motor for excellent energy saving(roughly 40% energy saving than normal motor)

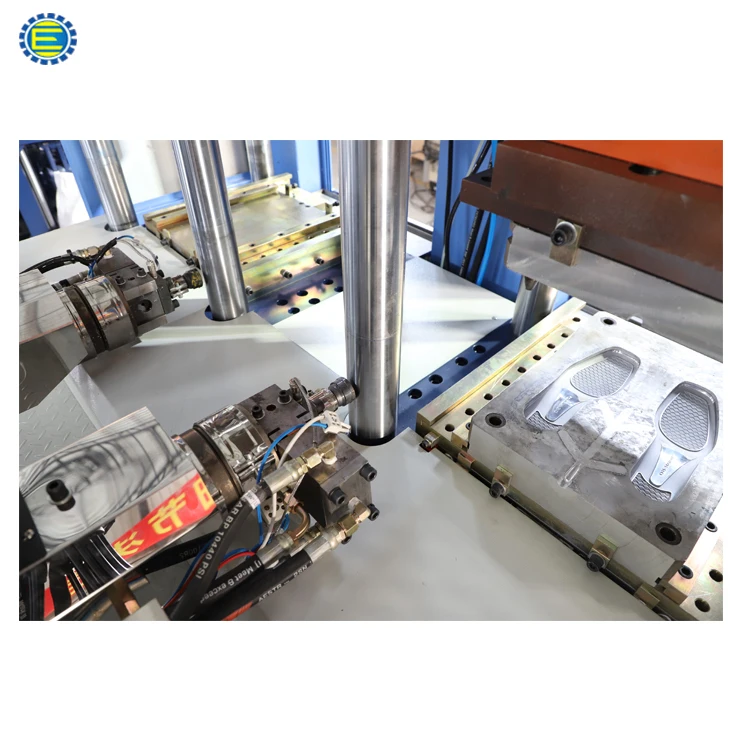

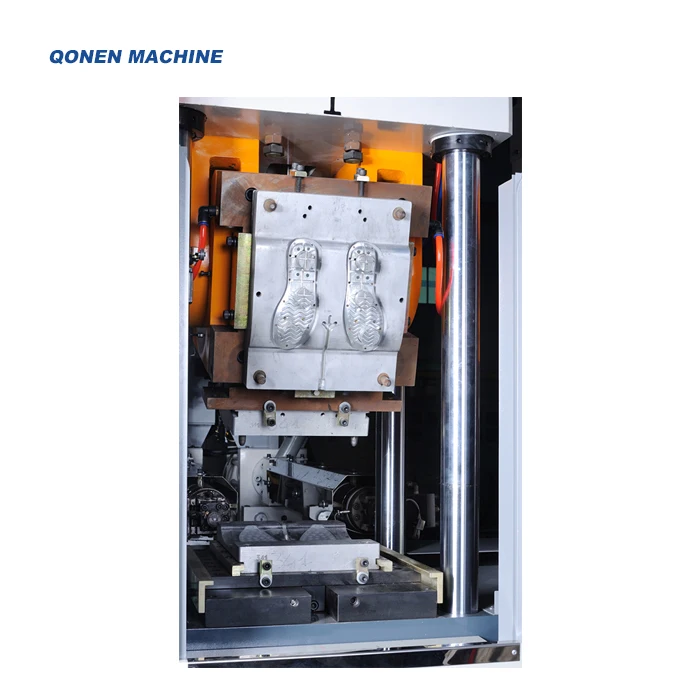

4. Automatic mold rotation 90° and ejector with nozzle push out soles for labor saving and easy operation.
5.User friendly and low maintenance.
Series Optional:
*QE-TR220T-2 machine with 2 screw (screw move) and 4 screw (screw fixed) two types (optional) ;
*QE-TR220T-4 with four station 2 screw (screw move) type only.
*Injection end with microswitch in the mold and pressure transducer (optional)
Detailed Images
NSK BEARING
Name: Bearing
Brand:Japan
Original:Japan
Servo motor
Name: servo motor
Brand: Dongguan
Original: dongguan
Servo motor could save about 30%-40% electricity than normal motor.
Siemens PLC
Name: Siemens PLC
Brand: Siemens
Original: Germany
Schneider electric
Name:electric swtich
Brand: Schnelder
Original: Germany
Certifications
ISO:9001 & ISO14001 Approved
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inspection before shipment.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3500 (L) * 2100 (W) * 2700 (D) | |
Weight | 9.8 T | |
Packaging Details | ||
Packaging | ||
Size | 3500 (L) * 2100 (W) * 2700 (D) | |
Weight | 9.8 T | |
Packaging Details | Machine with plastic film packing and stabled by steel rope in container. | |
Related Products
Two station sole machine
91.8% Response Rate
Four station soles machine
91.8% Response Rate
Slide leather sole machine
91.8% Response Rate
FAQ
1. Factory or trading company?
Factory
2.Machine warranty?
One year warranty,life-long service.
3.How about after service?
Engineer over abroad to install machine and training for 7 days no need salary.Buyer charge for engineer's round-trip tickets,food and accommodation.
