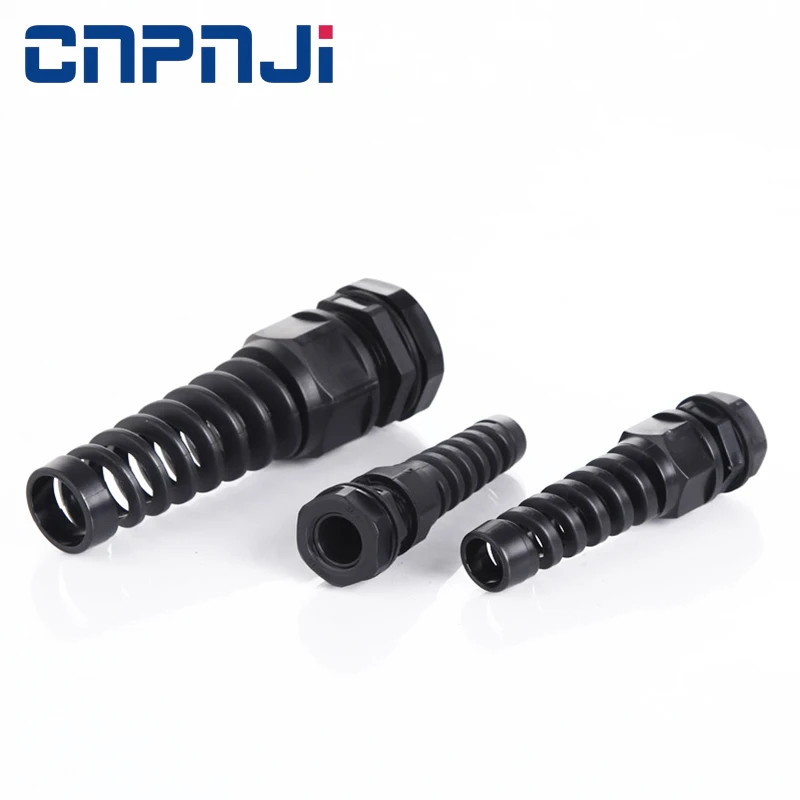

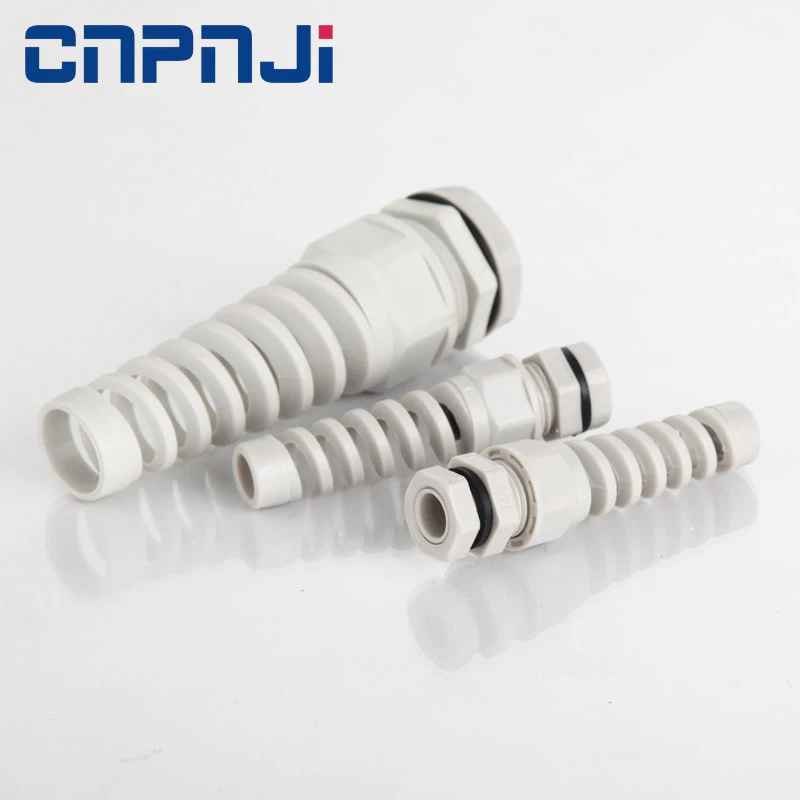

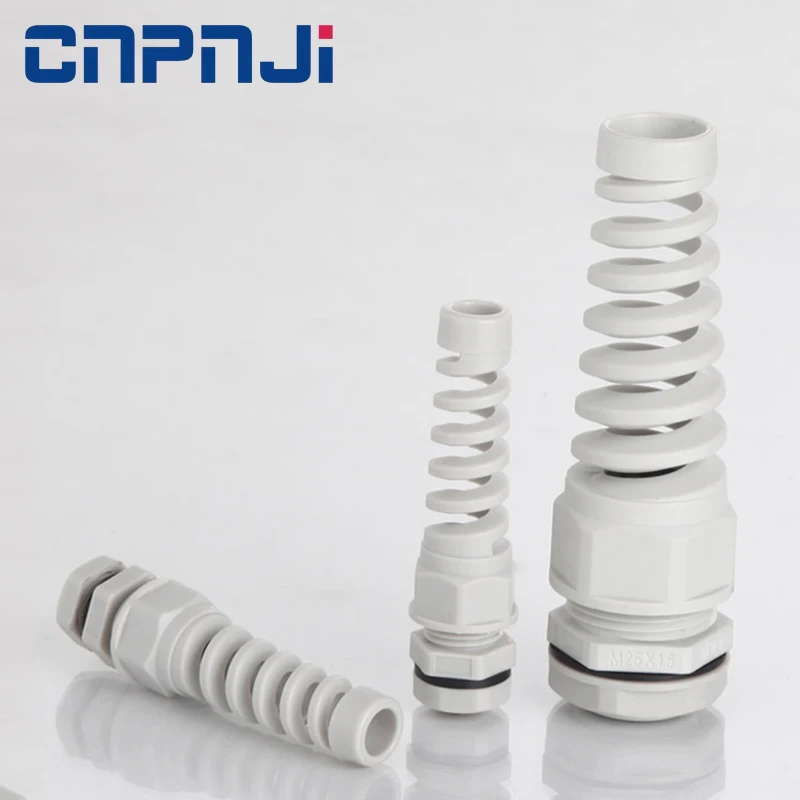

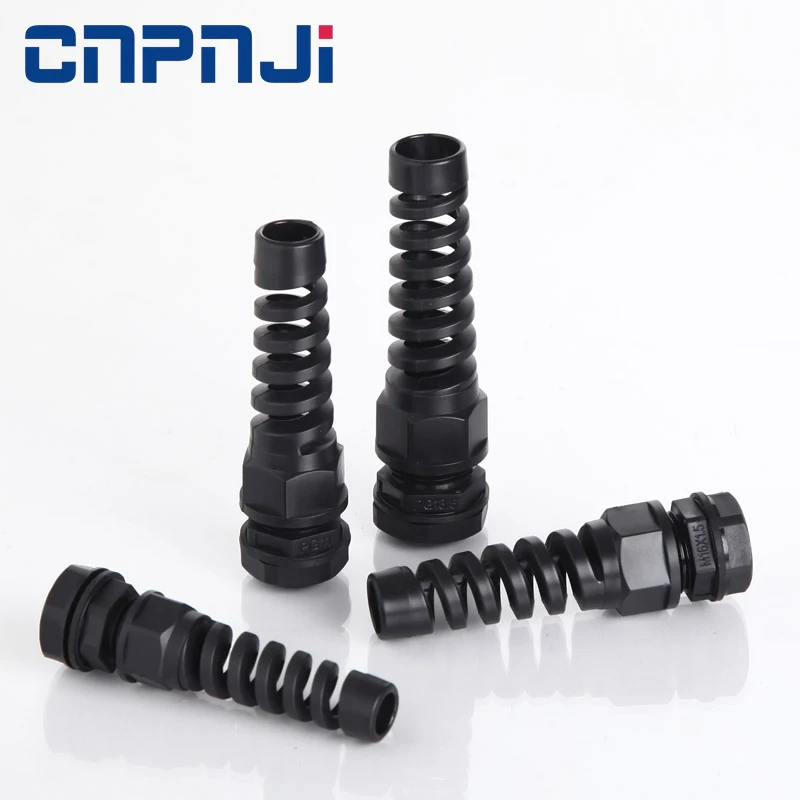

PG Thread Split Type Nylon Strain Relief Flex Protecting Cable Gland
- Category: Cable Glands >>>
- Supplier: Zhejiang Mingguan Electric Co. Ltd
Share on (60833300586):
Product Overview
Description
Product Description
| Product Picture | PG Nylon Flex Protecting Cable Gland | ||
 | Thread Type | PG in compliance with DIN4030 | |

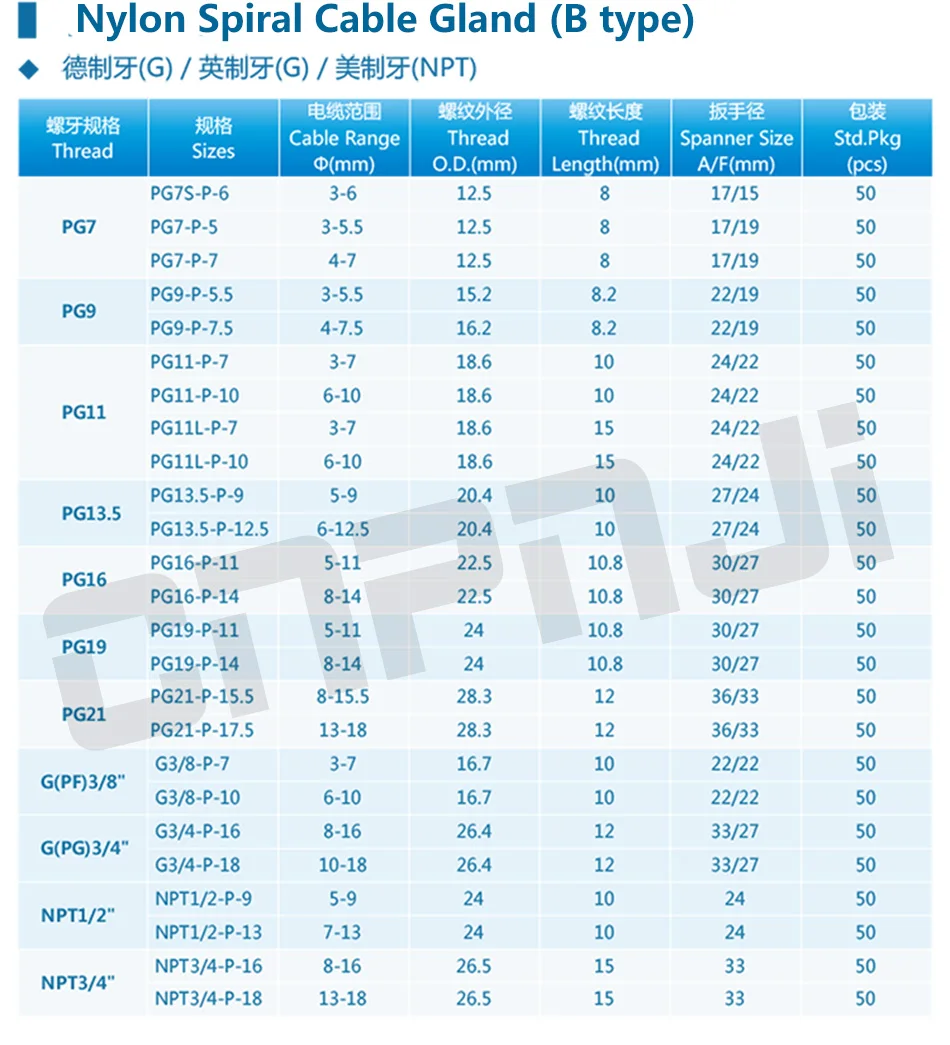

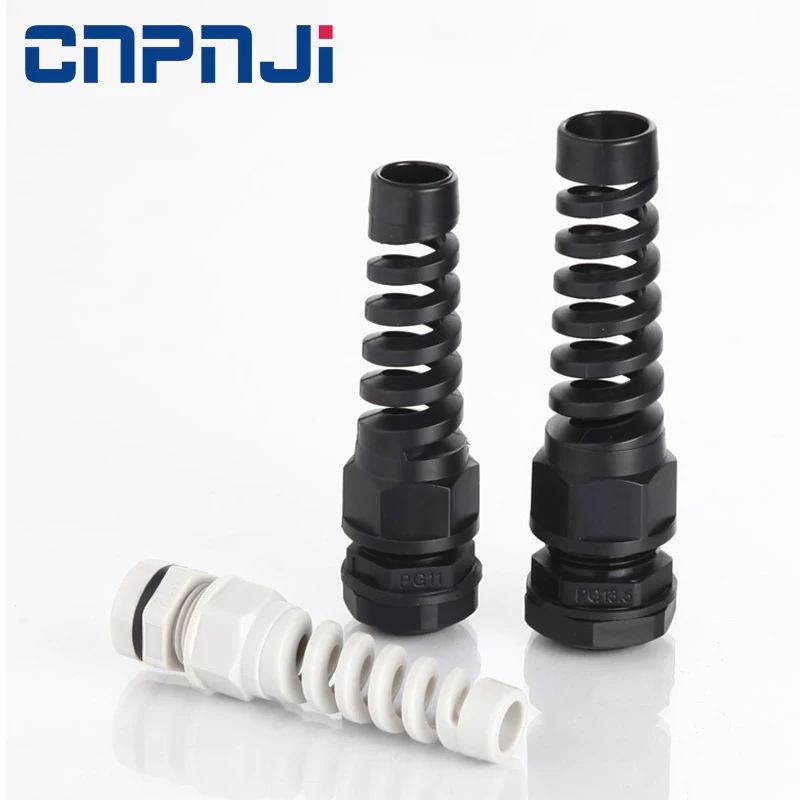

| Thread Size | PG11 | ||
Model number | PG11A-P-7 | PG11A-P-10 | |
Cable Range(mm) | 3-7 | 6-10 | |
| Thread O.D(mm) | 18.6 | 18.6 | |
| Thread Length(mm) | 10 | 10 | |
| Spanner Size(mm) | 24/22 | 24/22 | |
| Color | Black /L.Gray /Customized colors | ||

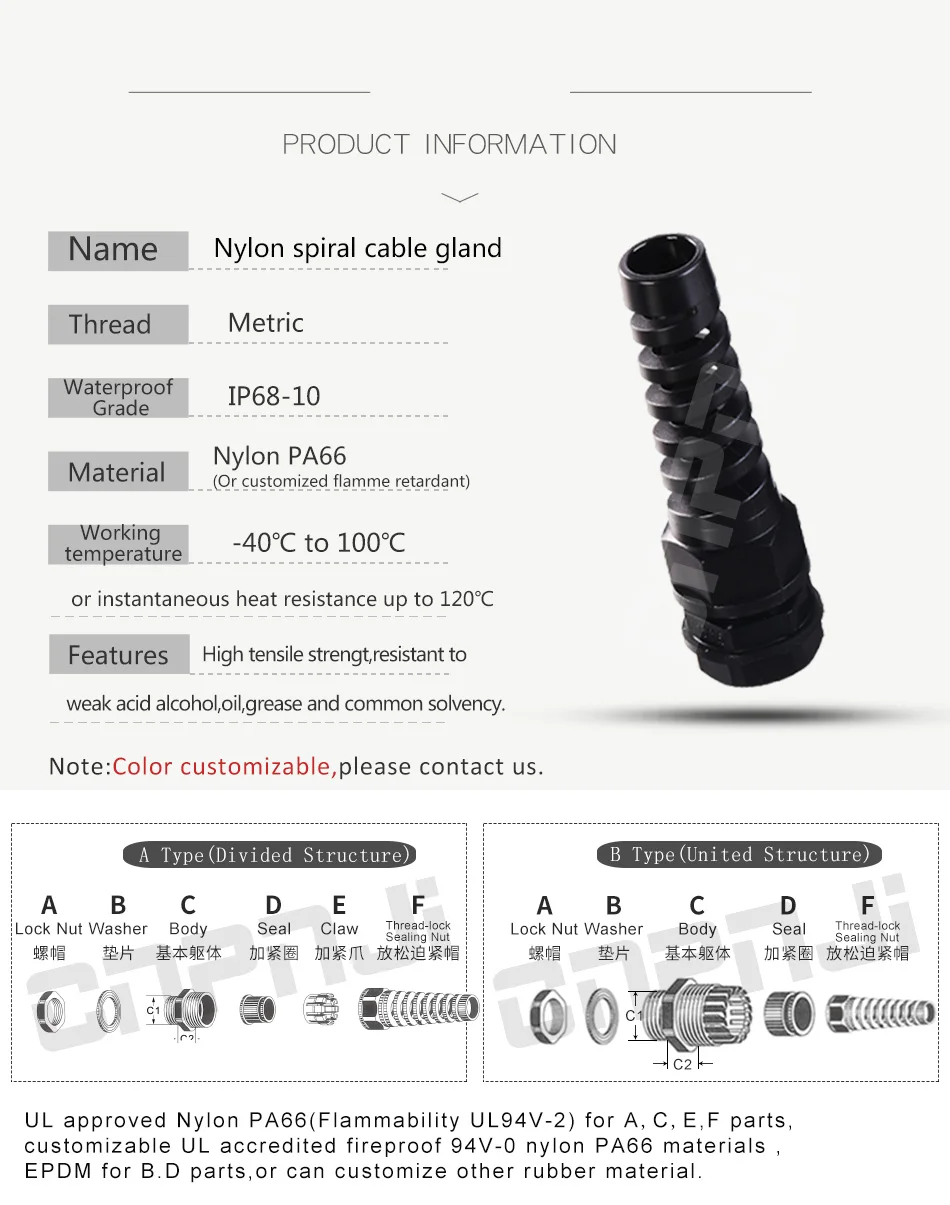

| Material | Nylon PA66( UL approved) for parts A,C,E,F; EPDM for parts B, D. | ||
| IP Class | IP68-10 | ||
| Working temperature | -40°C~100°C (-40°F~212°F) | ||
| Application | The flex protecting cable gland protects the cable away from bending or break, which is a safety garantee for the flexible cable on hand-held or moving machine, equipment, instruments or other devices. | ||
| Certification | CE/RoHS/SGS/IP68/UL(material) certified | ||
| MOQ | Small order can be accepted | ||
| Payment term | T/T / Cash / WestUnion / Paypal | ||
| Delivery Time | 3working days if in stock | ||
| Packaging | 15/30/50/100PCS per bag with label,export standard carton | ||
| Design ability | We can supply sample, OEM & ODM is welcomed (Design, Engineering, Photographing, Sample, Production) | ||
