7X 45X Trinocular Microscope Zoom Stereo 14MP HDMI Compatible USB Calibrate Camera 144 LED Ring Light 8 inch HD LCD Monitor
- Category: >>>
- Supplier: Shenzhen Hayear Electronics Co. Ltd.
Share on (60833341657):
Product Overview
Description

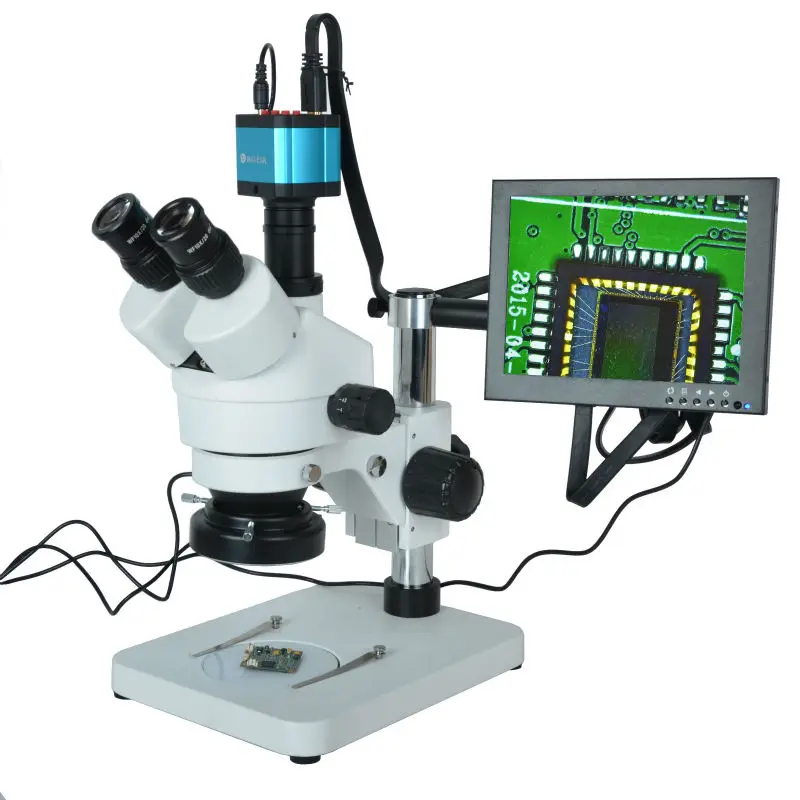

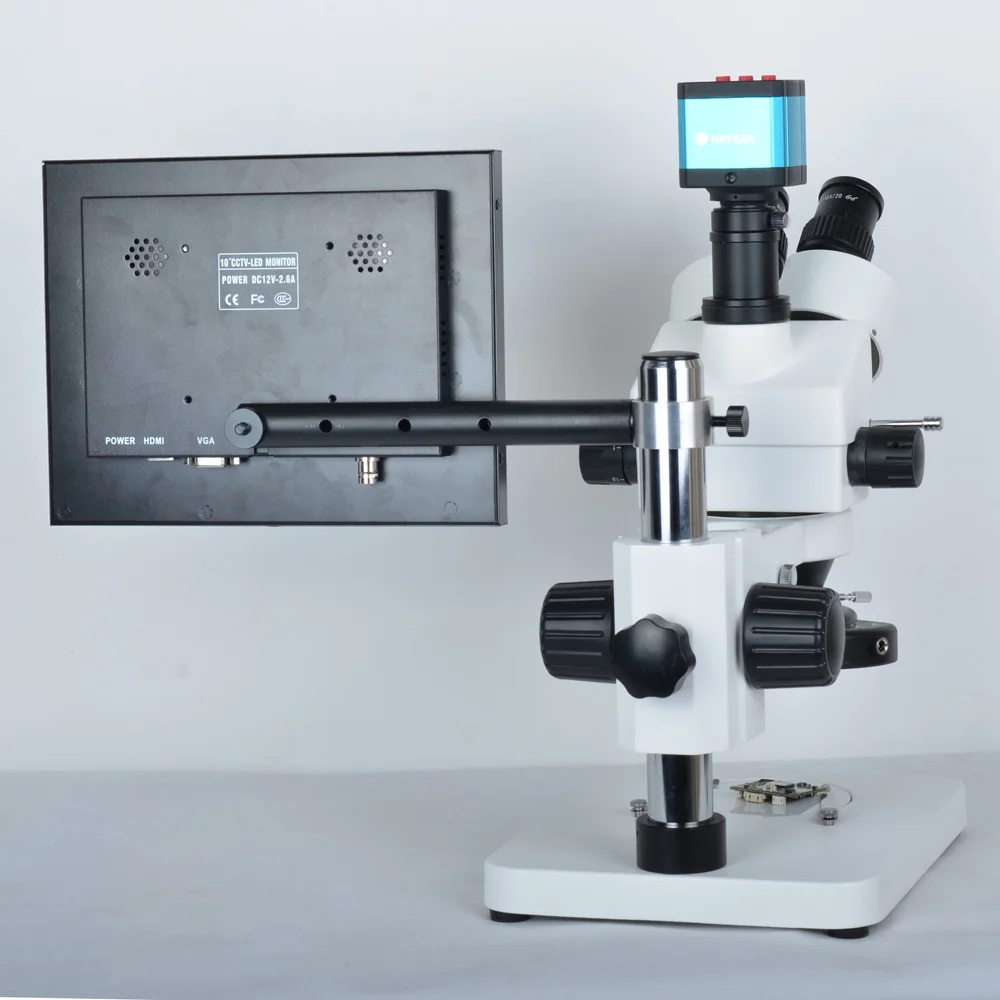

7X-45X Trinocular Microscope Inspection Zoom Stereo 14MP HDMI-Compatible USB Calibrate Camera+144 LED Ring Light+8 inch HD HDMI-Compatible LCD Monitor
Product Description
This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
Stereo Feature:
An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 144-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specification:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 144-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

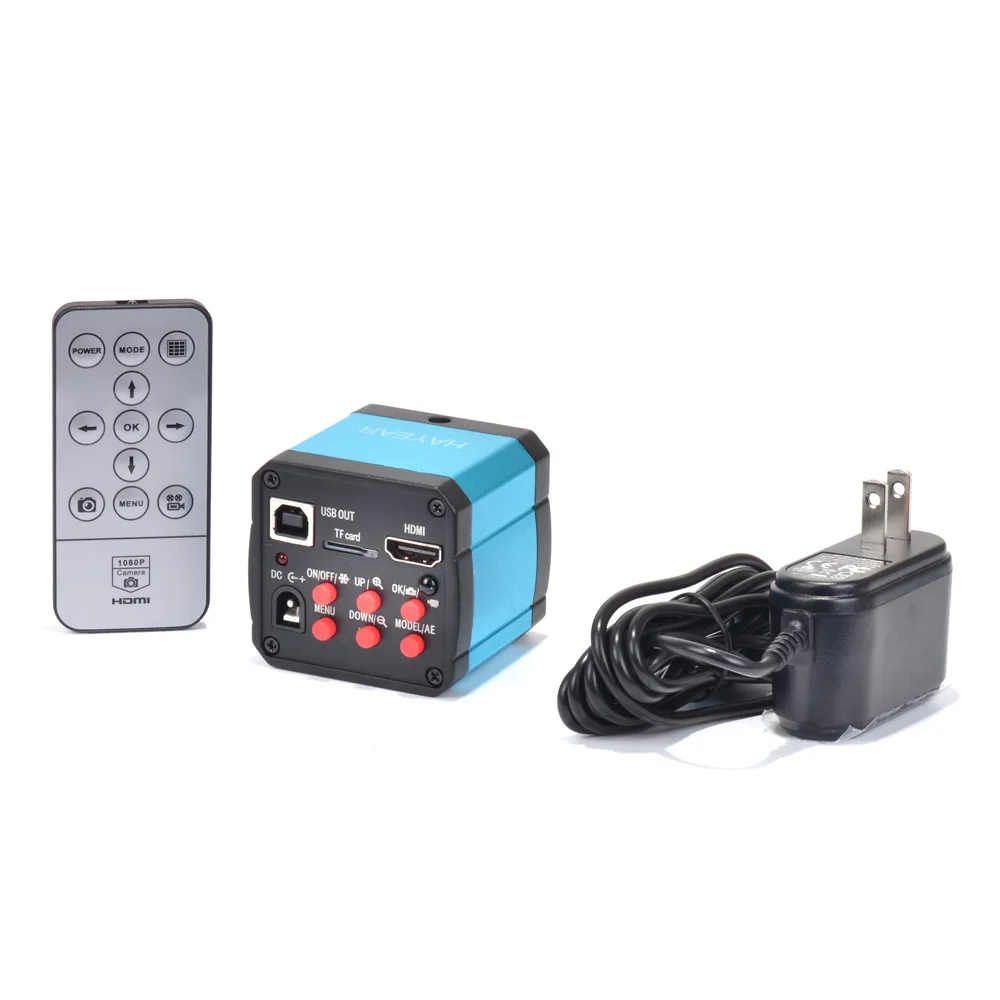

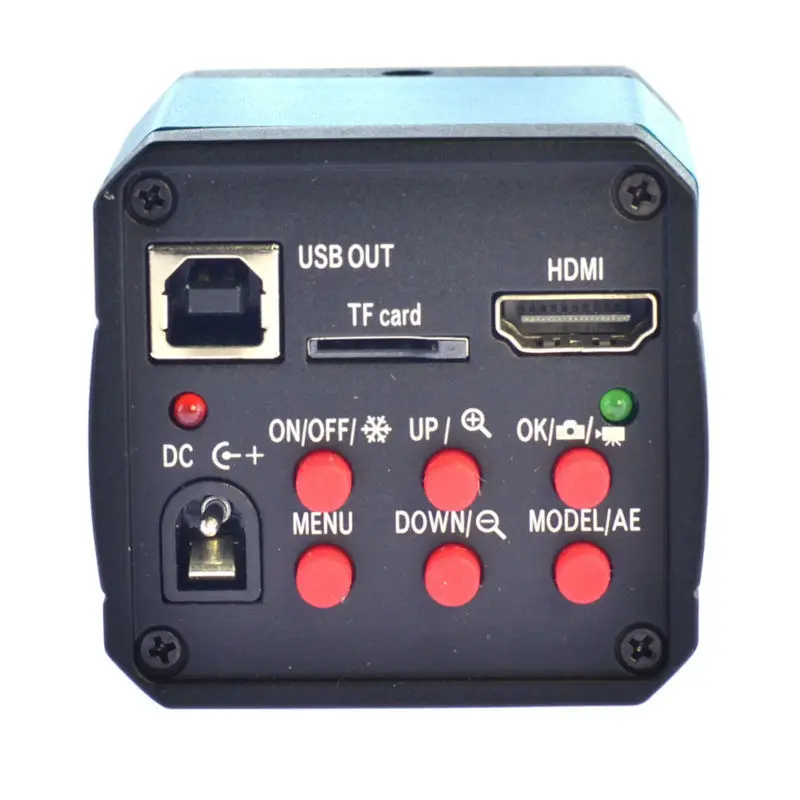

Microscope Camera:
Model: Camera with HDMI-Compatible USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1920 *1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920 *1080 @ 60fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
White balance:Auto/manual
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Freeze:Support
OSD:Support
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
Lens:C
OSD: English/Chinese/French/Spanish/Portuguese
USB interface:Standard usb2.0 interface (Type B)

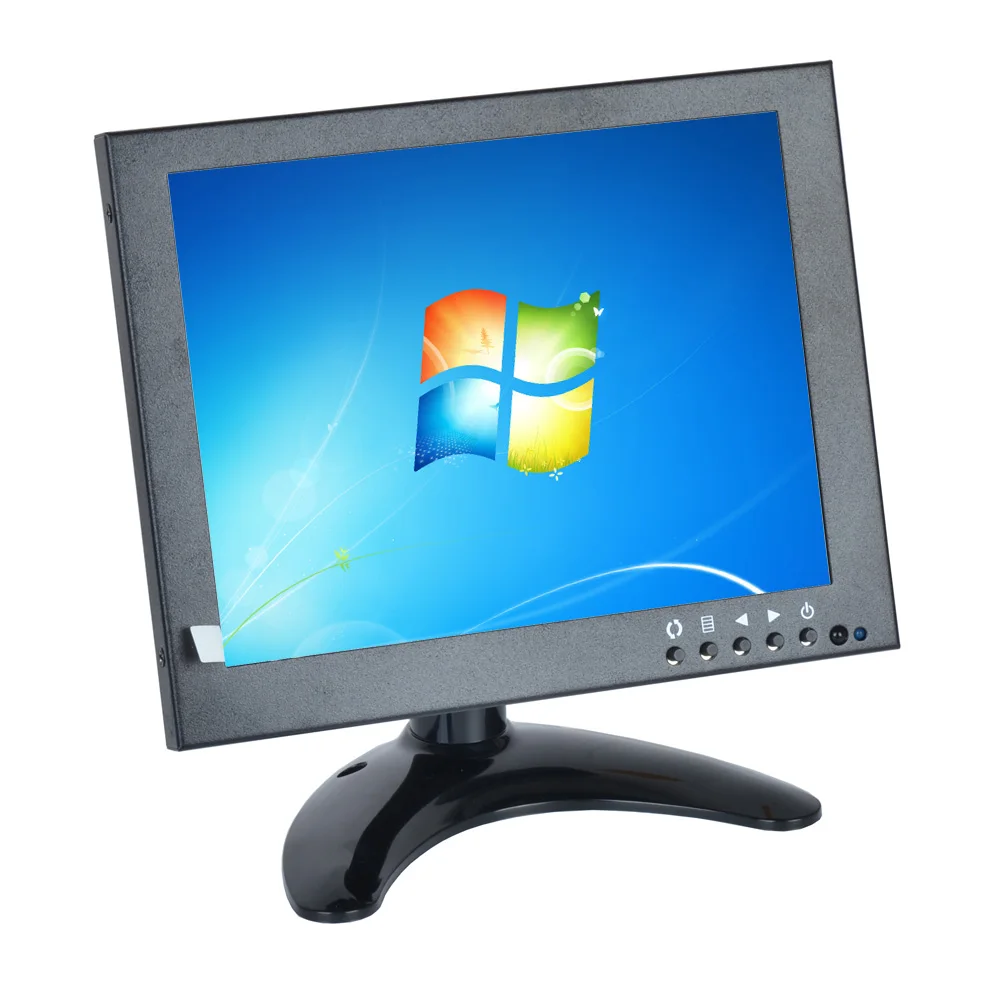

8" HDMI-Compatible TFT LCD Color Monitor:
8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI-Compatible, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm
Detail Images:
Packaging & Shipping
Shipping: DHL, EMS, Fedex and so on.
Package including:

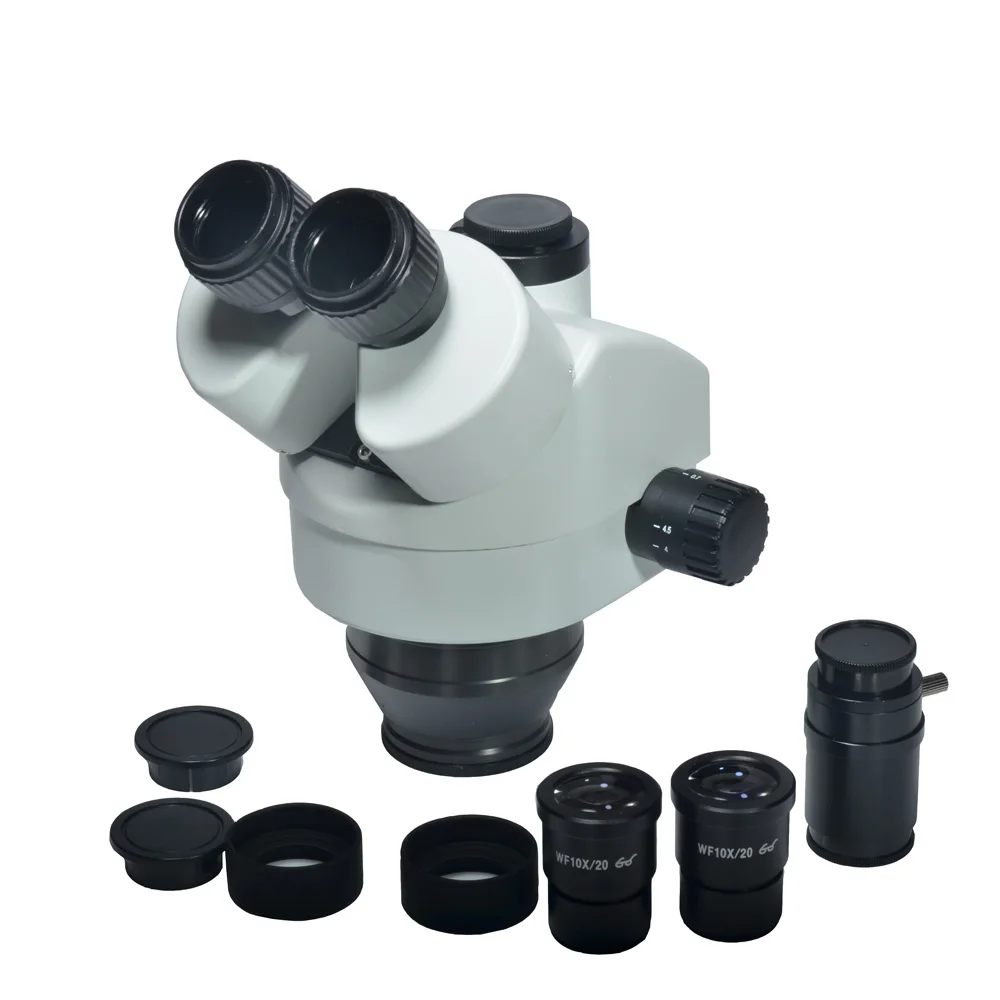

1 x Trinocular Stereo Zoom Head
1 x Pair of WF10X eyepieces
1 x Pair of WF10X eyepieces
1 x Pair of eye-guards
1 xStereo microscope table stand
1 xStereo microscope table stand
1 x 14MP Microscope camera
1 x USB Cable
1 x USB Cable
1 x Remote control
1 x User manual
1 x 144 Led light

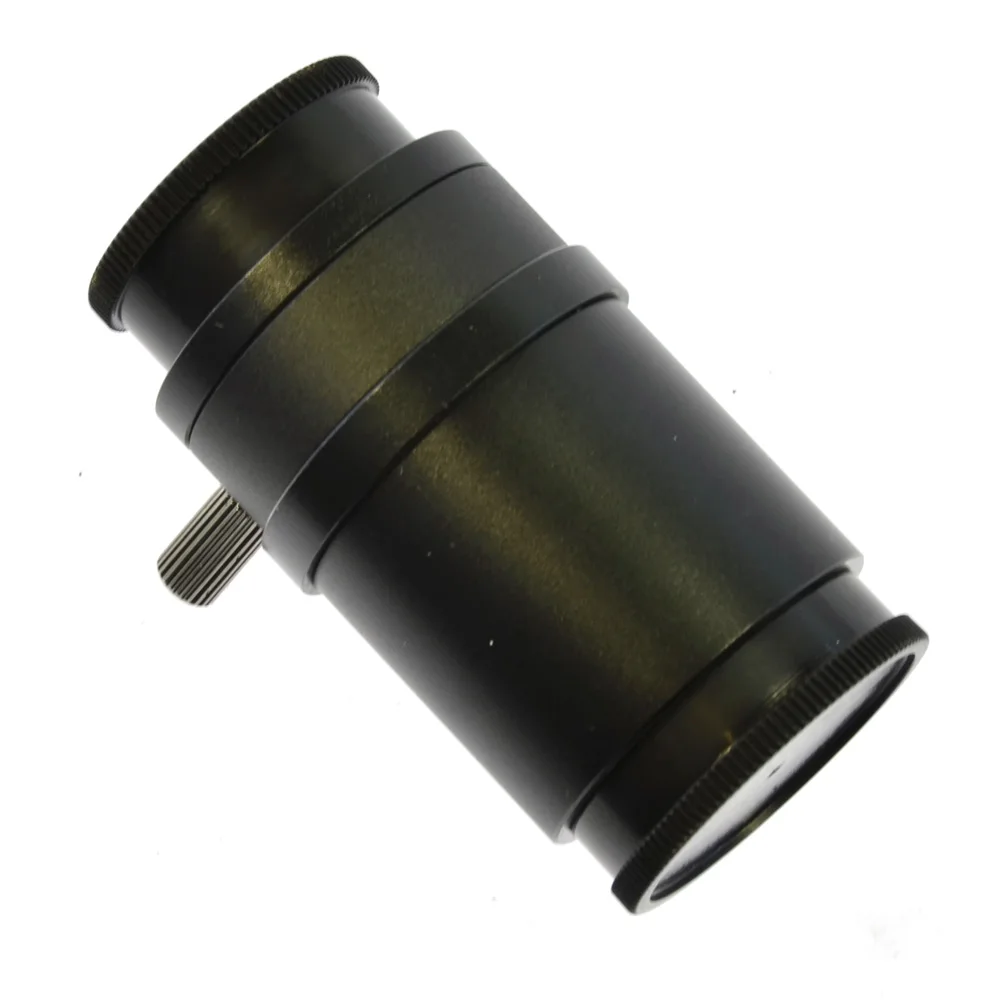

1 x 1/1 CTV C-mount Adapter
2 x Power supply (EU/US/UK/AU)
