PAYG solar home energy system kits with fan and tv 500 watt
- Category: >>>
- Supplier: Hefei Gaoneng Power Technology Co. Ltd. [Anhui China]Hefei
Share on (60833366455):
Product Overview
Description
PAYG solar home energy system kits with fan and tv 500 watt
Products information
All-in-one solar energy power generator; 300W, 500W optional;
Integrated circuit board for stable performance and low cost;
LCD display with vivid parameters of battery, solar panel and load;
Perfect protection function: over charge/ dicharge, over load, shor circuit,
Functioned with Battery Reversed Connection protection, free your concern of faults for connection,No need to change Fuse
300, 500W with 65ah ,100ah and 150ah battery for different working time and power storage;

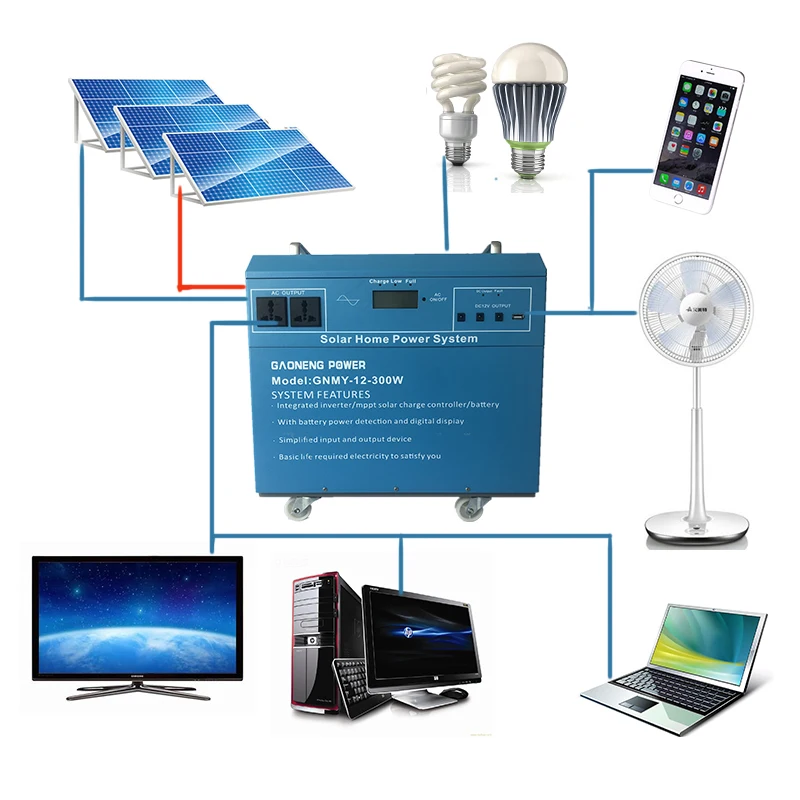

Run your lights, TV, fan, ceiling, freezer, rice cooker, laptop, computer and charge your phone;
OEM or custom made ideas for your own wholesale business, markets and home;
Technical support all time;

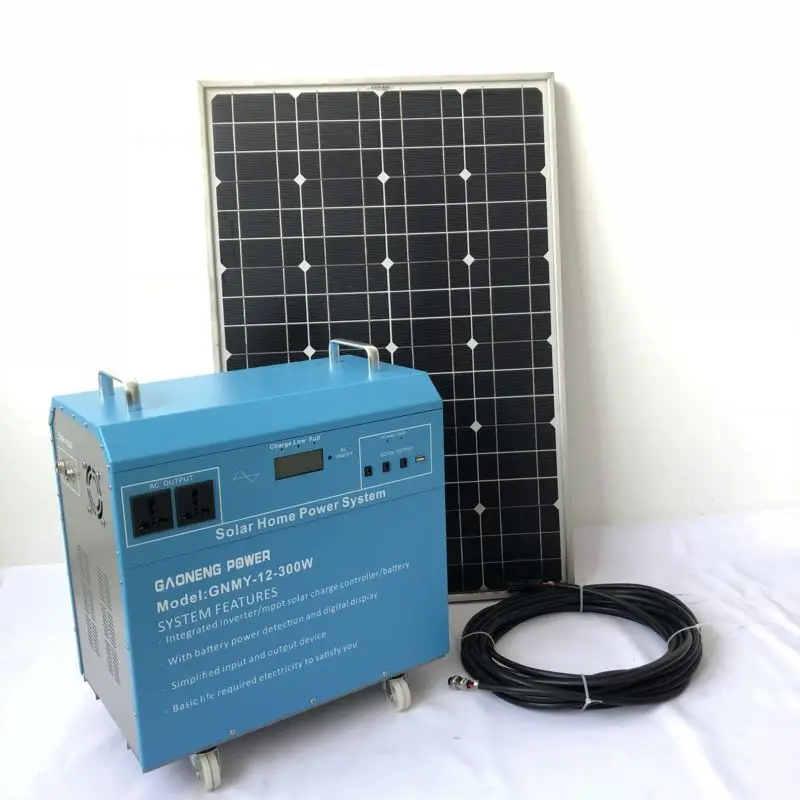

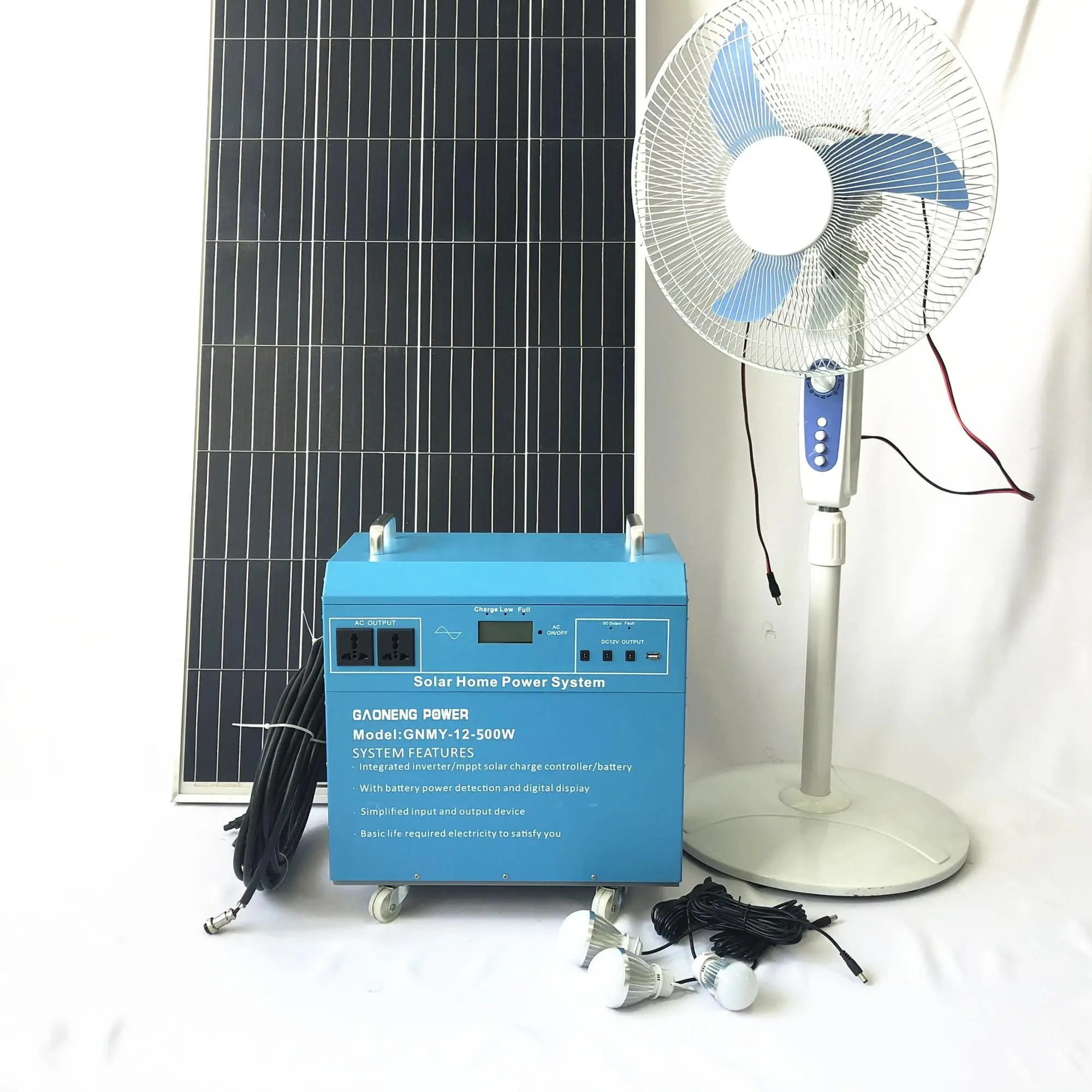

System Components
| Components | Specs |
| Solar panel | 150 W mono solar panel |
| Inverter with MPPT controller | 500W 12V /15A MPPT controller |
| Battery | 12V 100AH |
| PV cables | 10M |
| Power loads | Specs |
| LED Lights | 5W-30W |
| Fan | 15W-30W |
| TV | 70W-130W |
| Phone | USB charge |
| Laptop | 90W-100W |
| Radio | 5W-25W |

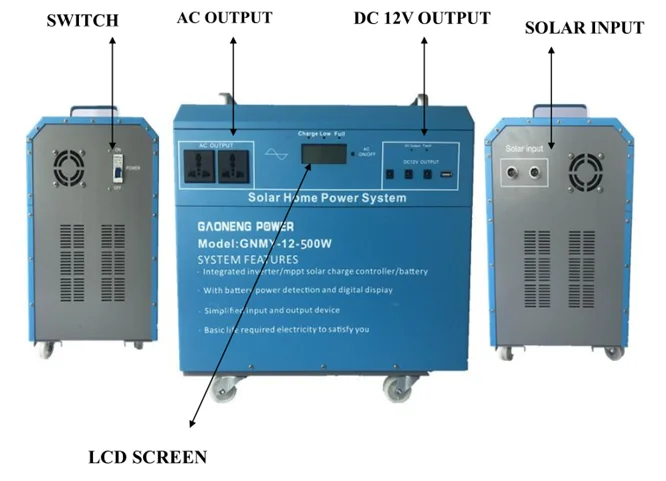

Product Display
Technical Parameters
GNMB-12300-S100 | ||
PV input | ||
Solar panel | Mono Crystalline | A class |
Work voltage | 18.2V | |
Open voltage | 22.4V | |
power | 150W | |
Cable | 10M(MC4) | |
Size(mm) | 1200*550*30 | |
Weight | 8.1KG | |
MPPT Solar charge controller | ||
MPPT controller | Charging current(MAX) | 15A |
Over-discharge protection | 10.8V | |
Over-discharge resume | 12.6V | |
Over-voltage protection | 16.0V | |
Over-voltage resume | 15.0V | |
Balance charge protection | 14.4V | |
Floating charge protection | 13.8V | |
Battery(integrated) | Gel battery | 12V 100AH |
Output | ||
DC load | 12V output | 10A |
USB-5V | 2A | |
voltage | 10.8V~15V | |
5W LED | 3PCS(Line length5M) | |
AC OUTPUT | voltage | 220V/230V/240V 50HZ |
Power | 300W | |
Over load protection | 320W | |
Short-circuit protection | 600VA | |
Output wave form | Pure sine wave | |
General parameters | ||
Weight | 34KG | |
Shell Protection grade | IP21 | |
Size(mm) | 400*248*410 | |
Working condition | ||
Environment temperature | -25℃~55℃ | |
Humidity | ≤85% | |
System application
Company Information
Packaging & Shipping
FAQ
1.Factory or not
Factory
2.Technical support
Yes, 24 hours support
3.OEM available or not
Available, custom design or our special design
4.Exported to
Africa, South Asia, Middle east, Australia etc.
5.Delivery in
7 days for regular models
6.Warranty for
1 year
7.Payments
Suggest trade assurance, T/T etc. Others available in certain orders.
