21.5 inch 24 inch 1500nits IP65 waterproof stainless steel touch screen panel PC for marine

Share on (60833370963):


Price:

Quantity:


Product Overview

Description


21.5 inch 24 inch 1500nits IP65 waterproof stainless steel touch screen panel PC for marine



Product Description


 ITD's rugged waterproof stainless steel panel PC is a type of computer that is designed for use in harsh environments where traditional computers may not be able to operate effectively. This type of panel PC is built to withstand extreme temperatures, moisture, dust, and other harsh conditions.








Features










  1. Waterproof and dustproof: The IP67 rating indicates that the panel PC is protected against immersion in water up to 1 meter deep for up to 30 minutes, and is also protected against dust ingress.




  2. Stainless steel construction: Stainless steel is highly resistant to corrosion, making it suitable for use in industries where the equipment is exposed to harsh chemicals or acids.




  3. High brightness display: IP67 panel PCs often include high brightness displays that are visible even in bright sunlight, making them suitable for use in outdoor applications.




  4. Touchscreen interface: Many IP67 panel PCs feature touchscreen interfaces, which can be more intuitive and easier to use in certain applications.




  5. Wide temperature range: IP67 panel PCs are designed to operate in a wide temperature range, typically from -20°C to +60°C.







Optional





















• DC 24V, DC9-36V, AC100-240V



• Optical bonding, IP67



• Resistive, IR, PCAP touch screen, AR/AG tempered glass



• WIFI, 3G, 4G, Bluetooth



• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.



• Stainless Steel, Aluminum Alloy






Specification



































Panel



Cell Type/Glass Surface



TFT



Size/ Aspect Ratio



21.5”/16:9



Active Area/ Pixel Pitch



476.64(H) x268.11(V)mm/0.24825× 0.24825mm



Native Resolution/ Colors



1920 x 1080/16.7M



Brightness/ Contrast



1000cd/m2(1500cd/m2 optional)/1000:1



Response Time/ Viewing Angle(Typical)



5ms/89/89/89/89



Light Source



LED Backlight with 50000Hours’Lifetime



SYSTEM




























































Item



Android Solution



X86 Solution 1



X86 Solution 2



CPU



ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)



Intel® Celeron J1900 2.0GHz



Intel® Core i3/i5/i7



Chipset



RK3288



Intel Bay Trail SoC



Intel SoC Chipset



Memory



2GB; 4GB Optional






Dual Channel, DDR3 1333/1600MHz Memory,


Max.8GB



2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB



Storage



8GB: 16GB/32GB/64GB Optional



1 x SATA, 1 x mSATA, Default to 64GB SSD



1 x SATA, 1 x mSATA, Default to 64GB SSD



Graphics



Supports max. 4K resolution



Intel HD Graphics (By CPU)



Intel HD Graphics (By CPU)



Default Waterproof I/O



2 × USB, 1× RJ45, 1× DC12V.


COM ports, HDMI Output, Audio, etc. optional



2 × USB, 1× RJ45, 1× DC12V.


COM ports, HDMI Output, Audio, etc. optional



2 × USB, 1× RJ45, 1× DC12V.


COM ports, HDMI Output, Audio, etc. optional



LAN



1 x 10/100/1000Mbps Ethernet



1 x 10/100/1000Mbps Ethernet



1 x 10/100/1000Mbps Ethernet



OS



Android 6.0 (Android 7.0 optional)



Windows 7/8/10, Linux



Windows 7/8/10, Linux



GENERAL




























Power



Input Voltage



DC 12V 2.0



Operation/Power Saving



40~65W



Environment Considerations



Operating Temperature



0~50



Storage Temperature



-20~70



Mounting



VESA Mount, Panel/Embedded Mount optional






Product Display

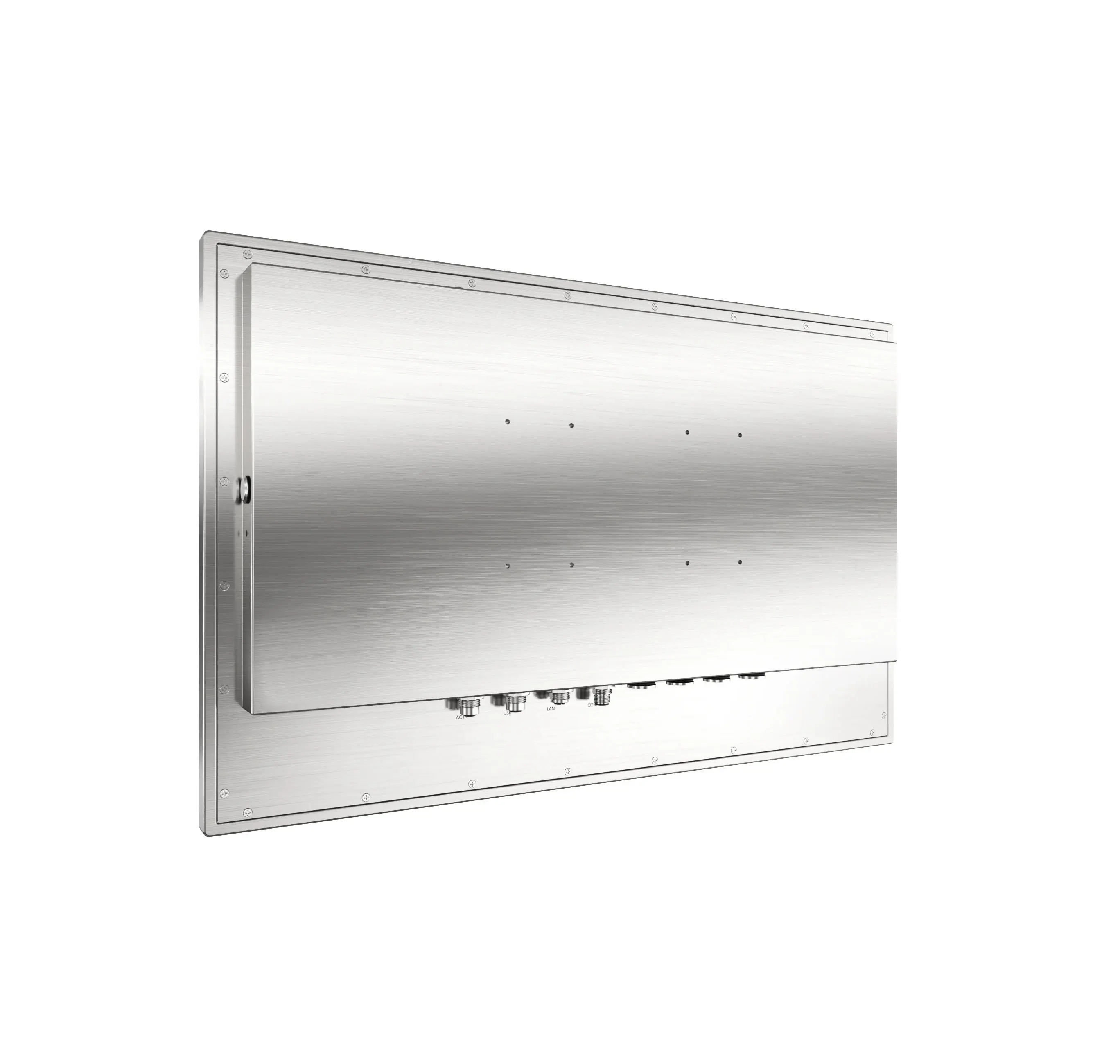

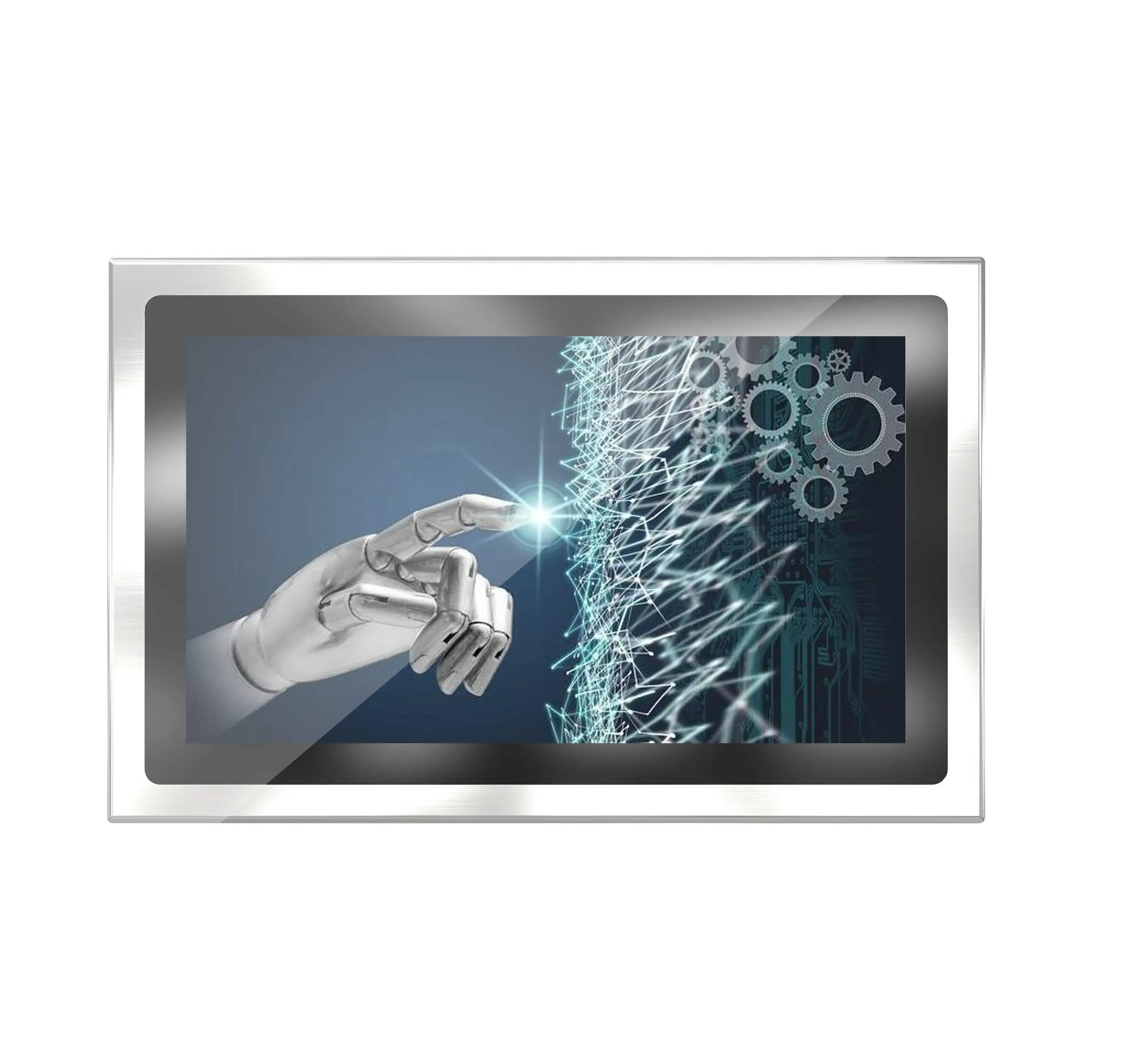

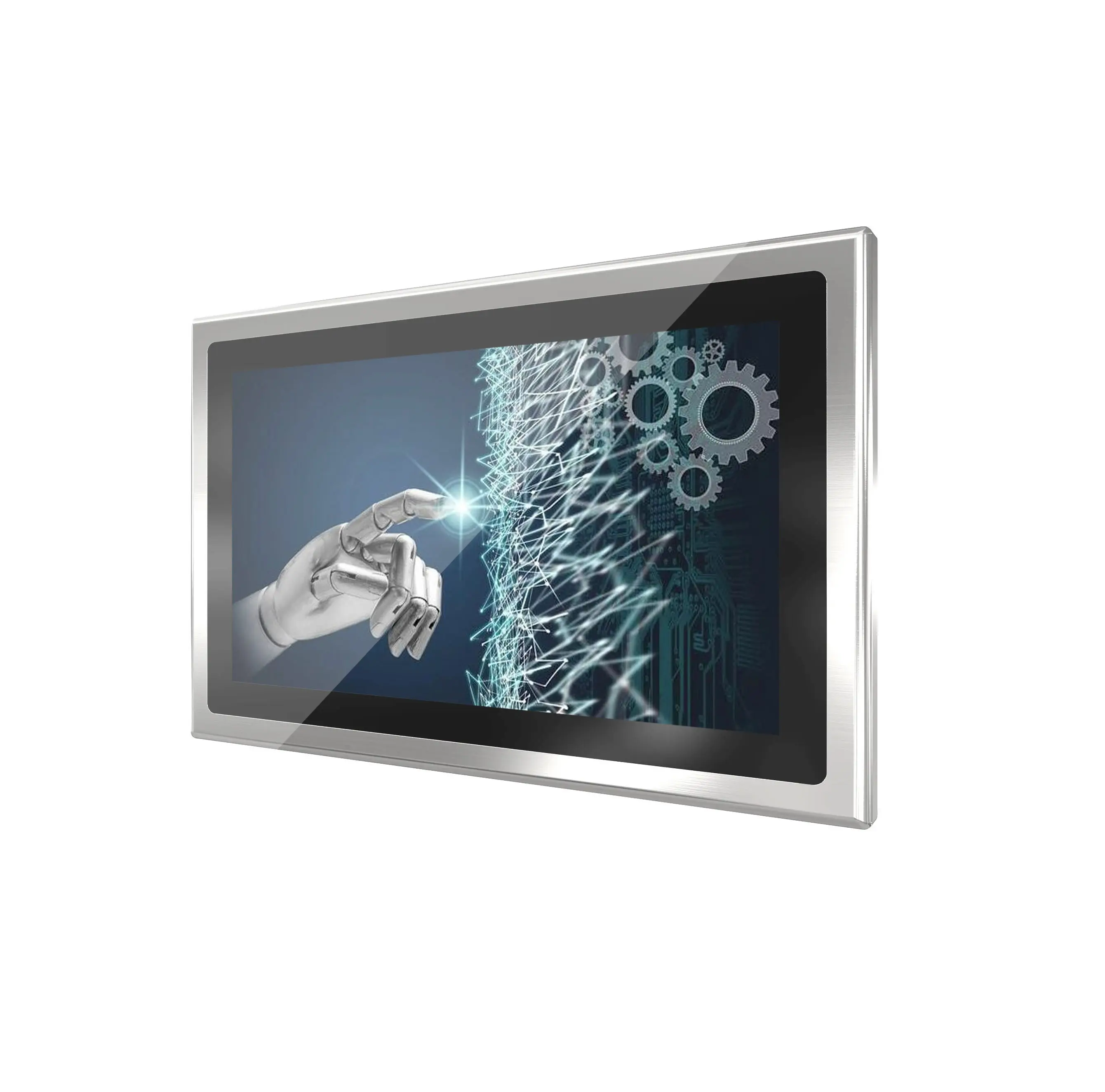

 24'' front.jpg24'' back.jpg21.5'' front .jpg24'' back.jpg











Packaging & Shipping




Firm, safe, standard cartons with foams


Wooden Shelf or BOX for big sizes and big quantiity









Our Services


All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.

- DOA Service (Dead On Arrival):
To run DOA within 1 month after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.

- RMA Service (Return Merchandise Authorization):
To run RMA within 24 months after shipment (TFT LCD panels come with 12months' warranty). Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.








Company Information


 ITD is a worldwide leading industrial touch display equipment’s solutions provider with an after-service center in Netherlands combining researching, developing, manufacturing, marketing & service with an excellence in varied kinds of industrial displays and touchscreen products started from 2005 and later expanded to embedded panel PC, digital signage, rugged stainless steel/aluminum alloy IP65 industrial displays, and ultra-wide stretched bar LCD displays for industries ranging from banking, transportation and logistics, to automation, marine, railway, oil and gas, energy, healthcare, and field service.
