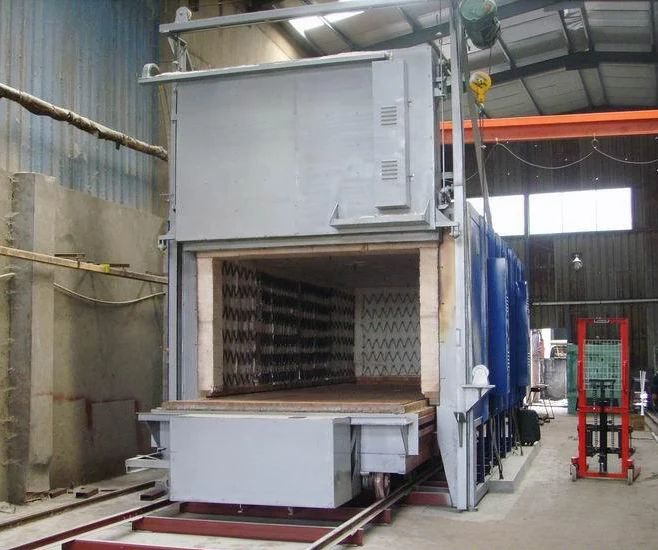

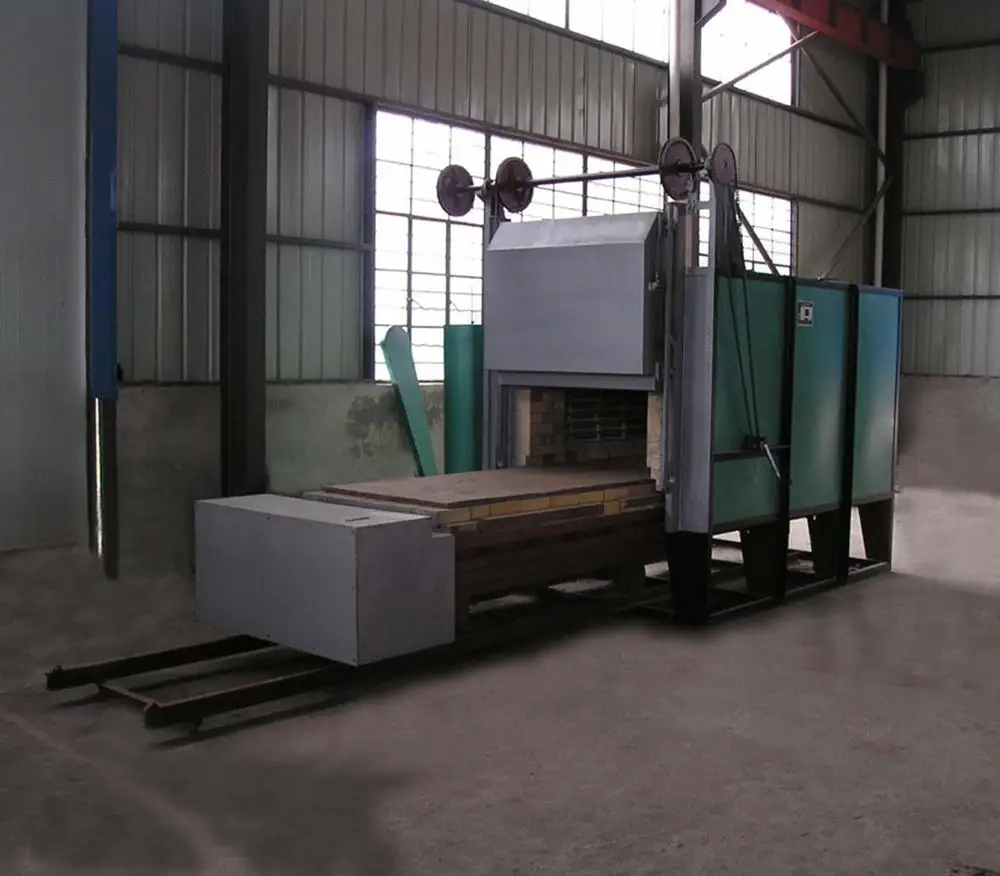

Bogie Resistance Annealing Furnace with 950 deg C

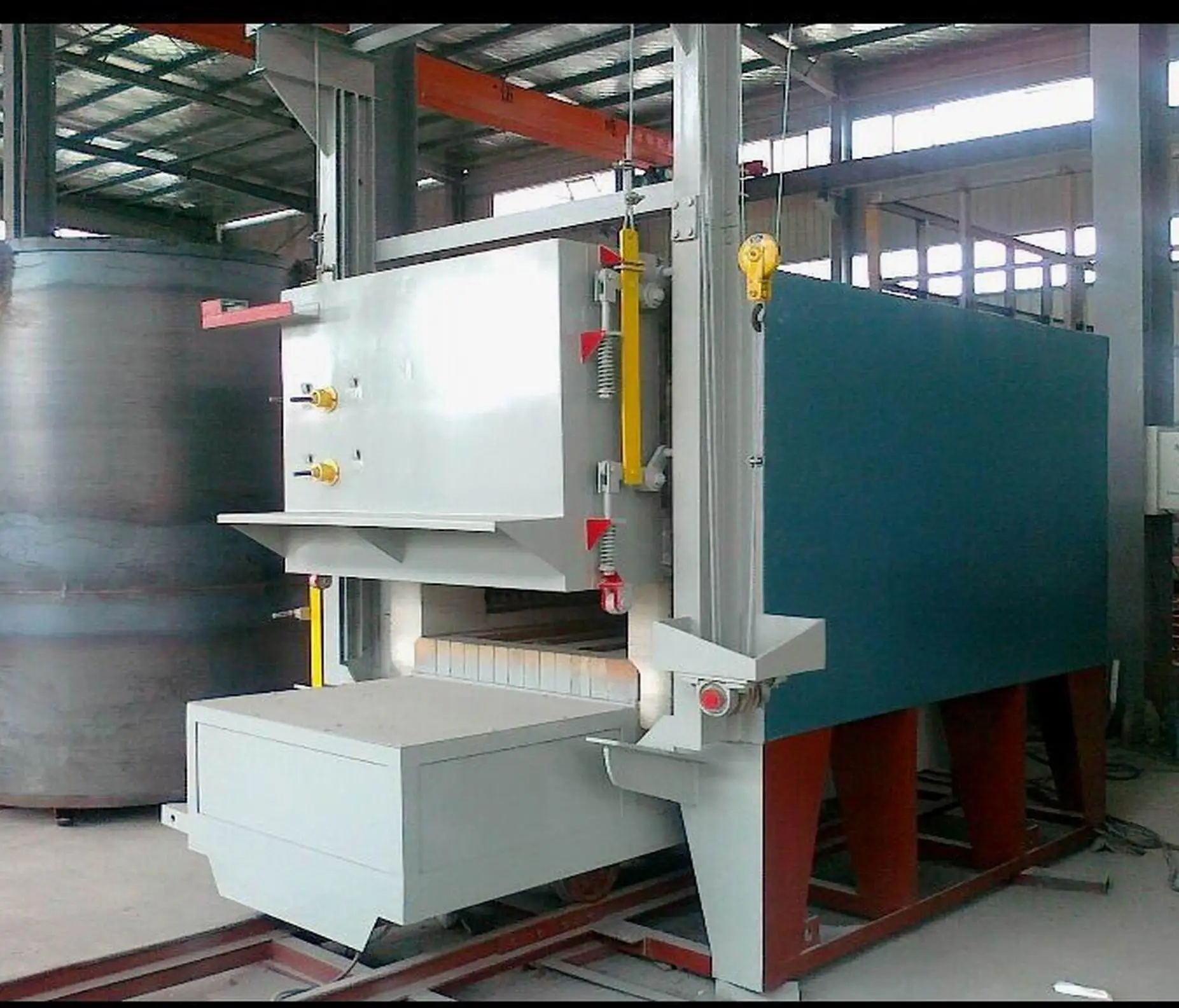

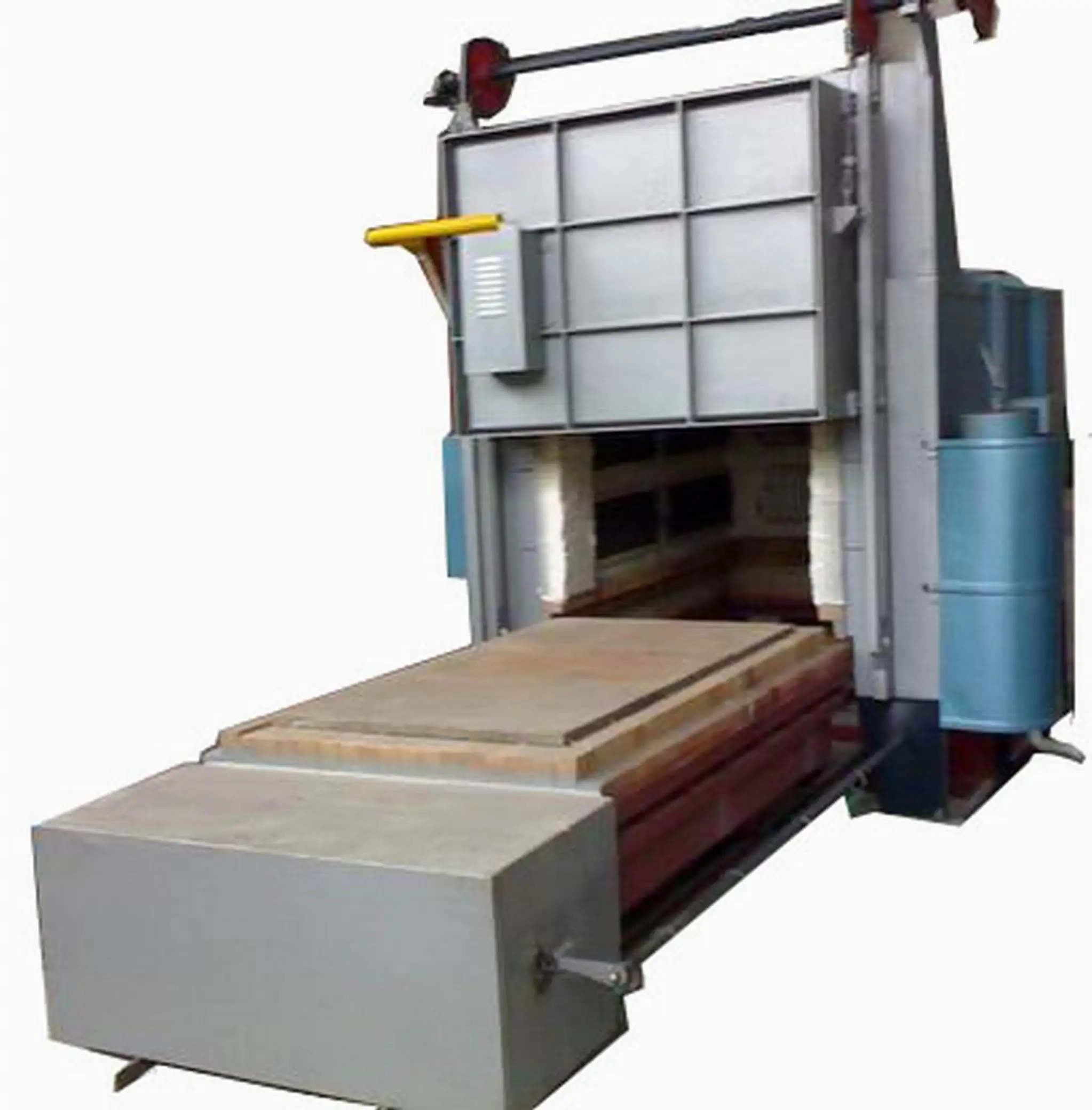

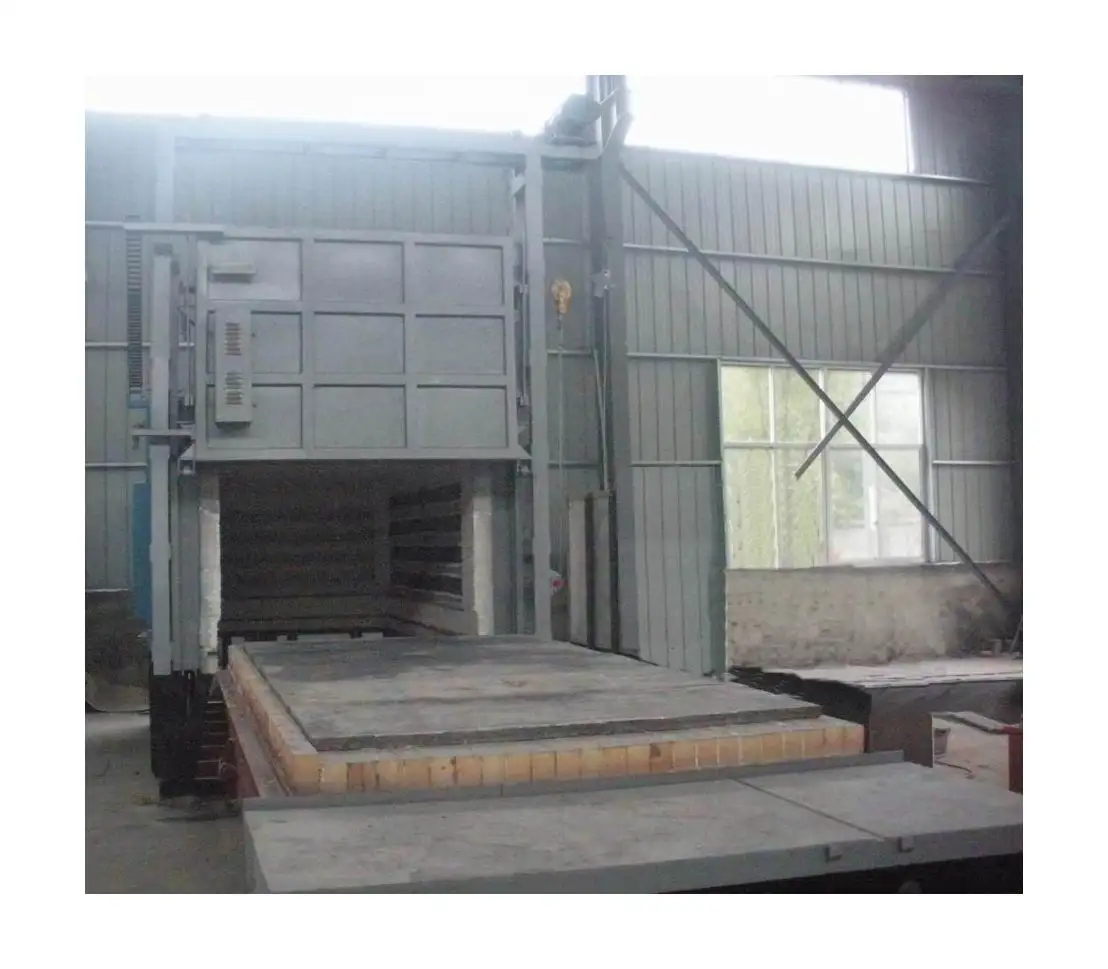

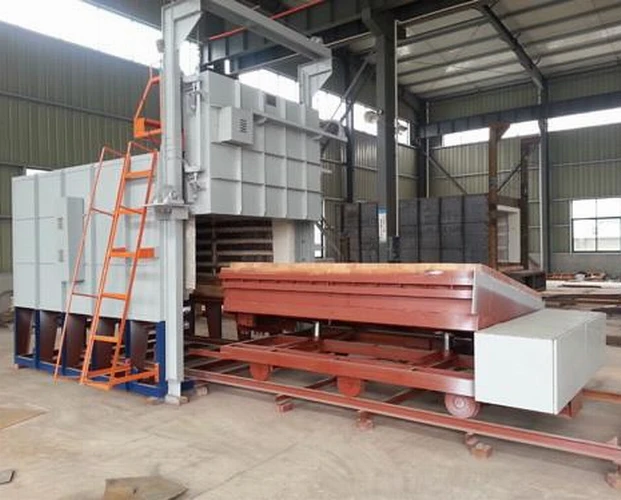

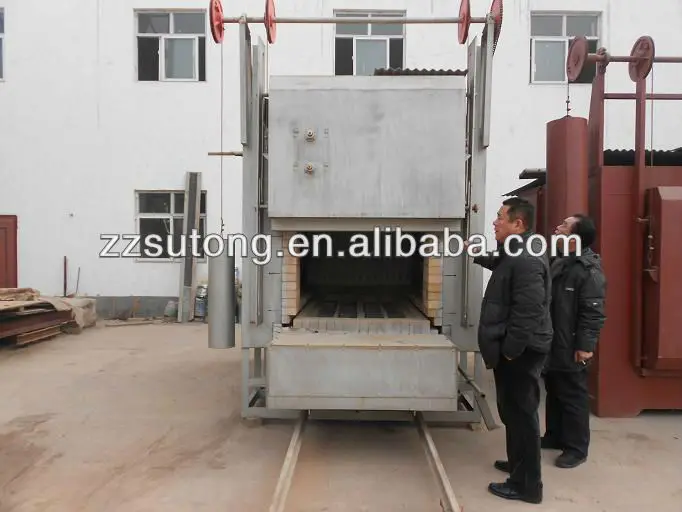

Bogie Resistance Annealing Furnace

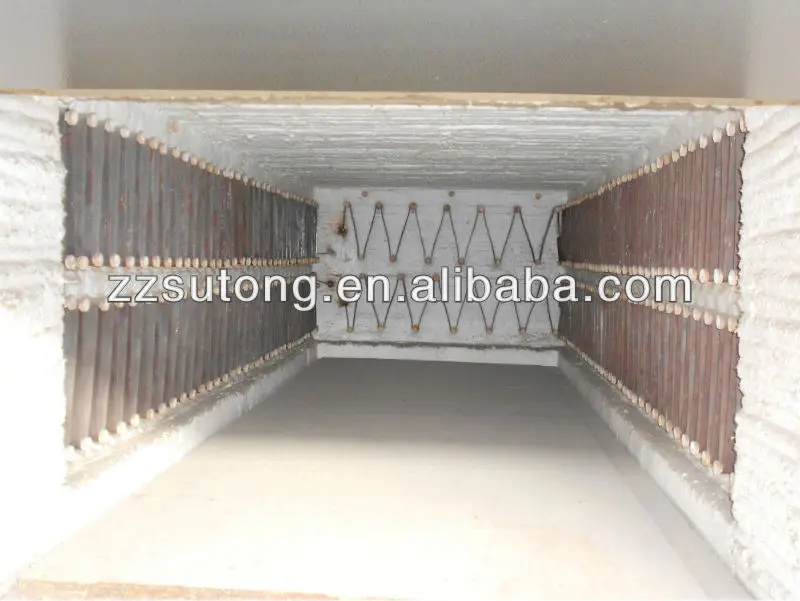

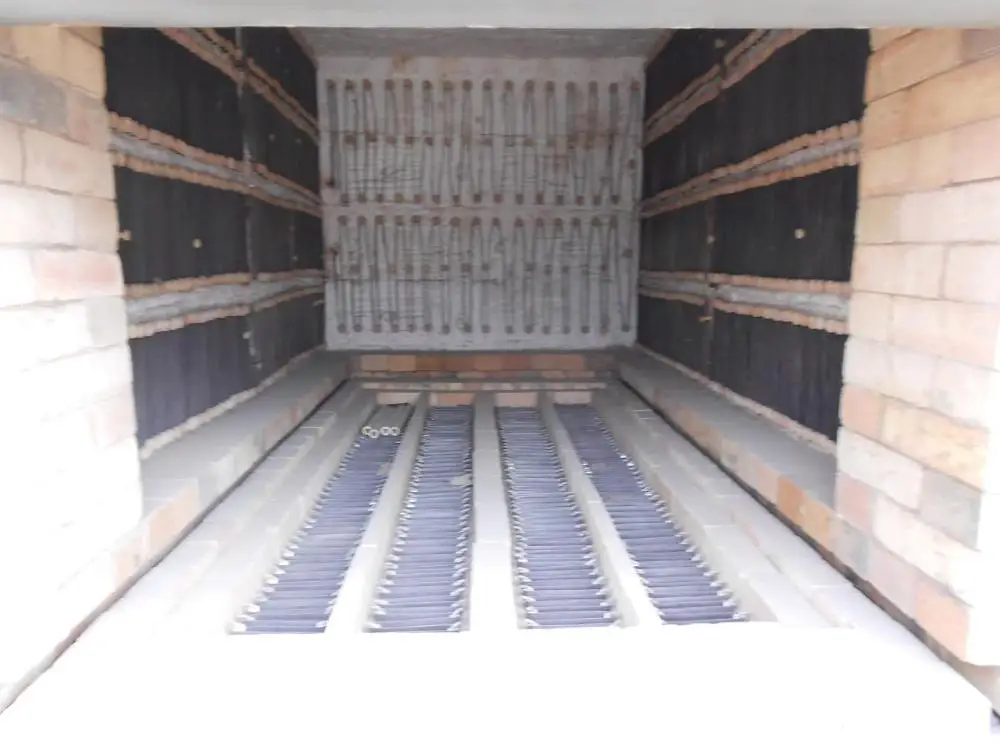

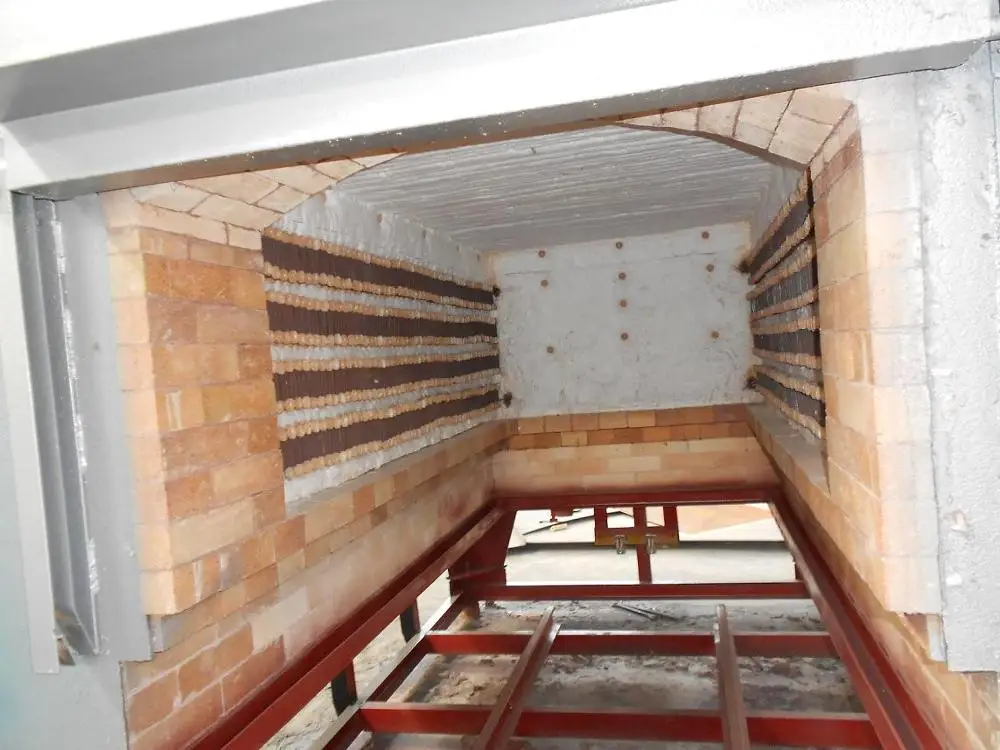

Bogie resistance annealing furnace is welded by steel and profiled steel; furnace chamber is ceramic fiber and high quality electric resistance wire, which can save 40% energy than brick furnace chamber. Car Bottom Furnace is mainly used for annealing, normalizing and stress relieving of bars and tubes, forgings, large weldments and castings.
Main specification of bogie resistance annealing furnace:
Rated Temperature | 950°C (< 3 hrs) |
Working Voltage | AC220V 50/60HZ |
Chamber Size(WXHXD) | 950*450*350mm |
Power | 30KW |
Outside Size | 1920X1620X2140mm |
Weight | 2100kg |
Heating Rate | 10°C/min |
Heating Element | resistance wire |
Temperature Control | 30 steps programmable and PID automatic control |
Temperature Accuracy | ±1°C |
Thermocouple | K type |
Door structure | side door open |
| Standard package included with the furnace | ||
| Part description | Quantity | |
| Thermal couple | 1 pc | |
| Stainless steel hook | 1 pc | |
| Furnace door block | 1 pc | |
| Thermal gloves | 1 pair | |
| Operation manual | 1 pc | |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air or sea, in 15 days after receiving the payment
