Dream color waterproof ip65 smart dual signal APP controlled digital rgb pixel 12v wholesale led strip gs8208 ws2815
- Category: >>>
- Supplier: Shenzhen Btf-Lighting Technology Co. Limited
Share on (60833410343):
Product Overview
Description

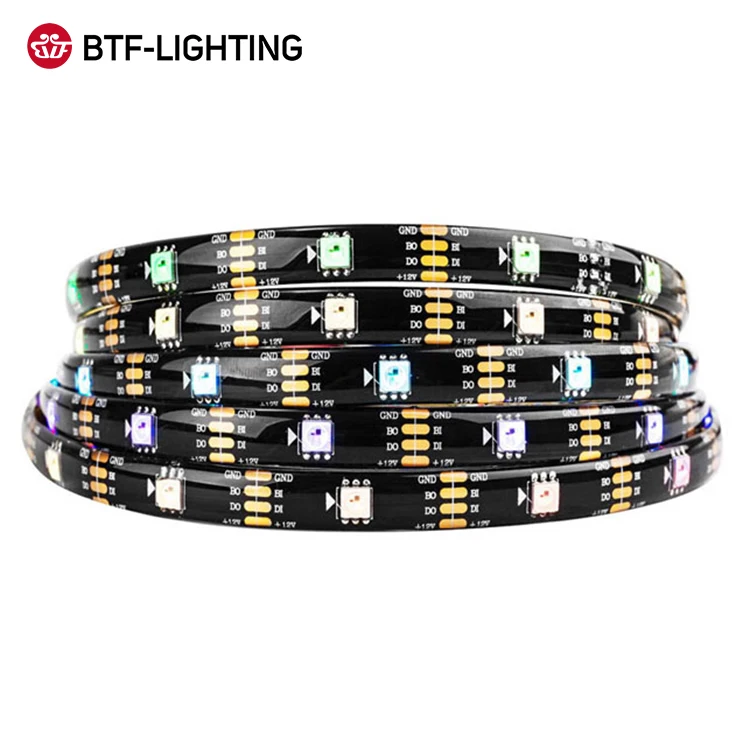

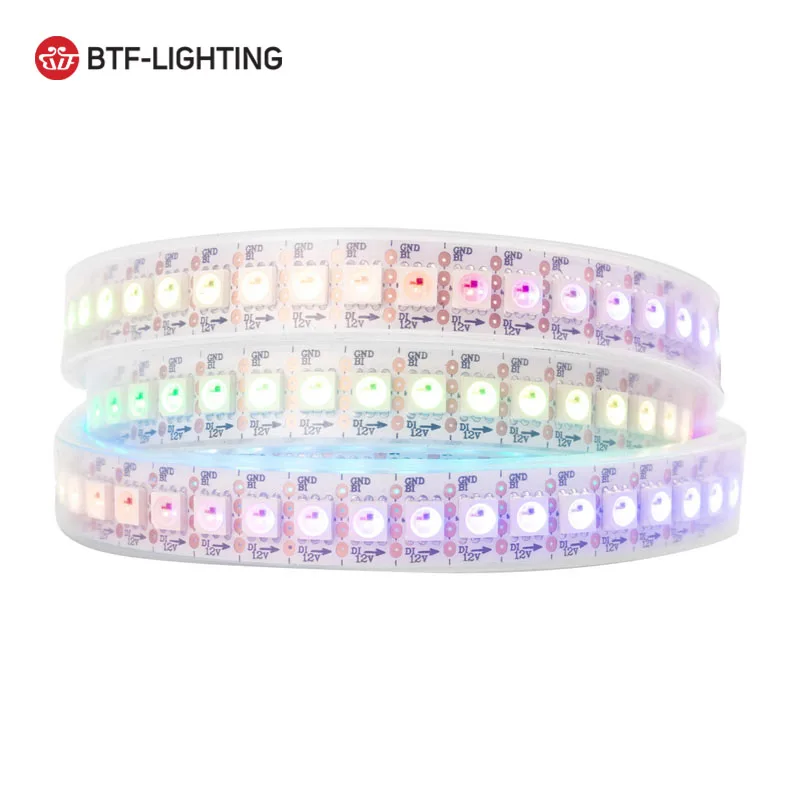

Dream color waterproof ip65 smart dual signal APP controlled digital rgb pixel ws2815 led strip
Wide compatibility:
Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.
12V WS2812B/WS2813 LED Strip:
WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.
Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
Dual-signal wires:

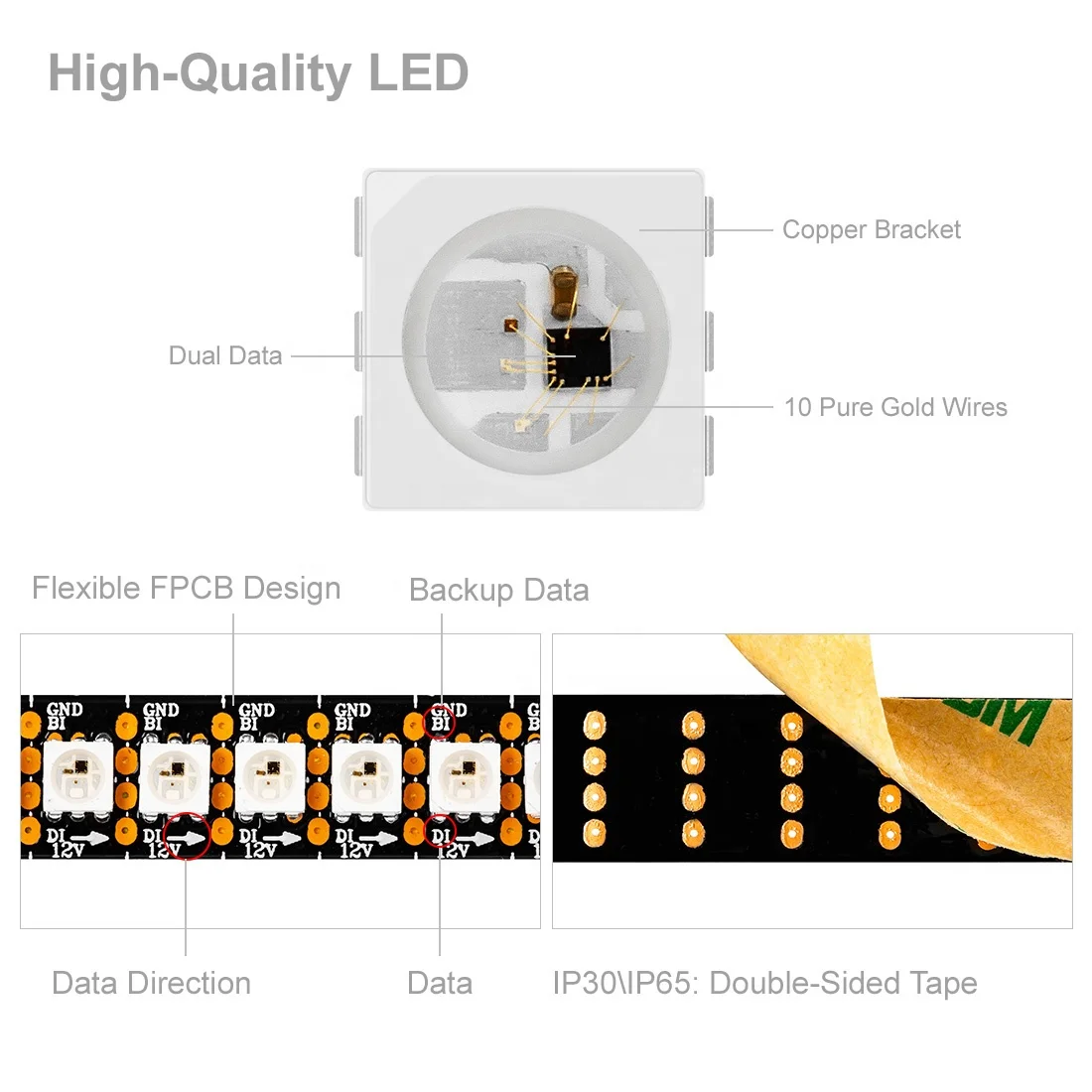

WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.
Easy installation:
Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.
There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.

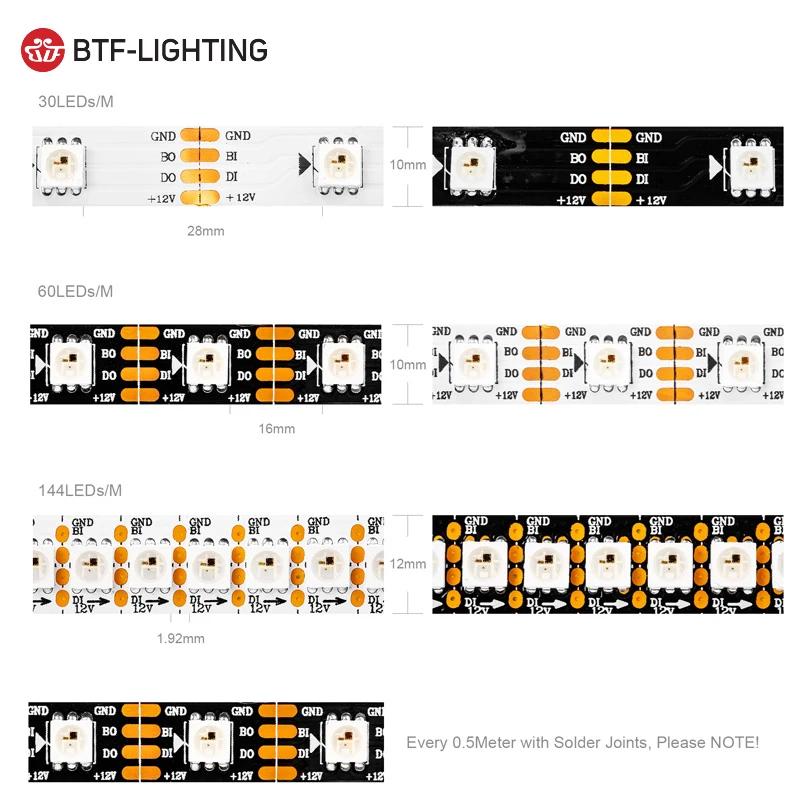

The distance between two LEDs:30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube

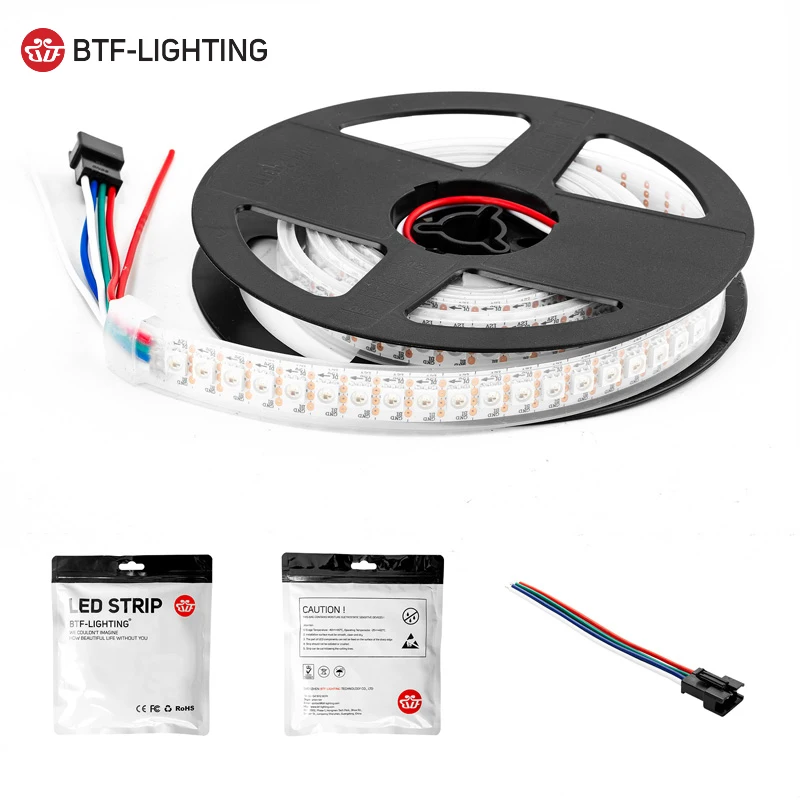

Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip
1 x 4pin connector
Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.
Related Products
| LED Strip | Input Voltage | IC | Pin | Cable |
| ws2811 | DC12V | 3leds/IC | 3pin | 12V,DIN,GND |
| ws2815 | DC12V | 1led/IC | 4pin | 12V,BI,DI,GND |
| ws2812b | DC12V | 1led/IC | 3pin | 5V,DIN,GND |
| ws2813 | DC5V | 1led/IC | 4pin | 5V,BI,,DI,GND |
| sk6812 | DC5V | 1led/IC | 3pin | 5V,DIN,GND |
| sk9822 | DC5V | 1led/IC | 4pin | 5V,CI,DI,GND |
