Высокопроизводительное топливное оборудование для бензозаправочной станции
- Category: Fuel Pump & Parts >>>
- Supplier: Baotai Science And Technology Co. Ltd.
Share on (60833471374):
Product Overview
Description
Product Application

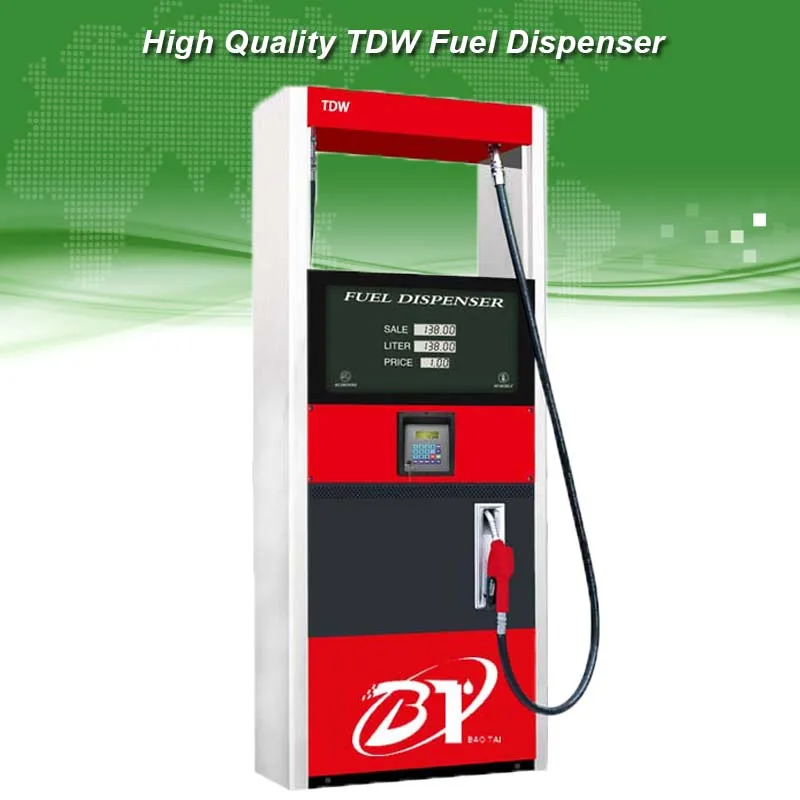

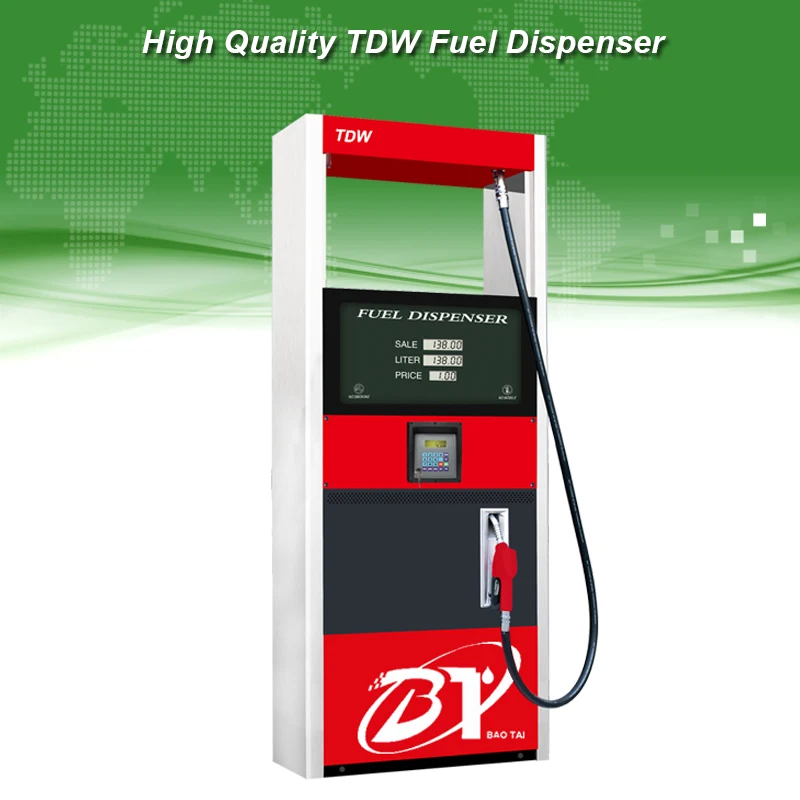

Model: TDW-ESHD5 Fuel Dispenser
With 1nozzle, 1 product, 1flow meter, 2display.
With 2nozzles, 1 product, 1flow meter, 2display.
With 2nozzles, 1 product, 2flow meter, 2display.
With 2nozzles, 2 product, 2flow meter, 4display.
With 4nozzles, 2 product, 4flow meter, 4display.

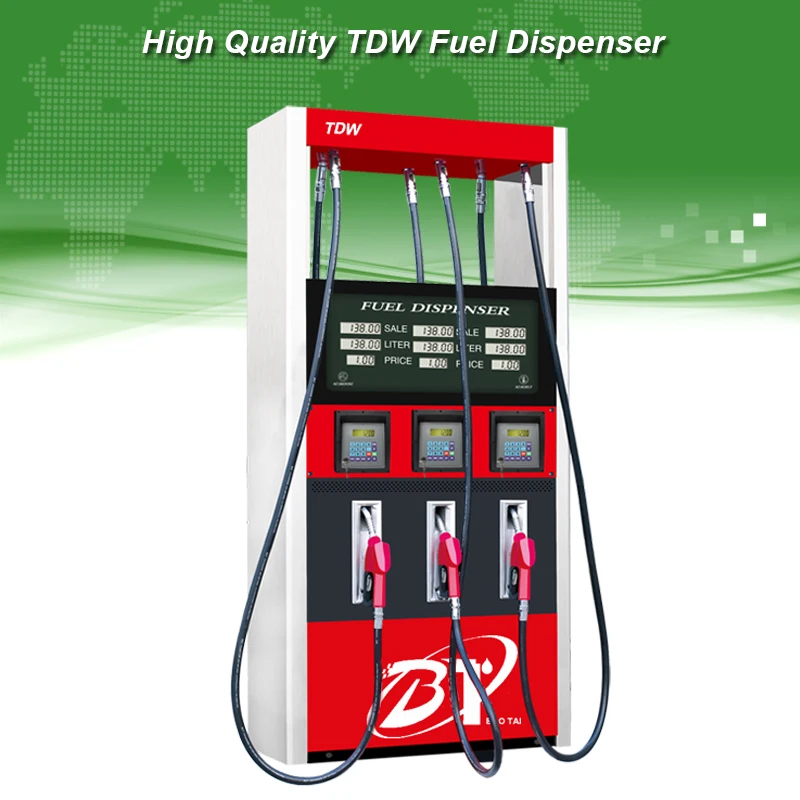

With 6nozzles, 3 product, 6flow meter, 6display.

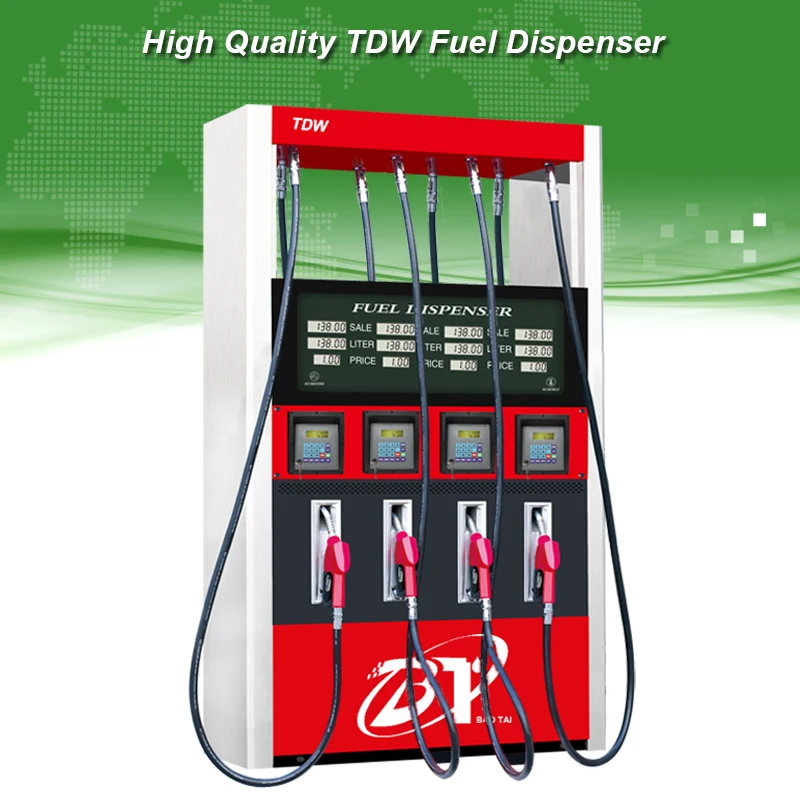

With 8nozzles, 4 product, 4flow meter, 8display.
With 8nozzles, 4 product, 8flow meter, 8display.
We offer different type pumps, such as vane pump, gear pump, submersible pump.
Support Bennett / Tatsuno / Tokheim / Gilbarco / Wayne.
| Motor | 110V / 220V / 380V |
| Flow Rate | 50 / 80 / 120 L/min |
| Ambient Temperature | -25°C~ +55°C |
| Suction Distance | 6m(Vertical),50m(horizontal) |
| Nozzle | ZVA/TDW |
| Hose | 3m/4.5m |
| Flow Meter & Fuel Pump | Tokheim / Bennett / Tatsuno / Gilbarco / Wayne |
| Electronic Controller | TDW-EG1 |
| Unit Price Range | 0.01~9999.99 (changeable) |
| Accuracy | ±0.3 % |
| Noise | ≤80dB |
| Humidity | ≤90% |
| Outlet Pressure | ≤0.3MPa |
| Install | Vapor recovery system |
| Hose Size | 3/4'' / 1'' |
| Size | 1230*530*2390mm |

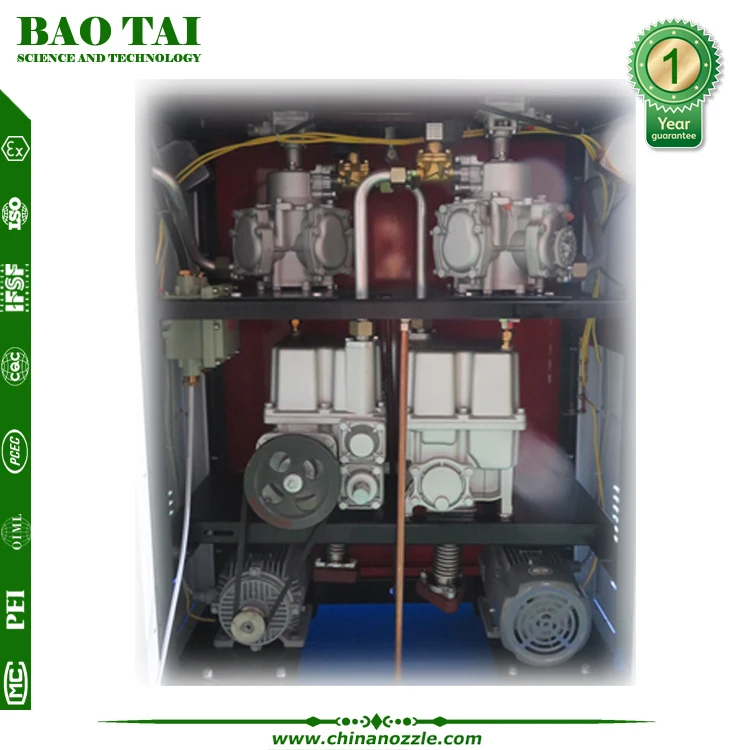

pump select
Flow Rate 45-90 L/m
Vertical Suction Distance 6m
Bennett / Tatsuno / Tokheim / Wayne
meter select
Flow Rate:5~120L/m
Repeatability Error: ≤0.1%
Bennett / Tatsuno / Tokheim / Wayne
nozzle select
ZVA automatic nozzle
TDW automatic nozzle
UL, ATEX, GOST-R, PEI manufacturer
computer
packaging
Company Information
FAQ & Contact
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
| Contact | Lucky Yuan |
| tel. | 86-577-55872770 |
| mobile | 86-152-2419-4418 |
| 3166973726 |
