Product Overview
Description
>>> Product Introduction
4/6 Corner Box Folder Gluer Machine (GK-H650/H800/H1100)
Model GK-H folding gluing machine is a multi-functional high-speed machine, imported electronic components, adopts synchronous belt transmission and an electronic continuously variable speeder, feeding section adopts mechanic continuously variable, stable, and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery, and other ordinary cartons, process and perfectly combing the requirements of auto packaging together. (in case of any special function is required, we can design according to the customer's intention.)
>>> Main Technical Parameters
Model | 650 | 800 | 1100 | ||
Paper material | Cardboard 210-800g, A.B.E Corrugate. | ||||
Speed max | 400m/min | ||||
Inching speed | 10m/min | ||||
Thickness of folded box max | 12mm | 20mm | 20mm | ||
Blank width | 650mm | 800mm | 1100mm | ||
Length*width*height | 13*1.4*1.8m | 16.5*1.4*1.8m | 16.5*1.7*1.9m | ||
Net weight | 5T | 6T | 7.2T | ||
Total power | 22.5kW | 25.5kW | 29kW | ||
Compressed air | 6 bar | 6 bar | 6 bar | ||
Air compressor capacity | 10m3/h | 10m3/h | 10m3/h | ||
Air tank capacity | 60 L | 60 L | 60 L | ||
>>> Main Boxes Samples
>>> The Machine Components

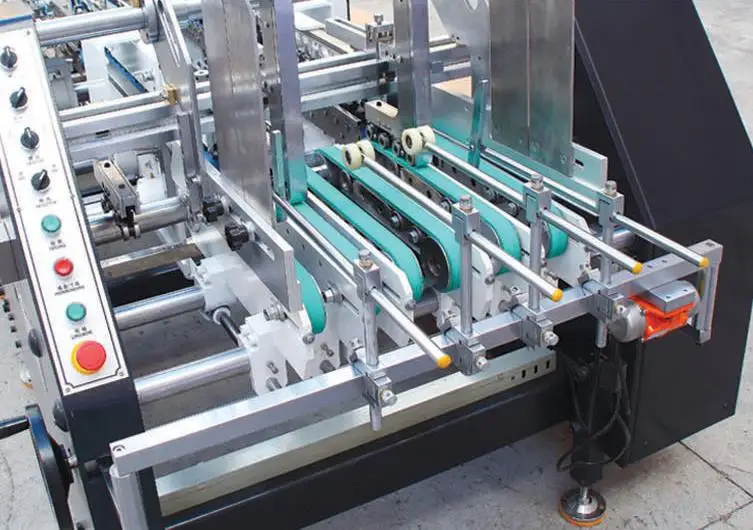

Feeding
1. 5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding continuously.
2. Variable Speeder to ensure feeding internal and stable transmission.
3. One-touch Pneumatic knife, easy for the adjustment of feeding belts
Pre-fold
1. Double-board structure with a set of pre-folding knife. Pre-fold angle is 180°and 90°.
2. Packed with special track device.
3. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Bottom Lock
1. 3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the
special-shaped cartons.
2. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold
box and the other types of box. Bottom-folding speed is 50-200 pcs per min, stable and reliable.
Folding Section
1. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Trombone
1. Automatic: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
2. Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
Transmission
1. Equipped with feeding paper inspection device.
2. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
1. 5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding continuously.
2. Variable Speeder to ensure feeding internal and stable transmission.
3. One-touch Pneumatic knife, easy for the adjustment of feeding belts
Pre-fold
1. Double-board structure with a set of pre-folding knife. Pre-fold angle is 180°and 90°.
2. Packed with special track device.
3. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Bottom Lock
1. 3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the
special-shaped cartons.
2. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold
box and the other types of box. Bottom-folding speed is 50-200 pcs per min, stable and reliable.
Folding Section
1. Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Trombone
1. Automatic: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
2. Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
Transmission
1. Equipped with feeding paper inspection device.
2. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
