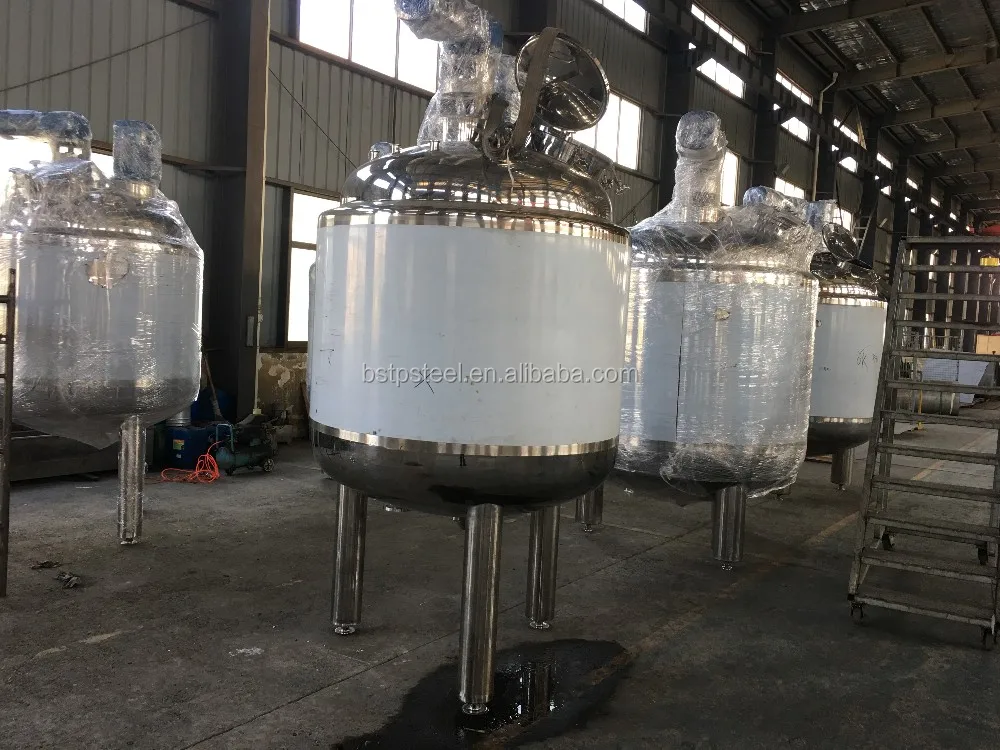

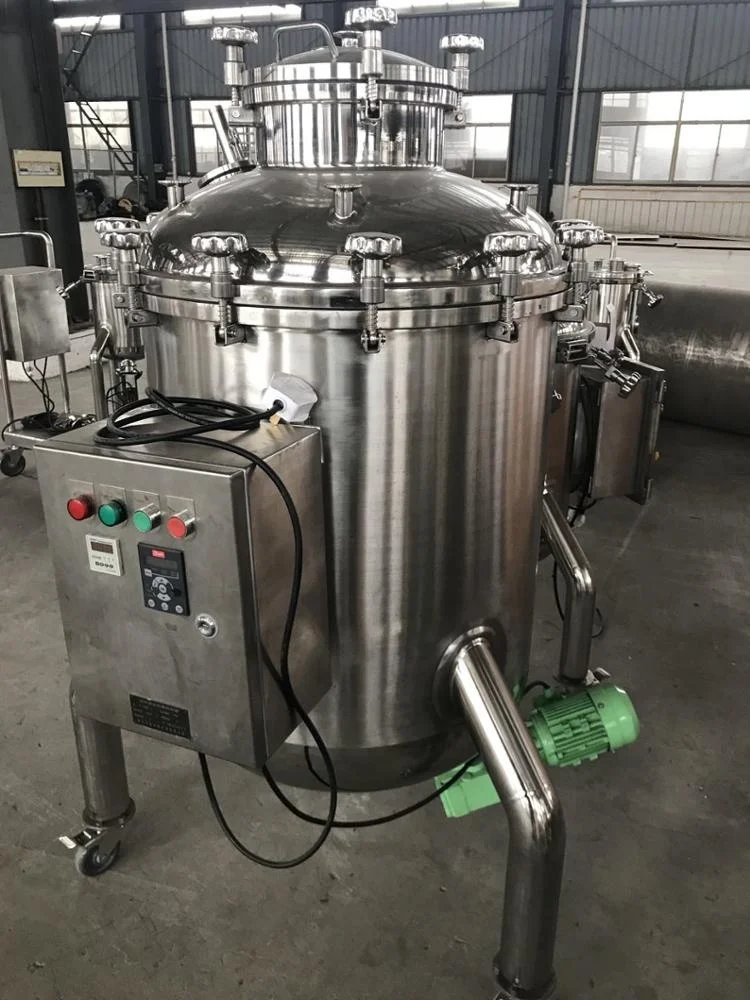

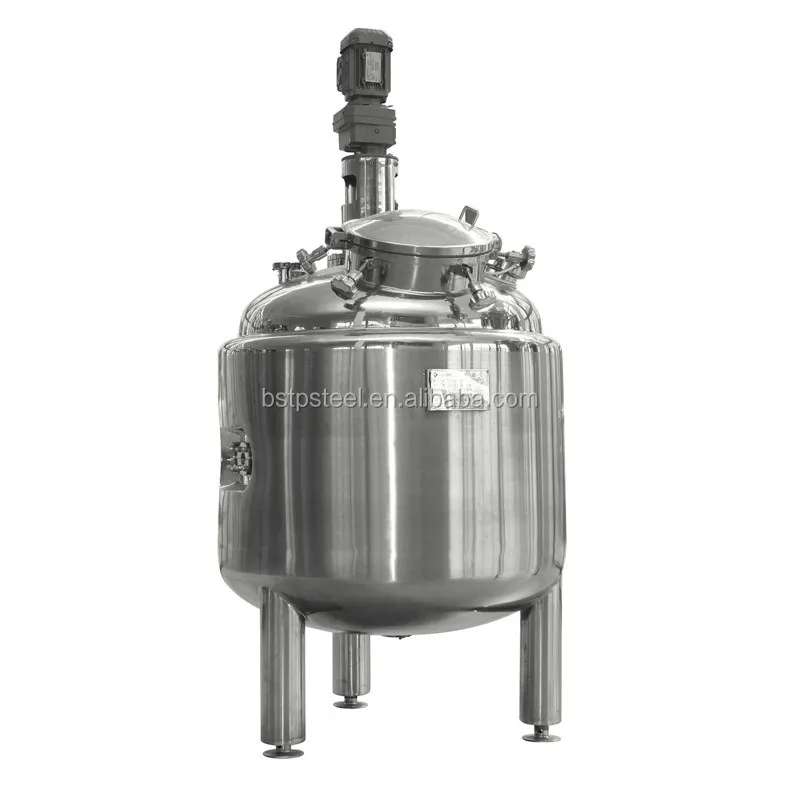

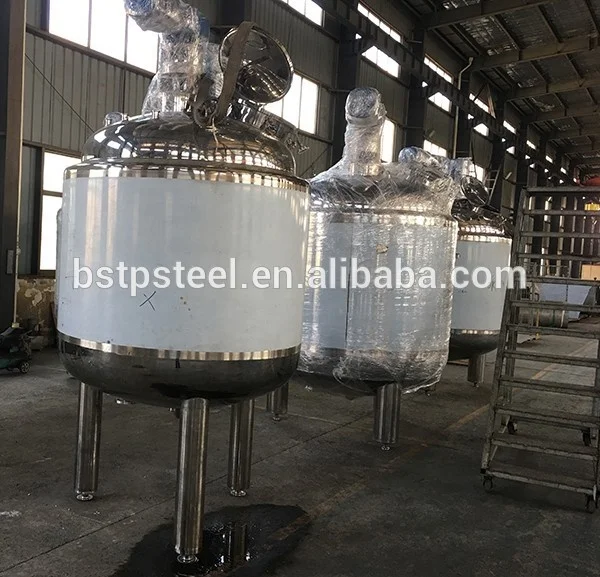

Stainless steel vacuum high speed shear mixing tank
- Category: >>>
- Supplier: Wenzhou Bestop Steel Co. Ltd.
Share on (60833644335):
Product Overview
Description
Product Description
Application

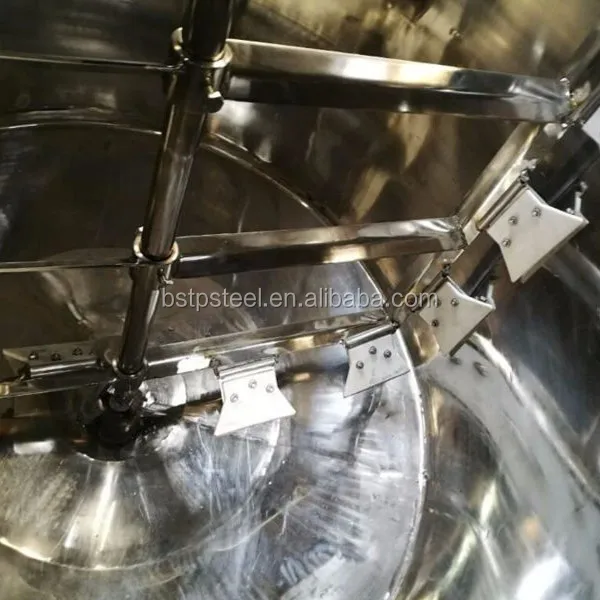

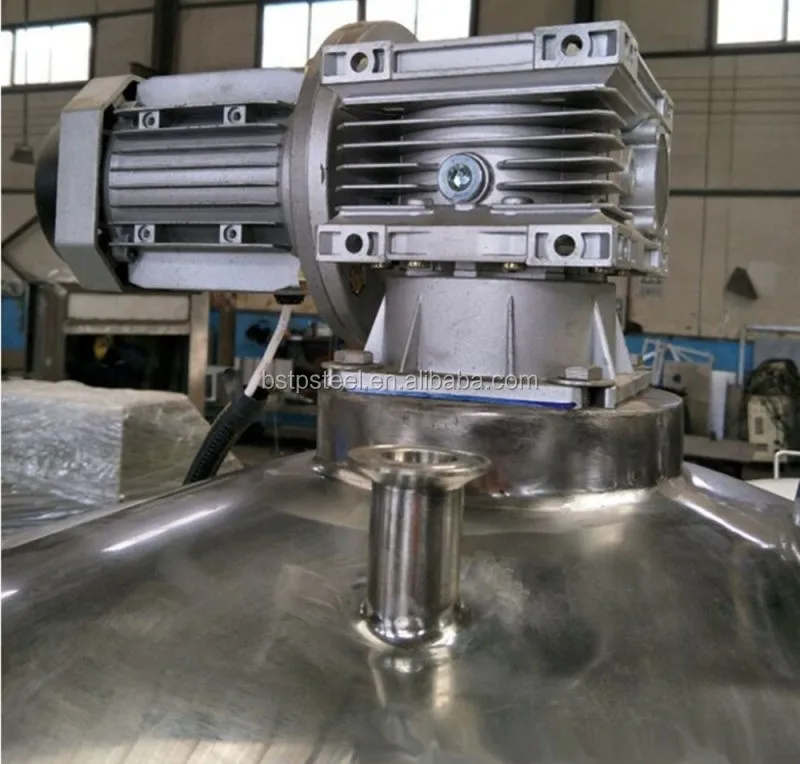

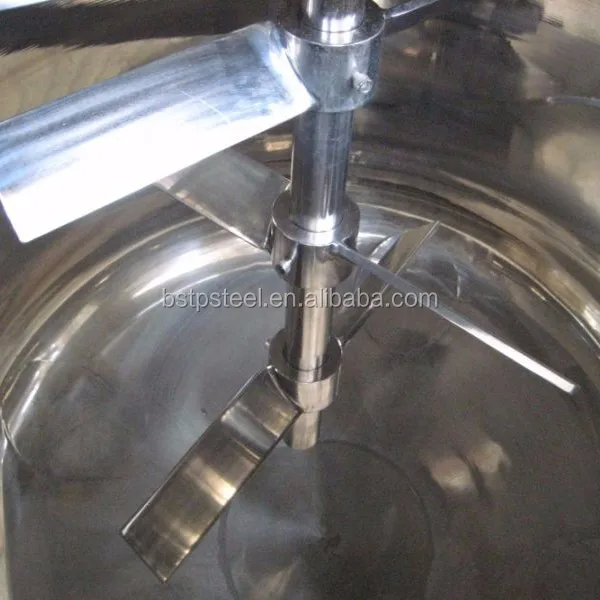

High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.
Technical Parameter
Inside Body Material: SS304, SS316L
Crust Body Material: SS304
Jacket Material: SS304,
Capacity:\t50L-10000L
Voltage:\t220V, 380V,415V
Motor:\tABB, LOCAL,50hz/ 60hz
Surface treatment:\tInner polished and outside polished
Agitator power:\t0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, ...7.5KW
Application scope: \tDairy, food, beverage, pharmacy, cosmetic, etc
Technical Parameters
Effective Volume (L) | Dimension of tank(D*H) (mm) | Motor power (kw)\t | Blending speed (rpm) |
500 | 840*1000 | 0.75 | As customer's requirement |
1000 | 1060*1220 | 1.1 | |
1500 | 1160*1500 | 1.1 | |
2000 | 1340*1500\t | 1.5 | |
3000 | 1410*2000\t | 2.2 | |
5000 | 1810*2000\t | 3 | |
10000 | 2300*2440 | 4 |
Our Company
JIANGSU TONX MACHINERY EQUIPMENT CO., LTD
Wenzhou Bestop Steel Co., Ltd (International Business Dept.)
Mainly produce complete set of equipments for extraction, concentration, evaporation, crystallization, fermentation, filter, transportation, mixing, dissolution, Dispensing system , CIP on line cleaning system, national high-tech enterprises.
The main production of extraction, concentration, evaporation, crystallization, fermentation, filtering, mixing, dissolution, CIP online cleaning and sanitary fluid valve pipe fittings and other complete sets of equipment, products are widely used in pharmaceutical, biological, chemical, food, dairy and other engineering fields.
