40GHz, 2.92mmK Female Microwave Connector, Clamp/Solder Captive Contact Attachment End Launch PCB, Removable End Launch
- Category: >>>
- Supplier: Shenzhen Signal Electronics Co. Ltd.
Share on (60833713889):
Product Overview
Description

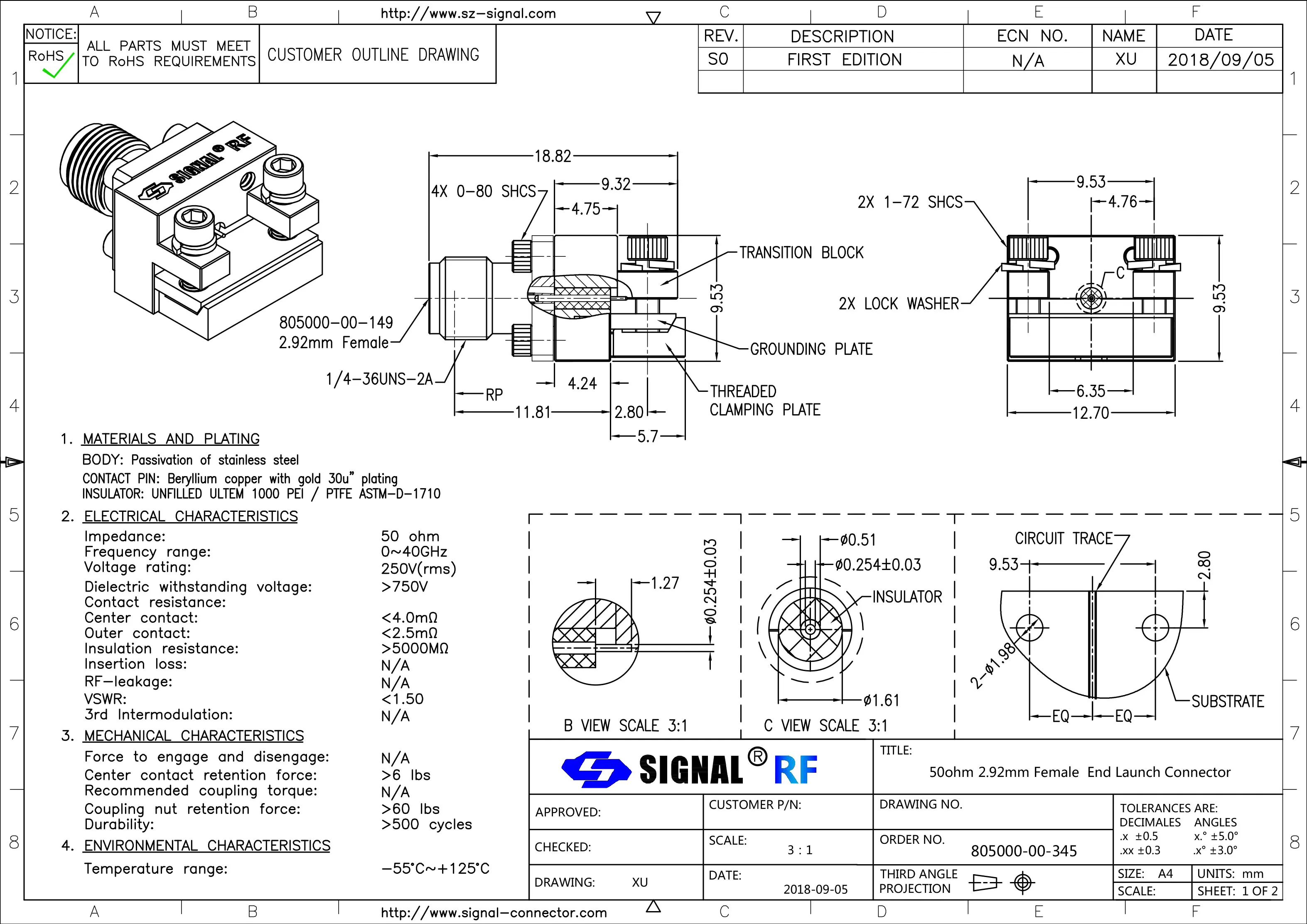

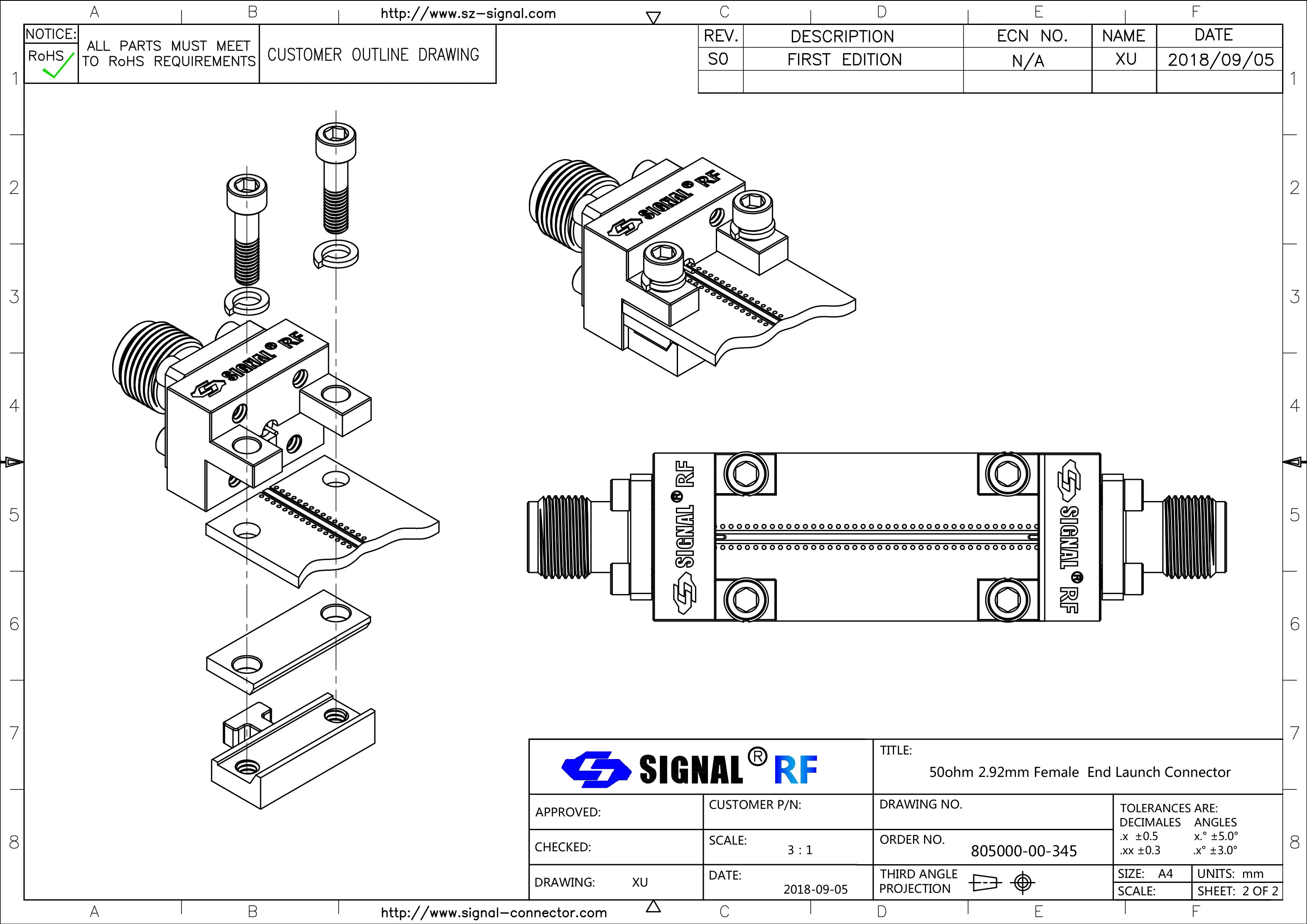

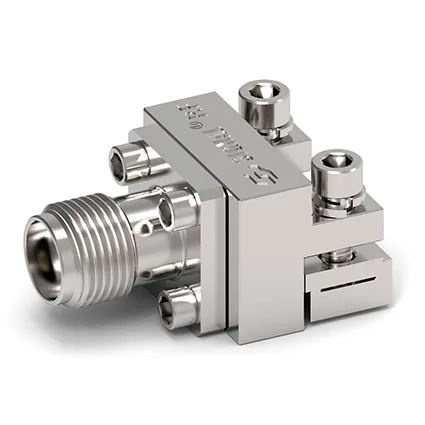

40GHz, 2.92mm(K) Female Microwave Connector, Clamp/Solder (Captive Contact) Attachment End Launch PCB, Removable End Launch
RF Catalogue: //www.signal-connector.com/downloadRepository/e03fb076-0da4-45aa-8fd8-ace4a48dbc36.pdf
Product Description
Materials and plating
| Description | Materials | Plating |
| Body | Stainless steel | Passivation |
| Contact pin | Beryllium copper C17300 | Gold Plating |
| Insulator | UNFILLED ULTEM 1000 PEI | N/A |
Specification
| Electrical parameters | |
| Impedance | 50 Ohm |
| Frequency range | DC~40GHz |
| Voltage rating | 250V(rms) |
| Dielectric withstanding voltage | >750V |
| Center contact resistance | <3.0mΩ |
| Outer contact resistance | <2.0mΩ |
| Insulation resistance | >5000MΩ |
| Insertion loss | <.10 sqrt(f(GHz)) dB |
| VSWR | <1.50 |
| Mechanical parameters | |
| Center contact retention force | >20 N |
| Coupling test torque | 1.70 Nm |
| Recommended torque | 0.8 Nm to 1.10 Nm |
| Durability | >500 cycles |
| Environmental parameters | |
| Temperature range | -65 ℃~+165 ℃ |
| Thermal shock | MIL-STD-202, Meth. 107, Cond. B |
| Corrosion | MIL-STD-202, Meth. 101, Cond. B |
| Vibration | MIL-STD-202, Meth. 204, Cond. D |
| Shock | MIL-STD-202, Meth. 213, Cond. I |
| Interface | |
| According to | IEC 61169-35 |
APPLICATIONS
• High Speed Digital
• Instrumentation
• Military
• Aerospace
• Satellite Communication Equipment (SATCOM)
• Cable Assemblies
• Test and measurement
Packaging & Shipping
| Packaging & Shipping |
1. Packaging:
Cartons
Size : 46cm*30cm*25cm
30cm*30cm*13.5cm
26cm*21cm*10cm
PS :Label can be customized based on customers' requests
