Высокая скорость Холт обруч железный маркировочная машина
- Category: >>>
- Supplier: Jinan Ritec Machinery Technology Co. Ltd.
Share on (60833767176):
Product Overview
Description
Product Description

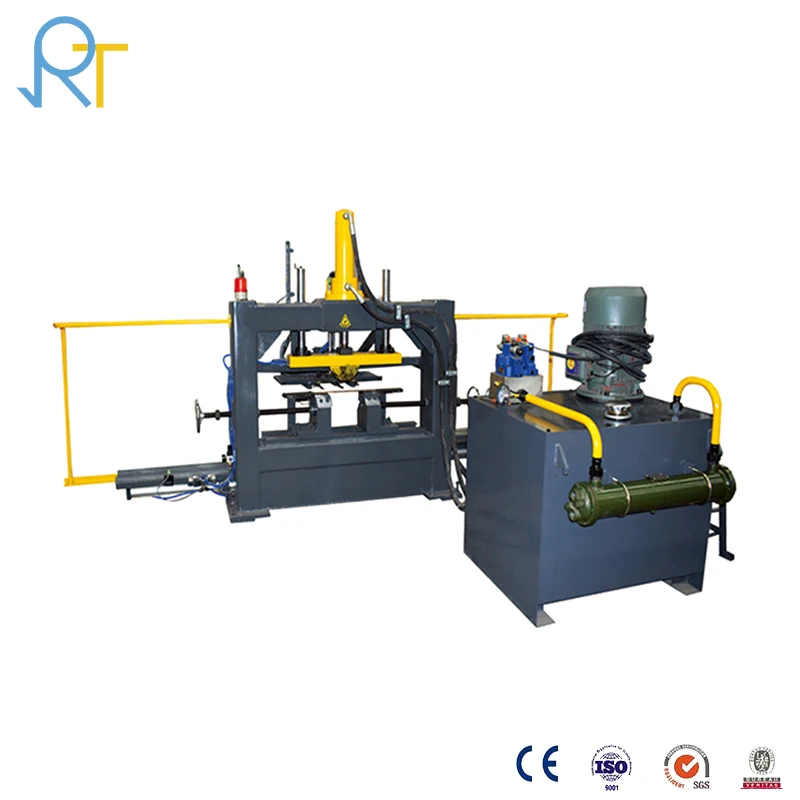

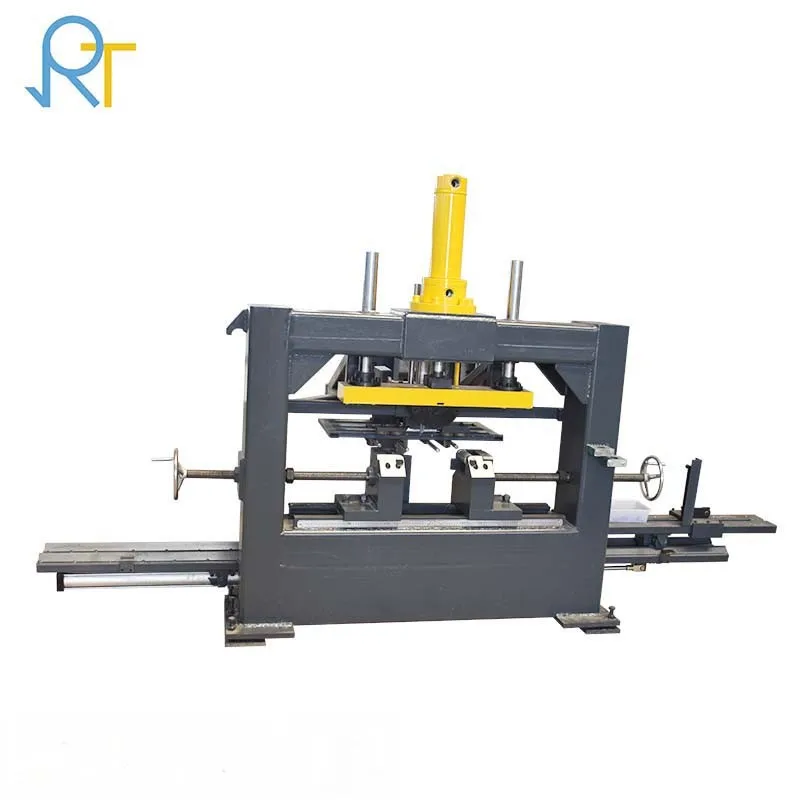

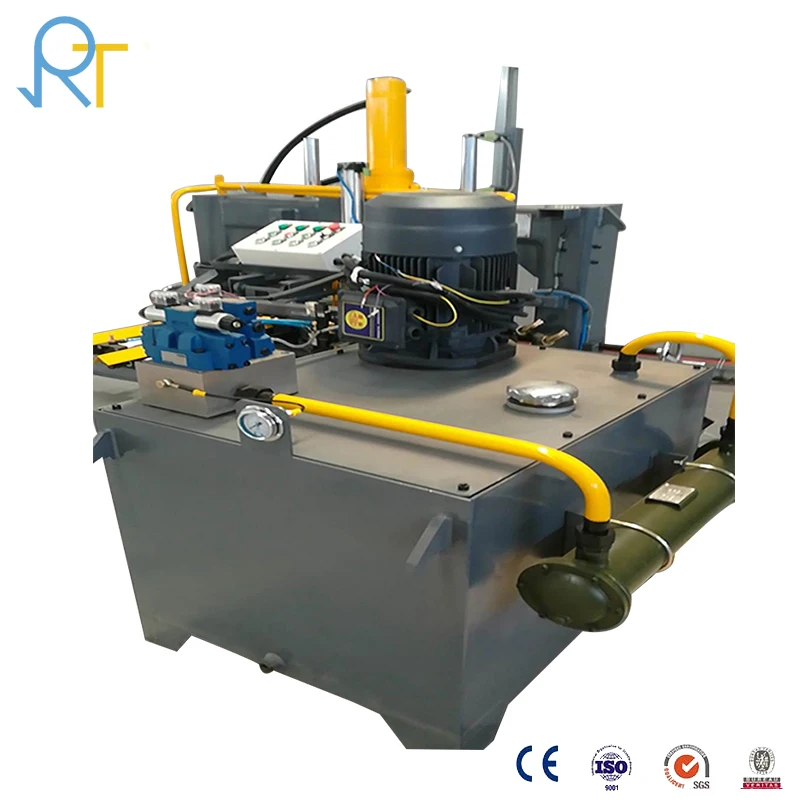

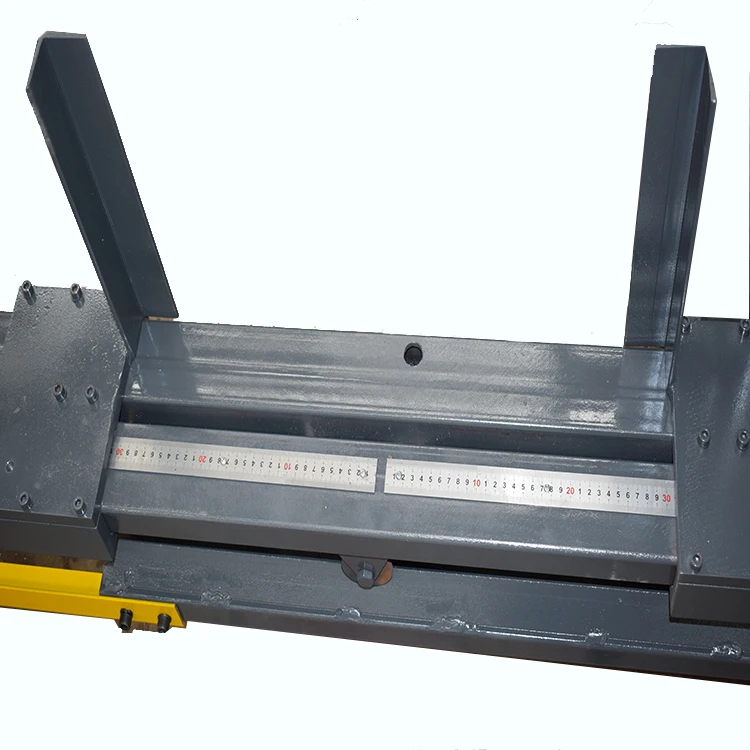

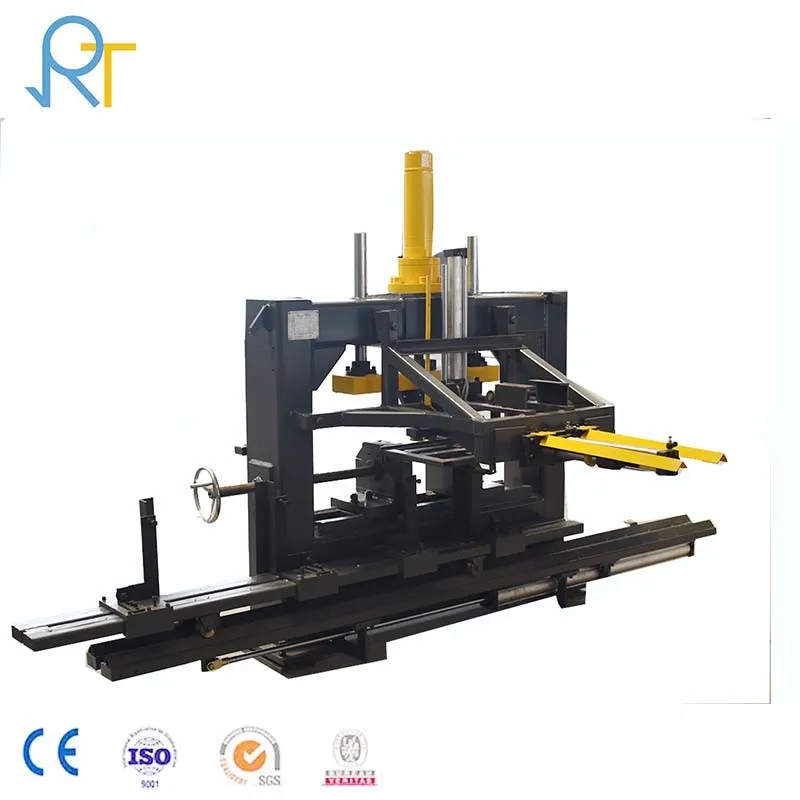

High Technology Holt Hoop Iron Marking Machine at High Speed
Product Application
This machine mainly used for the automatic pressing of the holt hoop iron, which used widely as the connection parts in electrical power transmission and communication industries
Product Specification
No. | Specification | Unit | BG80 | BG100 | BG120 | ||||||
1 | Arc Hoop Iron size Range | mm | ￠120--￠400 | ￠120--￠500 | ￠120--￠500 | ||||||
2 | Blank max. Size | mm | 800*80*8 | 1000*100*10 | 1200*120*10 | ||||||
3 | Blank Min, Size | mm | 260*40*4 | 260*40*4 | 260*40*4 | ||||||
4 | Press Force | KN | 200 | 300 | 400 | ||||||
5 | Press Frequency | pcs/min | 15-25 | 10-20 | 10-20 | ||||||
6 | Max. Pressure of hydraulic system | Mpa | 25 | 25 | 25 | ||||||
7 | Pressure of pneumatic system | Mpa | 0.4 | 0.4 | 0.4 | ||||||
m | L | 4.5 | L | 4 | L | 4.5 | |||||
W | 4.5 | W | 4 | W | 4.5 | ||||||
H | 2.3 | H | 2 | H | 2.3 | ||||||
9 | Hydraulic-pneumatic station | Kw | 15 | 11 | 15 | ||||||
10 | Net Weight | Kg | 2400 | 1700 | 2400 | ||||||
Main Features
The hoop iron pressing machine have independent hydraulic unit and electrical CNC system,realized the complete automatic process including blank material parts taking- feeding,-pressing-finished parts push out. Release the worker's fussy manual work, not only enhance the efficiency and quality,and also resolved the problem of easy hurting people by traditional pressing, to assure the safety of the workers
Certifications

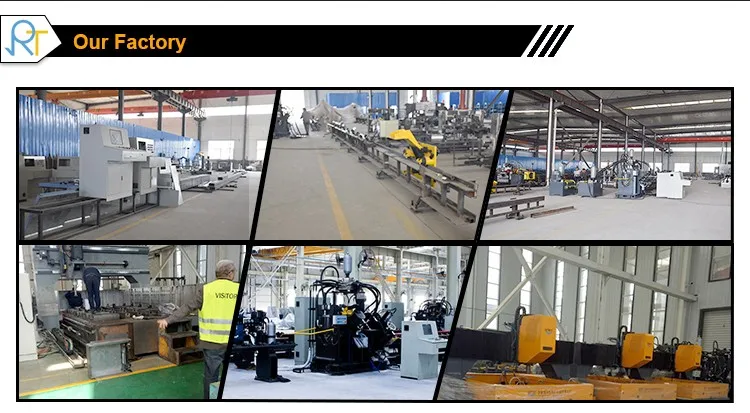

Our Company
