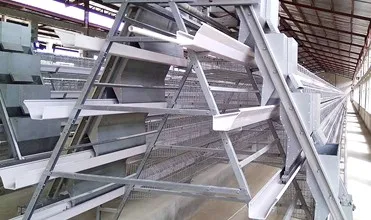

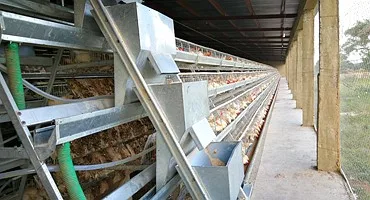

Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm
Automatic chicken cage for chicken farm

Automatic chicken cage for chicken farm

Share on (60833821475):


Price:$95.00 - $130.00

Quantity:


Product Overview

Description


Product Description

Product Application

Application:egg laying chicken,broiler,pullet,baby chicken
complete chicken cage/set :chicken cage mesh , cage frame, water tank, piple and nipple drinker, feeder ,fixed fittings and installation tool.
10 years quality guarantee,ISO9001,CE,SGS,SONCAP, PVOC,CCVO etc.

Surface treatment:
Electro galvanize (1.Surface smooth,and bright,, zinc coating:20-30g/m2,2.In the humid environment,it is easy to rust, But after the rust does not affect use, service life:8-10 years)Because the cost is low, after rust does not affect the use, so most people in use.
Hot galvanize (1. surface zinc is thick, can reach about 500g/m2,It has the corrosion resistance of high strength 2. the surface have zinc knot, not smooth, service life: 25 years--Even for a longer time)
Pvc powder after electric galvanized ( 1.Surface smooth,and bright,Color can choose:Red, yellow, blue, green, black, white.2.Because this is two layers of surface treatment, antirust ability enhancement,It is not easy to rust, service life:20 years)

                                                            INNAER chicken layer cage  specifications
Mode
Tier/set
nest/single cage
nest/Complete cage
Nest size
Capacity/set
Complete cage Size: L*W*H
A013
3tier
4nest
24nest
50*40cm
96birds
2*2*1.6M
A014
3tier
5nest
30nest
43*40cm
120birds
2.15*2*1.6m
A015
4tier
4nest
32nest
50*40cm
128birds
2*2.4*1.9M
A016
4tier
5nest
40nest
43*40cm
160birds
2.15*2.4*1.9M
A018
5tier
5nest
50nest
43*40cm
200birds
2.15*2.5*2.4M
We can customize it according to the customer's specifications. We can produce any specification and style for you.

Main Features

1) the advantages of INNAER® cage breeding layer chicken.

Information is provided by the INNAER® poultry equipment.
The cage-raising mode is 3 to 5 times more than that of the free-range layer chickens. The fully utilized site area improves the rearing density and the work efficiency. The cage breeding layer chickens can be fully utilized using the multi-tiers cage technology. Can make full use of space, and can be easy to manage, using this method to breed a small number of circumstances without having to set up a special breeder, you can add enough feed before and after work, other times can be used to pick eggs, Dung and other work.Using this method can save feed and reduce feed wastage, because the layers of chickens in the cage feed, exercise and rest, in the feeding of more reasonable material and water feeding method, not easy to cause feed throwing waste phenomenon The consumption of each material is about 25 g less than that of the free-range layer chickens, which can save about 20% of the feed.
It can significantly increase the economic benefits of breeding for large-scale laying hens.Facilitating the prevention and control of diseases, caged laying hens live in cages and feces fall into the ground through the gaps, avoiding direct contact between hens and feces, thereby reducing the incidence of disease.In addition, because the laying hen's position is fixed, when the individual hens are infected, they can be accurately positioned, and the diseased chickens can be singled out for isolation and treatment. At the same time, the chances of other healthy chicken infections can be reduced, which can effectively control the development of the disease. The egg laying rate in caged laying hens is relatively stable, as it is less affected by changes in outside natural conditions. Feeding in the house, the breeding environment is relatively stable, reducing the interference of bad environment, so that the egg production rate is relatively stable, and the surface of the produced egg is clean and the manure is less.

2) Our cage raw materials all use high quality Q235 low carbon steel wire, its yield strength is higher.-so why are our cages stronger.

3) All of our cages are treated with a higher hot-dip galvanized surface, and the amount of galvanized coating on the surface is at least 500g/M².---So our cages can use at least 20 years of life.

4) A well-known Chinese company with 28 years of experience in poultry equipment.---Choose us and our reputation is guaranteed

5) 23 overseas countries set up overseas offices or agencies.---Choose us, we know more about overseas markets and experience.
6) We are a direct cage manufacturer.---So we can guarantee the lowest price for the same quality.
7)90% of our sales staff are employed in the poultry cage industry for at least 5 years. They will provide you with more professional advice while serving you.---This will make it easier for you to work with us.

Certifications
Detailed Images

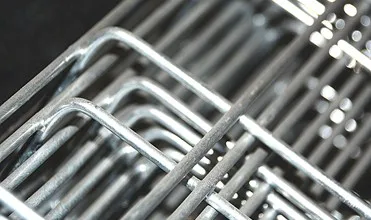

Layer cage mesh

Brand: INNAER
Original: China
Raw material:Q235 ,cage mesh is strong 2.Welding firm ,
Weld tensile:N>600 3.Hot dip galvanized Zinc:g>500g/m2
service life:year>25

layer cage leg

Brand: INNAER
Original: china
1.raw material:high hot galvanized plate,size: 45mm*45mm*(1.8mm-2.5mm )not easy to rust.
2.Easy installation 3.cage leg after installation is strong.
The cost of innaer cage leg is 2.5 times higher than Inferior cage leg

layer cage feeder

Brand: INNAER
Original: China

1.high hardness white feeder 2.INNAER Feeder size:80mm*90mm*110mm ,Other
suppliers:60mm*70mm*80mm, Big size design to avoid chickens waste food. 3 .INNAER Feeder service life: year>15, Inferior feeder :service life:year<5 . 4.The cost of innaer feeder is 3 times higher than Inferior feeder.

Nipple Drinker

Brand: INNAER
Original: China
1.High quality white plastic 2.The king-size steel balls and steel bushing,can guarantee 100% don't leak water.
3.Add red cups, can prevent the waste of water and avoid the water drop to the ground. 4.The cost of innaer drinker is 4 times higher than Inferior drinker

Feeder Joint and end cap

Brand: INNAER
Original: China
1.Hot dip galvanized plate, 2. Easy installation, After the installation is very strong 3.it is not easy to fall off

4. Beautiful and long service life, 5.The cost of innaer feed joint is 5 times higher than Inferior joint..

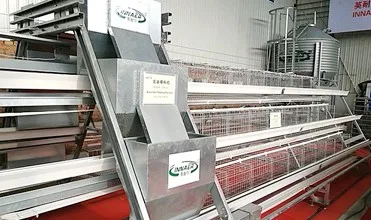

Automatic feeding machine

1. 1 rows per feeding machine
2.surface treatment: hot galvanize
3.Rated Voltage:380V
4.Rated Power:0.75KW
5.Working Speed:10--15 M/Min
6.Feed Capacity of each Crib:≥60Kg/pc

7.raw material:high hot galvanized ,Zinc:g>275g/m2

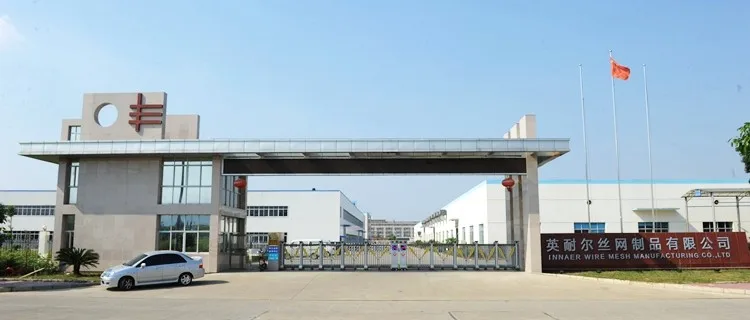

Our Company

INNAER®  Company development up to now total cover an area of 50000m, fixed funds: 60 million RMB, Equipped with more than 280 sets advanced machines of production and inspection.,Innaer has staffs more than 460.including Senior engineer 10 people and All kinds of 40 technicians. Every year we will reception 200 + buvers from around the world. our service and product received unanimous favorable comment of customers, we service 60000+ clients very year,we have accumulated rich experience, any questions you may have, we can solve for you, choose us will make you more at ease.


INNAER@ has set up overseas warehouses and offices in Africa
We continue to expand overseas warehouses in Africa (Nigeria, Ghana, Kenya, Uganda, Tanzania), INNAER@ Poultry cage factory sold to Africa at least 20000 set cages per year. service for at least 100 African famers and agents per day. ,We have been committed to the development and improvement of Africa's poultry enterprise.lmprove our service and provide more preferential policies

INNAER® attended the poultry equipment exhibition in Africa.

Customer Visiting

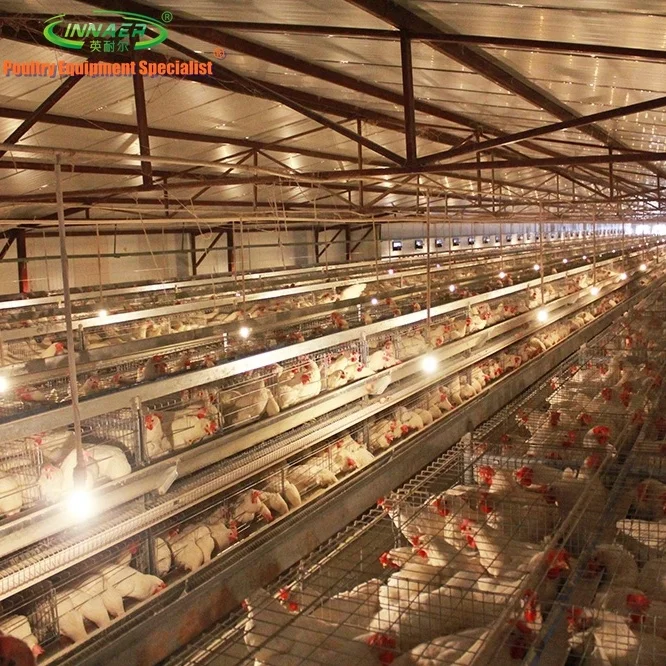

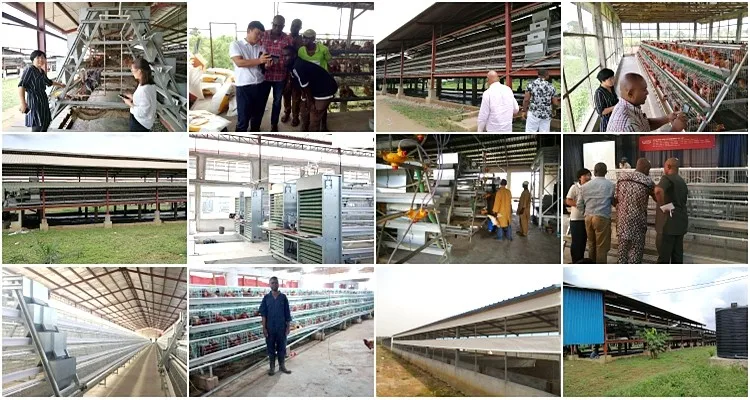

INNAER Project Case
Packing & Delivery
Packaging
20ft container
130sets
40HQ container
280sets
Packaging
Packaging Details


 LCL: first packed with plastic film then on the pallets
