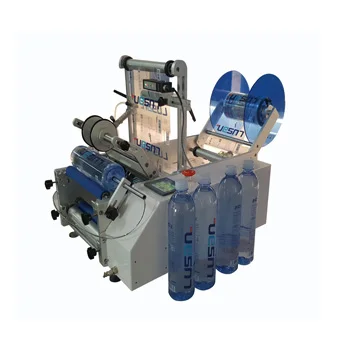

Guangzhou Transocean manual hand semi automatic label applicator for flat product from factory
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (60833832230):
Product Overview
Description
Product DescriptionTY-802 semi automatic plane 360 degrees rotate labeling machine

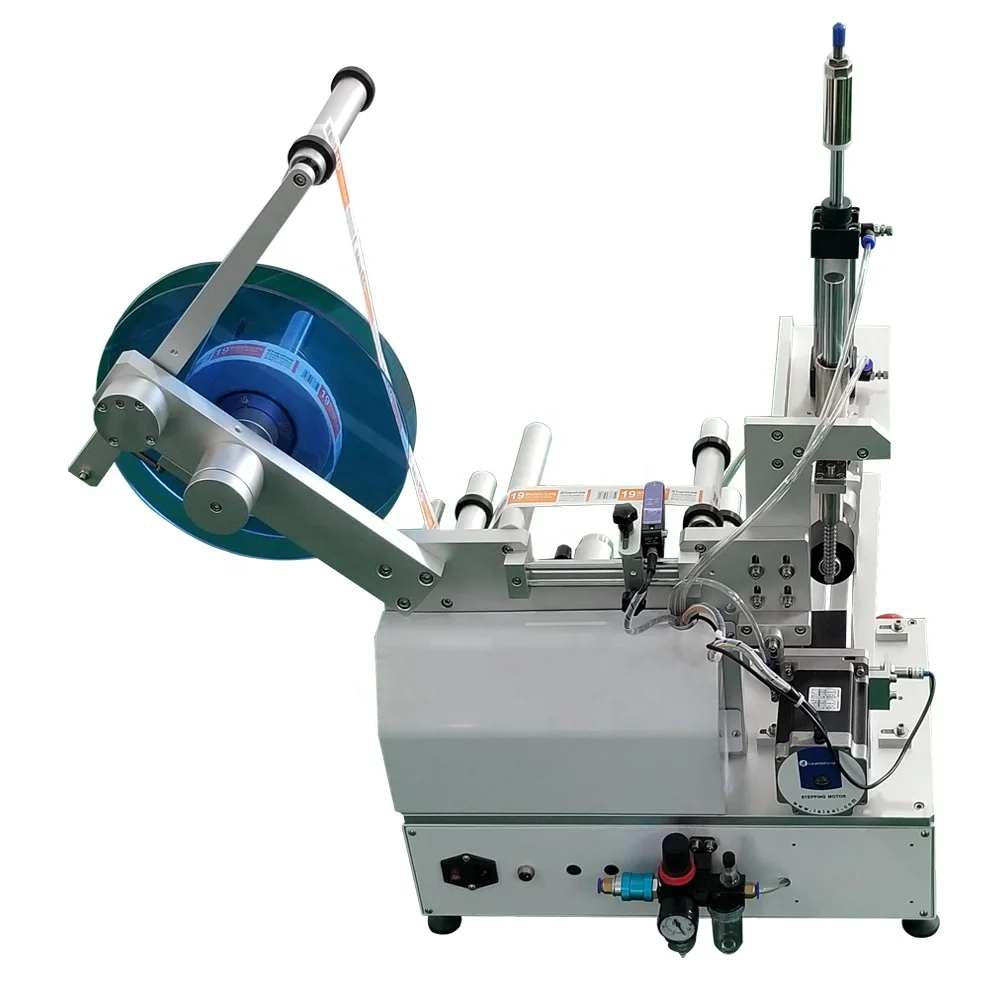

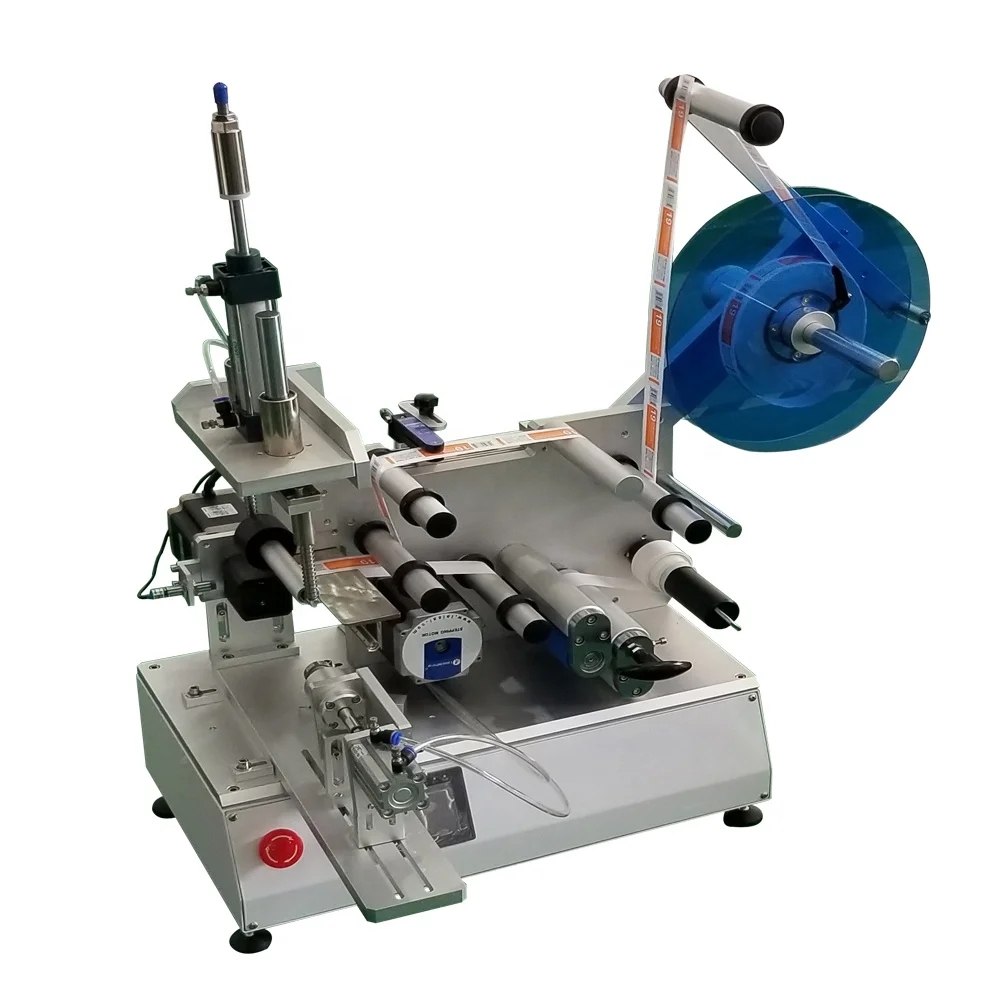

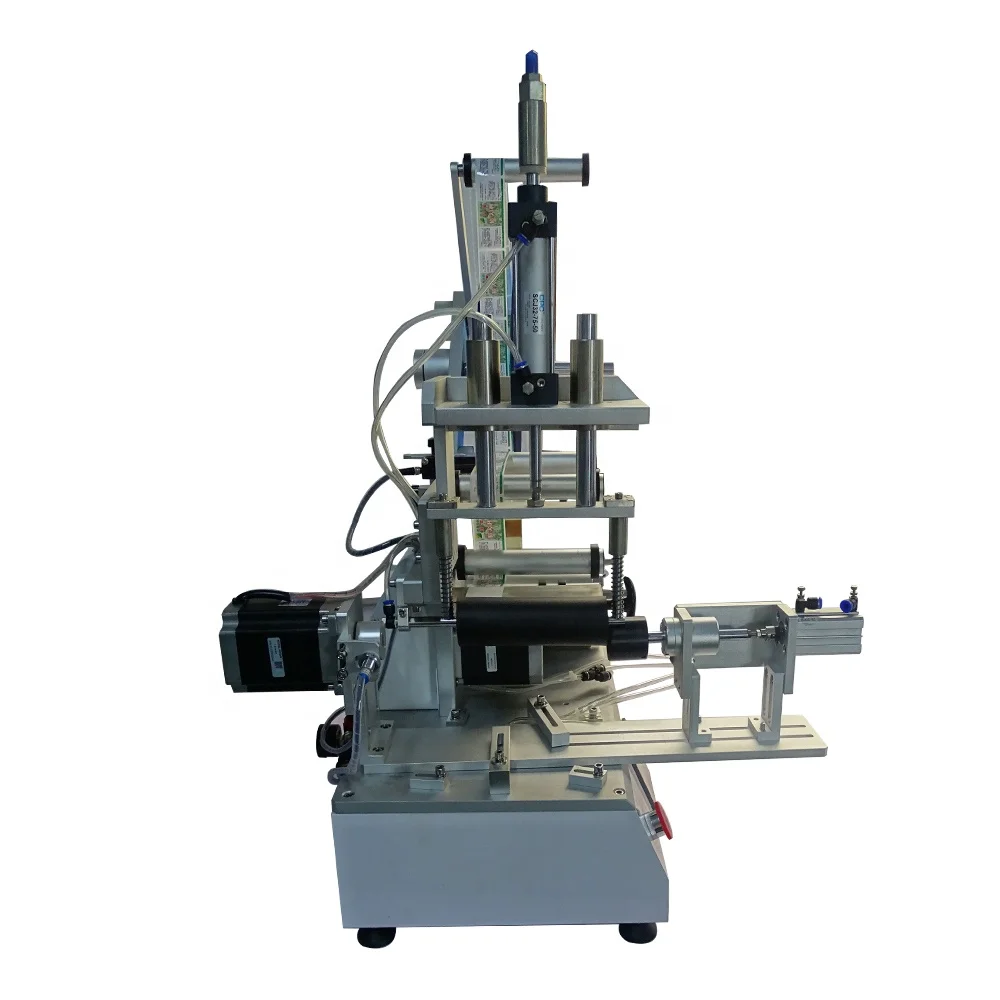

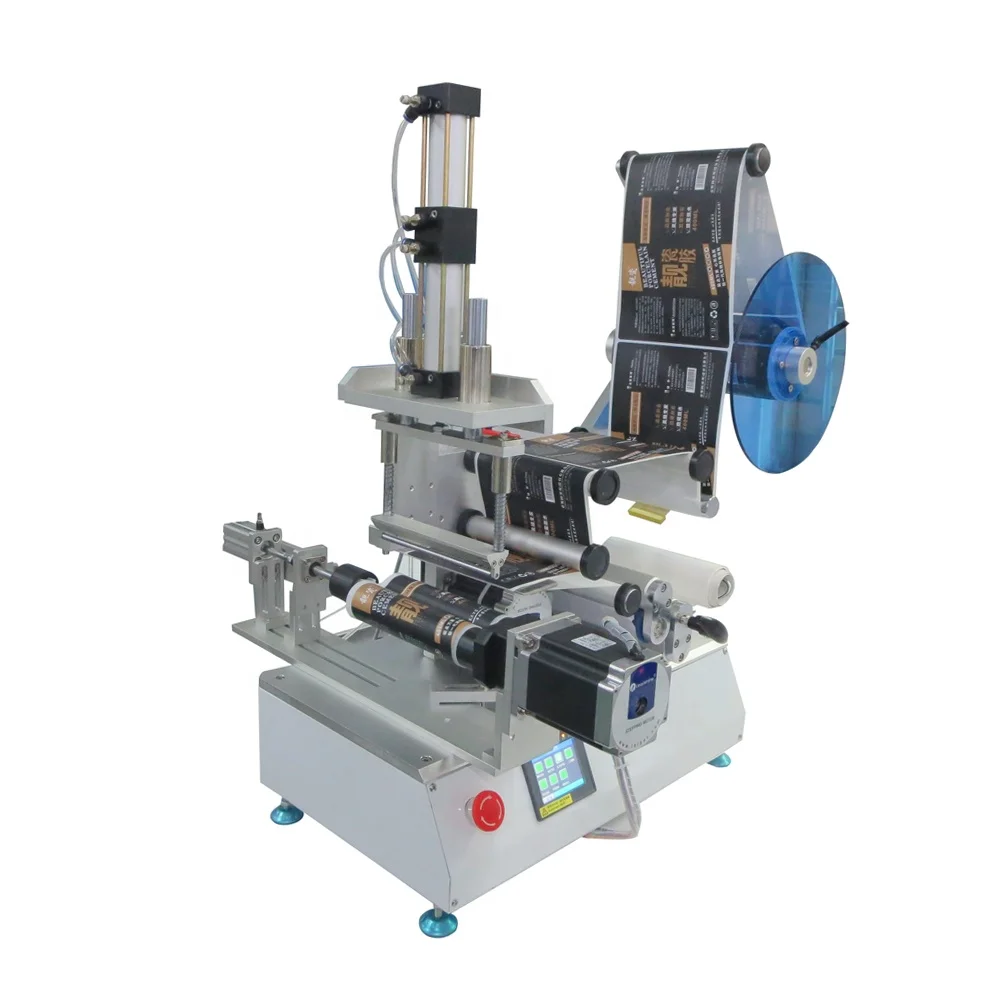

TY-802 semi automatic plane 360 degrees rotate labeling machine
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) Applicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on
3) Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.
4) By change the mold, can labeling irregular production.
5) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
| SPECIFICATIONS | |||
| Labeling accuracy | ±0.5mm (excluding products, labels, error) | Labeling speed | 15--35 pcs/min (related to the product and label size) |
| Apply the product size | Length: 20-200mm Width: 20-150mm Thickness: 20-120 (Can be customized) | Apply label size | Length:15-100 mm; Width: 15-110 mm (Can be customized) |
| Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | ￠76mm |
| Apply labels outside diameter | ￠240mm | Voltage | 220V |
| Power consumption | 330W | Air pressure | 0.3---0.6Mpa |
| Net size (length*width* height) | Machine size: 850*410*720mm Packing size: 950*780*900mm | Weight | About 70Kg |

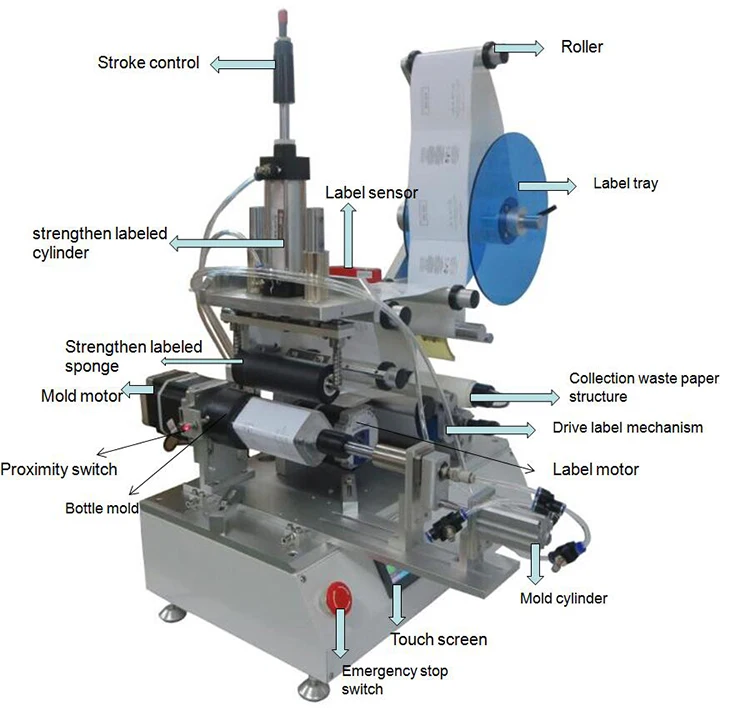

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

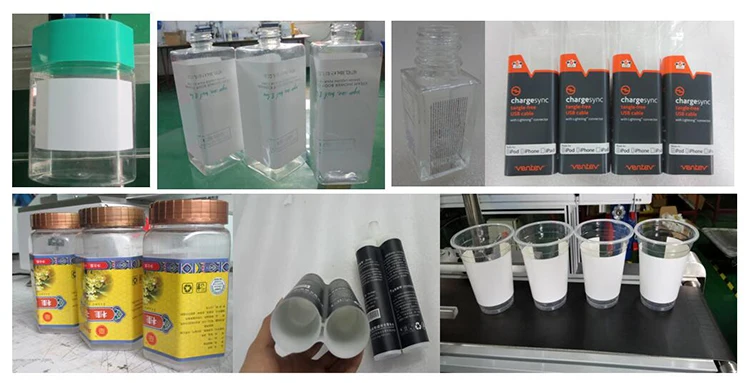

Labeling sample
Detailed Images

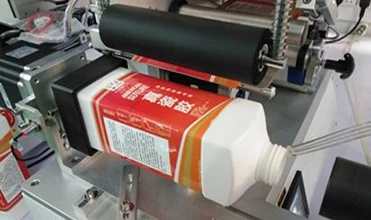

360 degrees rotating

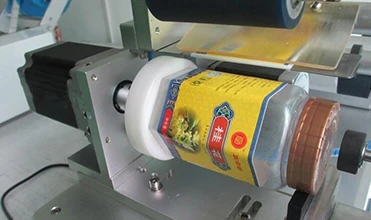

With 360 degrees rotating roll method for flat labeling, make a mold fixed the product on the machine, then 360 degree rotating and labeling to achieve high precision labeling effect
Powerful
Particularly suitable for polygonal shape product for labeling,
such as:
Three sides labeling
four sides shape bottle
Hexagon shape bottle

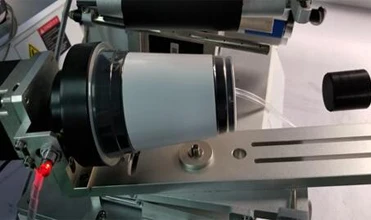

round shape with taper labeling sample
Round with taper shape production around a circle

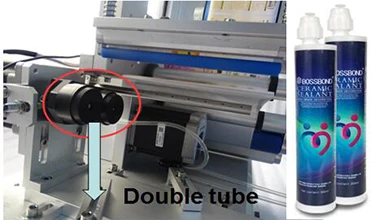

irregular product labeling method
Can be based on the customer's products, change the product of the mold, to achieve this irregular product labeling.

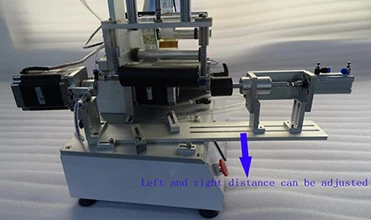

Easy adjustment
with adjustable height stroke function, different height products, do not have to repeatedly replace the rule;
Import label sensor
1. Germany LEUZE transparent label sensor
2. Italy Data logic sticker label sensor
3. Germany sick all-purpose label sensor, can use for transparent and sticker label
Color touch screen in English
Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.
more use
This item is an additional feature added.Price calculated separately.
hot coding machine
code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Payment term
Upon receipt of payment , delivery date will be in 30-60 days,
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Shipping:
Upon receipt of payment , delivery date will be in 7-15 days, standard model in stock.
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
after-sale service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Delivery
| Packaging | |
| Size | 950*780*900mm |
| Weight | 70kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging spare parts method | |
| Packaging Details | The accessories are individually wrapped in a soft film to prevent damage. |
Related Products

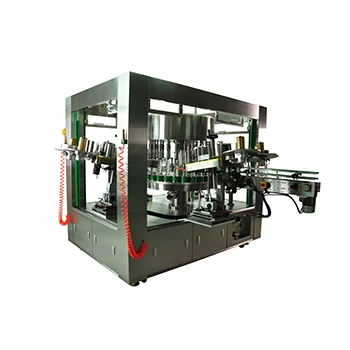

TYRY-2024R
Rotary OPP hot melt round bottle labeling machine

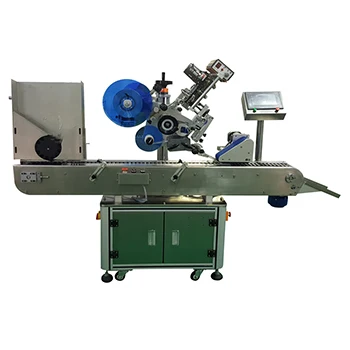

TY-606
Automatic horizontal small round bottle labeling machine
TY-901
Auto double side labeling machine
TY-603
Semi-Automatic round bottle labeling machine
TYRY-0806R
Rotary OPP hot melt flat bottle labeling machine
TYBY-24243R
High-speed rotary adhesive round labeling machine
Company information
We are professional packing machine manufacturer, specialize in:
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
and whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.
Factory Location
Factory Location
Reception
Foreign Trade Department
Production Workshop
Production Workshop
FAQ
Q1: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q2. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q3. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q4. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 40% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
