Price:$40,000.00 - $48,000.00

Quantity:


Product Overview

Description


Product Description

pvc sliding window profile production line match mosquito net screen

HYPET Advantages

New generation gear box to put bearings near to the screws not in the far back;

HYPET Extruder + die device to make the profile more hard & bright;

HYPET barrel in two parts bi-matal, and totally hard alloy ensure more than 3 years; (less than 75 CaCo3)

Consist of parts
\t
SN
\t
Item
\t
Parts name
\t
Quantity
\t
Part A
\t
1
\t
Mixer SRL-500/1000 (Screw-loader)
\t
1 set
\t
2
\t
Material tank
\t
1 set
\t
Part B
\t
3
\t
HYZS65/132 (300#window profile production line)
\t
2 set
\t
4
\t
HYZS51/110 (240#window profile production line)
\t
1 set
\t
5
\t
Mould
\t
select in pics
\t
Part C
\t
6
\t
Seamless Welding Machine
\t
1 set
\t
7
\t
cutting saw SJZ2 For small profile
\t
1 set
\t
8
\t
Cutting saw for big profile and glass
\t
2 set
\t
9
\t
Milling Machine
\t
1 set
\t
10
\t
Copy routers & Lock Hole Drilling Machine
\t
1 set
\t
Optional of other machine
\t
Part D
\t
11
\t
Crusher Machine
\t
1 set
\t
12
\t
Miller Machine
\t
1 set
Main tech

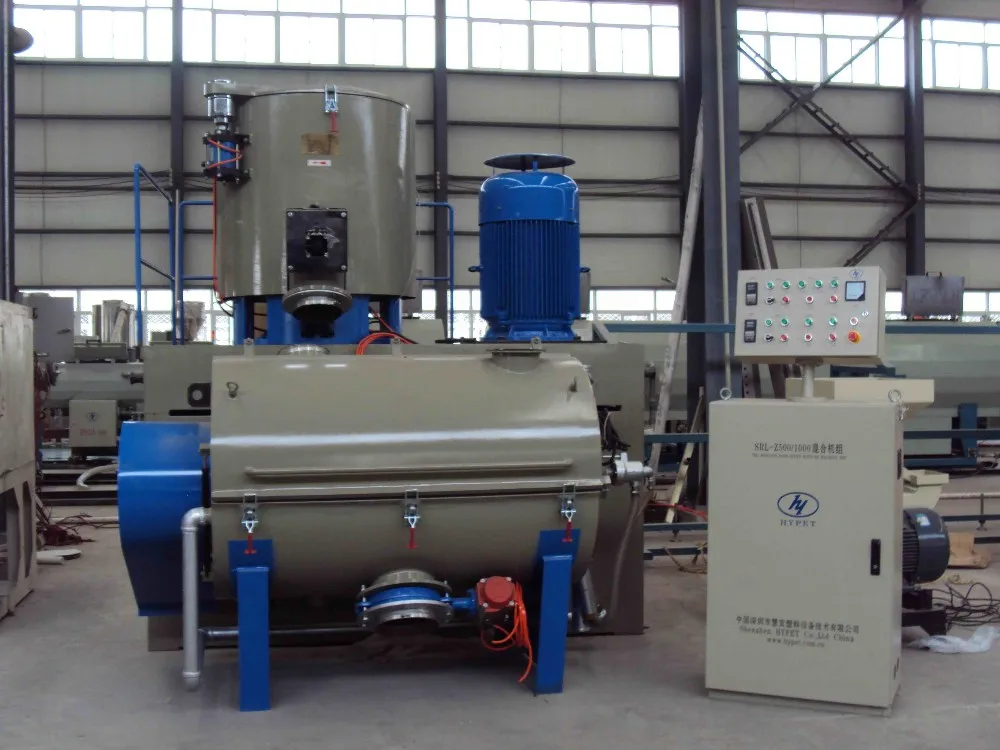

SRL-Z500/1000 Mixer

\t
\t
\t
\t






Hot Barrel
\t
Hot mixing general capacity
\t
500L
\t
Hot mixing effective capacity
\t
375L
\t
Feeding capacity
\t
≤160kg/pan
\t
Output
\t
≤800kg/h
\t
Motor power
\t
75 kW AC Motor
\t
Hot mixing tank material
\t
1Cr18Ni9Ti
\t
Tank wall thickness
\t
8mm (1Cr18Ni9Ti)
\t
Tank bottom thickness
\t
10mm (1Cr18Ni9Ti)
\t









Cooling Barrel
\t
Cold mixing cubage
\t
1,000L
\t
Cold mixing effective cubage
\t
1,000L
\t
Motor power
\t
640L
\t
Motor power
\t
18.5 kW
\t
Mixing blade material
\t
ZGlCr18Ni9Ti
\t
Tank wall thickness
\t
6mm
\t
Tank bottom thickness
\t
10mm
\t
Mixing blade rotating speed
\t
60 r/min
\t
Vertical moving control
\t
Pneumatic
\t
Cooling time
\t
≤10min/pan

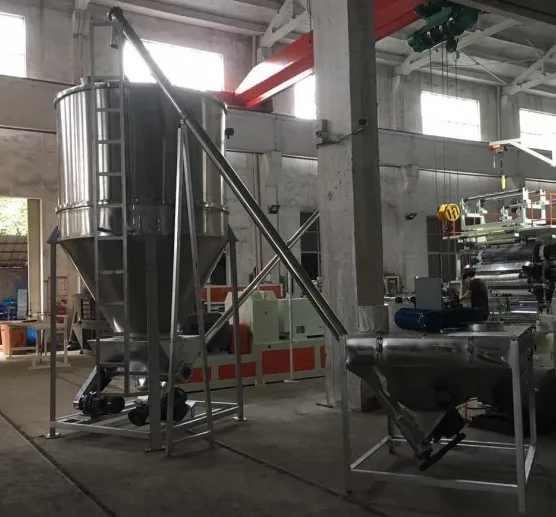

Material tank (2 tons capacity)

To connect to mixer and extrusion lines, so the mixer no need always working.

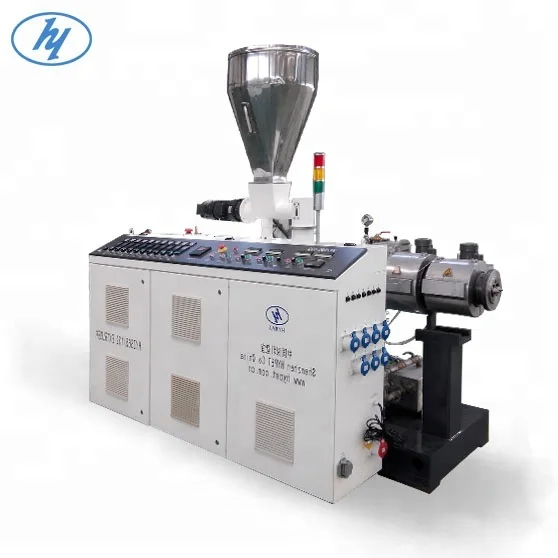

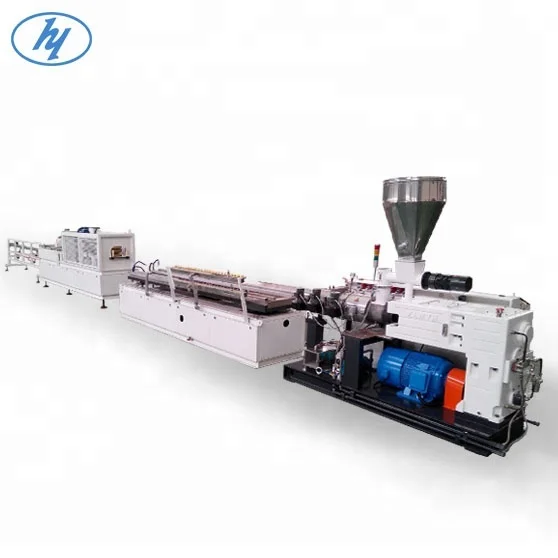

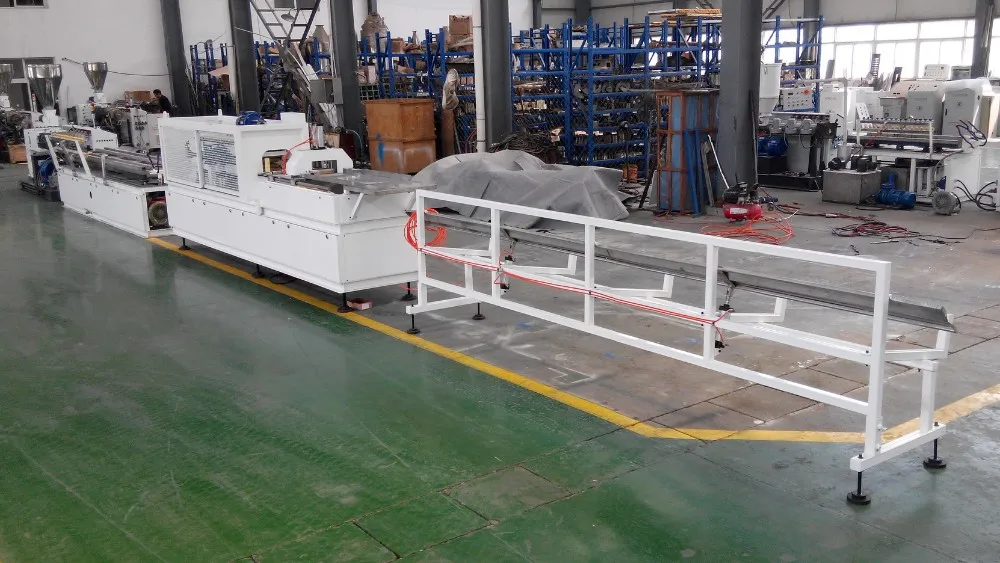

HYZS-65/132 conic twin screw extruder


\t
\t
\t
\t
\t
1
\t
Extruder
\t
Extruder model
\t
HYZS-65/132H conic twin screw
\t
Output
\t
200-270kg/h
\t
Center height
\t
1000mm
\t
Weight
\t
3000kg
\t
2
\t
Screw
\t
Diameter
\t
Ø65/132 mm
\t
Material
\t
38CrMoAlA + special alloy plated
\t
Finish
\t
Nitrogen-filled (0.50~0.70mm depth) and polish hardness HV900
\t
Rotate speed
\t
0~38 r/min
\t
Core of the screw
\t
Self auto control for temperature
\t
3
\t
Barrel
\t
Material
\t
38CrMoAlA with bi-metal type in two parts
\t
Inside finish
\t
Nitrogen-filled (0.50~0.70mm depth) and polish hardness HV900
\t
Heating control area
\t
4 areas
\t
Heating way
\t
Copper cooling fins with ceramic heaters.
\t
Heating power
\t
37 kW
\t
Cooling system
\t
Low-noisy barrel cooling fan
\t
Cooling power
\t
0.3 kW x 2 sets
\t
4
\t
Gear box
\t
Housing material
\t
Ductile iron QT-500
\t
Gear material
\t
20CrMnTi
\t
Gear surface
\t
Hardened and ground gear box in high precision and big torque
\t
Axis material
\t
40Cr
\t
5
\t
Vacuum degas with selector
\t
Vacuum degree
\t
-0.004Mpa
\t
Motor power
\t
1.5 kW
\t
6
\t
Driving motor
\t
AC motor power
\t
37 kW
\t
AC inverter controller
\t
ABB


HYZS-51/110 conic twin screw extruder


\t
Extruder model
\t
HYZS-51/110 conic twin screw
\t
Output
\t
80-130kg/h
\t
Center height
\t
1,000mm
\t
Weight
\t
2600kg
\t
Diameter
\t
Ø51/110 mm

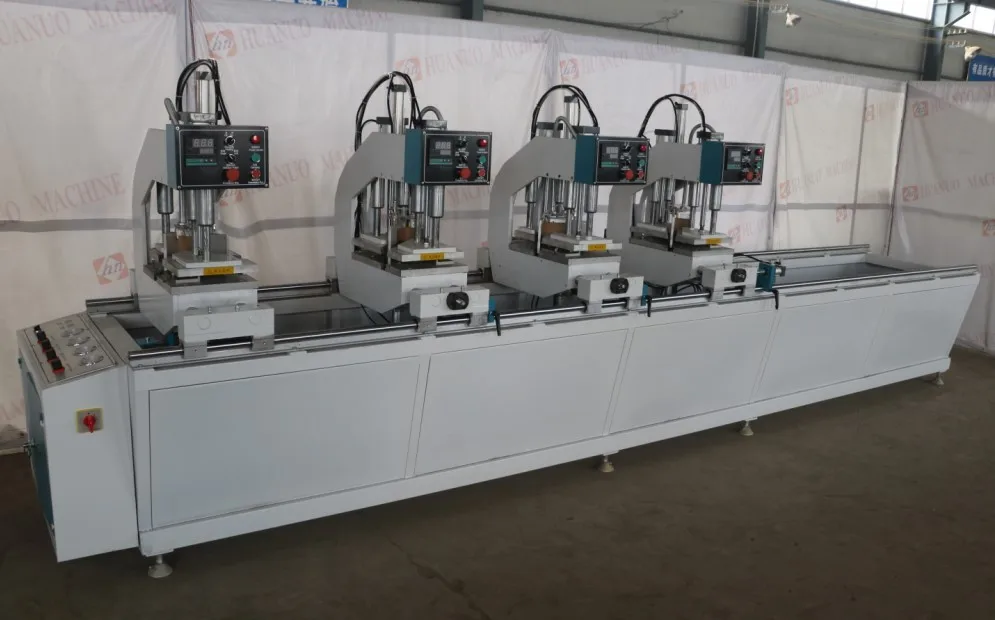

Four-head seamless welding machine
SHWD4-100×4500

The four heads can work independently or in combination with each other. The combination is flexible.
Programmable controller (PLC) controls welding action/programs with high reliability.
The process parameters can be continuously adjusted to meet the needs of different profiles.
High reliability with high quality electrical components.

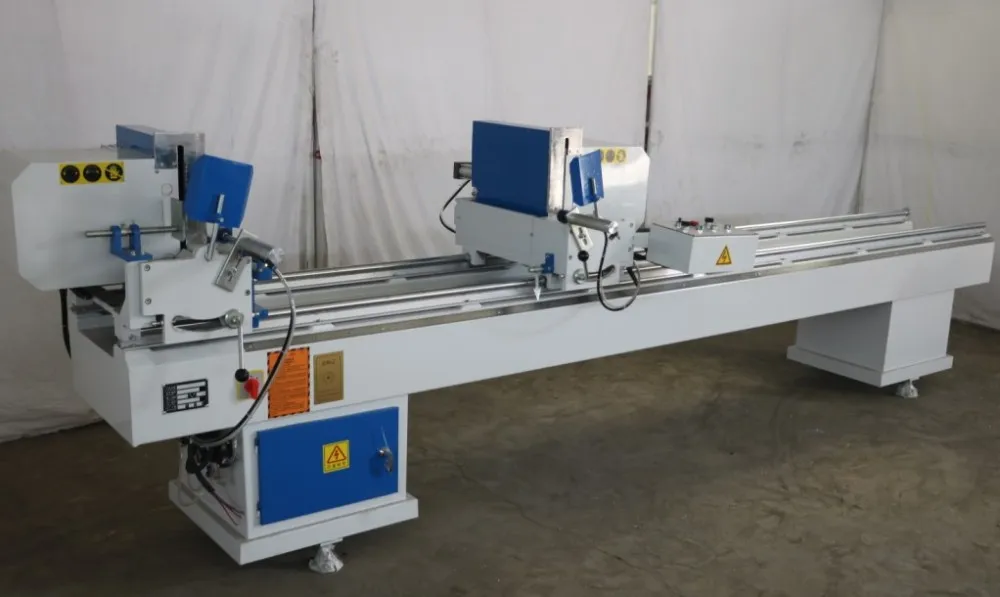

Double head cutting saw for PVC profile\tSJZ2-400x3500

It is used for 45° -90° cutting aluminum profiles.
Using straight-line push-in work method.
Pneumatic transmission for profile clamping and cutting.

The structure of the machine is stable, the operation is simple and flexible, and the angle accuracy of blanking size is high.

cutting saw

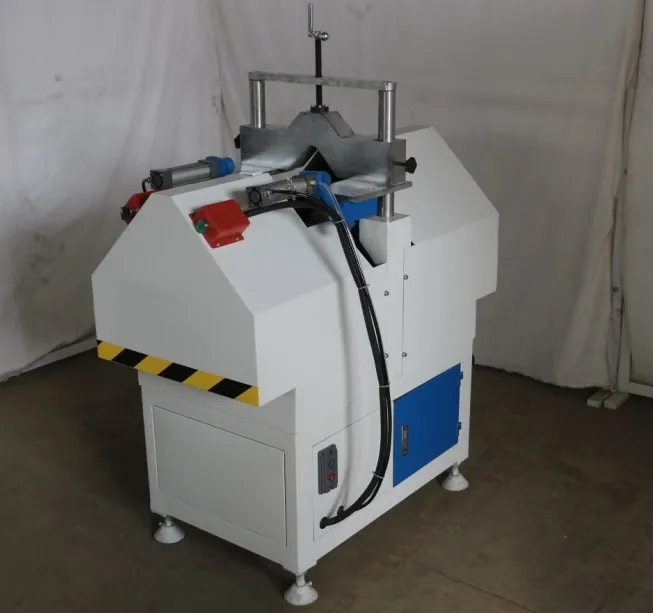

Water Slot Milling

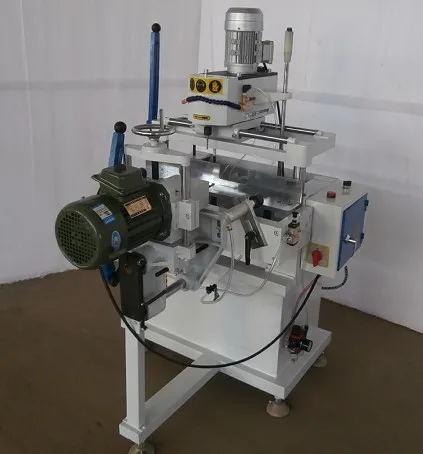

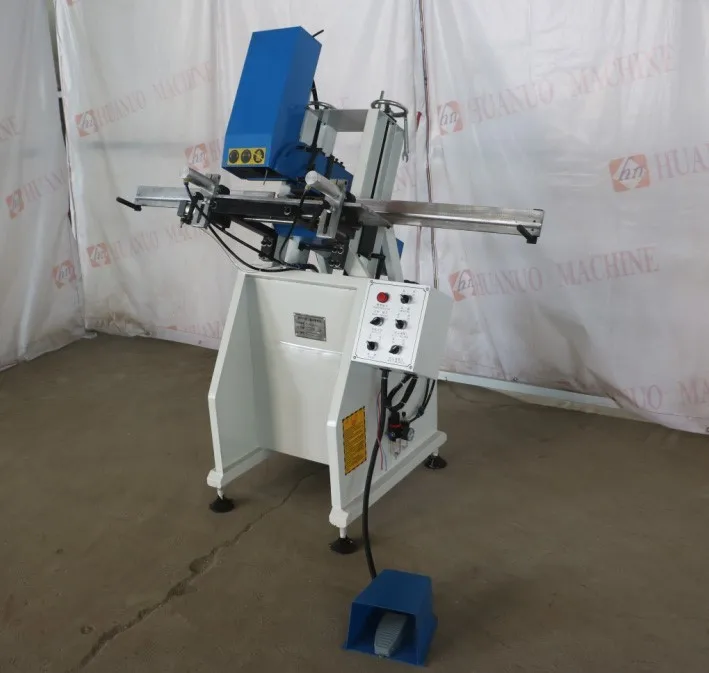

Copy router & lock hole drilling

Option

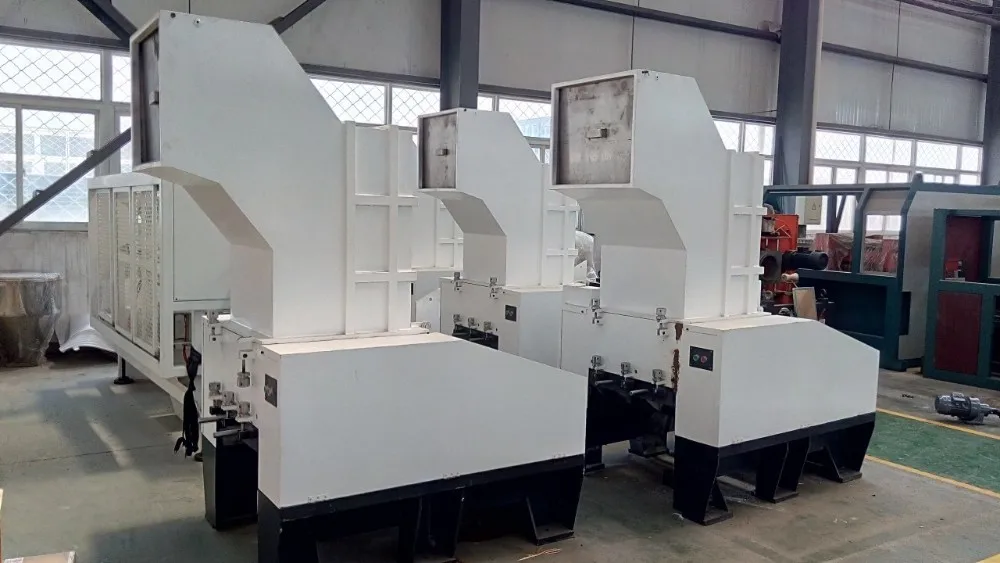

Strong Crusher HY-SC300.


Fixed blade\t2x4 pcs
Rotating blade\t3x11 pcs
Crusher room (Diameter)\t3x11 mm
Power\t30HP
Mill Ability\t500-800 kg/h
Rotating speed\t500 r/min
Screen Size\tø10mm
Dimension (L x W x H)\t1,690 x 1,180 x 1,880mm
Weight\t1800kg

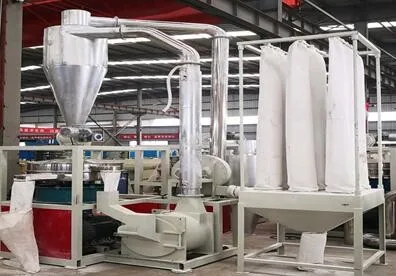

High speed millerSMW-500
Quantity of knife tray\t1 pc
Outer diameter\tØ 483mm
Number of rotating blade\t24 pcs
Material of rotating blade\tAlloy steel with hardness 52-55
Number of fixed blade\t12 pcs
Material of fixed blade\tAlloy steel with hardness 55-58
Power of motor\t45 kW
Crushing quantity\t200-300 kg/h for PVC powder
Transportation fan\tWith motor 3 kW

Packing & Delivery
\t
Size
\t
21x 2.5x1.8m
\t
Weight
\t
10T
\t
The normal package is wooden box,
If export to European countries,the wooden box will be fumigated.
If container is too tighter,we will use PE film for packing or pack it according to customers special request.
