  • GN CT 003 5(30)A/5mA cl. 0.1/0.2 Busbar type mini current transformer with busbar small CT 5A/5mA 10A/10mA 10A/5mA 20A everfar
GN CT 003 5(30)A/5mA cl. 0.1/0.2 Busbar type mini current transformer with busbar small CT 5A/5mA 10A/10mA 10A/5mA 20A everfar
GN-CT-003 5(30)A/5mA cl. 0.1/0.2 Busbar type mini current transformer with busbar small CT 5A/5mA 10A/10mA 10A/5mA 20A-everfar

GN CT 003 5(30)A/5mA cl. 0.1/0.2 Busbar type mini current transformer with busbar small CT 5A/5mA 10A/10mA 10A/5mA 20A everfar

Share on (60833841939):


Price:

Quantity:


Product Overview

Description


Product Description

 Features

Meet the standard IEC60044-1 and ANSI C12.20
High accuracy class ,wide linearity
Superitor stability ,separate the external magneitc field interference
Measure the current directly
It is with the diode to save people's life
Meet the ROHS requirement



Specifications



No.Name                              Materials  /UL
1Core N42UU20.6
2Winding                           2UEW/130  MW75-C   Φ0.16E255929
3Outer Case                      PA66 70G33L    E41938
4Lead  Wire                     UL1015 22AWG 600V 105°c (L=600mm)
5Diode                       IN4738A 1W

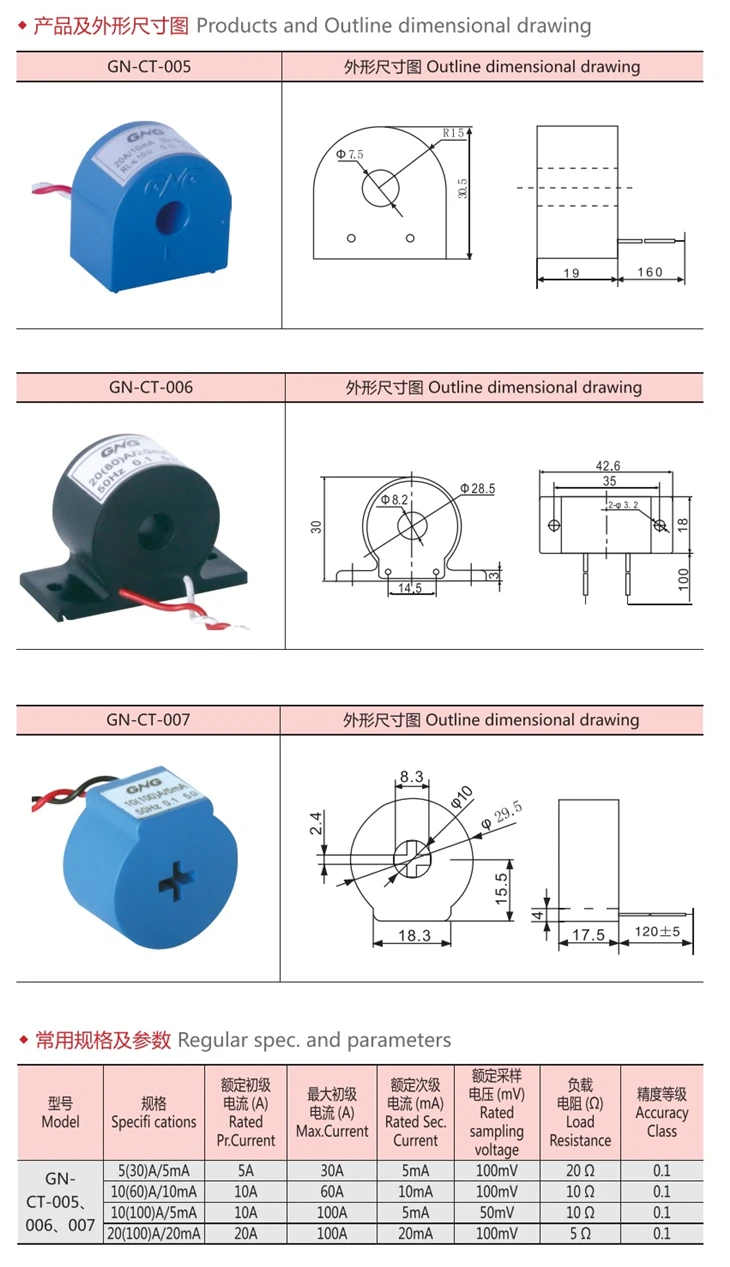

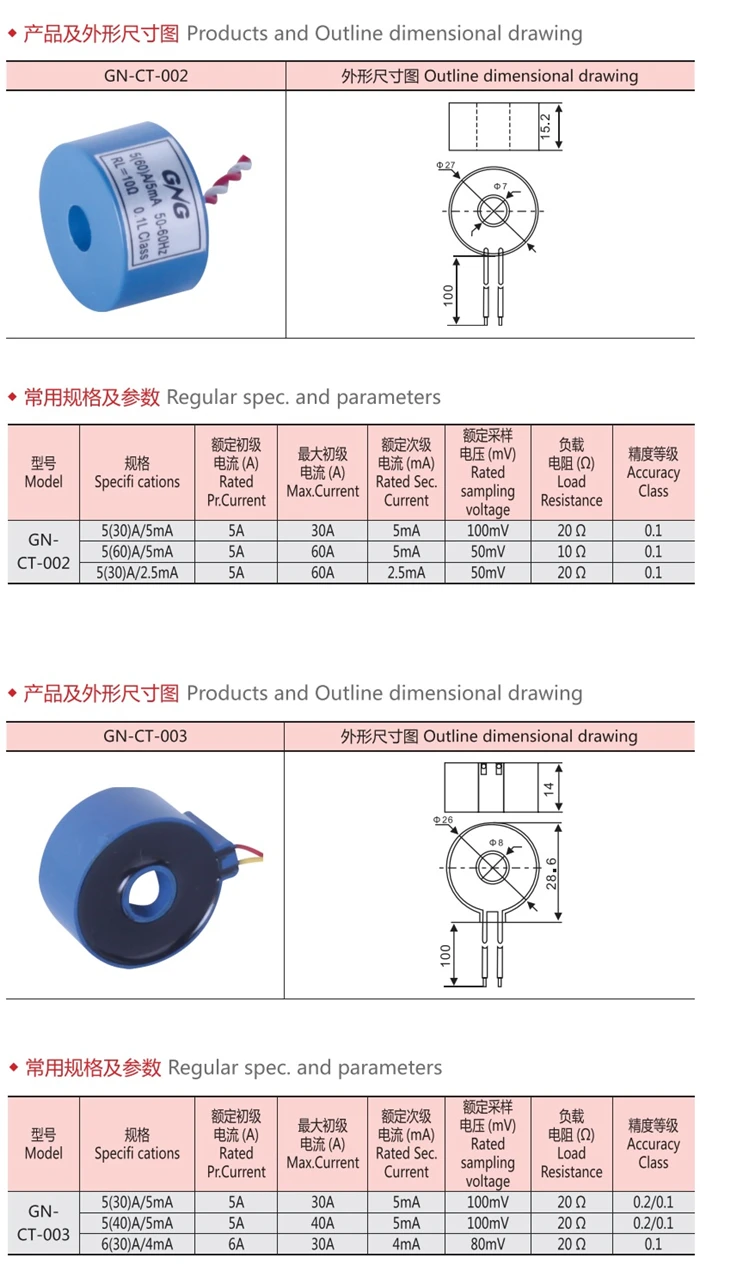

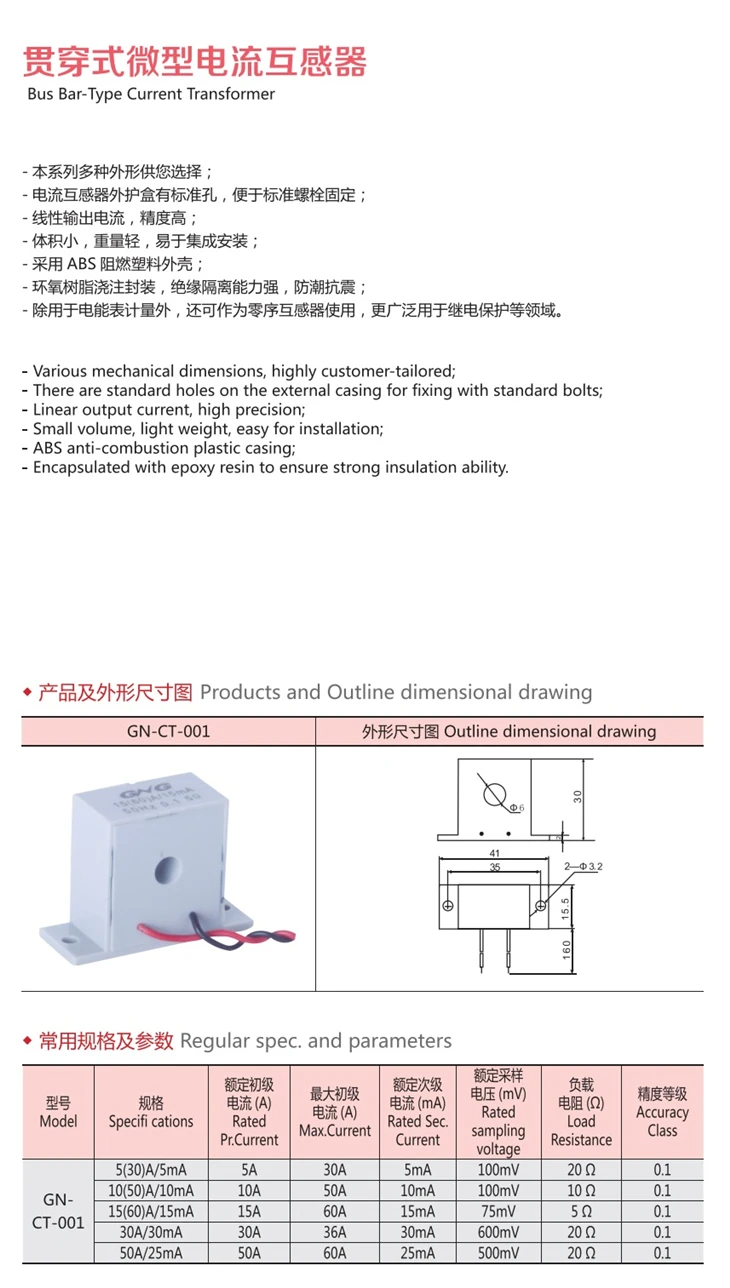

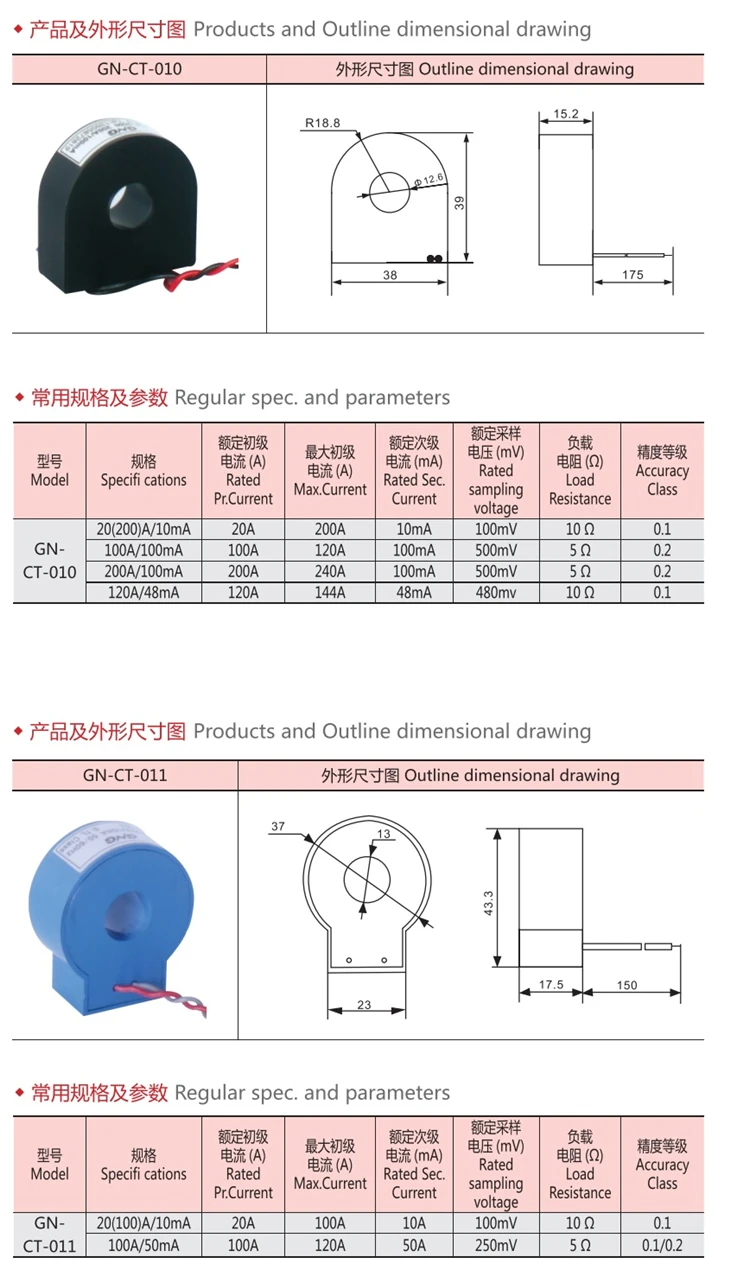

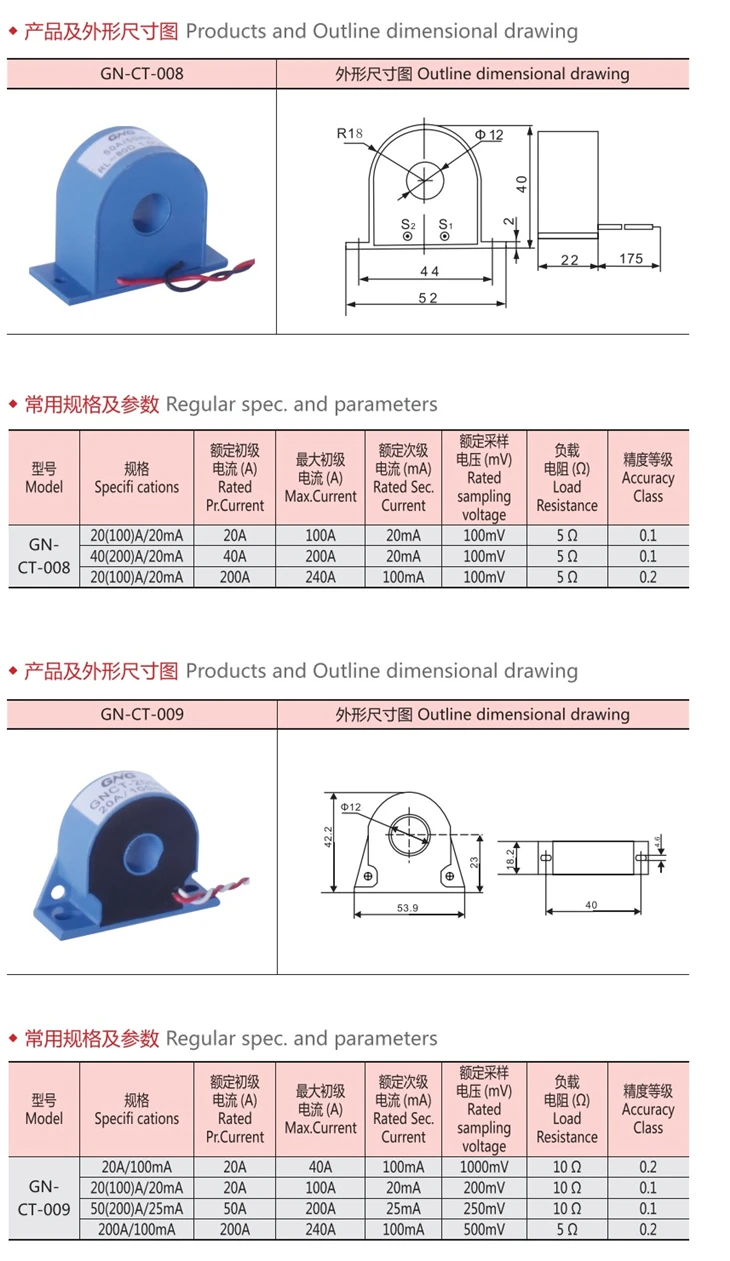

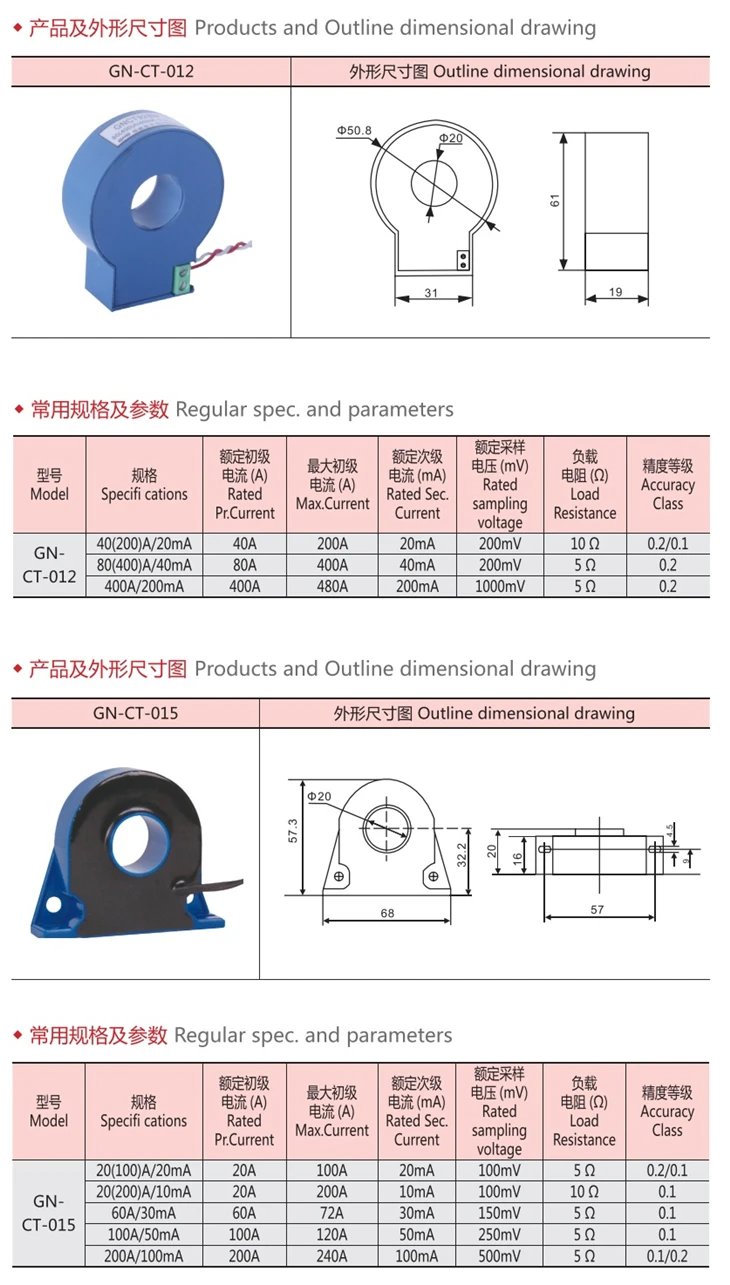

Busbar type mini CT.jpgBusbar type mini CT1.jpgBusbar type CT2.jpgBusbar type mini CT3.jpgBusbar type mini CT4.jpgBusbar type mini CT5.jpg
