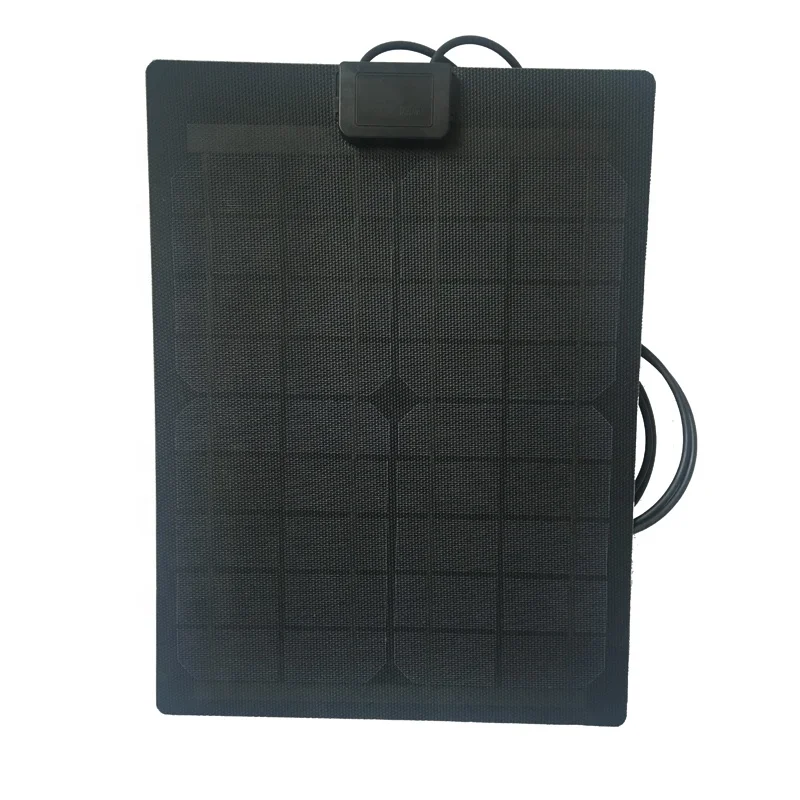

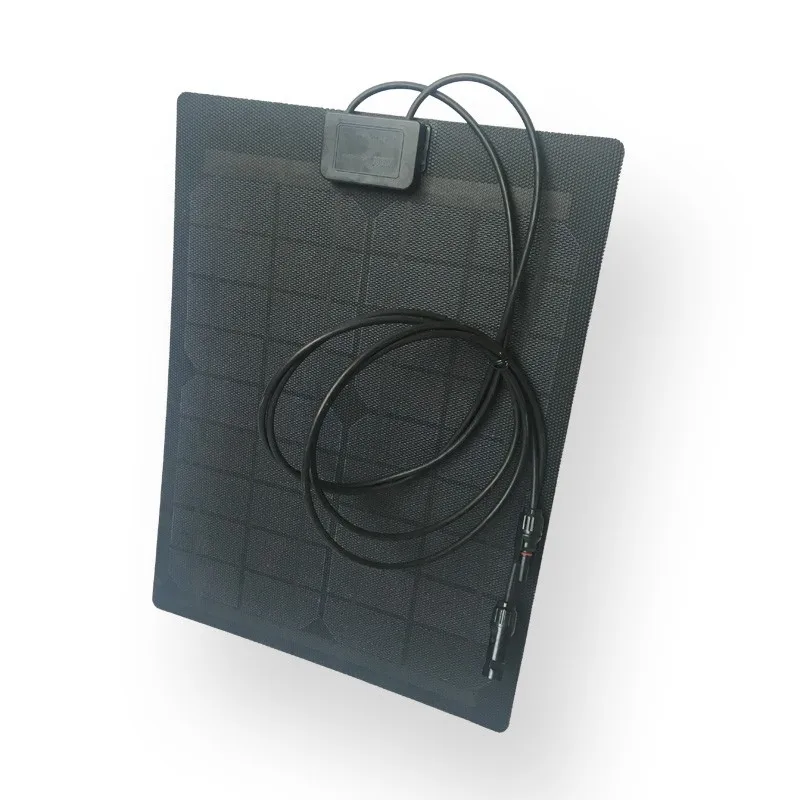

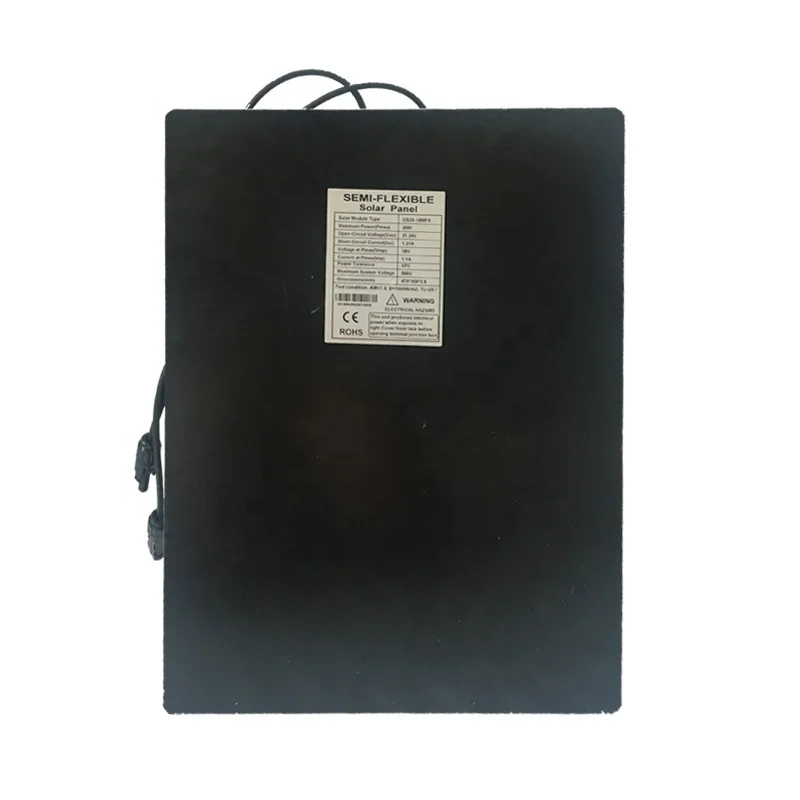

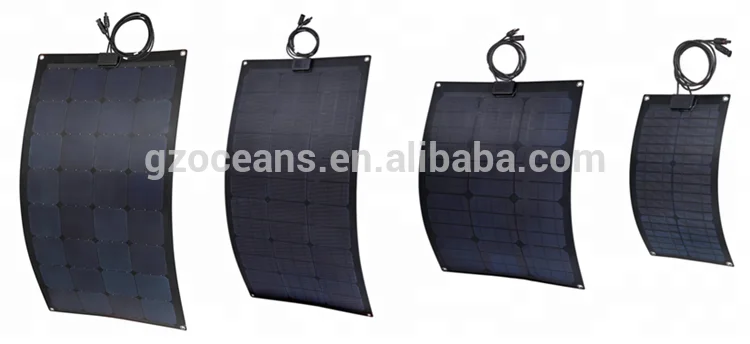

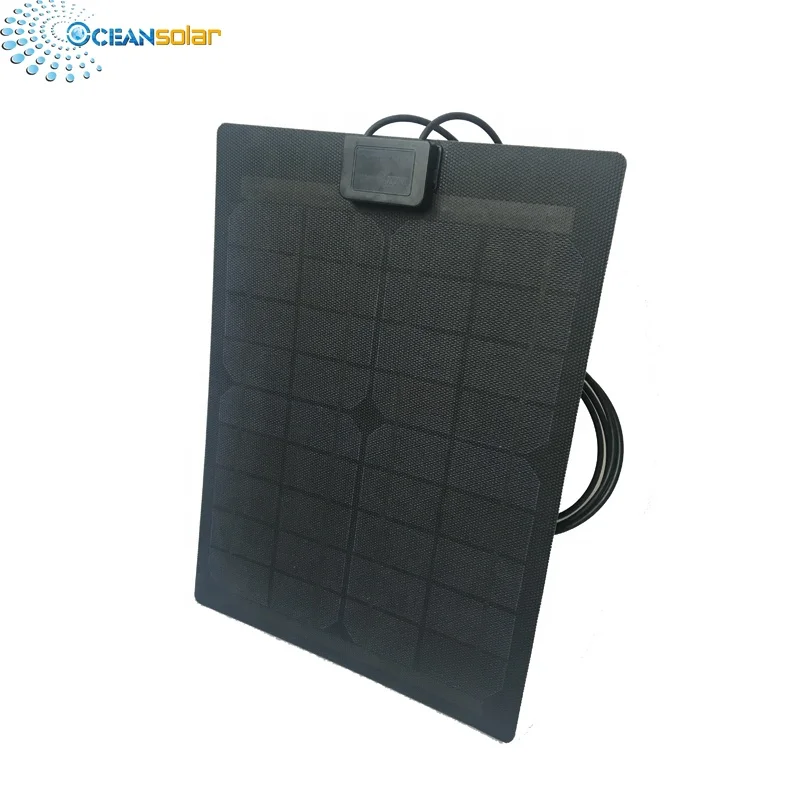

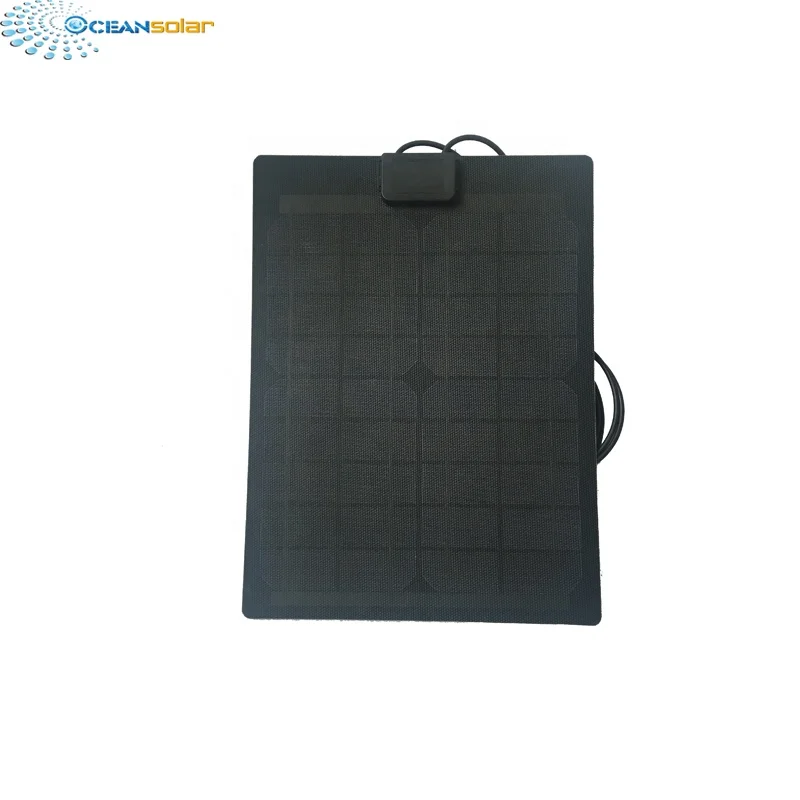

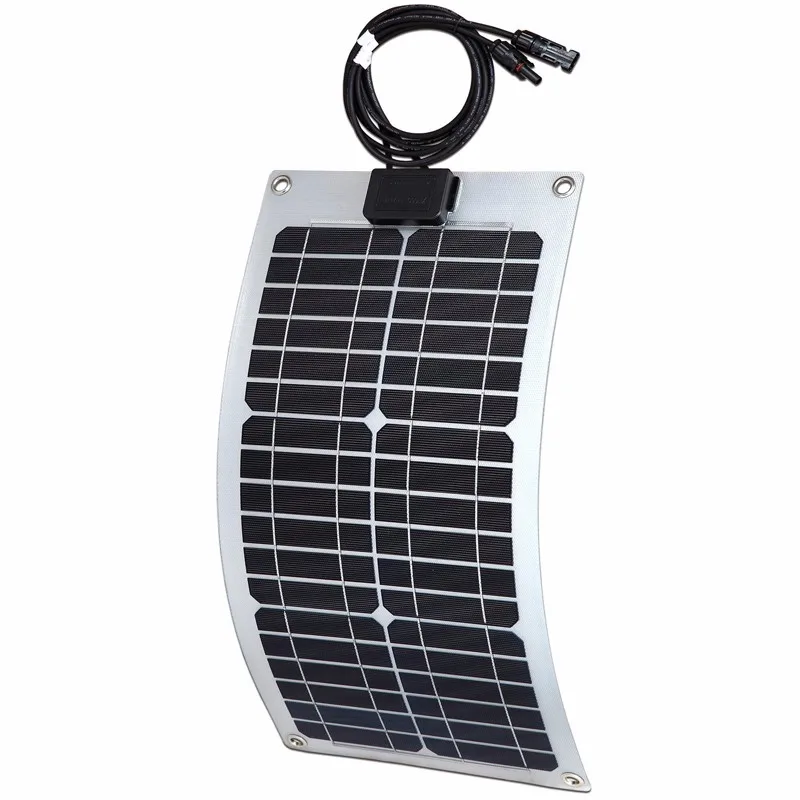

Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell
Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell

Oceansolar Mini ETFE 20w Flexible Solar Panel with 156 Mono Cell

Share on (60833842352):


Price:$24.00 - $28.00

Quantity:


Product Overview

Description



Product Description


Flexible Angle
Up to 10 degree
Back Sheet
PET, TPT, Aluminum or Fiberglass
J-Box
IP65 Rated
Thickness of ETFE
0.025mm
Thickness of solar panel
2.5mm or 3mm
Cables/Connector
1.5 meters, 2*0.75mm2 cable with waterproof connectors
Type of Solar Cells
156 Monocrystalline silicon cells
Eyelets
4pcs in the corners
By pass diode
2pcs
Number of Cells
36pcs


Product Paramenters


Pmax
Vmp
Imp
Voc
Isc
20W
18V
1.12A
21.24V
1.24A
Maximum System Voltage
Cell Efficiency
Net Weight
Front Cover
Size
500V
18.5%-20%
0.85kg
ETFE
470*350*2.5 mm


Details Images








Product packaging




Production Process




Application Scenarios
