Мобильная электронная печатная плата Материнская плата быстрая неисправность съемка Инфракрасная тепловая камера
- Category: >>>
- Supplier: Guangzhou KSL Electronic Equipment Co. Ltd.
Share on (60833872843):
Product Overview
Description
Product Description
Mobile Electronic Pcb Motherboard Quick Trouble Shooting infrared Thermal Camera
PCB quick diagnostic apparatus is a new generation of maintenance equipment, which is the world's first to use dual-spectral interleaved positioning technology. Through powerful PC-side intelligent analysis software, the use of intelligent algorithms, it can detect the motherboard chip operating temperature by the use of intelligent technology. By the normal / abnormal motherboard comparison analysis, it can quickly and accurately identify problem chip, which can assist maintenance personnel in overhauling the problem board, greatly improve the efficiency and maintenance accuracy.
PCB infrared thermal imaging diagnostic apparatus is composed of three parts, the front-end detection host, and adjustable lift bracket and computer client analysis software.

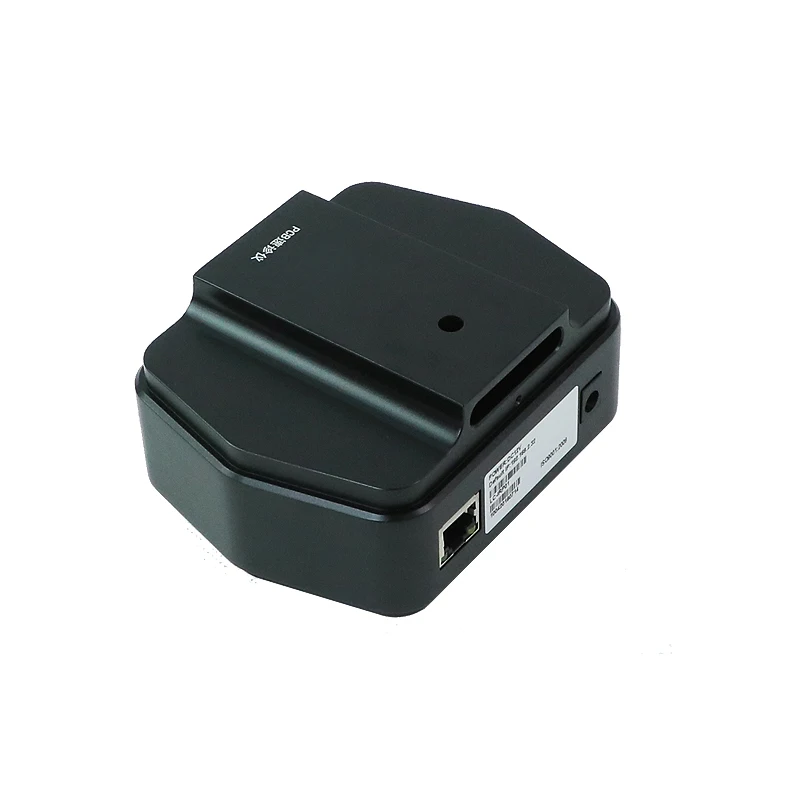

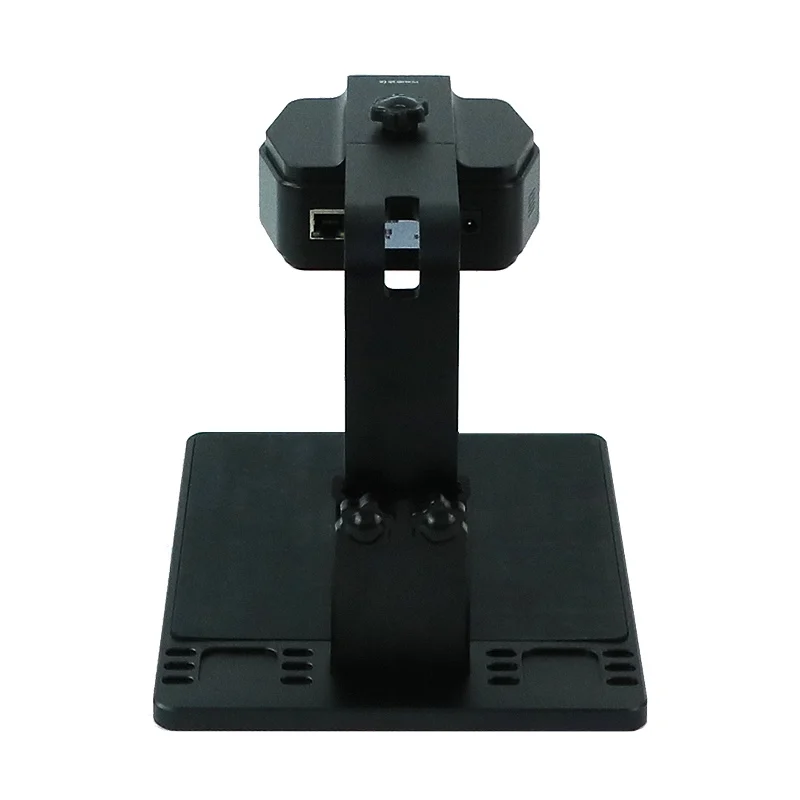

The front end host is composed of visible and infrared dual vision lens, which can display visible light screen, infrared thermal imaging screen, visible light / infrared thermal imaging fusion screen. It can locate the position of problematic chip quickly by observing the different screen switch. Besides, the visible lens can be uninstalled to replace electron microscope lens anytime, which can be used as electronic microscope, a machine with multi-function. In order to reach the best observation distance, it comes with the adjustable bracket. By adjusting the distance between the machine and PCB, it can have the best clear imaging effect.

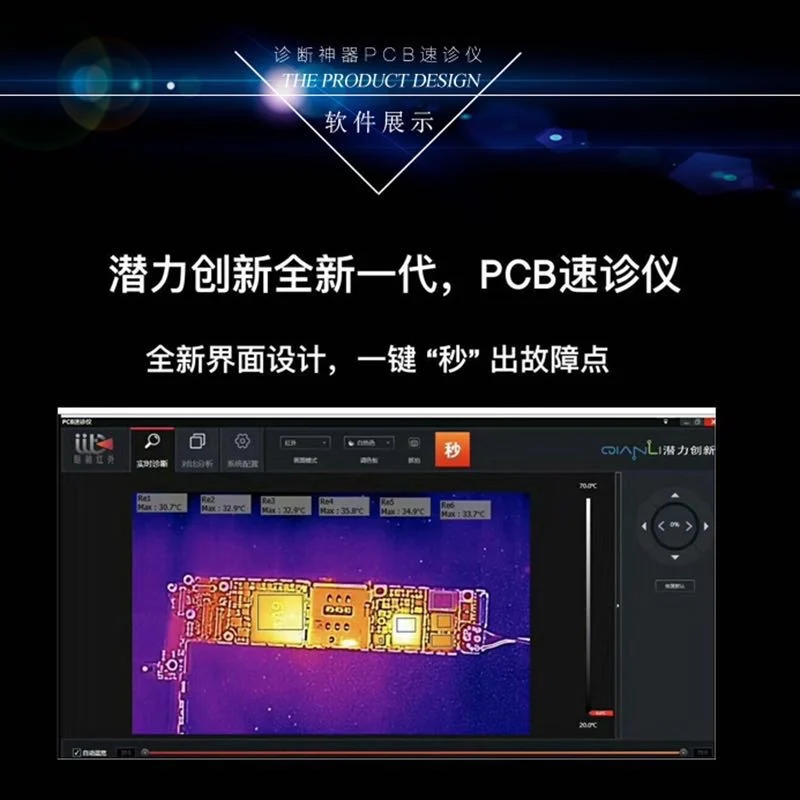

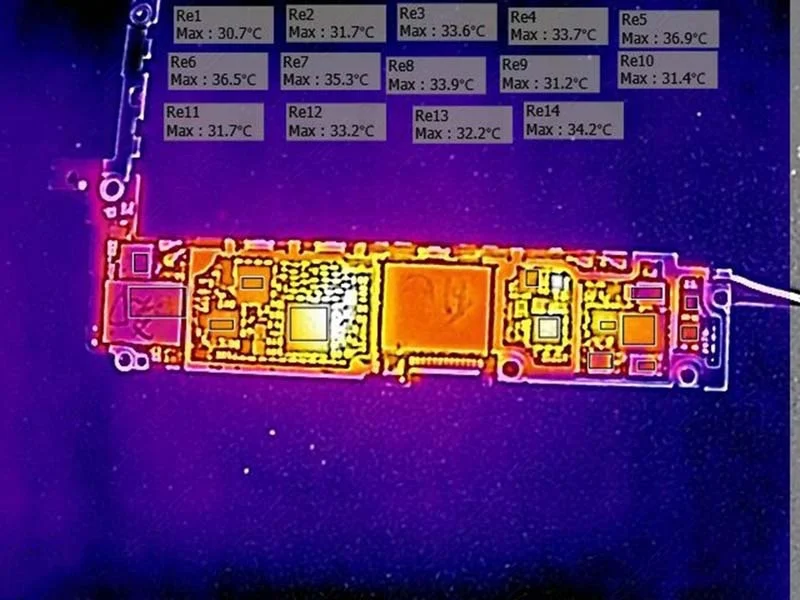

By Computer client analysis software, intelligent identification algorithm, running temperature of each chip on PCB board can be displayed on the screen and the maximum temperature value of the chip can be also intelligently positioned .Through the normal / abnormal motherboard comparison analysis, quickly locate the problematic chip position. At the same time the software can take pictures, video to reserve maintenance motherboard photos, video proofs, to provide reference comparison date for future maintenance.
Detailed Images
Packing List
1 x Thermal camera;
1 x Microscope Base
1 x wire cord
1 x power supply adapter
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Warranty
1.all of our products will be checked one by one before shipping;
2.customer should check the package when receiving;
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made
free technical support always;
4. due to the low vaule of the accessories,we don't accept any return or exchange.
Our Company
How to buy it
How to place an order?
1.Inquiry though the bottom of this page, Trademanger or contact us;
2.We discuss the details of our products and reach a deal;
3.We send you an invoice according to the model and quantity you need;
4.You confirm the PI and send the payment;
5.After comfirming your payment we send your the goods;
6.After-sales follow up.
