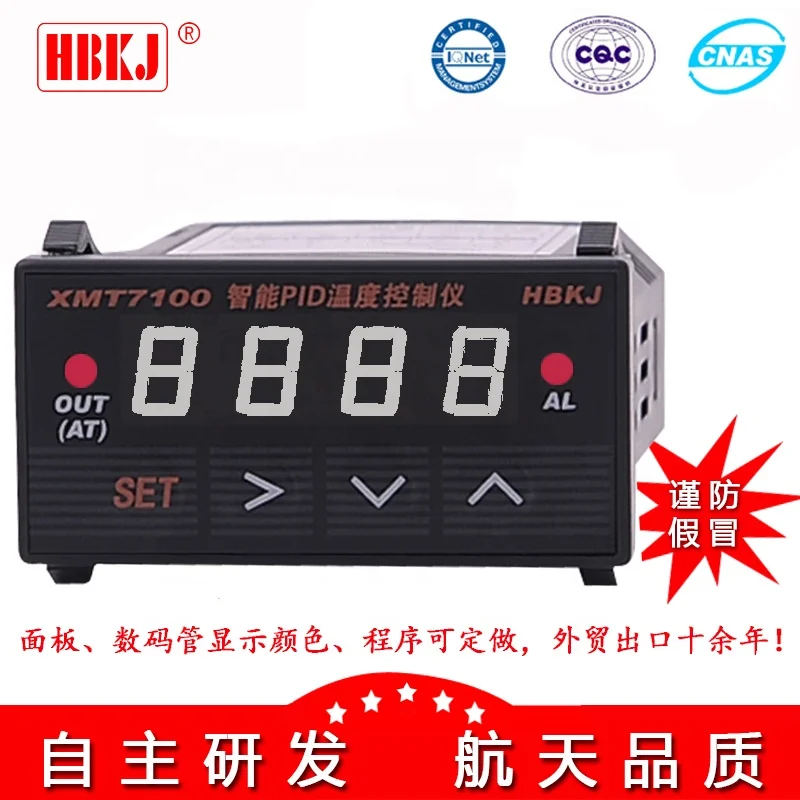

Beijing HBKJ XMT7100 PID Temperature Controller display unit for Enail dab puffco peak thermopile sensors mtp10 b7f55
- Category: >>>
- Supplier: Shenzhen Chuangyuantong Technology Co. Ltd.
Share on (60833903705):
Product Overview
Description
HBKJ Factory XMT7100 PID Mini Multi-function LED Display Digital Temperature Control Unit OEM
Product Description
XMT7100 colorful temperature controller with PID function
Input | RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25) |
Power supply | DC 24V |
Contact capacity | AC 250V/3A |
Contact life | 1×105 |
SSR-level | 8V(Open-circuit voltage); 30mA(short-circuit current) |
Temperature range | -199.9 ~ +2300°C |
Measure accuracy | ±0.2%FS |
Environment | 0~+50°C;≤85%RH |
Display | LED(red, blue, white, green, orange) |
Outline Dimension | 48×24×75mm |
Panel Dimension | 45×22mm |
1. Five Control Optional
(1).One alarm relay
(2).Relay contact PID output
(3).One alarm relay output; SSR all the way noncontact level PID output
(4).One alarm relay output; SSR-level all the way back to poor control output
(5).Backlash relay control output
Applications
1. Applications
Temperature Controller are the multi-functional regulators adopting the micro processing units.
The instrument has automating function to self adapt to different systems.
The instrument can also be degrees Celsius, degrees Fahrenheit temperature.
2. Our Advantages Of Temperature Controller
Customized: We are the manufacturer! sample &OEM&ODM are available!
Safety: We have own test chart, all of our products have been rigorously tested in the factory.
Higt Quality:Our company uses the most advanced equipment to make the best quality products.

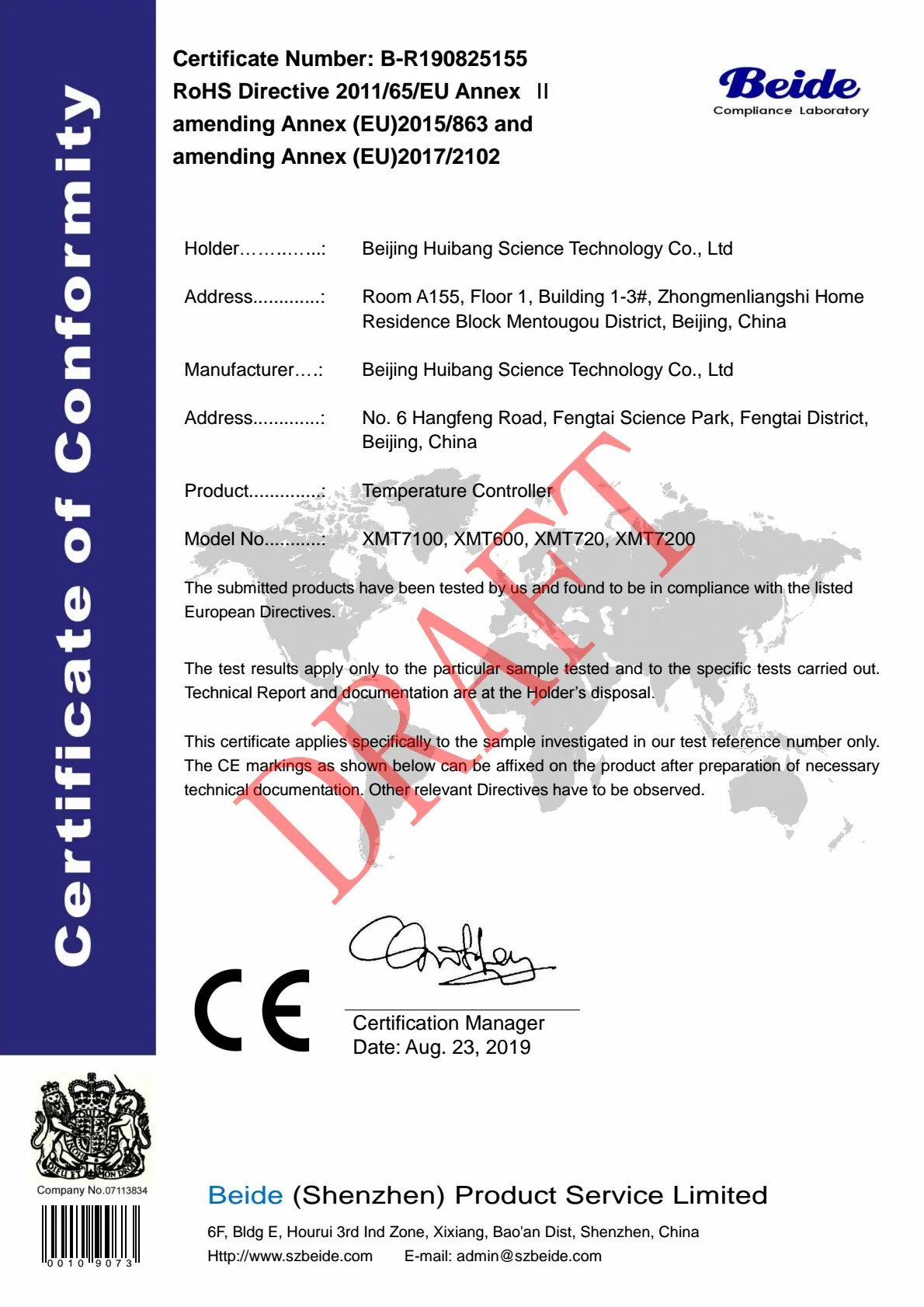

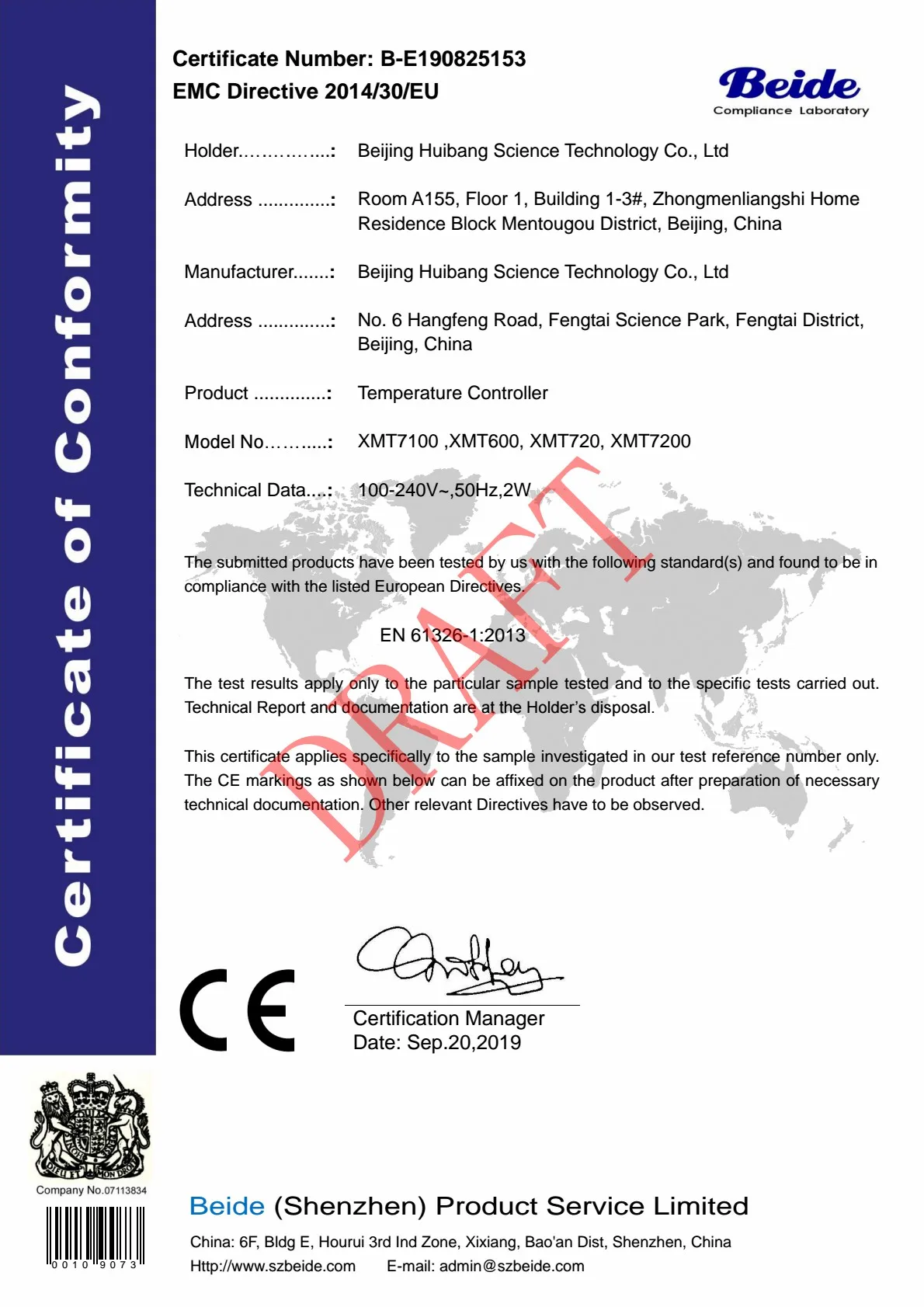

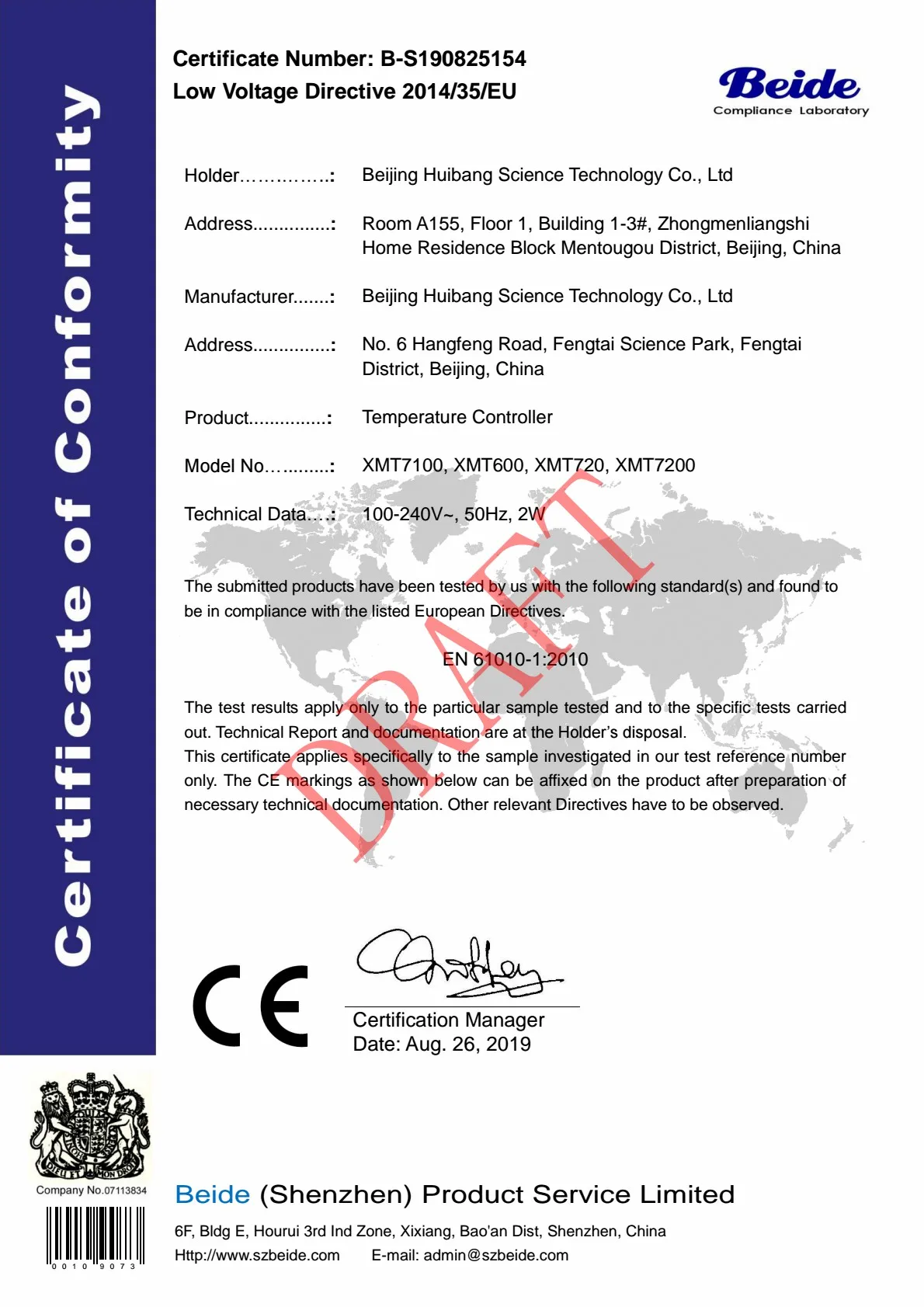

Certification: We have CE,ROHS,FCC and quality management system certification
Packaging & Shipping
1. Packaging Information
2. Terms Of Payment
Payment Terms: We accept any payment, Such as T/T, L/C, PayPal, Western Union, D/P, D/A, O/A, MasterCard, Cash, etc
