Product Overview

Description


Product Description

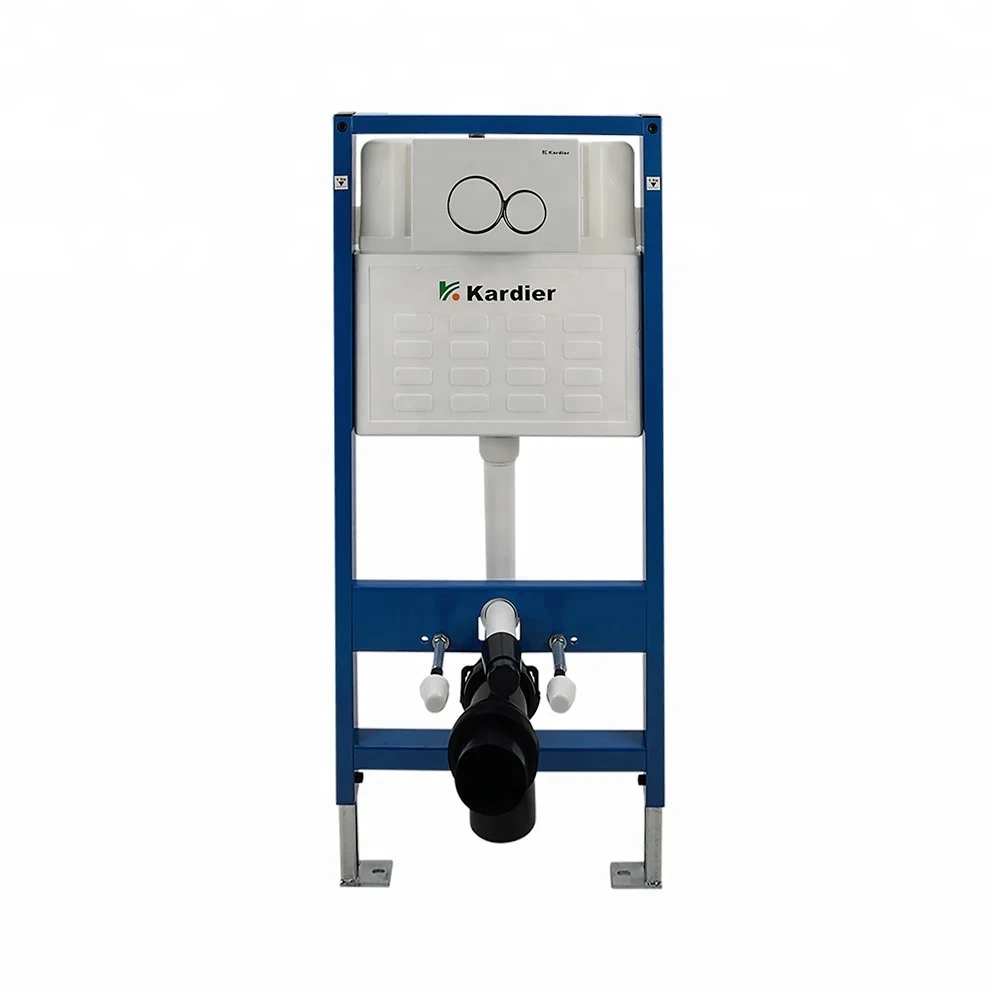

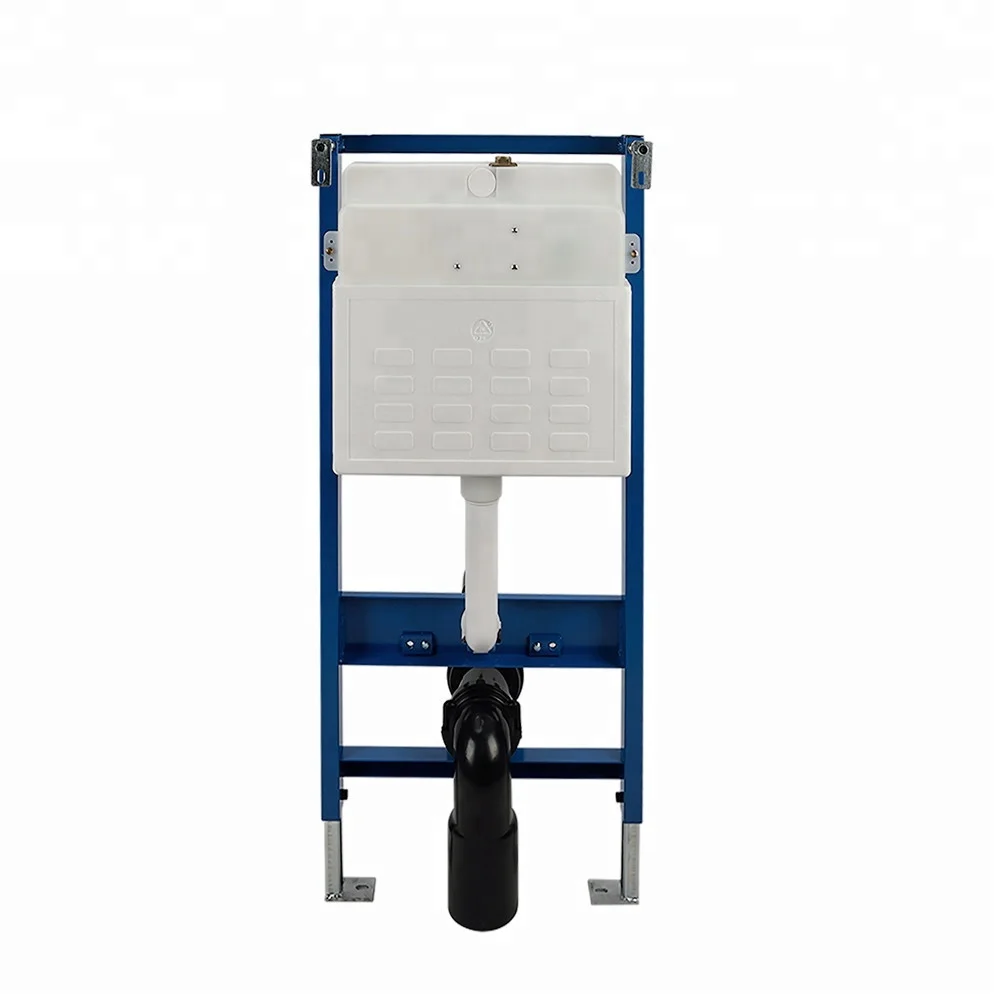

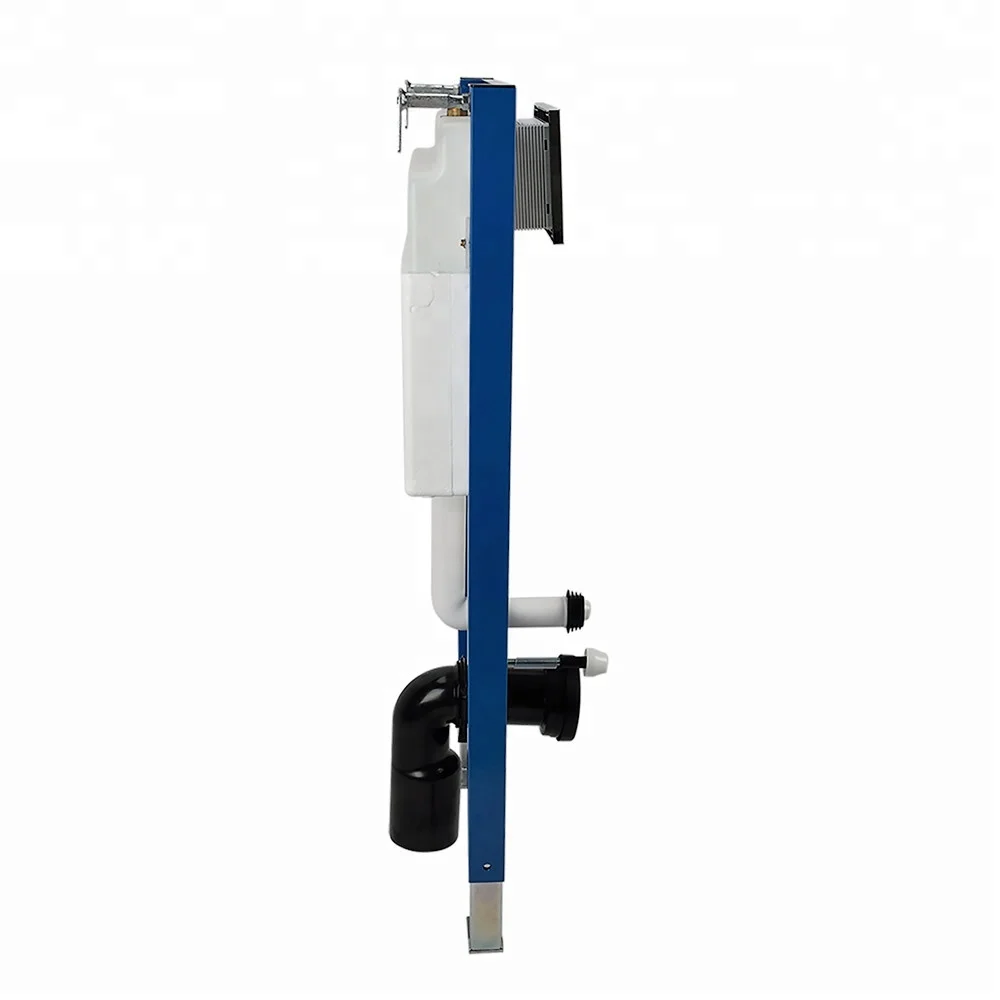

Australia standard inbuilt wall mounted water cistern tank toilet frame
\t
Speical points
\t
High class D frame Concealed Toilet Cistern with 127mm body thickness
\t
Item code
\t
009D1
\t
Certificate
\t
CE.WRAS.WATERMARK.WELS
\t
Dimension
\t
512x127x1042mm
\t
Flush pipe size
\t
110
\t
Carton Size (mm)
\t
523x150x1100
\t
Suit for
\t
wall hung toilet
\t
wall thickness
\t
≥155mm
\t
Material
\t
HDPE + D metal frame
\t
For wall
\t
dry wall;pre-wall;dry half wall;pre-half wall
\t
Flushing volumn
\t
3L/ 6L max. 8L
\t
Button size(mm)
\t
250x165
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
black/gold/chrome/satin/white/ silver etc
\t
Flushing
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL:EXW SHUNDE,CHINA ;20GP and 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
Carton packing ,1set/ctn
\t
Loading qty
\t
0.0871CBM/PC 20GP: 305 PC 40GP: 650 PC 40HQ: 760 PC

Special point  :


Technologic data :

1. 1/2" standard fill water hole
2.The water stress range of fill water is 0.02--1.0Mpa
3.The water temperature range is 2°-45°
4.3L/6L dual flush water volume ,the flush water time is 3S-5S
5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress
6.The product can be installed in the wall of 155mm thickness

Product Details

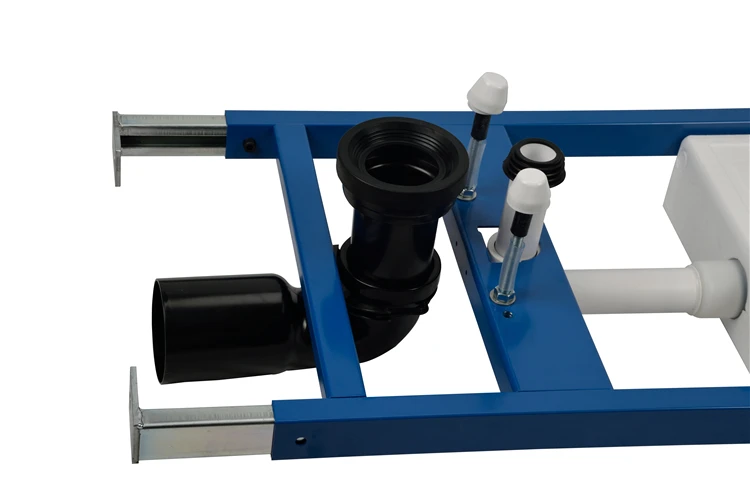

Metal frame installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

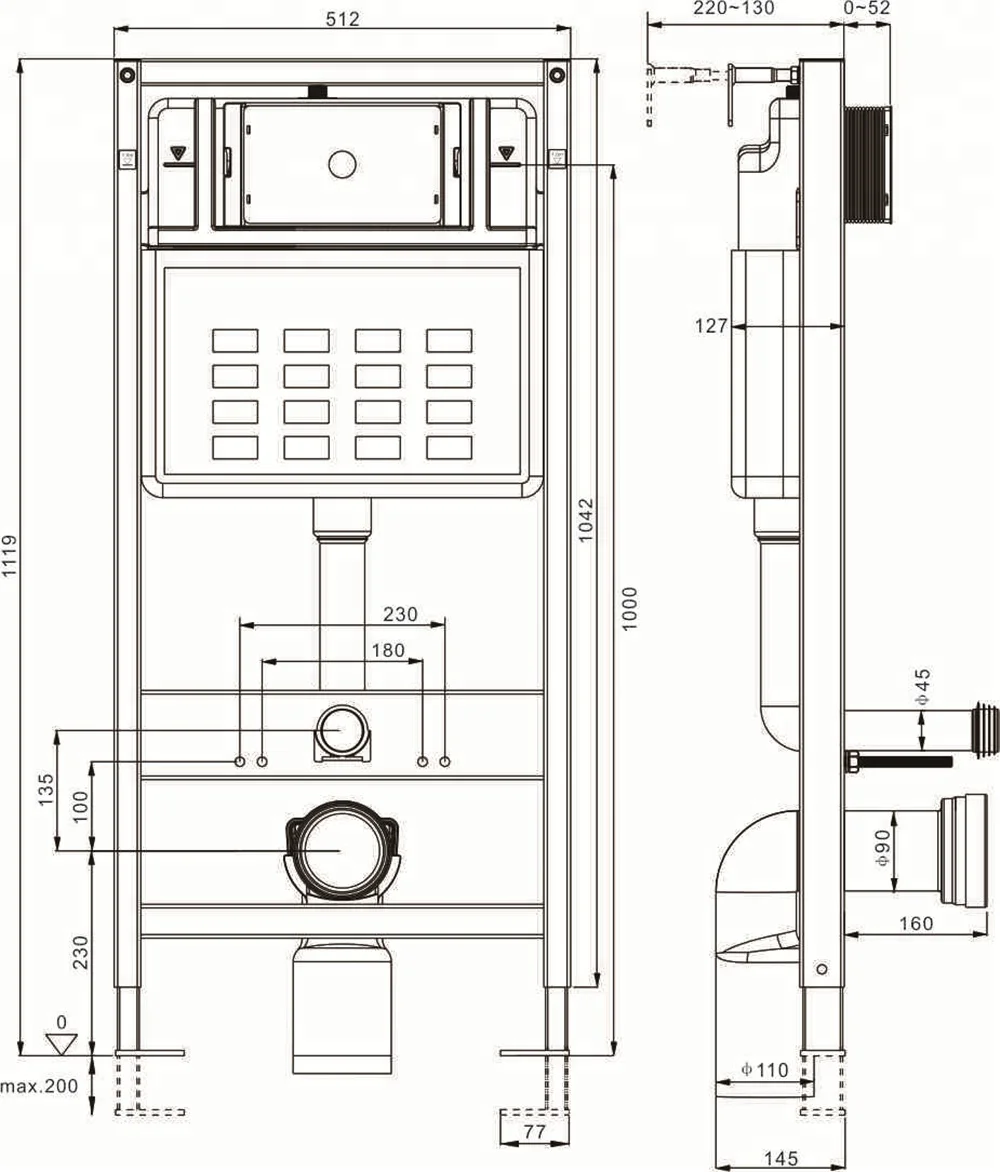

The Technical size standard requirement and installation guide of Wall hung toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

2. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.

3. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

7. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

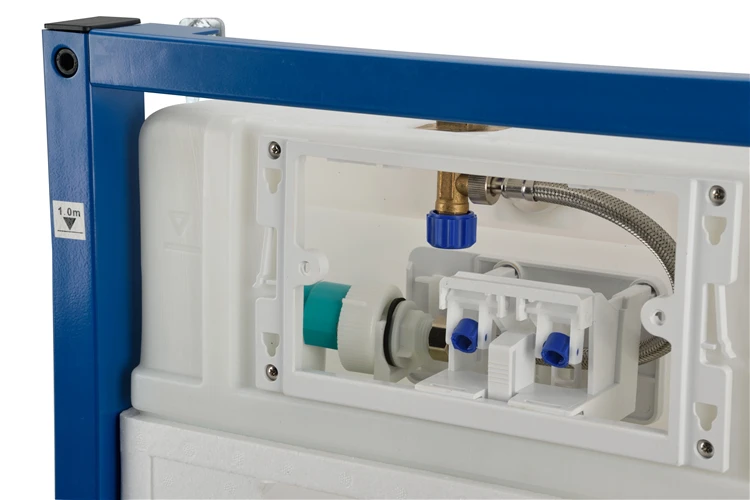

5. Easy maintenance: replace and maintain the inner fittings through the flush plate hole ,no need to break wall ,and easy to install & uninstall fittings by hand without tools .
FAQ
1.Do our concealed cisterns suit for all kind of size ceramic toilet ?
A:No ,the ceramic toilet size should be with international standard .pls kindly find above "The Technical size standard requirement for Wall hung toilet & standing floor toilet & Squatting pan " .


2. How to choose the item suitable for me ?
A: We have a table to tell you how to choose , pls kindly check or just contact with us to explain you .

3. What certifications do we have?
A: Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .pls kindly check our certificate item table for your reference ,or just contact with us for more details .

4. Can you provide the free samples?
A: If you are overseas buyers, and the price of the product is less than USD 50, we can provide a free sample, but you need to pay the freight .

5. What is the MOQ?
A: In general, up to 50 pcs.
