SKA D101 Liquid and Gas Differential pressure gauge

Product Overview

Description

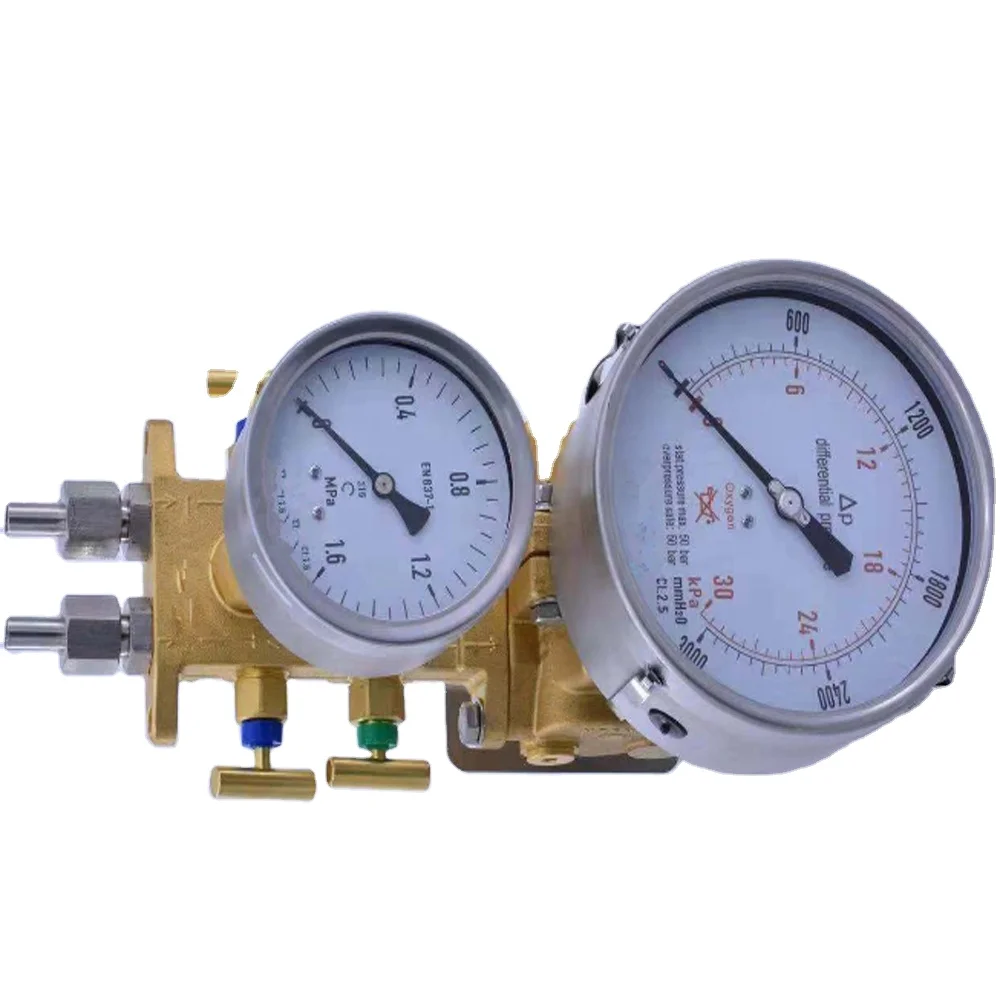

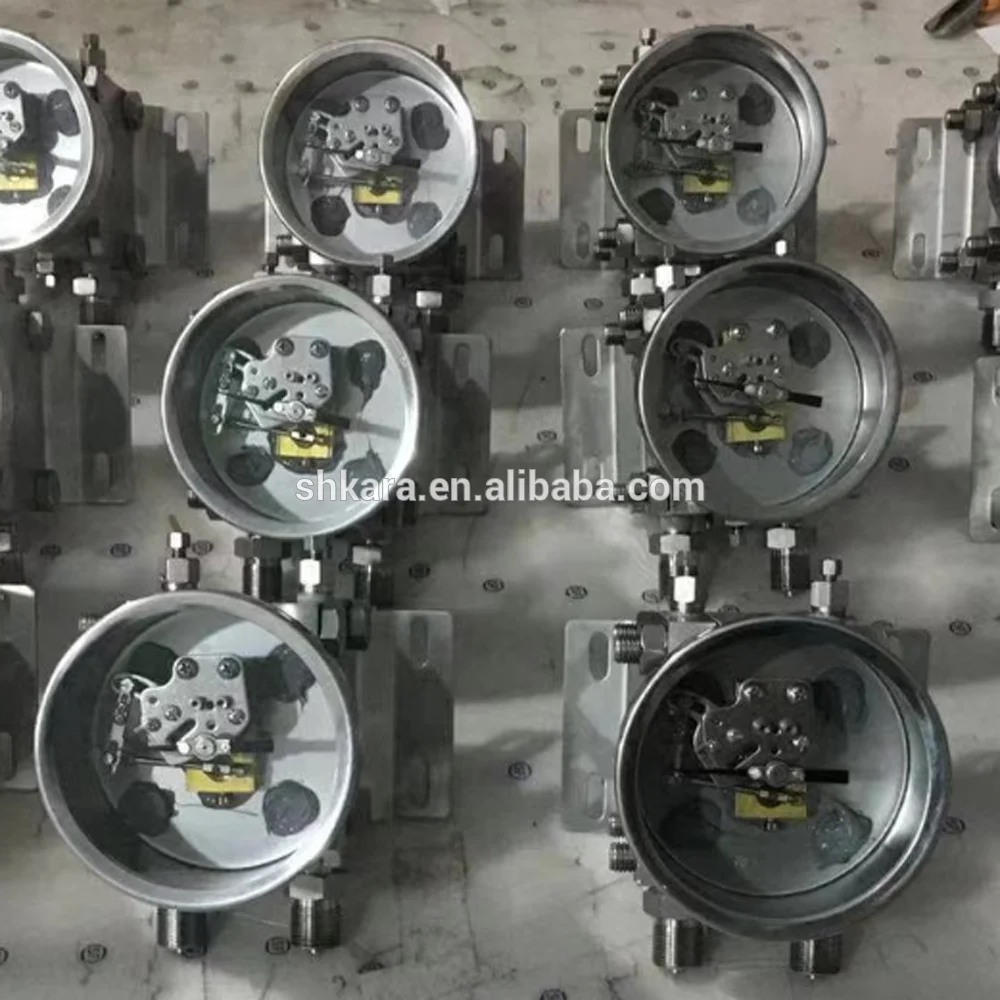

SKA-D101 Liquid and Gas Differential pressure gauge

Long-life, corrosion-resistant, highly elastic pressure-sensitivecomponents, precise symmetrical force balance mechanism and high-sensitivity transmission amplification components. It has small appearance, high precision, good stability, strong overload capability, etc. Suitable for differential pressure measurement between the same pressure source or different pressure sources. It is widely used in liquid and gasdifferential pressure measurement of non-crystalline media in oil and gas filtration, petrochemical, metallurgical machinery, hydraulic forging, water conservancy and electric power, shipbuilding and other industries.

Feature:

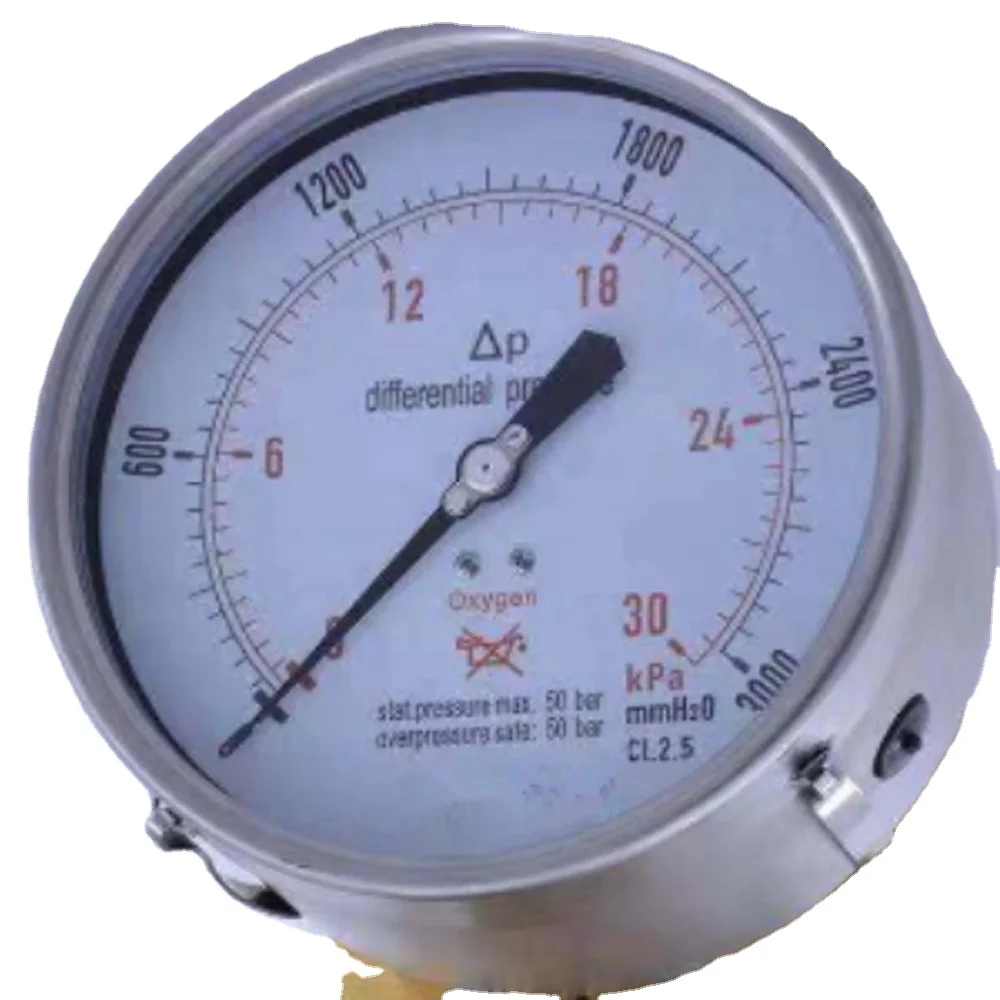

1.     High accuracy: The indication scale is a standard 270° radians, which can meet the resolution of 1.6 accuracy. Good linearity over a range of 2.5 accuracy.

2.     Strong overload capability: the input static pressure (common mode pressure) and the range ratio can be up to 200:1.

3.     Safe and reliable: When the input pressure fluctuates greatly or is subjected to shock vibration, the instrument can still work stably without damage.

Technical Specifications:

1.     Dial size: 40mm, 60mm, 80mm

2.     Accuracy: 1.6; 2.5

3.     Working temperature -50 ° C ~ 80 ° C

4.     Working medium temperature: -100 ° C ~ 80 ° C

5.     Maximum static pressure: 10Mpa

6.     Material: 304 stainless steel.

7.     Measurement Range:

   0~6kpa         0~200kpa

   0~15kpa        0~400kpa

   0~30kpa        0~600kpa

   0~60kpa        0~1000kpa

   0~100kpa       0~1600kpa



Other ranges can be customized according to customer requirements.

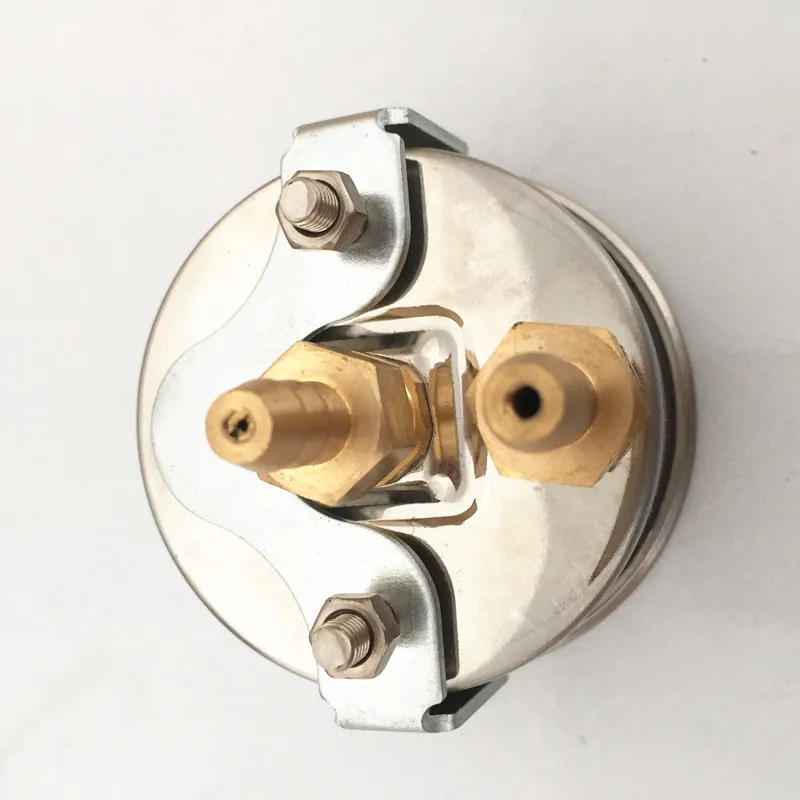

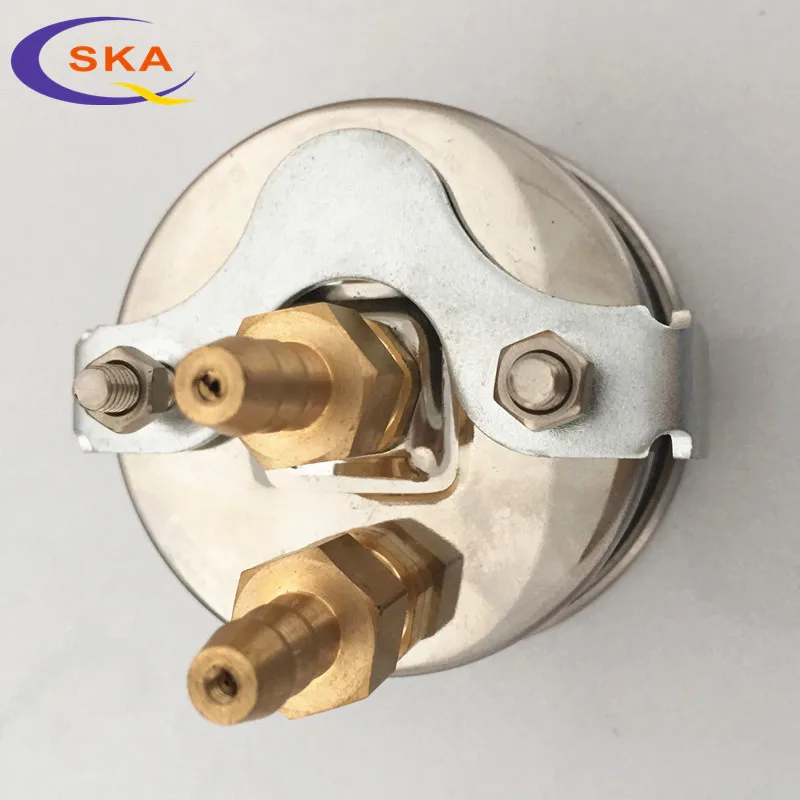

8.     Connection ways:

M14X1.5 M20*1.5 1/2NPT Male thread (or customized according to user requirements)

Clamp socket connection
