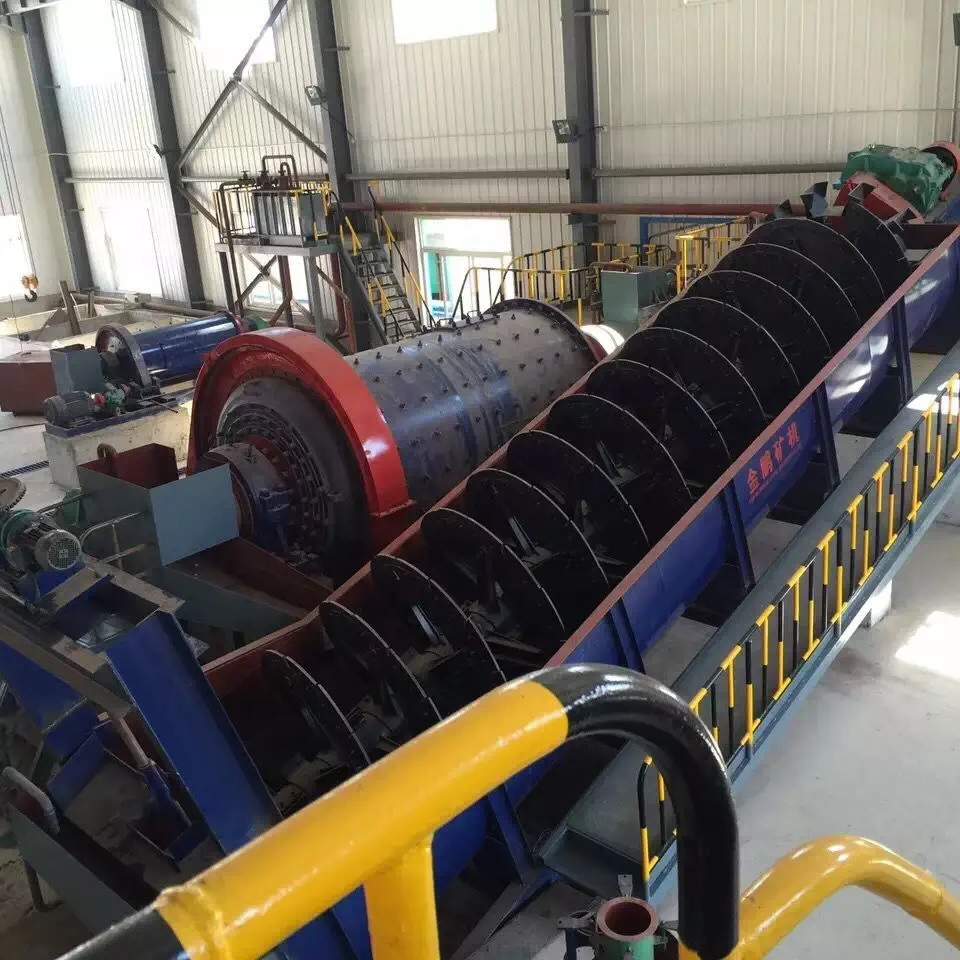

Gold processing plant ball mill mining machinery for gold, copper,lead and zinc grinding equipment

Product Application

Ball mill is widely used in mining, smelting,road,building material and chemical. It is the key equipment for grinding after the crush process.The mill consists of feeding device, driving assembly, rotating assembly,bearing unit,discharging assembly and foundation unit.There are two discharging type: wet grid ball mill and dry grid ball mill.

Main Features

(1) Save energy: bush bearing is replaced by rolling bearing, friction resistance being greatly lowered down, easy to be started. It's energy is lower 10-15% than the old one.

(2)Large capacity: for the outlet disk and the checked liner are adopted, the capacity is higher 20% than the cone ball mill.

(3)The discharging port slurry surface is low, slurry flow through rapidly, decrease ore over-grinding.

(4)Load of ball is large, big balls, small balls be loaded in, and small balls can't be discharged, and can form good working conditions.

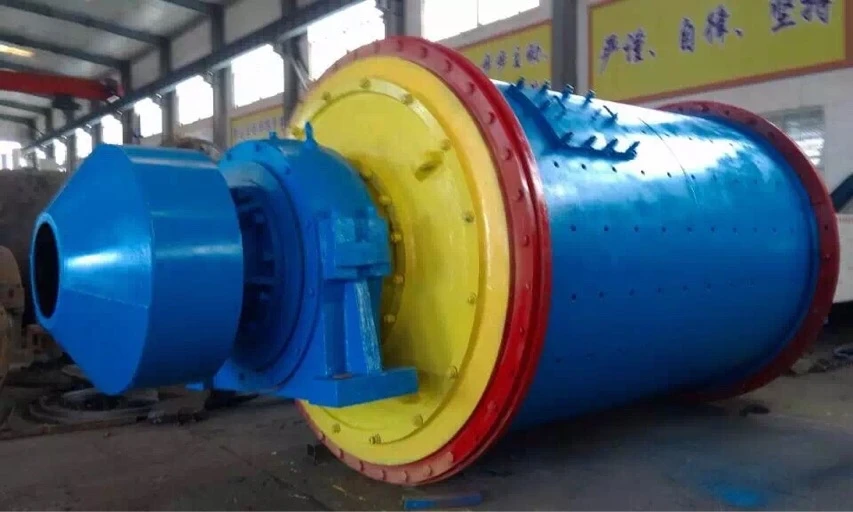

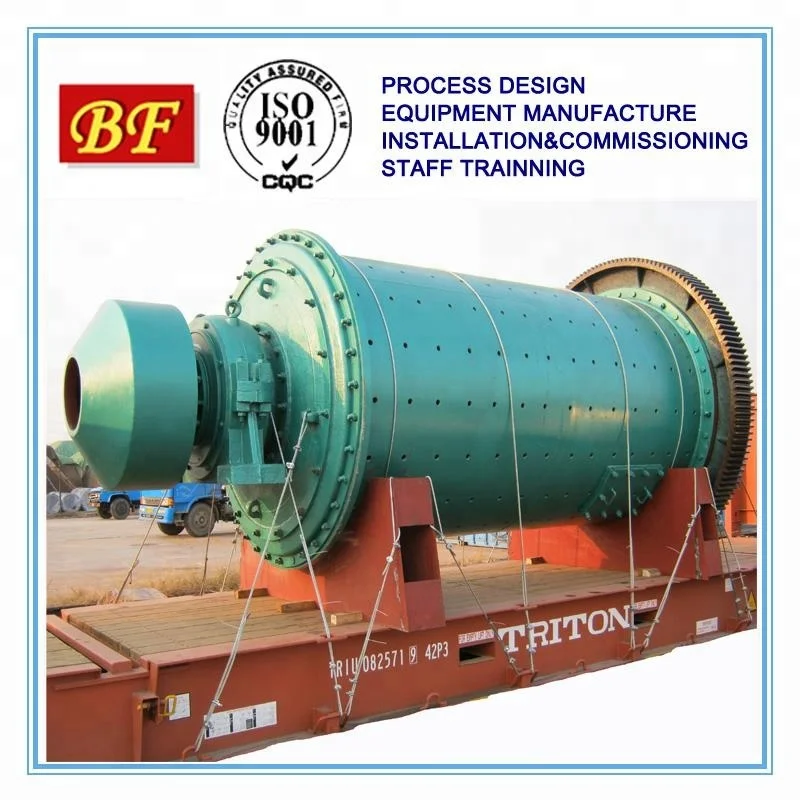

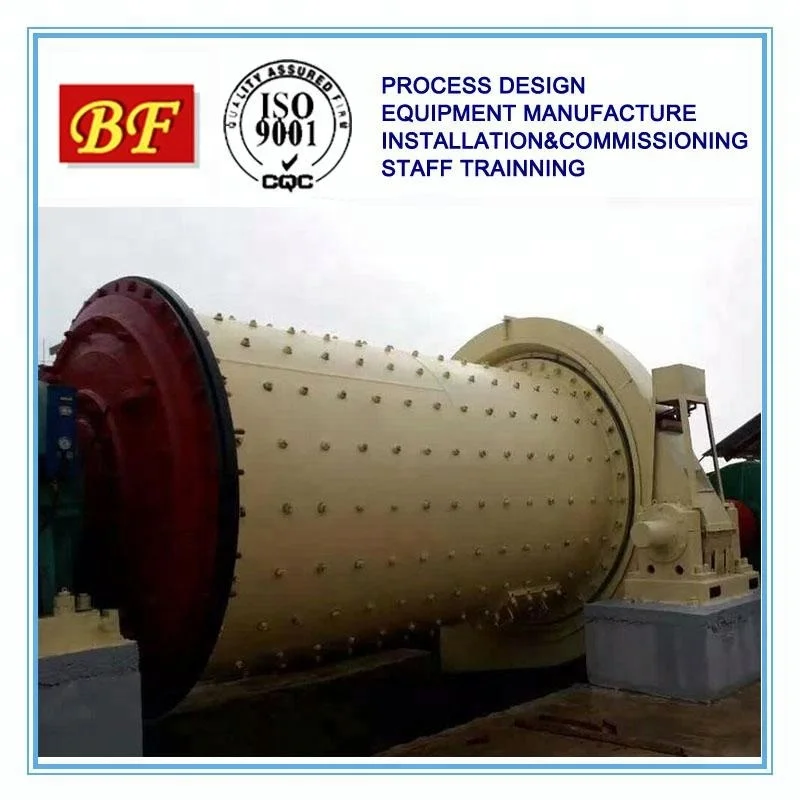

Cylinder

Name: cylinder

Brand: JINPENG

Original: CHINA

We used the best quality steel plate and casting cover, feeding parts, discharging parts, motor and transmission for the ball mill

Transmission division

Name: transmission division
Brand: JINPENG
Original: China
The transmission division made for the Material  45# Steel plate

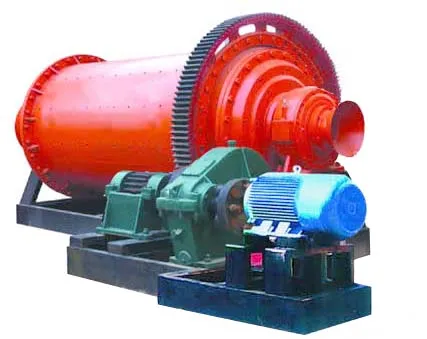

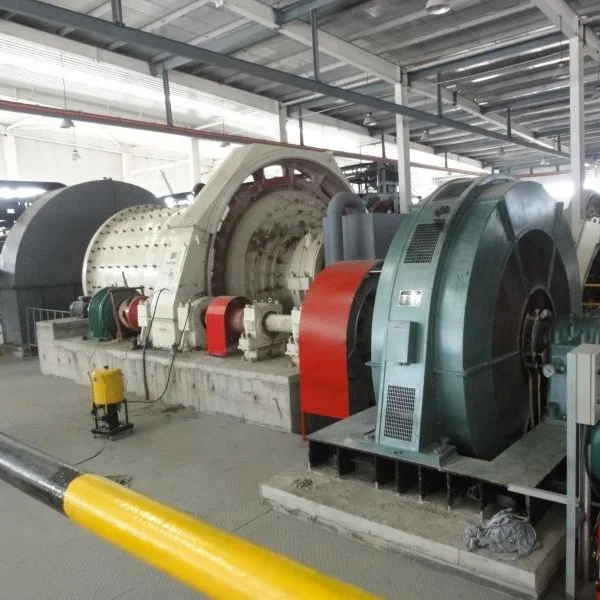

Motor and Reducer

Name: Motor and Reducer
Brand: Xima
Original: China
The motor is the best quality factory and is effective for mine equipment

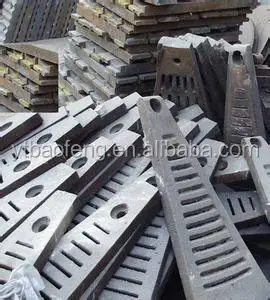

Other spares for Ball Mill

Name: Linear
The material made for ZgMn13.
