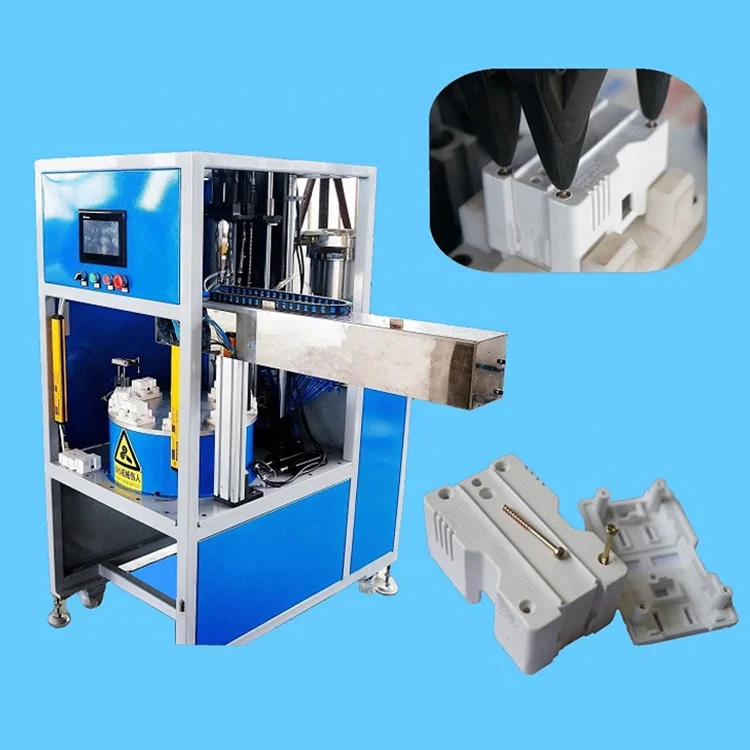

High quality AC220V single phase rotary type electric automatic screwdriver machine for socket

Product Overview

Description

High quality AC220V single-phase  rotary type electric automatic screwdriver machine for socket

I. technical parameters

Efficiency: one product/4 seconds

Screwing quantity: 4 pcs per time

Power supply: AC220V single-phase

Air Source: 0.6Mpa

Machine Dimension: 1200*800*1400mm (L* W* H)

Discharge: the robot unloading

II. Description:

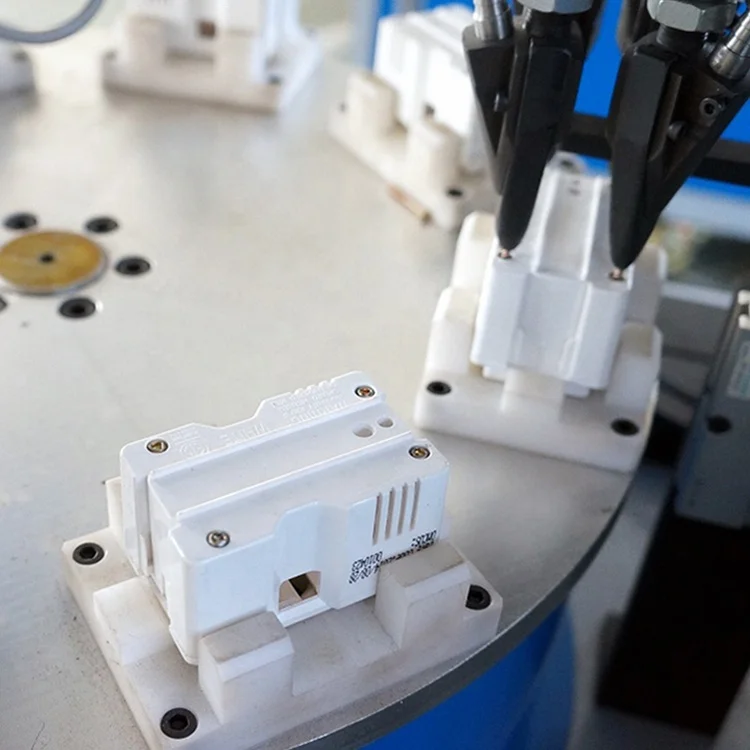

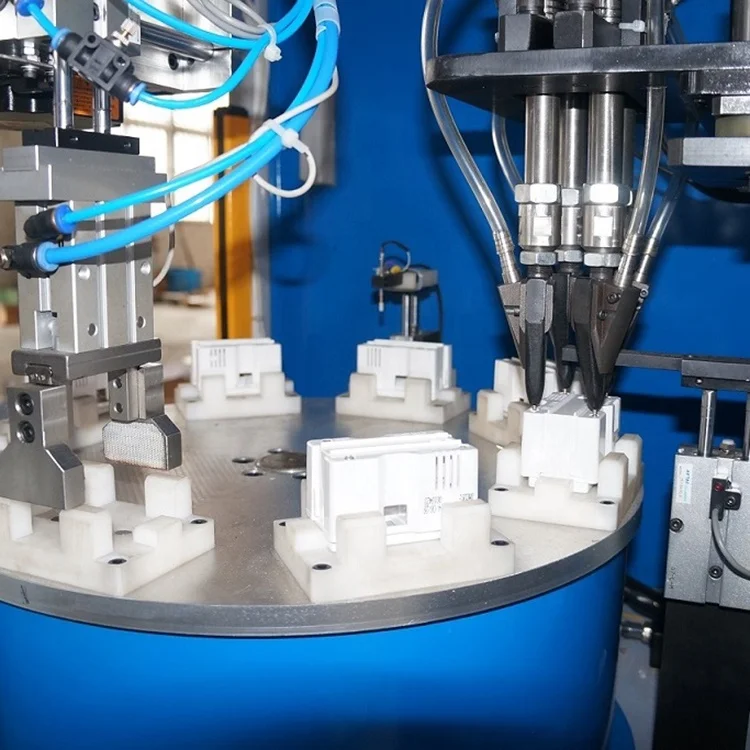

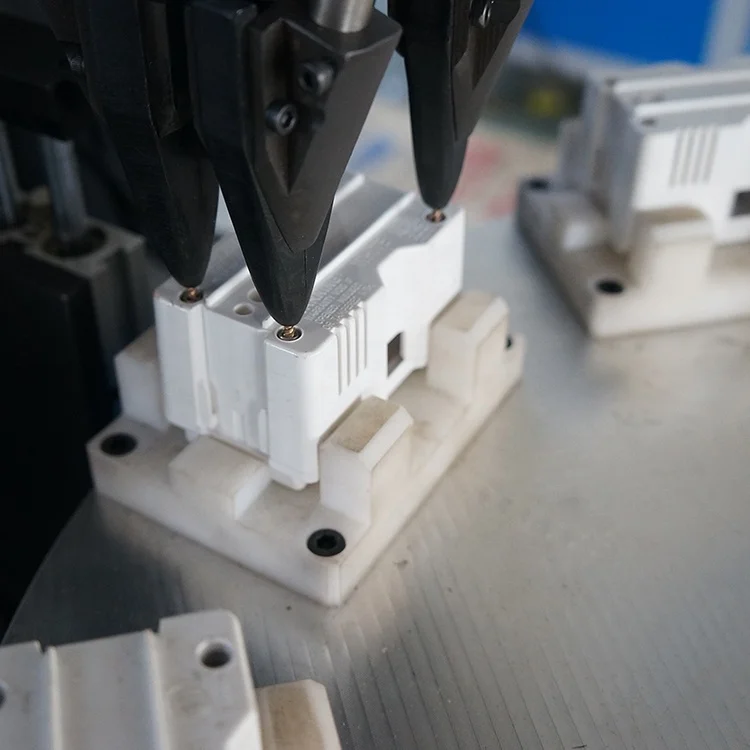

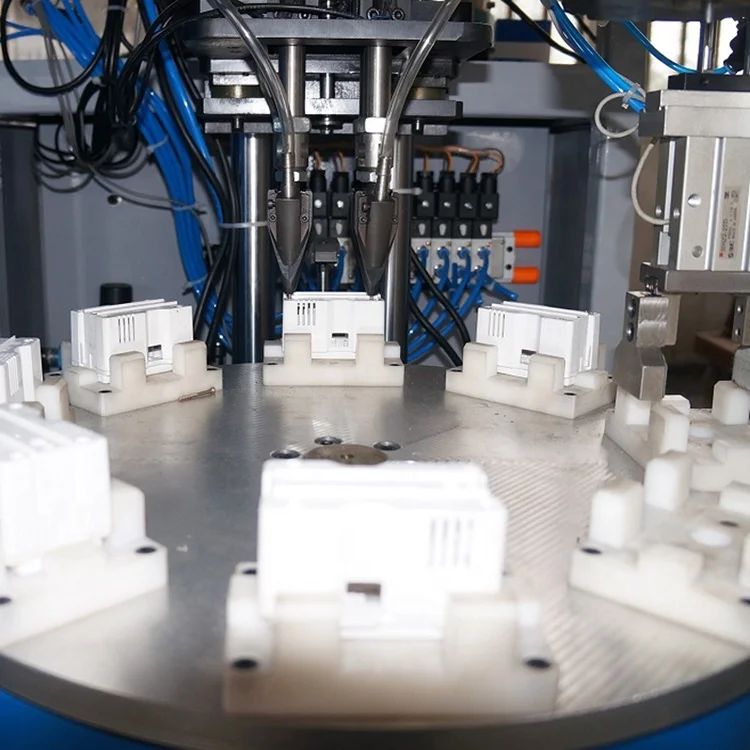

1. this machine is 8-station 4-axis turntable fixing screw machine, installed on the rotary table with 8 jig. Each turntable rotation to complete a product, each time feeding 4 pcs of screw.

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.

4. by replacing the fixture can be used for other models.

5. screw universal in the case of tooth size unchanged, different length is ok

6. the device has a safety feature, when the body is in the work area the machine stopped running

7. Manual loading the product, after fitting 4 pcs screw the robot discharge product.
