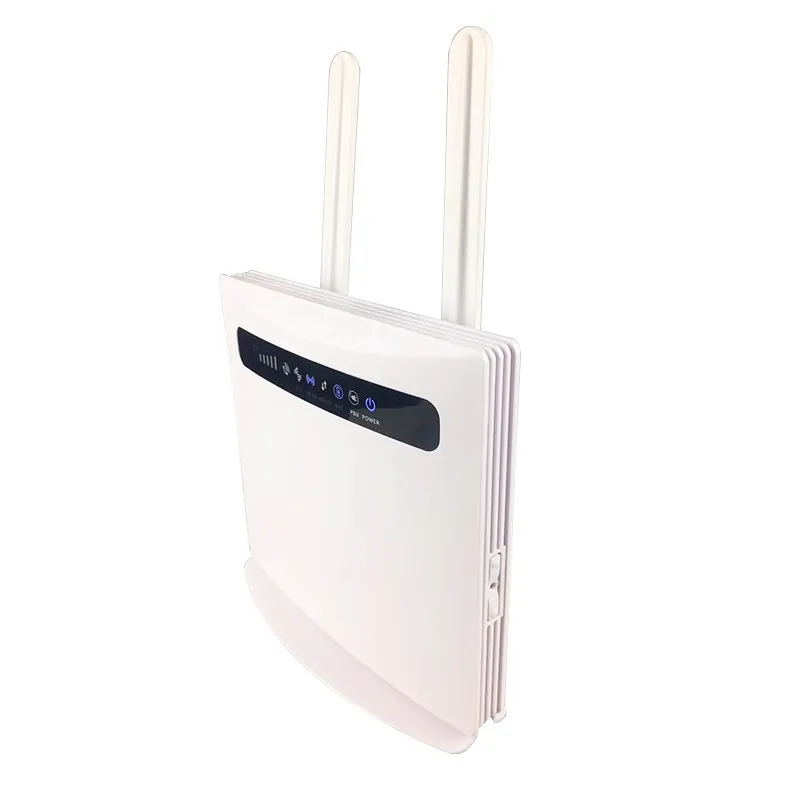

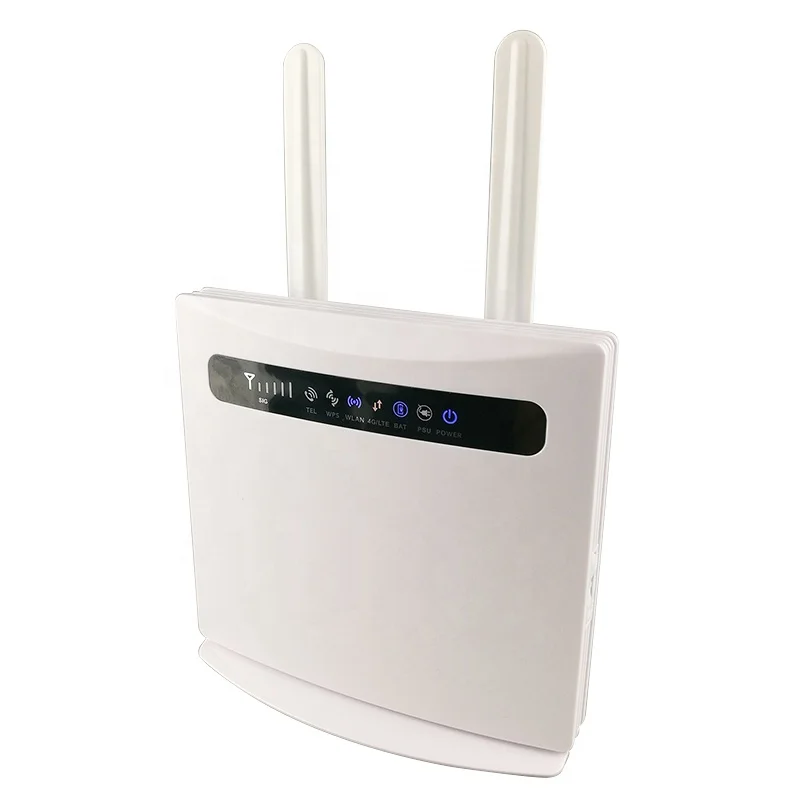

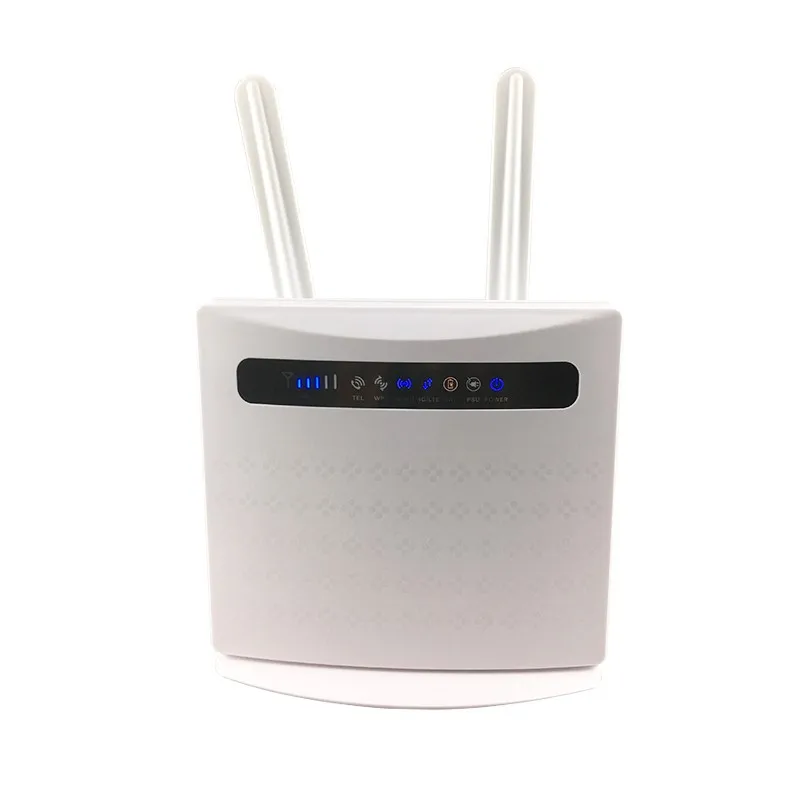

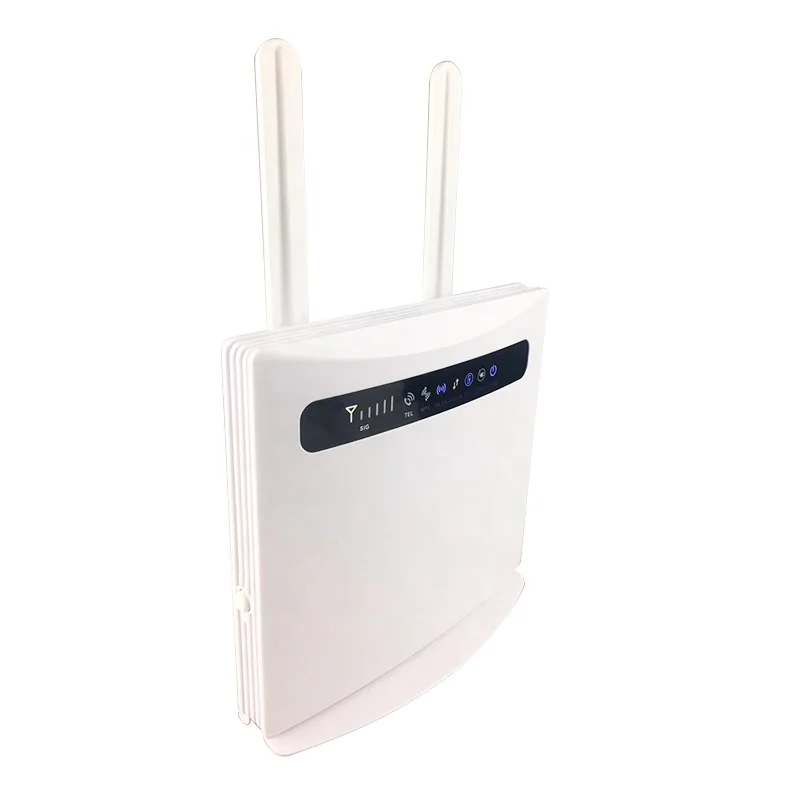

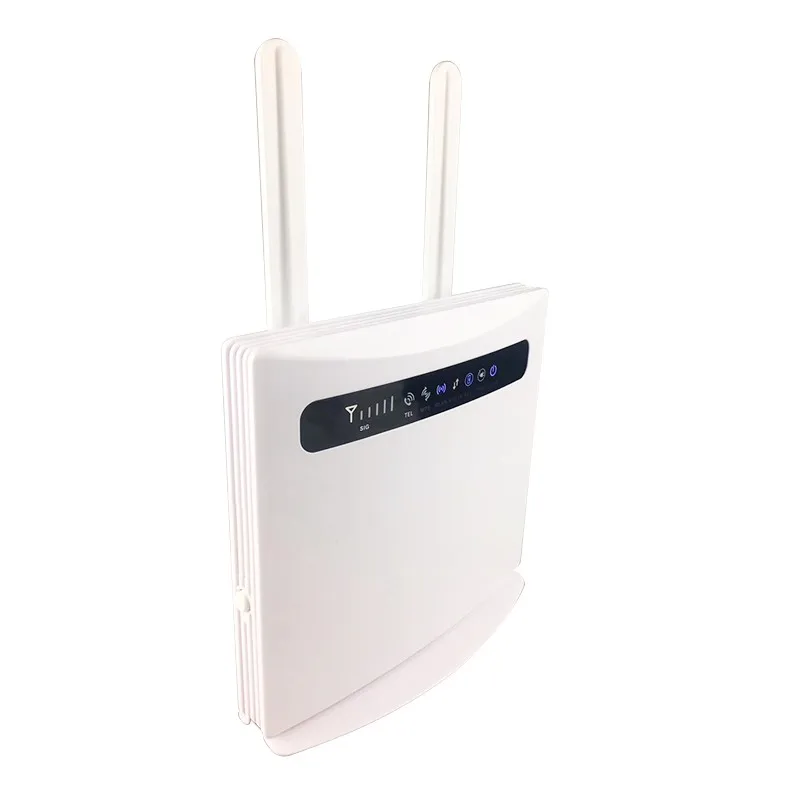

4G VoLTE FWT wifi hotspot 4G router with sim card

1.Overview

As a high-performance LTE CPE device with VOLTE, enables home office (SOHO) users to get access to
wireless and wired networks

work in any of the following network standards:
*Frequency Division Duplex (FDD)
*Time Division Duplex(TDD)
*Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
*High Speed Packet Access Plus (HSPA+)
*High Speed Uplink Packet Access (HSUPA) High
*Speed Downlink Packet Access (HSDPA)
*Universal Mobile Telecommunications System (UMTS)
*Enhanced Data Rates for Global Evolution (EDGE) General
*Packet Radio Service (GPRS)
*Global System for Mobile Communications (GSM)
*provides the following services and functions
*Support 3GPP Release 8/9 compliant
*Support 1TX/2RX with TX switched diversity
*Support UE Category 3/4
*Support QoS service flow initiated by CPE
*Built-in web server for web-based configuration
*Password protected access and configuration Support
*IEEE 802.3, IEEE 802.3u ,IEEE 802.11 b/g/n
*USIM Slot
*Support VPN pass-through
*Support VOLTE
*Support Lock Network

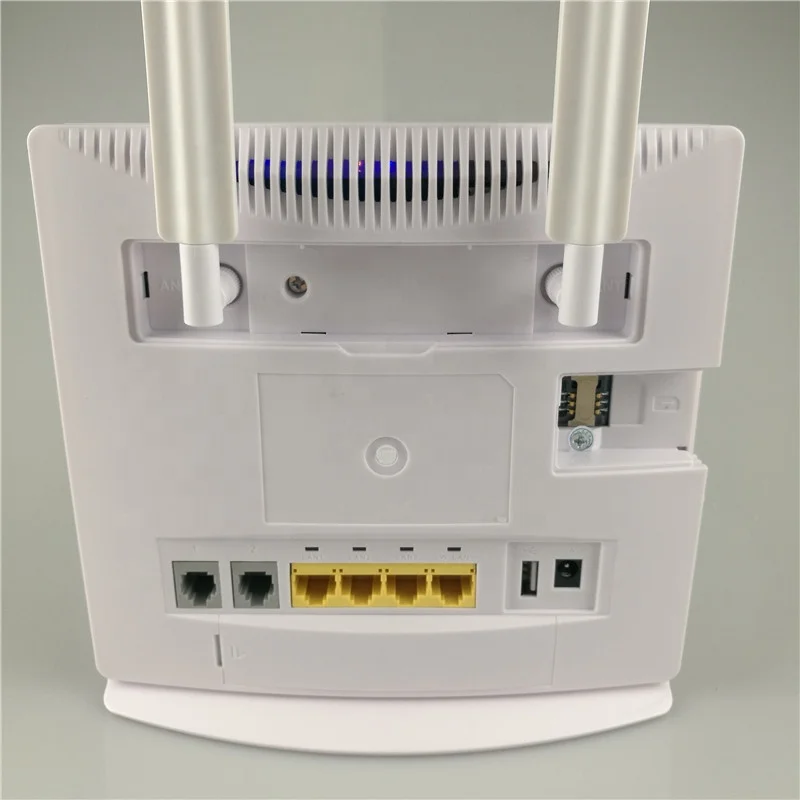

*2 RJ11 ports(Voice call)

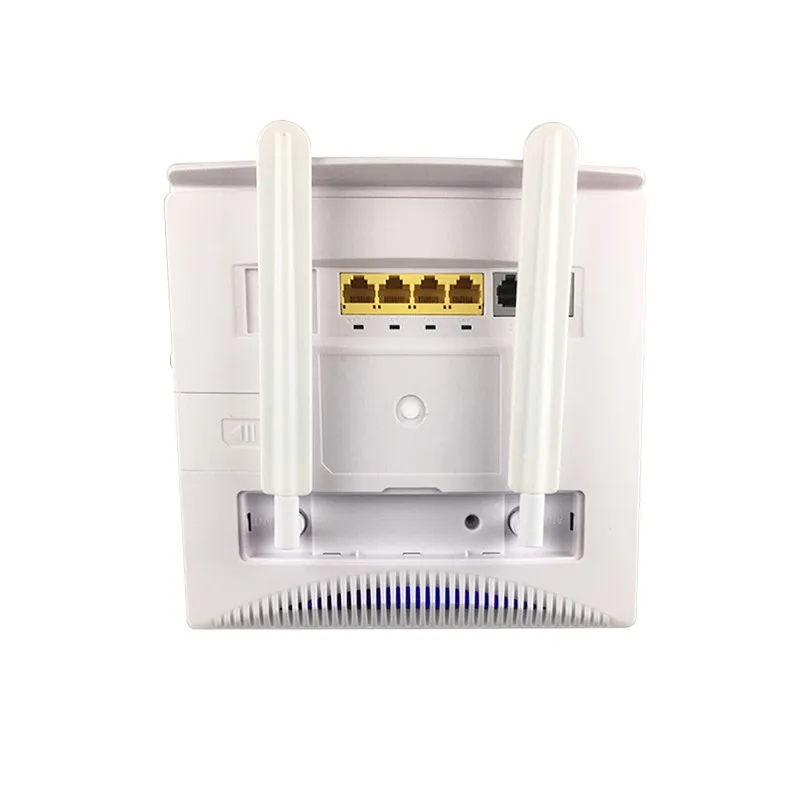

*4 RJ45 port (1*WAN, 3* Lan)
*2 SMA external antenna port

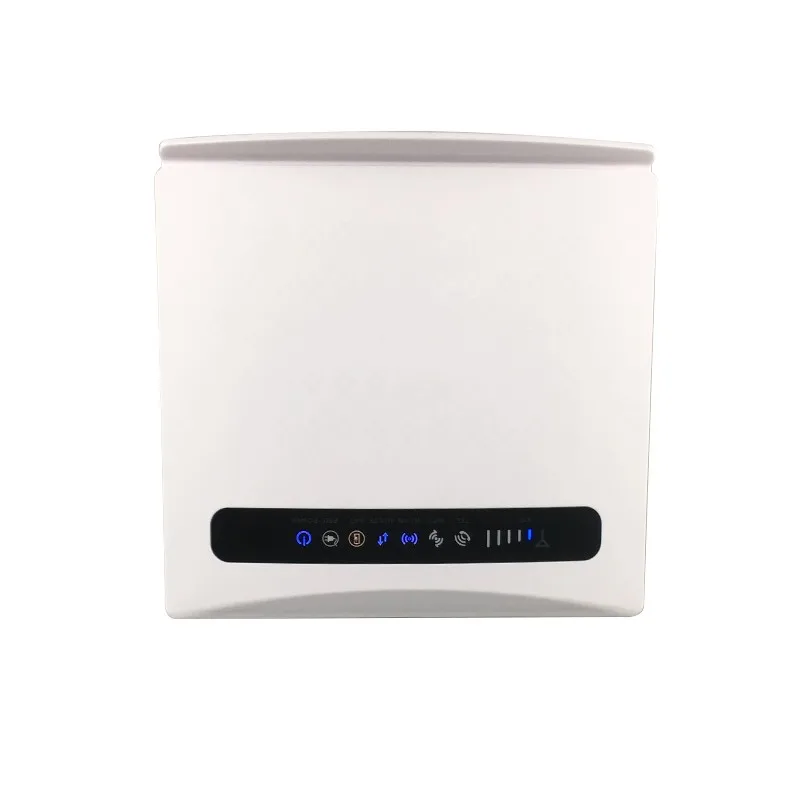

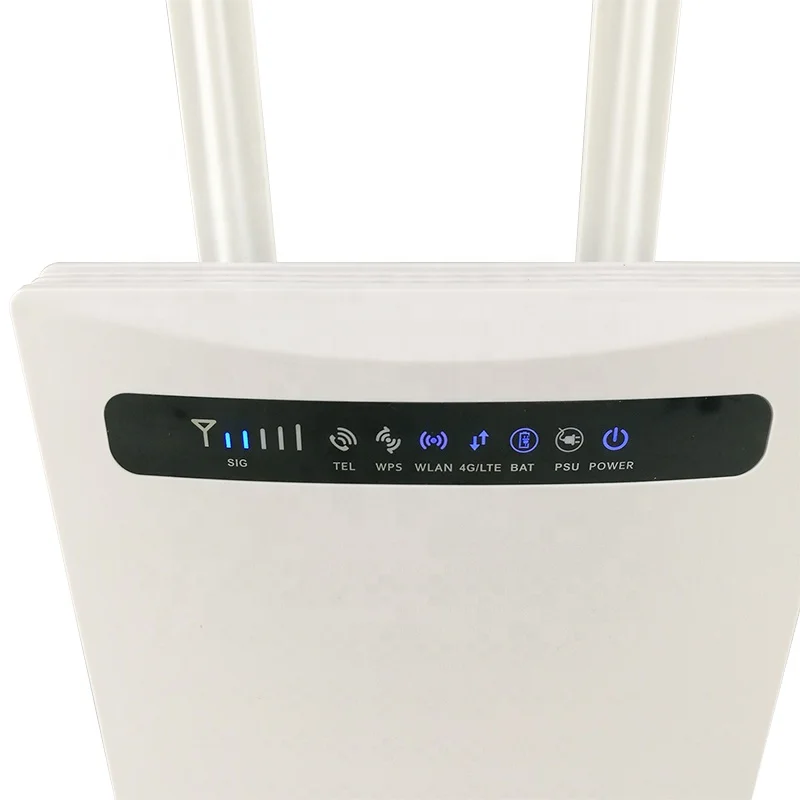

*Support LED indicators
*Support Internal antenna
*Support External antenna
*Battery

2.Main functions:
*Support 2G/3G/4G network connection
*WIFI Standard:IEEE802.11b/g/n
*Support voice
*Support Data
*Support external antenna and build-in battery(Optional)
*WLAN function, easy to expand wireless network.
*Prevent loiter network, multi wireless safety ensuring.
*IP broadband band control, ensure the speed.
*Support network traffic statistics.
*Support up to 32 WIFI devices online simultaneously.
*Functioning as a Dynamic Host Configuration Protocol (DHCP) server and supporting
*Network Address Translation (NAT)
*Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
*Security functions
* Wi-Fi protected setup (WPS)
*Support Firewall
*Support L2TP VPN
*SMS:Read,write,send SMS
*MAC address authentication
*Support TR069
*Support Frequency locking
*Support Remote upgrade

Working bands(Frequencies could be customized):
FDD: Band1/2/3/5/8/17/20 TDD: Band38/39/40/41
WCDMA:850/900/1900/2100Mhz
GSM:850/900/1800/1900mhz

Speed:
FDD - LTE Downlink: 150Mbps, Uplink:50Mbps
TDD-LTE:\tDownlink:150Mbps, Uplink:50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:)
UMTS:384Kbps (download speed/upload speed)
(it is cat4)

WIFI
WIFI Standard:IEEE 802.11b/g/n
WIFI Rate:Highest rate 144Mbps
RF power:17dBm(Max) in 11b mode;17dBm(Max) in 11g mode;16dBm(Max) in 11n mode/chain
Wifi users:Max up to 32 users
CSFB:Support

Firewall
Enables and disables the firewall
Filters LAN MAC Addresses
Filters LAN IP addresses
Filters URLS
Support port Mapping
Support Universal Plug and Play(UPnP)
Speed limit

DHCP Server
Enables and disables the DHCP server
Configures DHCP server address pools
Sets the lease time
Display the status of the DHCP server address pools,including host
Names,Media Access Control (MAC) addresses,IP addressed,and remaining lease time
