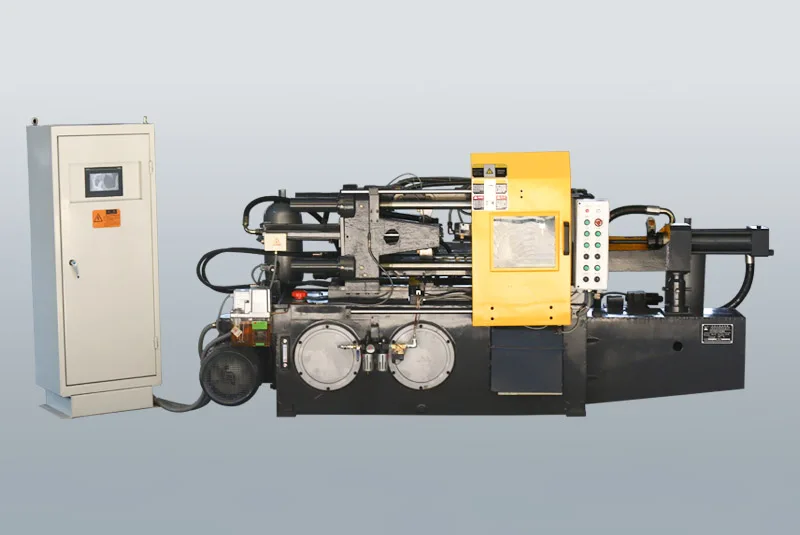

Small continuous brass zinc alloy cold chamber die casting machine

Product Overview

Description

About us



In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service.  We are devoted ourselves to higher and better die cast technology in die casting are in China.



* With a history of over  37 years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center            * Main Machines: 100sets



YSC38 38ton cold chamber Machine features

1.380kN/38T Cold Chamber Die- Casting Machine

2.Sutiable for zinc and copper alloy

3.PLC and person-machine interface

4.3-moment locking module to protect module and die

5.3-pot automatic lift structure to keep more balance and convenient

6.Constant and effective Hydraulic boosting to make  injection rate over 4m/s

Main specifications and parameters
The project	The unit	YSC38
Die locking force	kN	400
Size of moving platen(HxV)	mm	270X270
Inner space between the bars (H x V)	mm	210
Thickness of die block (Min./Max)	mm	120/320
Stroke of moving platen	mm	240
Ejection stroke	mm	50
Ejection force	kN	35
Injection force	kN	40
Injection stroke	mm	250
Diameter of shot sleeve	mm	25/30
Dosage of fluid metal per shot (AL)	kG	0.4
Injection Pressure	MPa	57/80
Projecting area of casting	cm2	68
Dry cycle	s	4
Pipeline pressure	MPa	8.5
Motor power	kW	7.5
Machine weight	kG	2030
Overall dimensions (L x W x H)	mm	3150x1100x1300
Noise	decibel(A)	<85

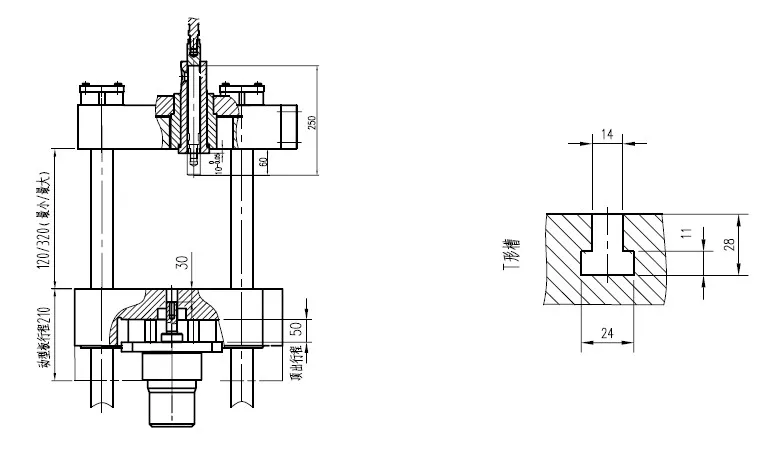

Mould installation drawing

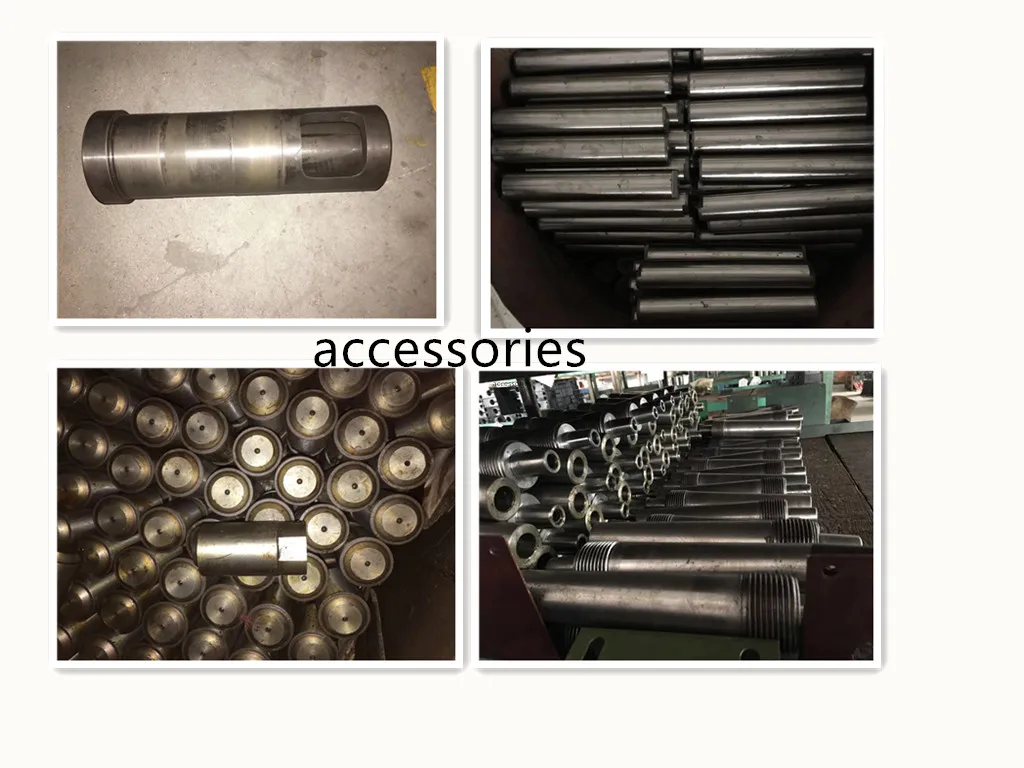

Accessories

Our Service



1. OEM Manufacturing welcome: Product, Package...
2. Video technical support or engineers available to service machinery overseas
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in nude packing of machine and wooden case spares parts.

Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We don't supply the sample .

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
