- China brand Hottest flexible electronic endoscope for gastroscope and colonoscope share one set video center
China brand Hottest flexible electronic endoscope for gastroscope and colonoscope share one set video center
- Category: >>>
- Supplier: Shanghai Oujiahua Medical Instruments Co. Ltd.
Share on (60834240863):
Product Overview
Description
Product Description

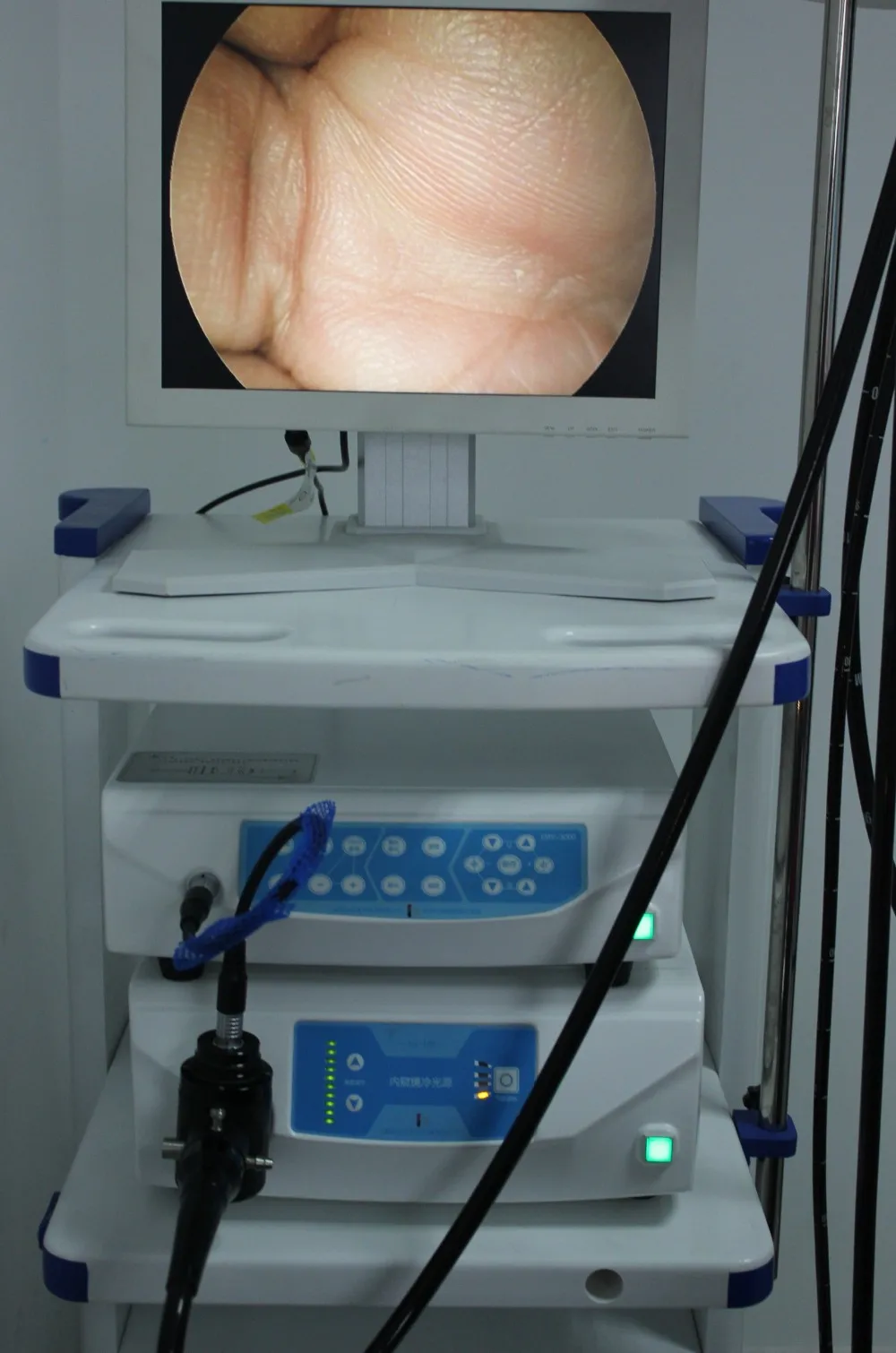

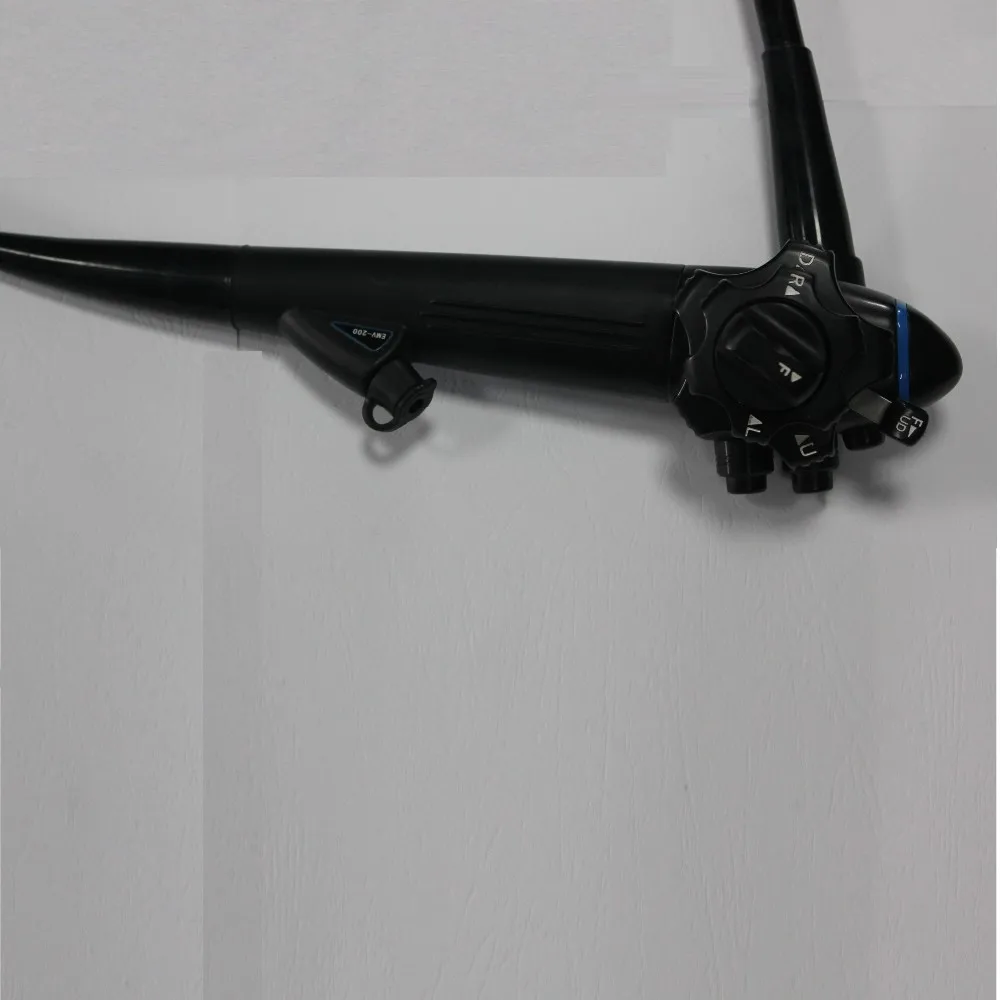

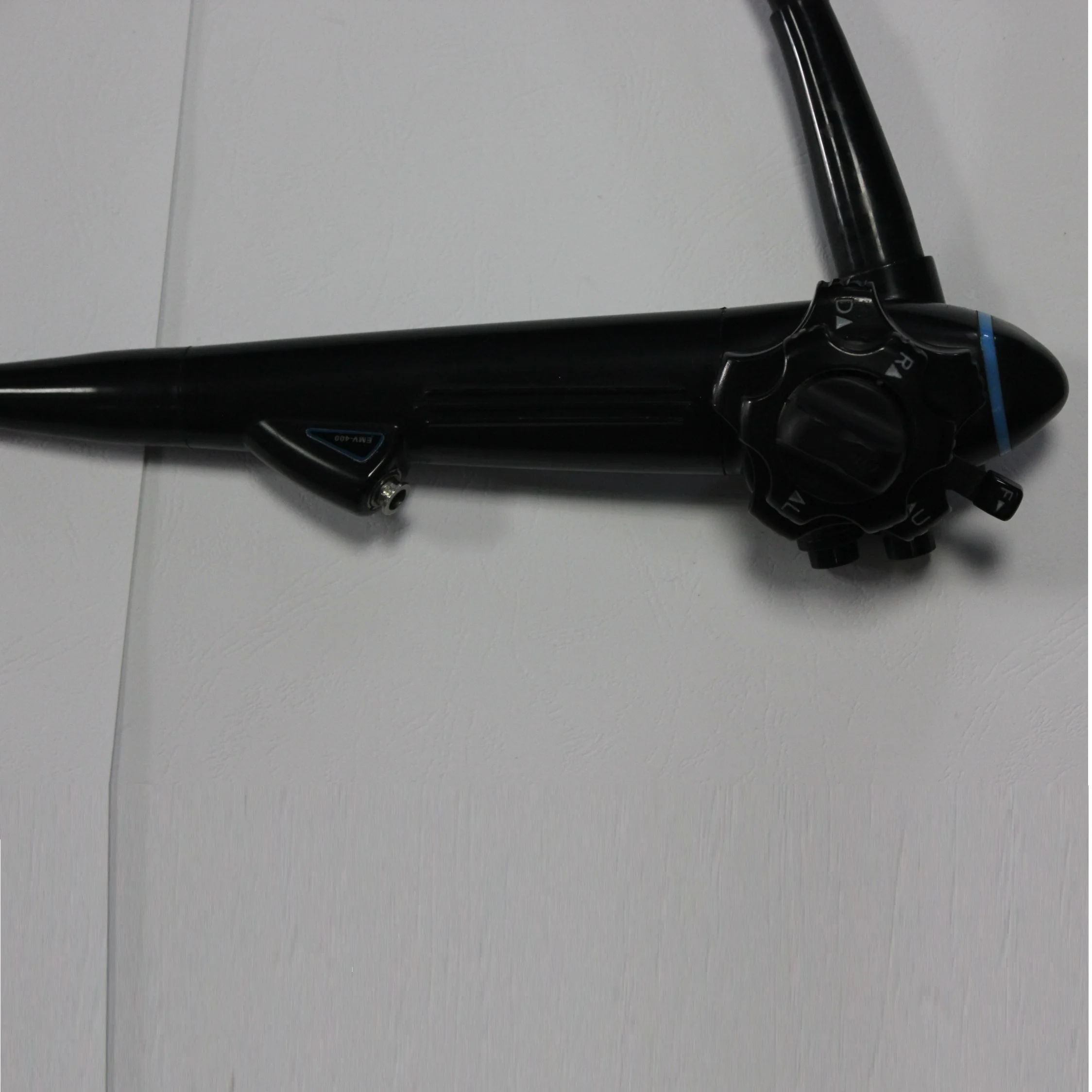

China brand Hottest flexible electronic endoscope for gastroscope and colonoscope share one set video center

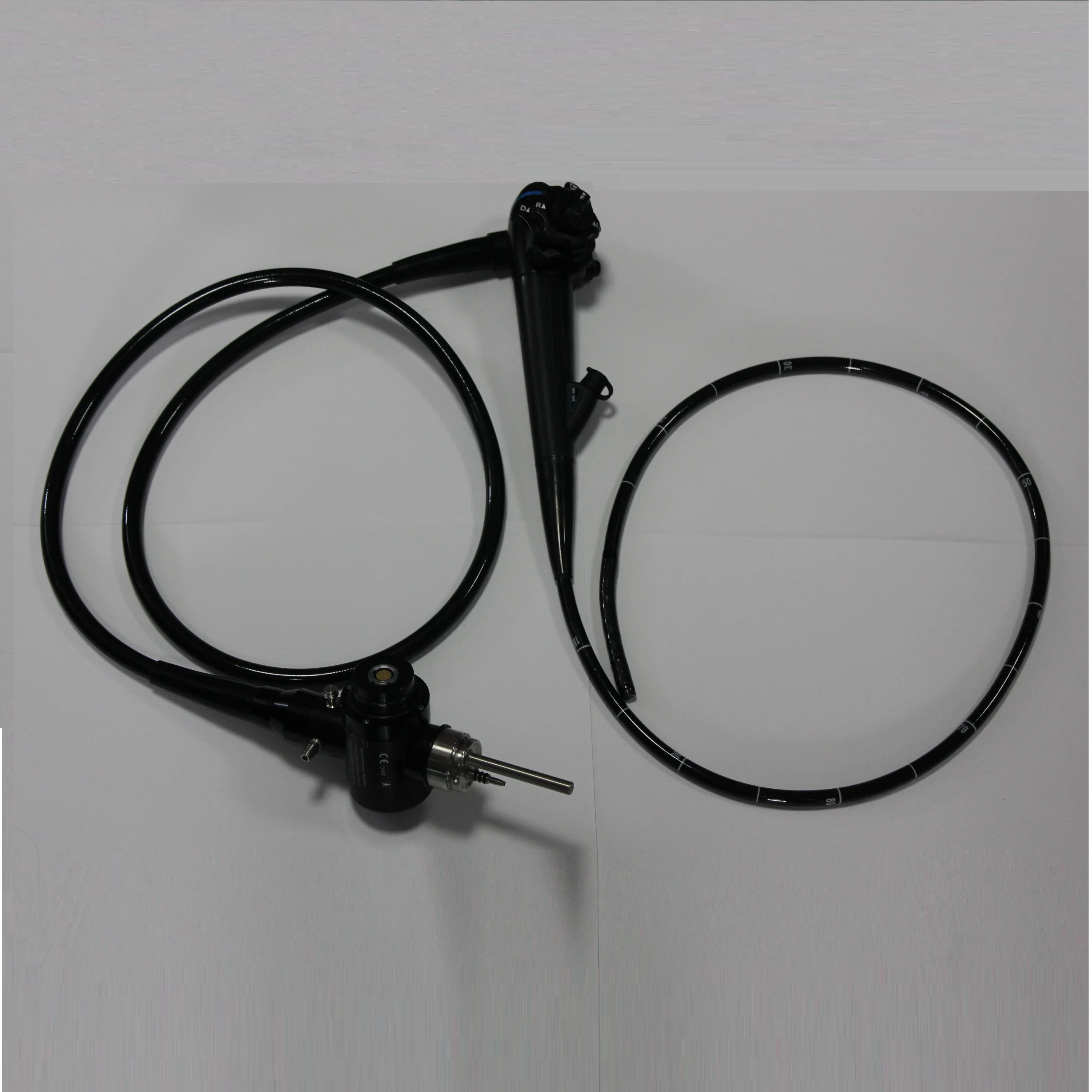

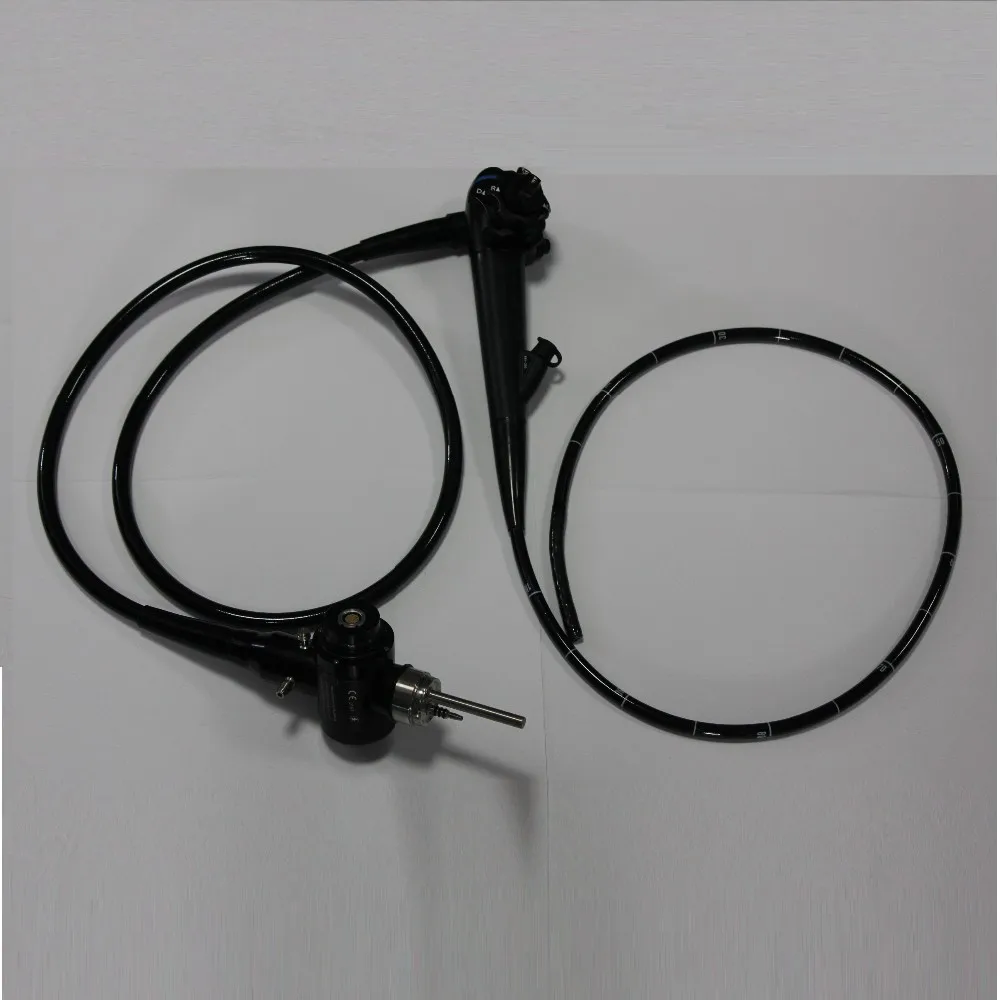

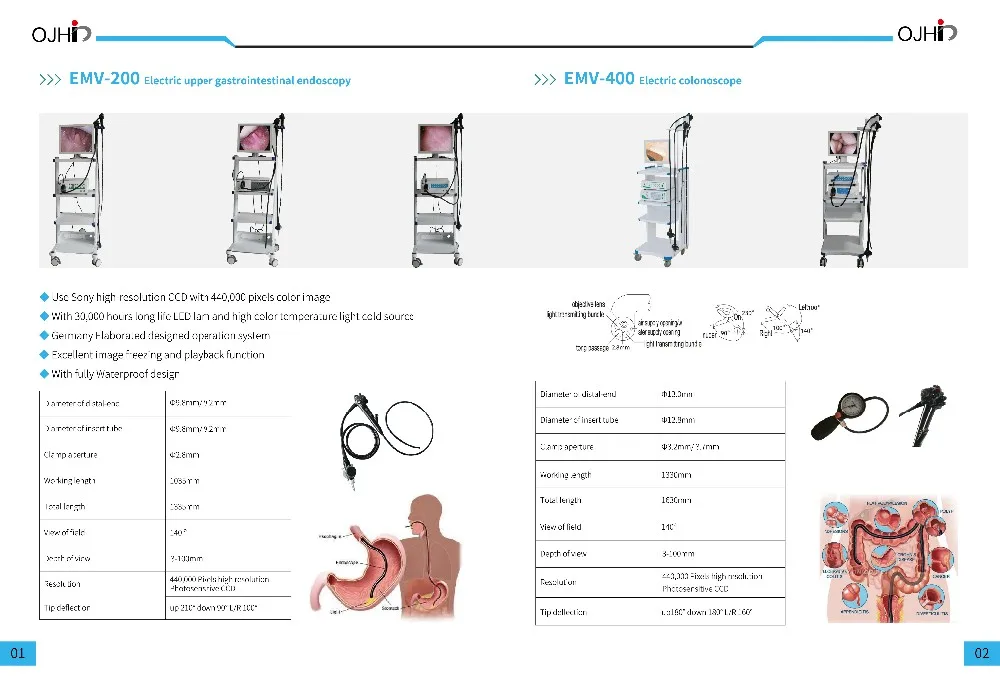

| EMV-200 | Technical details |

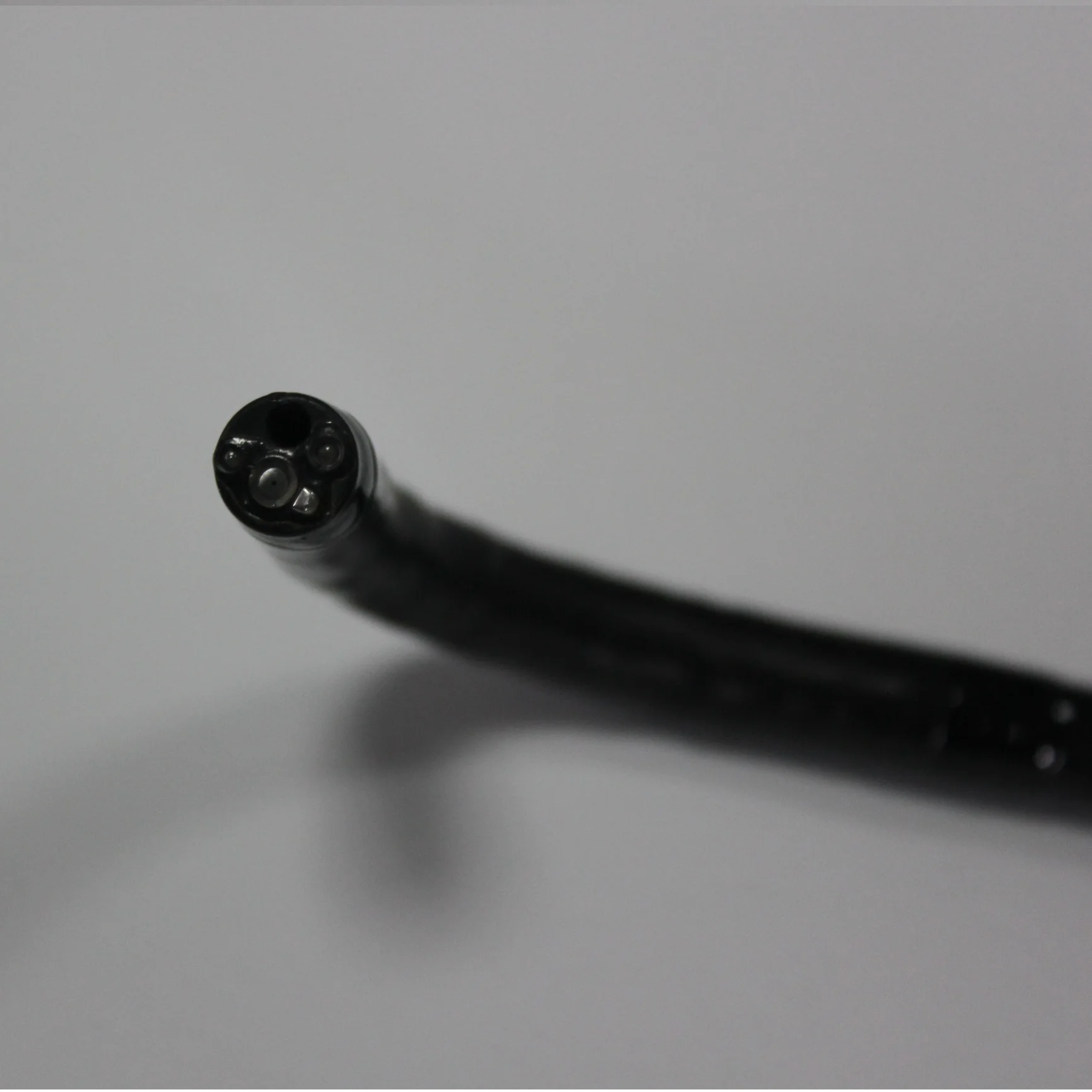

| Diameter of Distal-end | 9.8mm / 9.2mm |
| Diameter of Biopsy channel | 2.8mm |
| Depth of field | 3-100mm |
| View of field | 140° |
| Bending range | UP 210° ,Down 90° R/L 100° |
| Working length | 1035mm |
| Resolution | SONY CCD 480,000 Pixels |
| Certification | ISO 13485 & CE |
| OEM | Yes |
| Warranty | Same as international business regulation ,we provide 12 month warranty . |

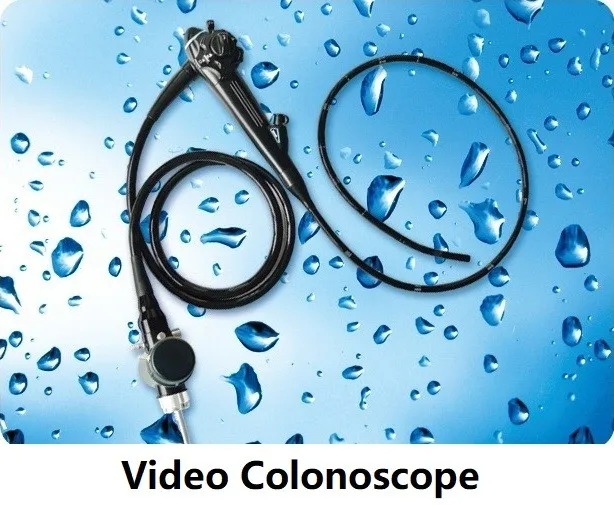

| EMV-400 | Technical details |
| Diameter of Distal-end | 12.8mm |
| Diameter of Biopsy channel | 3.2mm/3.7mm |
| Depth of field | 3-100mm |
| View of field | 140° |
| Bending range | UP 180° ,Down 180° R/L 160° |
| Working length | 1330mm |
| Resolution | SONY CCD 480,000 Pixels |
| Certification | ISO 13485 & CE |
| OEM | Yes |
| Warranty | Same as international business regulation ,we provide 12 month warranty . |

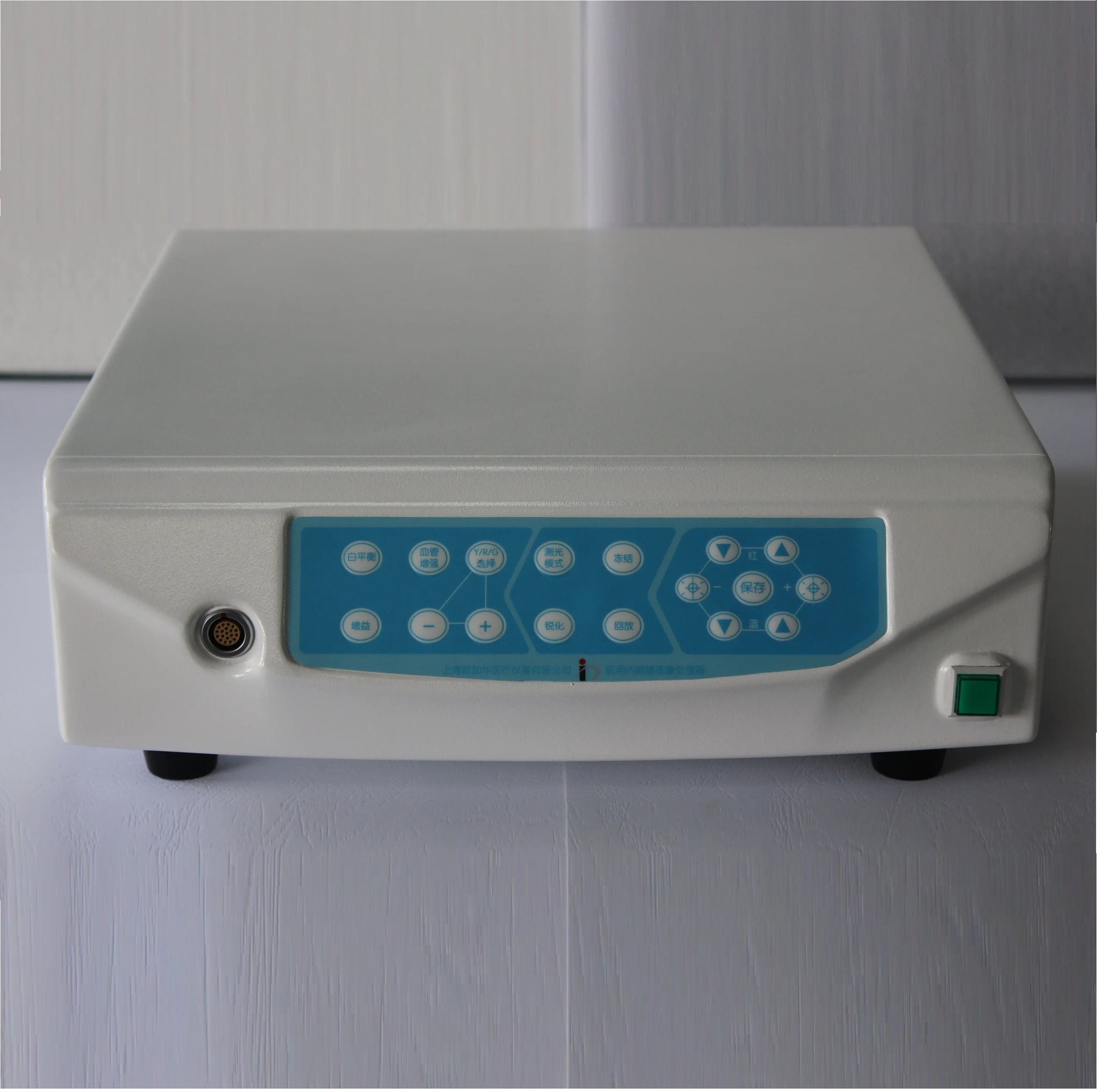

| EMV-3000 | DSP - digital image processor, powerful, brightness, color, contrast.Adjustable from 0-128 level, Svideo / AV / DVI output |
| Working station | Workstation software that automatically generates |
| Screen adjustment | Gain adjustment function 0-5 level, automatically adjust the brightness of the picture in the best shape,State color adjustment 0-128 level, blood vessels enhanced |
| Metering | Average metering, peak metering |
| Sharpness adjustment | Clarity change image fine processing 0-30 level |
| White balance | Manual, automatic white balance |
| Air pump | Mute air pump, air pump pressure 30-80Mpk, air flow 4L / min-10L / min |
| Illumination | ≥200,000 Lx, the United States imported LED high-brightness light source life of 30,000 hours |
| Extra function | With SD record card ,can store video and image generate reports. |

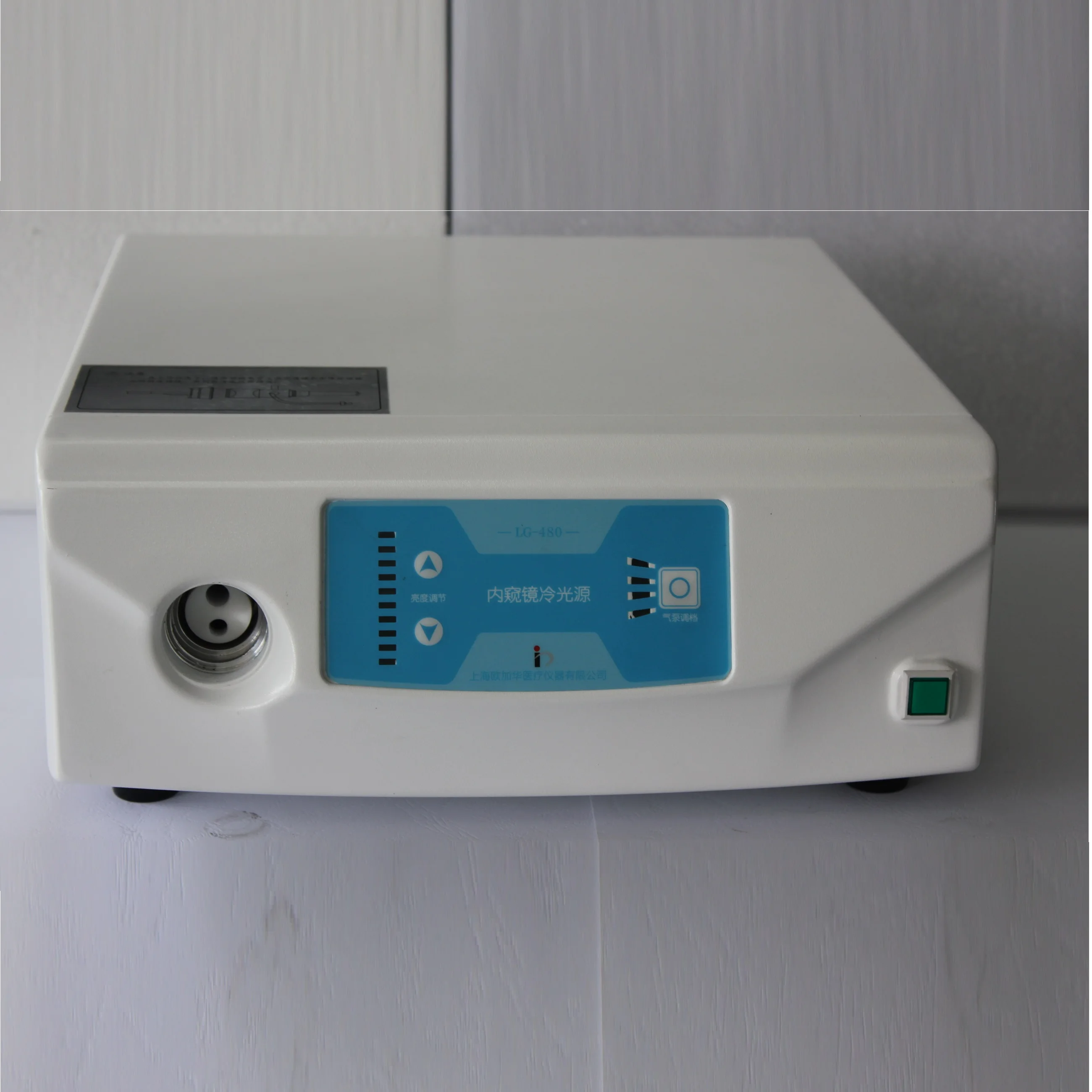

| LG-400 | Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation. |
| Voltage | 220V-240V |
| Frequency | 50-60HZ |
| lamp Power | 15V-150W environmentally friendly halogen tungsten lamp |
| Illumination | 70000LX (using special measuring tools) |
| Color Temperature | 3000~7000K |
| Air Pump Pressure | 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump) |
| Electric switch | AB light two sets light source |
Detailed Images
Packing & Delivery
| Item | CTN Size | G.W. |
| EMV-200 Video gastroscope | 64*18*48cm | 5.18kgs |
| EMV-200 Video gastroscope | 64*18*48cm | 5.18kgs |
| LG-400 light source | 54*47*23cm | 10.54kgs |
| EMV-3000 image processor | 50.5*46*20cm | 7.34kgs |
Our Company
We are a manufacturer specialized in flexible endoscope since 1998 , We have 20 year experience in Produce ,Sales,Development ,Repair endoscopes .We are very welcome OEM.
Human MedIcal endoscope
I EMV-200 Video Gastroscope
II EMV-400 Video Colonoscope
III GES -300A Fiber Gastroscope
IV GEF-1650 Fiber Colonoscope
V GBS-9 Fiber Nasopharyngoscope
Veterinary endoscope.
I EMV-400 series Video Gastrointestinal endoscope for big animal
II EMV-200 series & VET 6000 Video Gastrointestinal endoscope for small animal and Pets
III GBS-9 series flexible endoscopes for mini animal
Industrial endoscope
Coming soon
Certifications
FAQ
Q1:Are you a Factory or trading company?
A1: We are a manufacturer focus on flexible endoscope since1998 ,we are located in Shanghai ,China.
Q2: What is your quality control process?
A2: We are certified with ISO, and strictly follow the ISO procedures. We do 100% testing for medical instruments and endoscopes before the order has been deliveried.
Q3:What is Certificates do you have?
A3:Our flashlights have been tested by CE Sandards which is complied with the TUV Directive.
Q4:How is the after sales service?
A4:We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.
Q5:What is your Delivery Time?
A5:7-15 days after order confirmed.
We will make the delivery as soon as possible with the guaranted quality.
