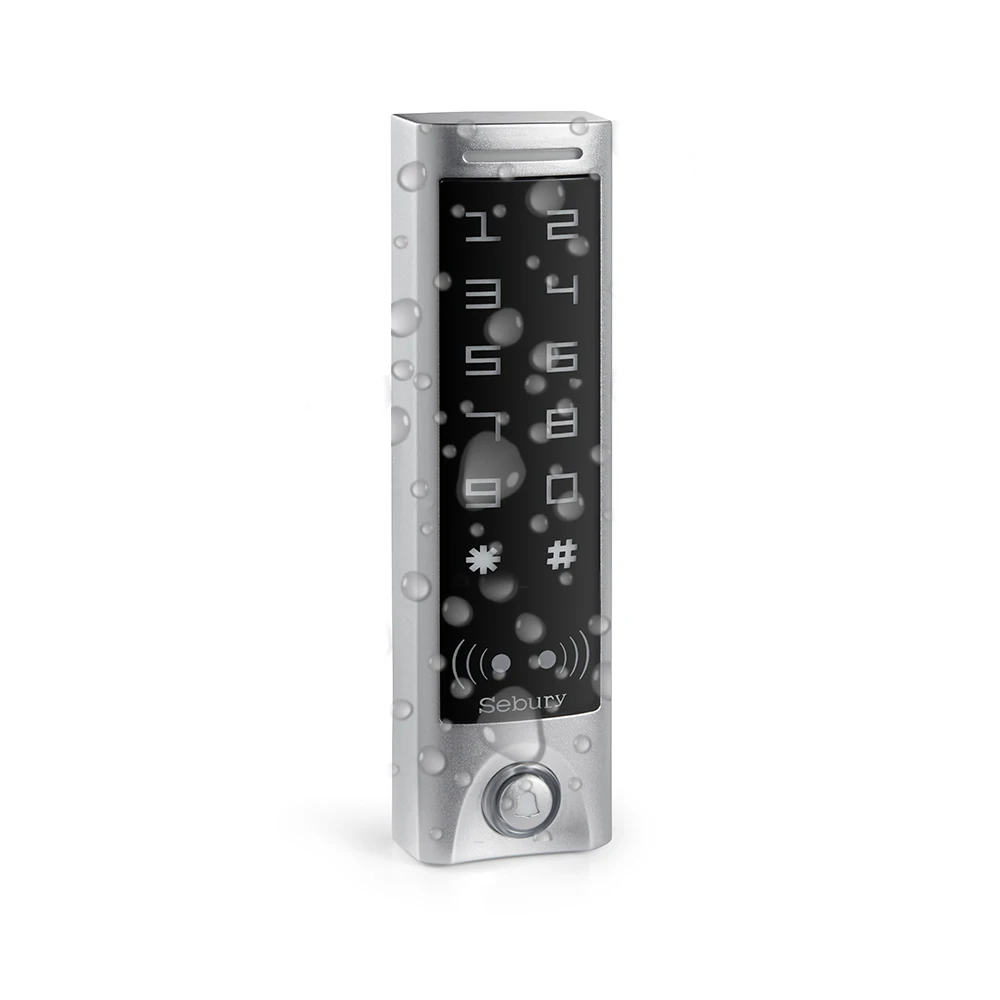

Sebury metal waterproof H&EM card reader wiegand proximity keypad reader

Product Overview

Description

                                                          Metal waterproof Wiegand Reader



Sebury brand new reader, touch panel, elegant, classic and unique design, especially suit for the high-end market, also suit for different kinds of need of the customers.



Specifications



·  Input voltage: DC 12V±10%

·  Idle current: ≤35mA

·  Proximity card: EM&HID

·  Reading range:3-6cm

·  Frequency: 125KHz(EM,HID) or 13.56MHz(IC,CPU)

·  Wiegand output format: Wiegand 26-37 bit

·  Keypad output format: visual card No; 4 bits or 8 bits of single key pressing

·  Dimension :158×43× 21.7mm

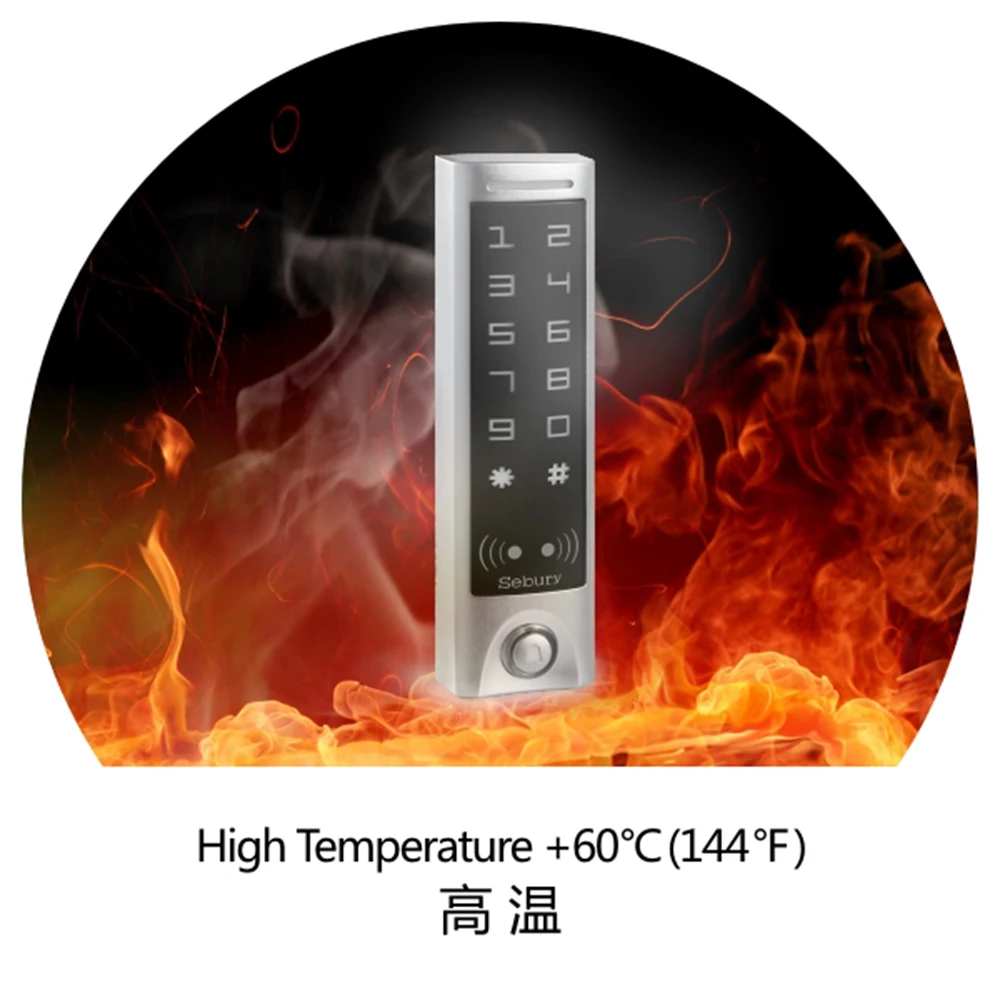

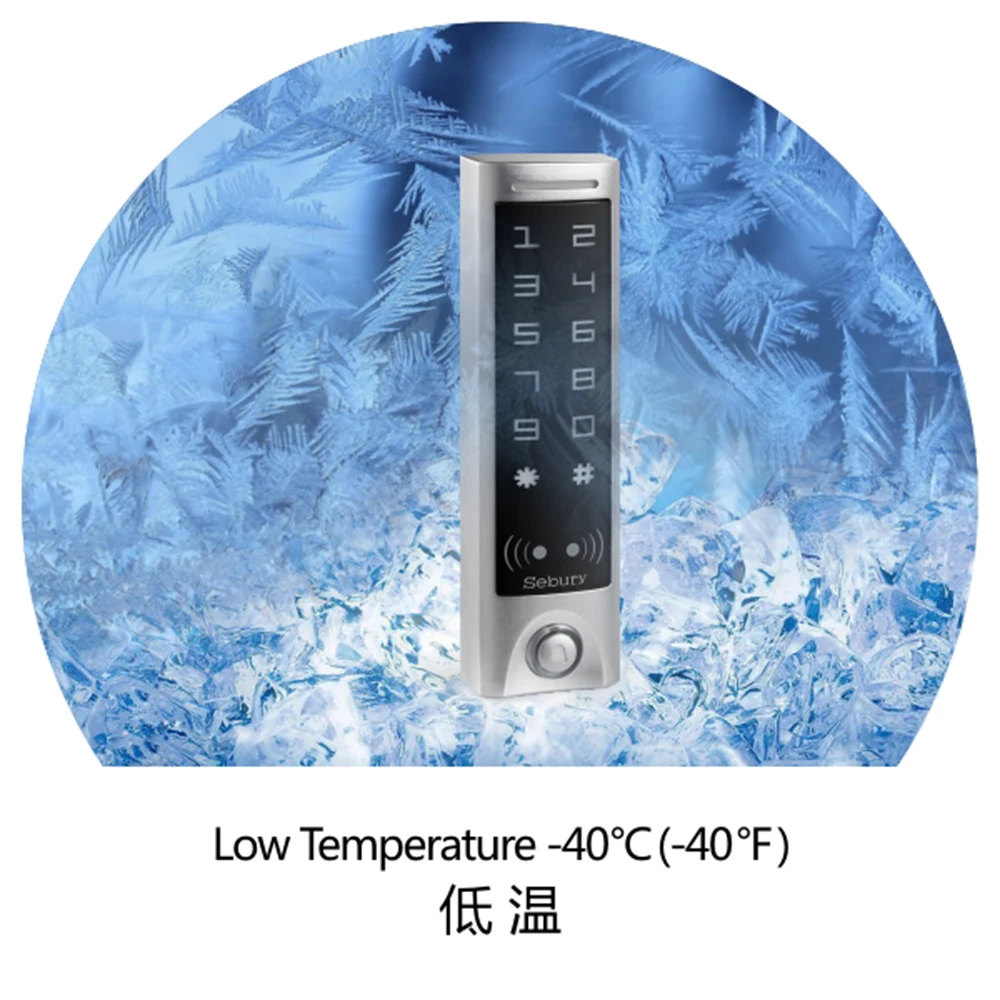

·  Operating temperature range: -40~60° C

·  Operating humidity: 0-95%(non-condensing).



More details

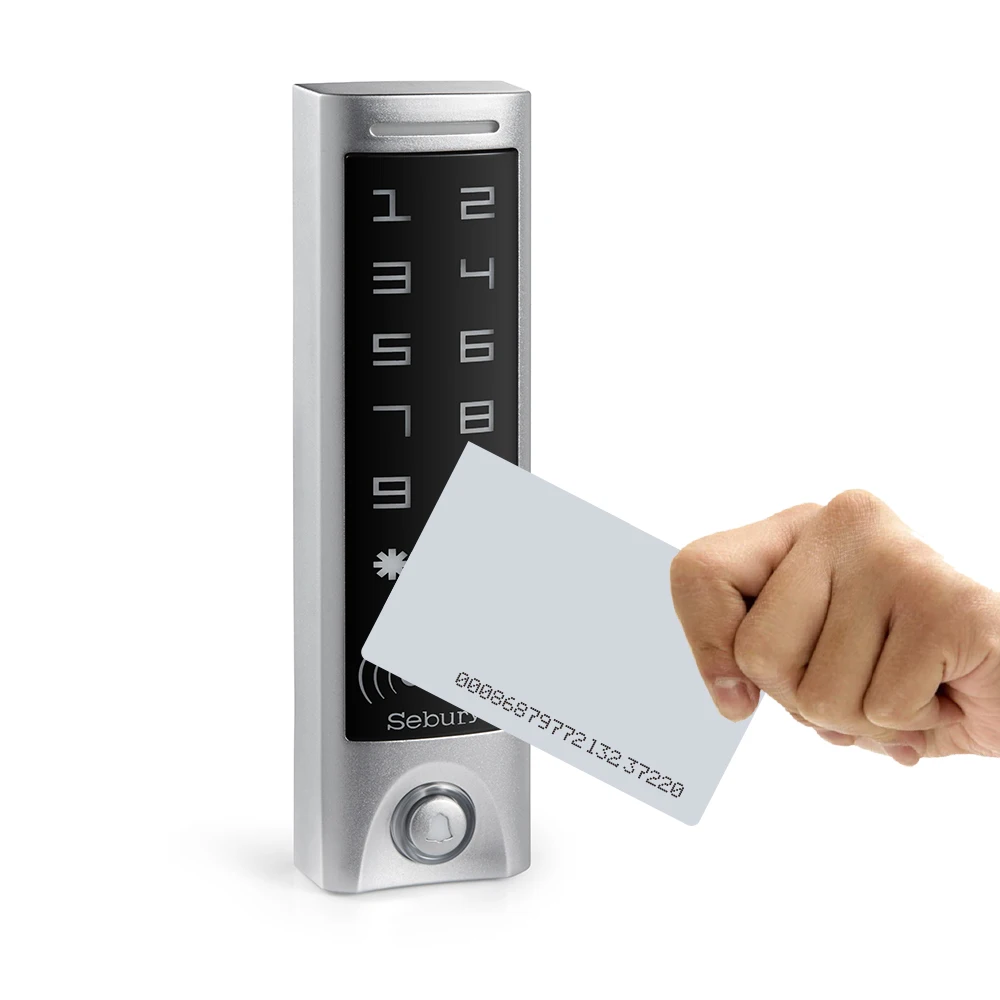

·  sTouch R-s reader is a new generation PIN and proximity card reader, allows entry via PIN and/or by presenting a proximity EM, HID card..

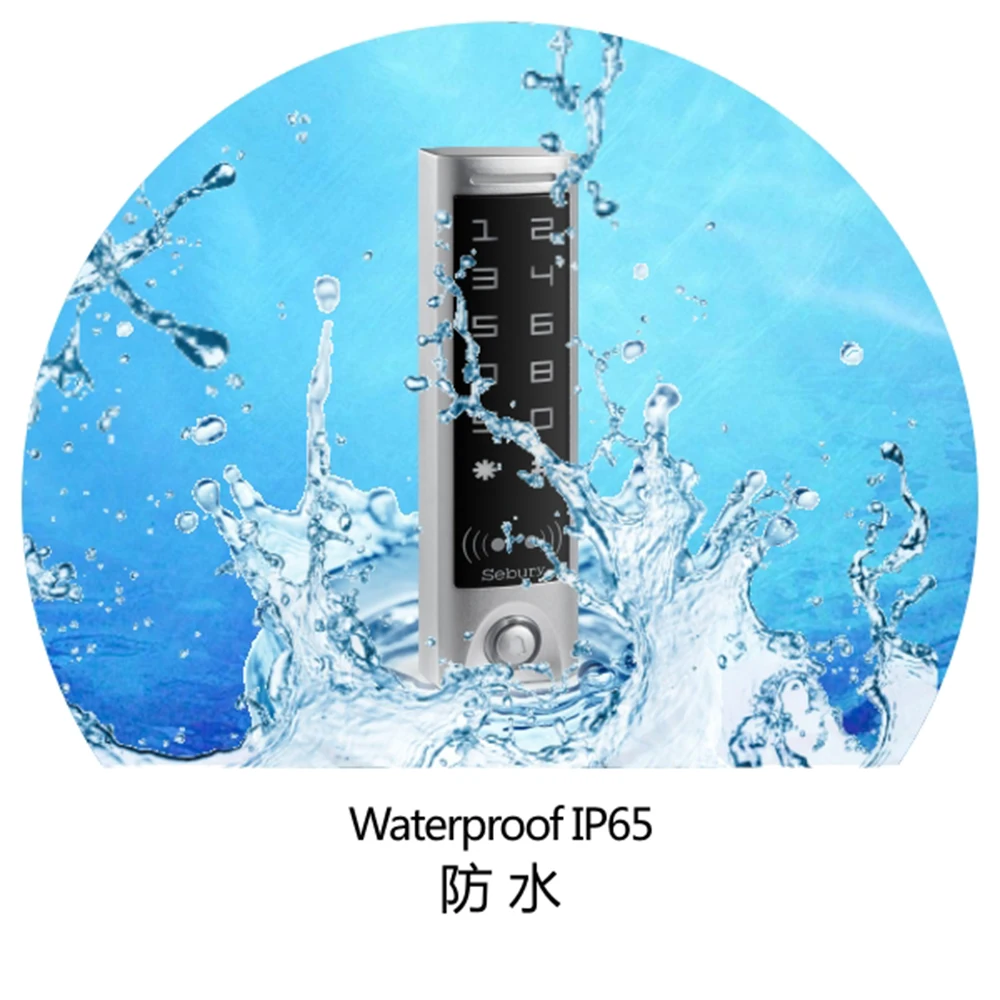

·  Aluminum alloy structure, waterproof, fully potted, confirms to IP65. Touch panel.

·  Built-in 125KHz (EM&HID card) reader part

·  Anti tamper, anti-vandal,

·  Antistatic 15KV

·  Digital backlit key. The back light can be set to Normal ON, Normal OFF or Automatic mode.

·  Door bell function.
