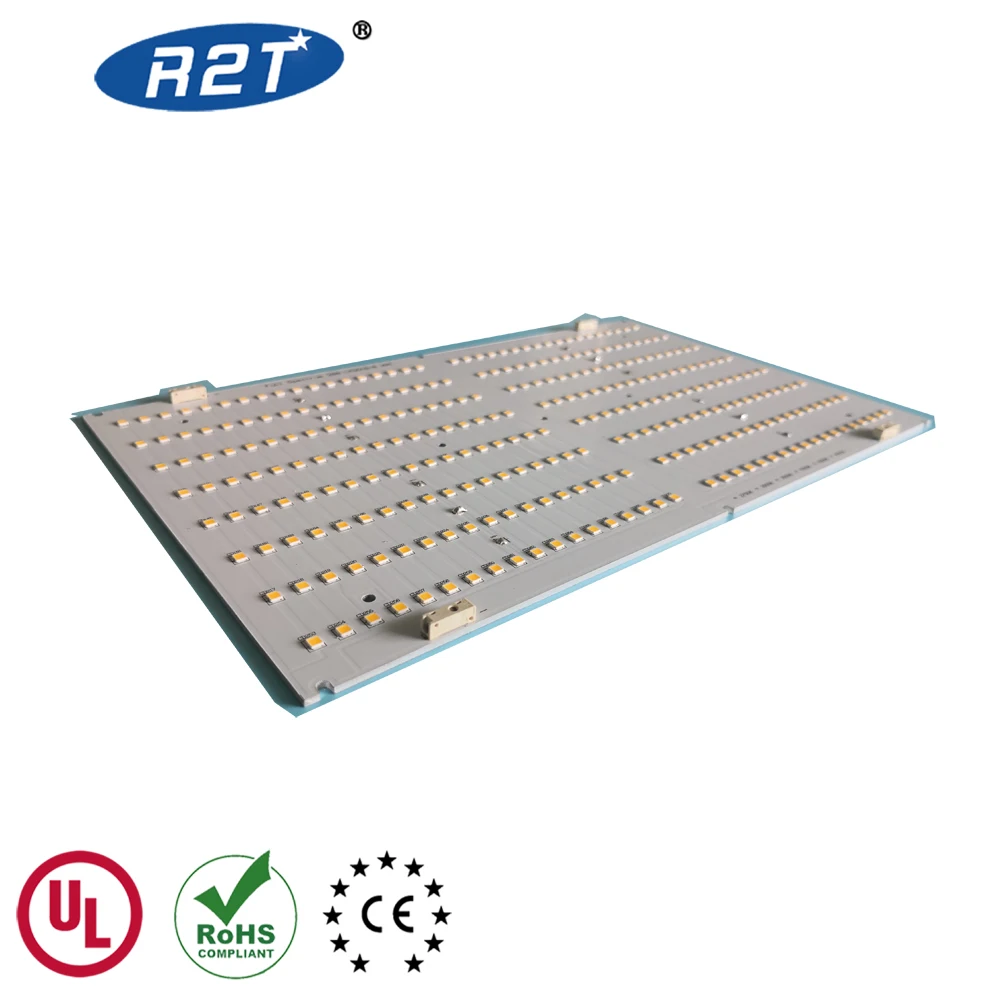

R2T Samsung lm301h LH351H full spectrum Quantum panel 600W 720w LED Grow Light with dimmable driver
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (60834267751):
Product Overview
Description
R2T288 V2+ lm301B SK +LH351H Deep red full spectrum Quantum panel 600W LED Grow Light with Meanwell dimmable driver

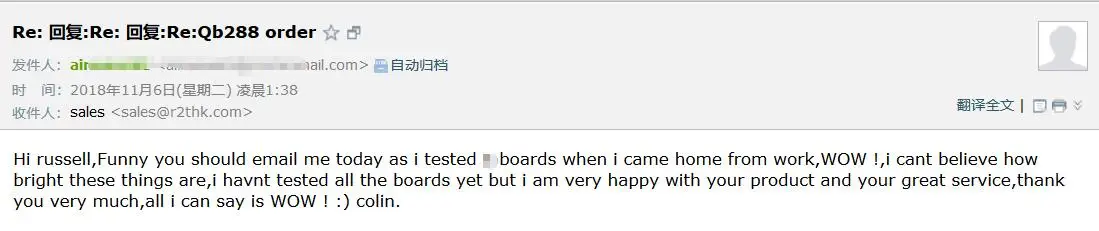

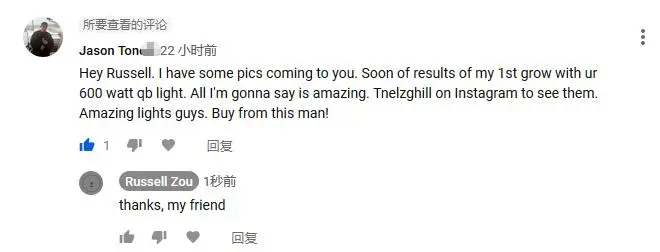

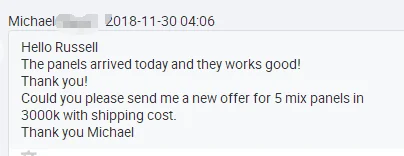

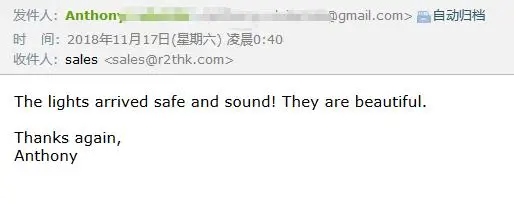

Client''s Feed back:
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B RA:80, CCT option: 2700k/3000k/4000k/5000k/6500k
660nm;
4.Customize wattages,chips ratio,logo,package available.
Initiator: | Russell | Date: | 2017-7-17 |
Project Name: | 600W LED boards | New Project Code: | R2T-Q288led boards |
Function Request | |||
Electronic Requirement): | 6in 1 Q288V2+ comob kit,Single Baord Sepc 173.6*285.8*2mm, HASL, 1oz,2.0w/m.k,288pcs 301b ,8in parallel 38 in series add 4in parallel 2in series 660nm chips, 46.8~58V/2000mA(Max), match Driver: Meanwell driver: 600H-54B | ||
Optic Requirement: | Single boards: 288pcs chips, LM301B,3000Kevin,RA:80,SK ,16 in parallel 18 in series4pcs single pin molex connectors plus 8pcs XPE 660nm, | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 2.0mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||

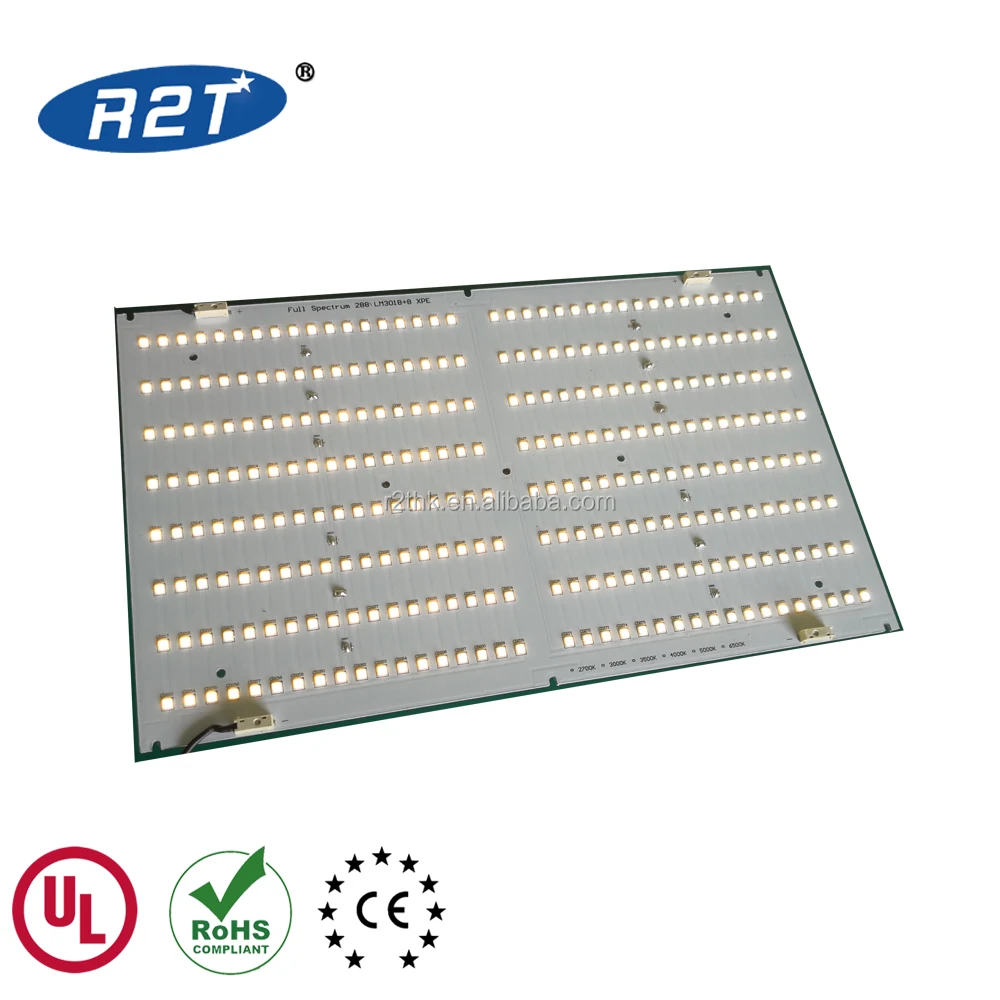

288 V2+ with Brand LM301B SK top bin chips plus Deep red 660nm
288 V2+ B LM301B Top bin with or without Deep red 660nm
Testing Data for 3500K chips

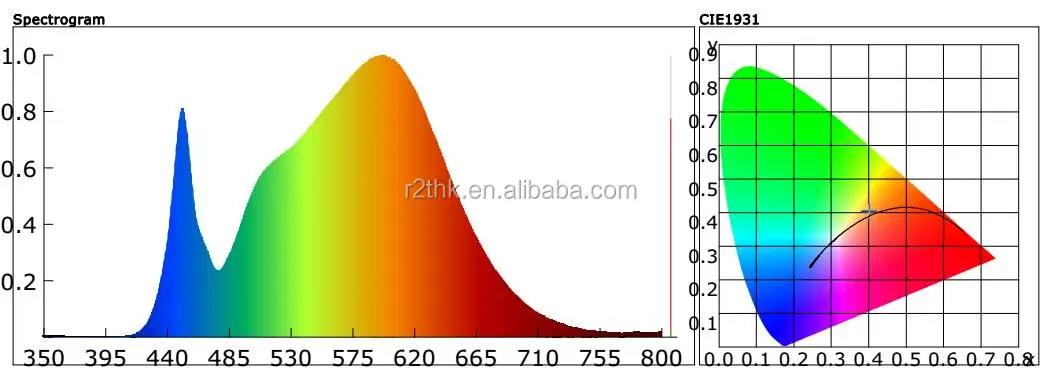

Spectrum
Power :600W testing distance: 18inch

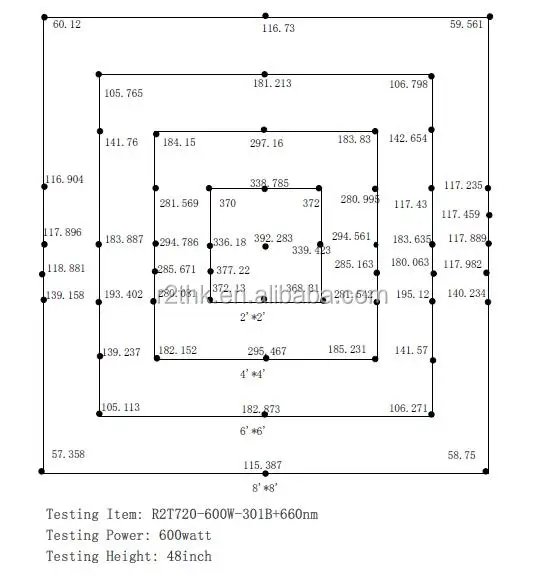

PPFD Chart
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
