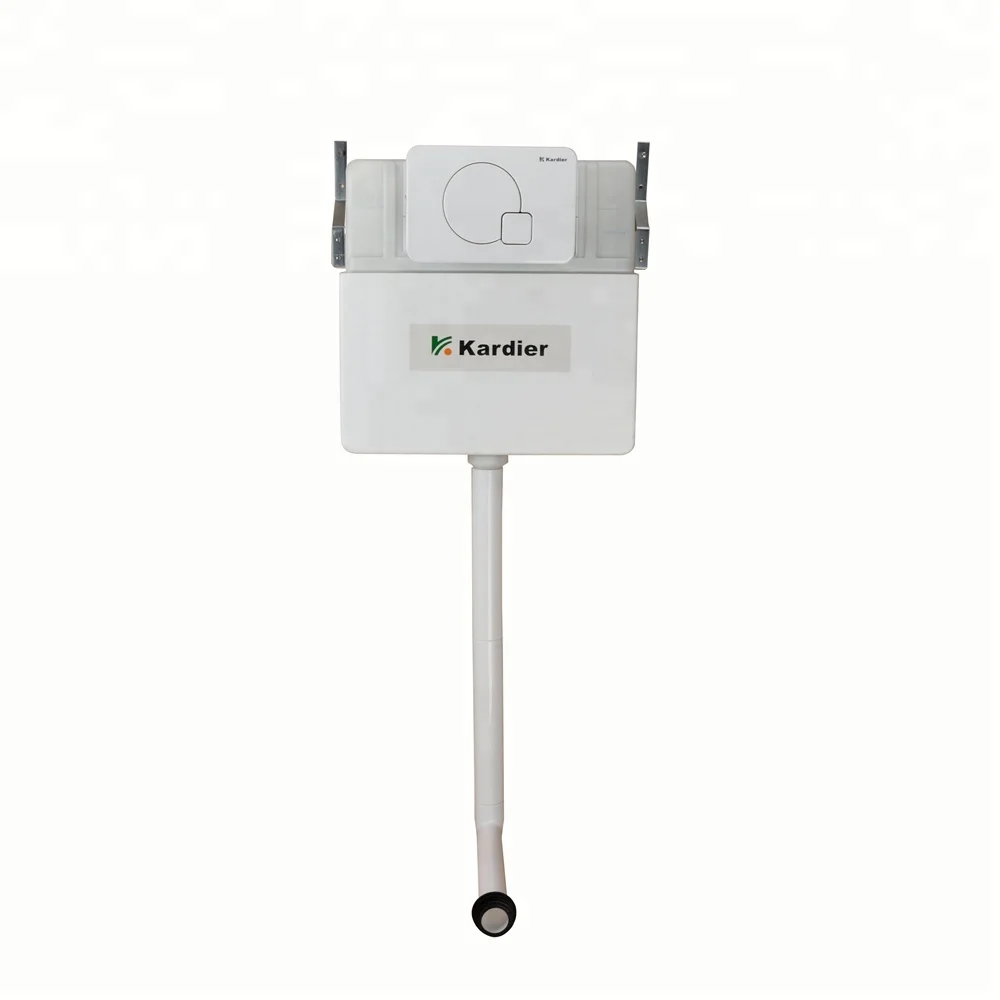

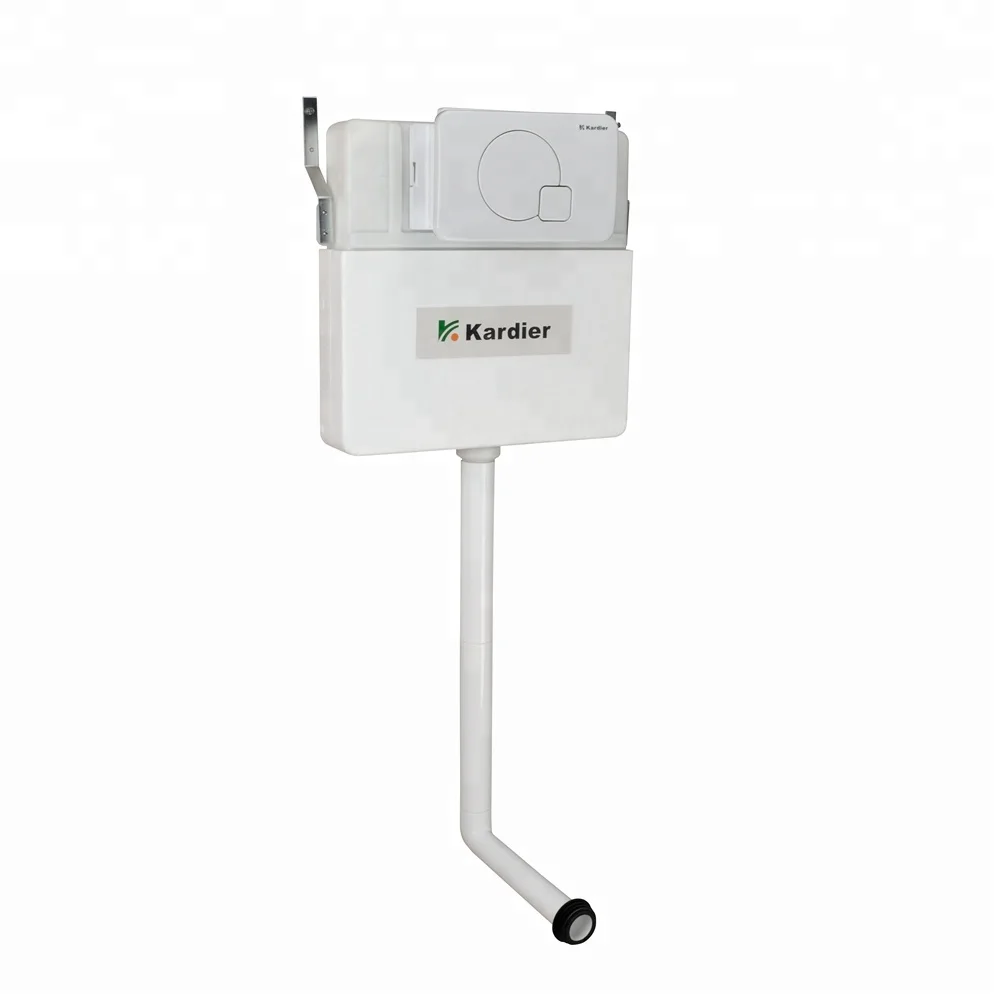

CE standard slim wall hanging toilet concealed flushing tank for squatting toilet pan
\t
Speical points
\t
Super thin No frame Concealed Toilet Cistern with 96mm thickness
\t
Item.
\t
011C
\t
Certificate
\t
NO
\t

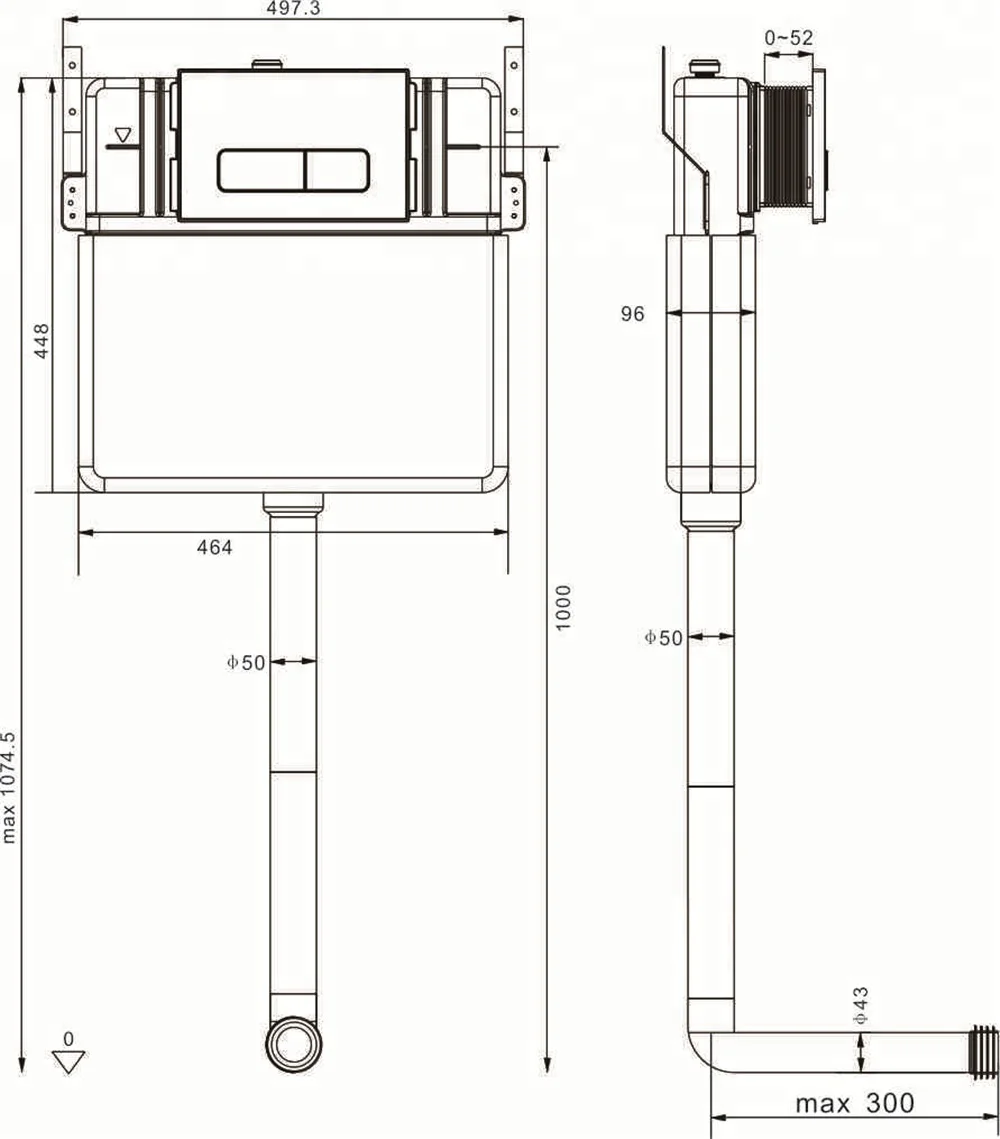

Dimension(mm)
\t
497.3x96x1074.5mm
\t
Flush pipe size
\t
90
\t
Carton Size (mm)
\t
741x540x525mm(5sets/ctn)
\t
Suit for
\t
Bathroom lavatory toilet
\t
Need wall thickness
\t
≥110mm
\t
Material
\t
HDPE
\t
For wall
\t
dry wall;pre-wall;dry half wall and pre-half wall
\t
Flushing volumn
\t
3L/ 6L max. 8L
\t
Panel size
\t
250x165mm
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
silver/chrome/satin/white/black/gold/ etc
\t
Flushing
\t
Dual flush
\t
Frame undertake
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL:EXW SHUNDE,CHINA ;20GP and 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
1set/box and 5sets/ctn ;Carton package ;flush pipe packing size : 605x430x508mm
\t
Loading qty
\t
0.21CBM/5SET (0.053cbm/pc) Flush pipe : 0.132CBM/CTN( 12pcs/ctn) 520 sets / 20GP 1050 sets /40GP 1250sets /40HQ

Special point  :

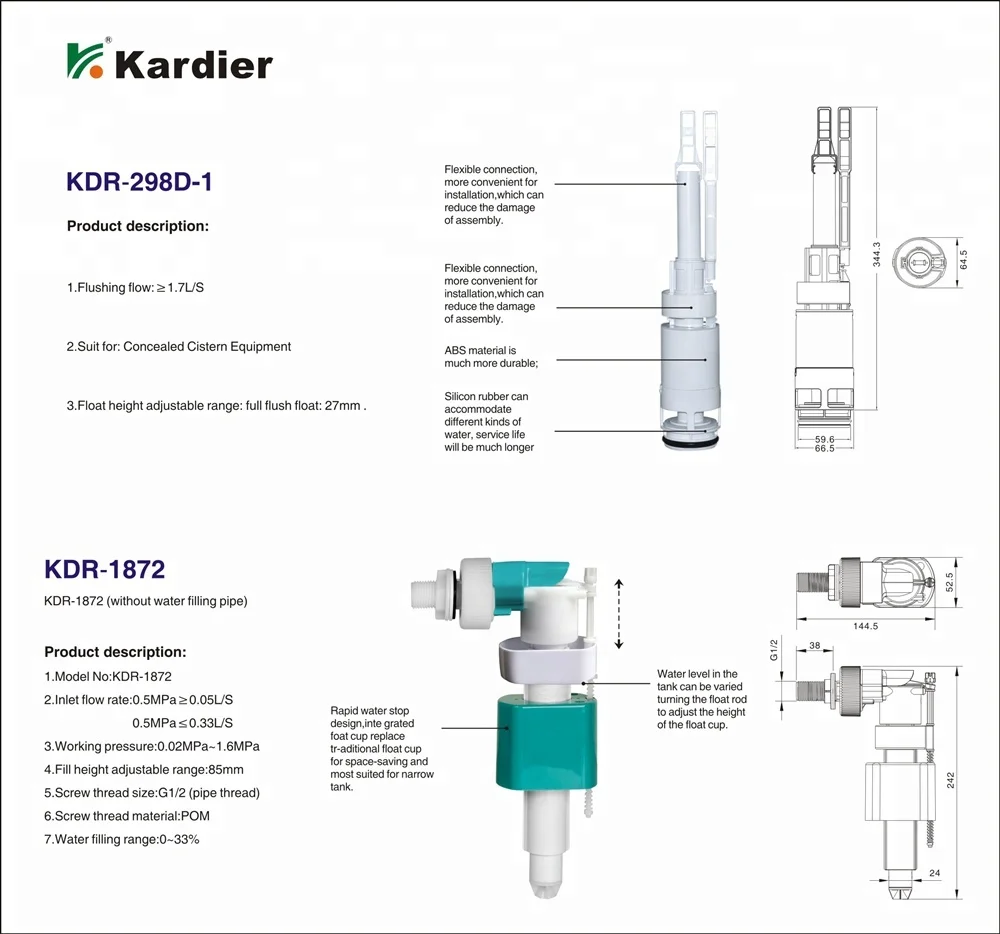

Malfunction and solve way of fill valve

Malfunction\tSolve way


1.The water level too high or too low\tAdjust water level
2.can not stop water\tWash sealed rubber and mandrill
3.fill water speed slow\tWash filter,adjust water stress to higher
4.other questions\tPls consult with professional technician



Technologic data:

1. 1/2" standard fill water hole
2.The water stress range of fill water is 0.02--1.0Mpa
3.The water temperature range is 2°-45°
4.3L/6L dual flush water volume ,the flush water time is 3S-5S
5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress
6.The product can be installed in the wall of 110mm thickness


Product Details

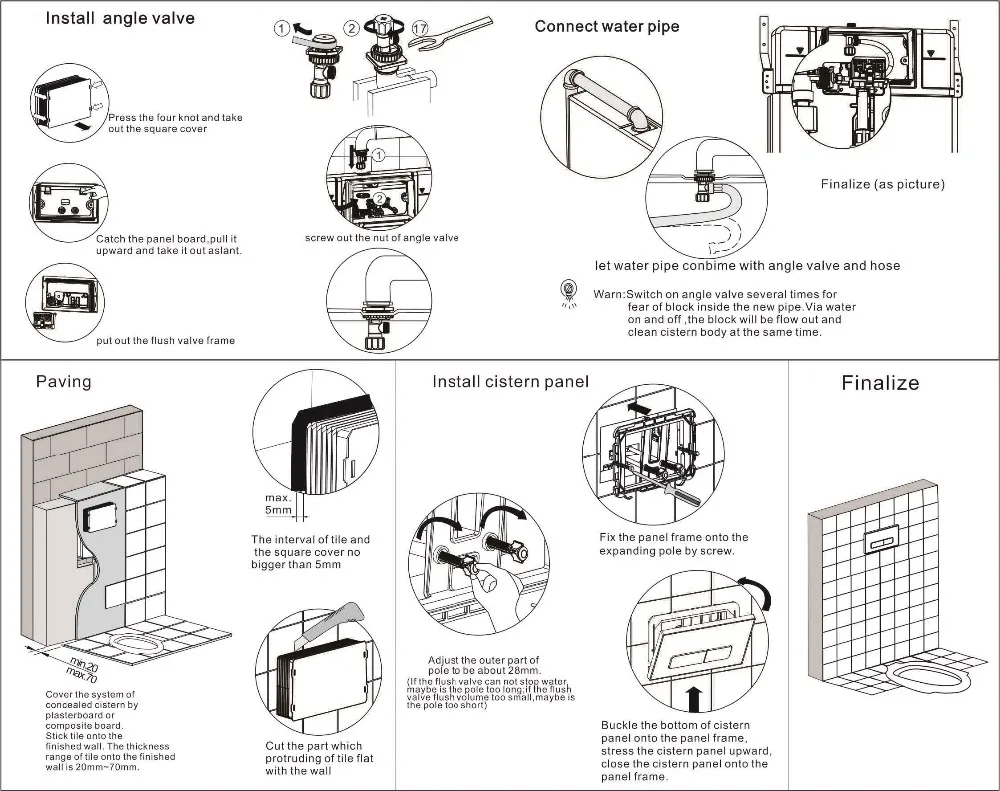

Concealed cistern installation guide

Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

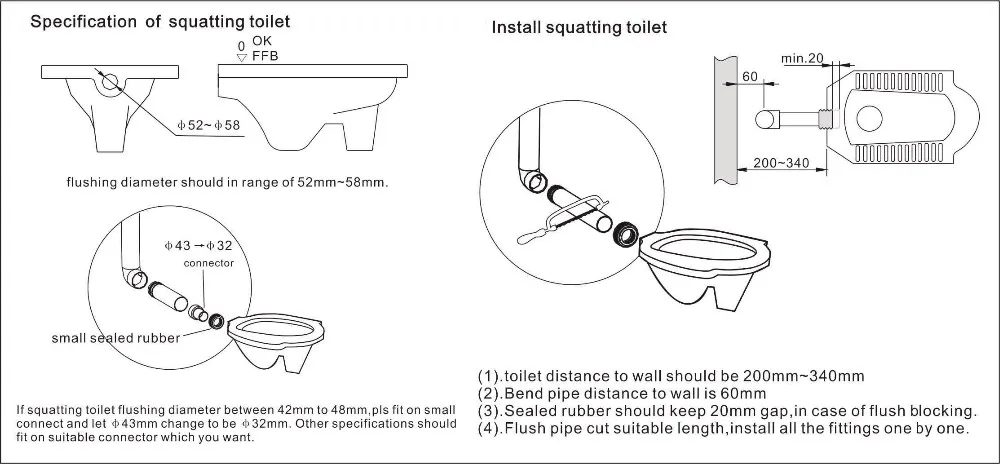

The Technical size standard requirement and installation guide of Squatting pan toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

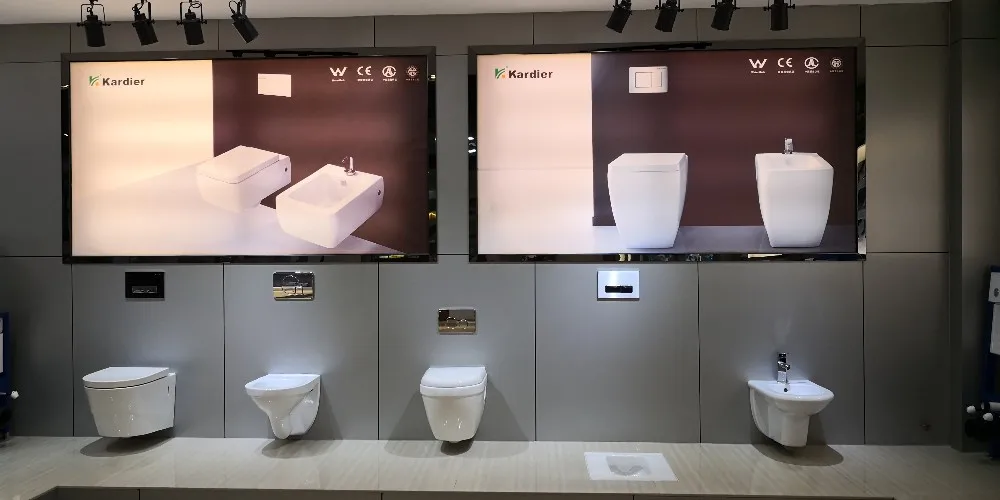

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1. Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .

2.Elegant: Multiple choices push panel decorate your bathroom.

3. Clean: Pretty easy to clean the bathroom without missing corner.

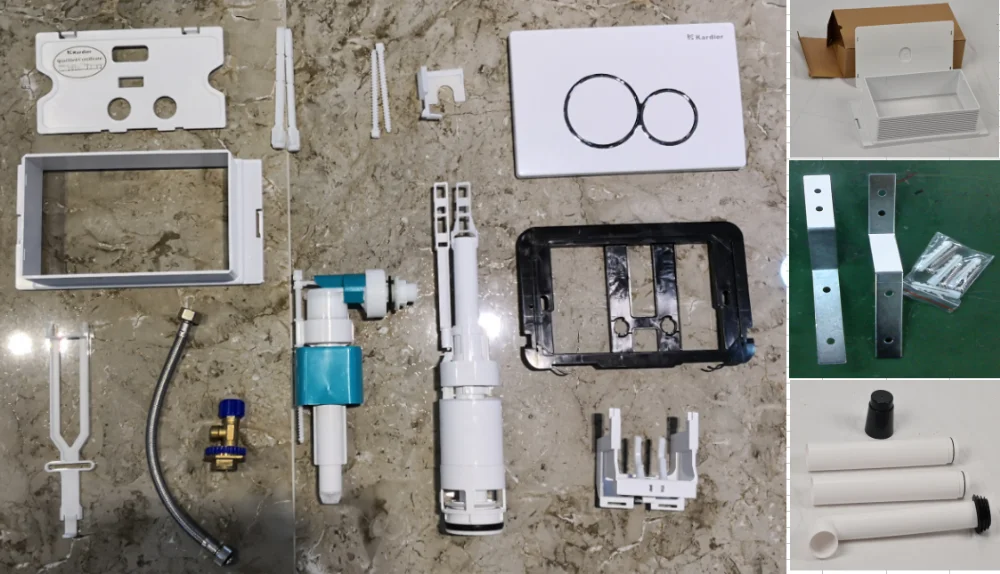

4.Tools & fittings complete : Frame items one whole set products together with Allen key and fixing frame
