product description

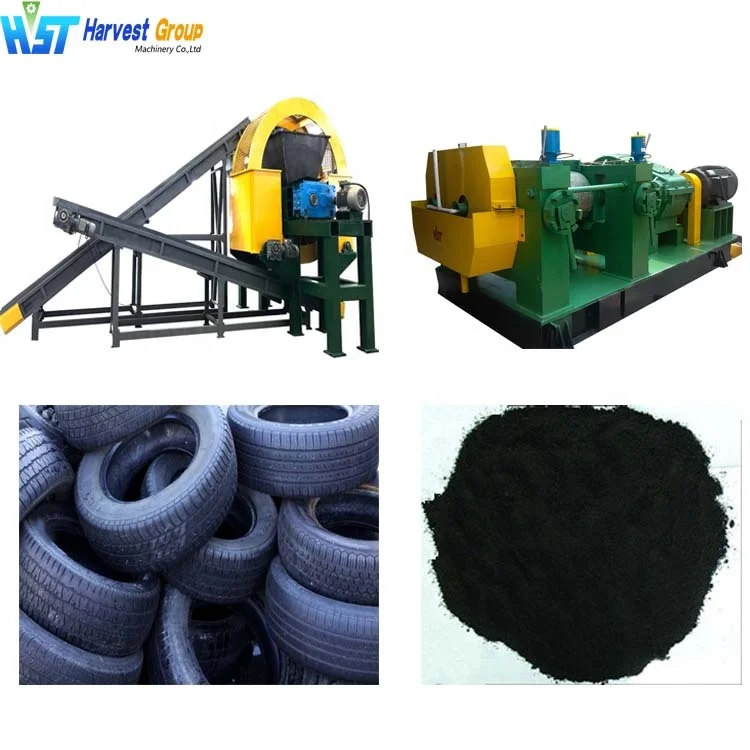

    Fully-automatic tire recycling machine

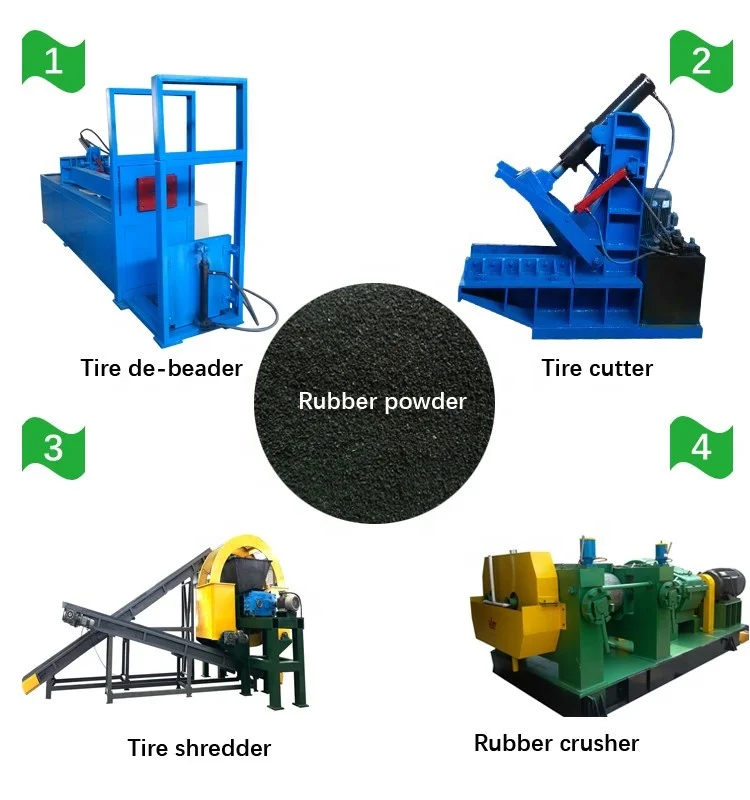

Process

Step1>

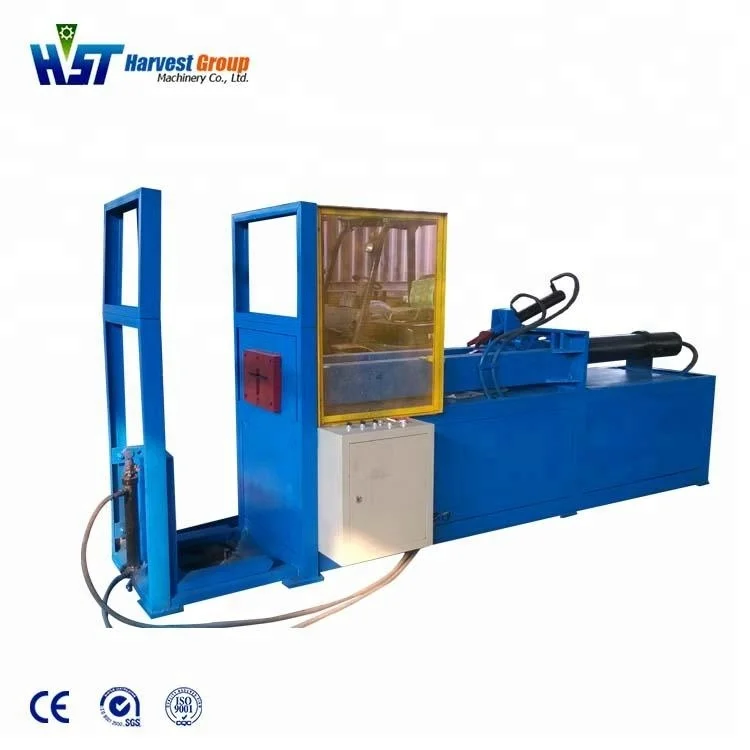

Hydraulic souble hook tire de-beader: draw out the wire steels from the tire bead.


\t
Model No.
\t
TD-1200
\t
Feed size of tire(mm)
\t
≤φ1200
\t
Capacity(tires/h)
\t
80
\t
Power(KW)
\t
18.5
\t
Overall dimensions(m)
\t
4.5*1.5*1.8
\t
Equipment weight(T)
\t
3.5

Step 2>
Whole tire cutter: used to cut big tires into small pieces.


\t
Model No.
\t
TC-1200
\t
Feed size of tire(mm)
\t
≤φ1200
\t
Capacity(tires/h)
\t
30-40
\t
Power(KW)
\t
7.5
\t
Working pressure(T)
\t
12
\t
Overall dimensions(m)
\t
1.85*0.7*1.76
\t
Equipment weight(T)
\t
2.5

Step 3>

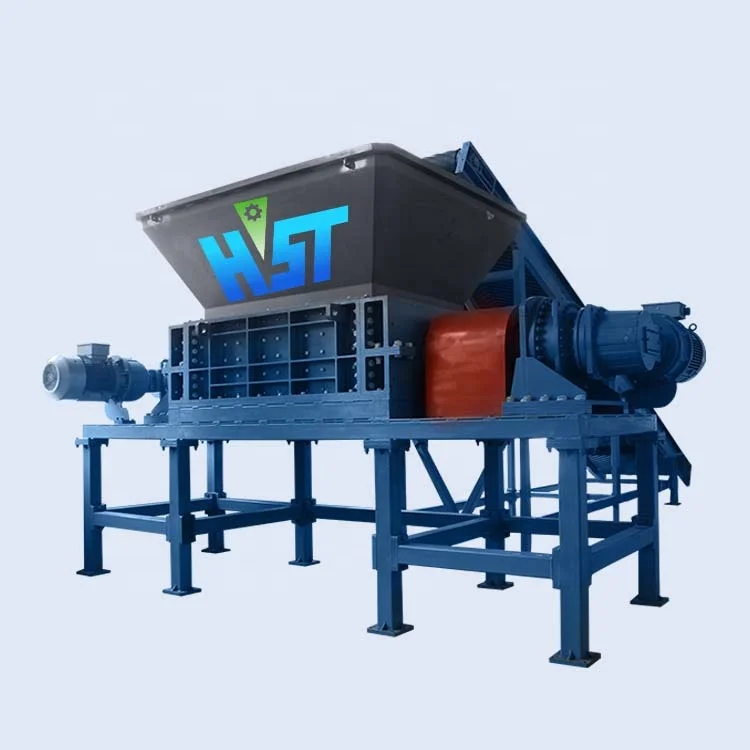

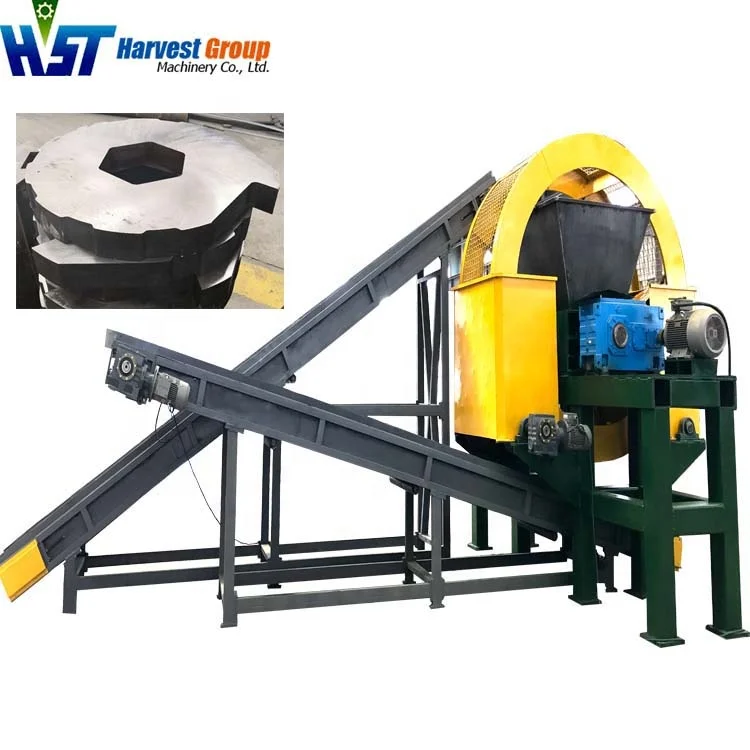

Whole tire shredder: shred whole tires into 50*50mm/60*60mm rubber blocks.

\t
Model
\t
TS-900
\t
TS-1200
\t
Production capacity
\t
1-2ton/h
\t
3-5ton/h
\t
Size of feeding
\t
≤900mm whole tyre
\t
≤1200mm whole tyre
\t
Size of the slice
\t
≤50*50mm
\t
≤60*60mm
\t
Quantity of the knives
\t
16pcs
\t
20pcs
\t
Motor power
\t
22KW*2
\t
55KW*2
\t
Dimension
\t
2.8*2.1*2.4m
\t
4.8*2.8*3.5m
\t
Weight
\t
6.2T
\t
15.6T

Step 4>
Host equipment,rubber crusher: is used to be grind the chunks into small mesh powder through the vibrating screen as you need.

Machines feature:
1)Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output.
2)Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller.
3)Crusher roller speed ratio:Roller speed ratio is 1:2.5, high speed and low noise
4)Bearing:there are 8 pieces bearing in the main crusher.
\t
Model
\t
capacity
\t
Drum diameter
\t
Drum length
\t
Front roll
linear
\t
Roll speed
ratio
\t
Max roller
spacing
\t
Motor power
\t
XKP-350
\t
3ton-6ton
\t
350mm
\t
500mm
\t
26.2m/min
\t
1:2.5
\t
8mm
\t
30KW
\t
XKP-400
\t
6ton-12ton
\t
400mm
\t
600mm
\t
34.5m/min
\t
1:2.5
\t
8mm
\t
45KW
\t
XKP-450
\t
8ton-16ton
\t
450mm
\t
760mm
\t
38.0m/min
\t
1:2.5
\t
8mm
\t
55KW
\t
XKP-560
\t
10ton-20ton
\t
560mm
\t
800mm
\t
38.6m/min
\t
1:2.5
\t
8mm
\t
75KW
\t
XKP-560D
\t
20ton-40ton
\t
560mm
\t
800mm
\t
42.5m/min
\t
1:2.5
\t
8mm
\t
132KW

Step 4>

Magnetic separator: Separate the wire steel from the powder.

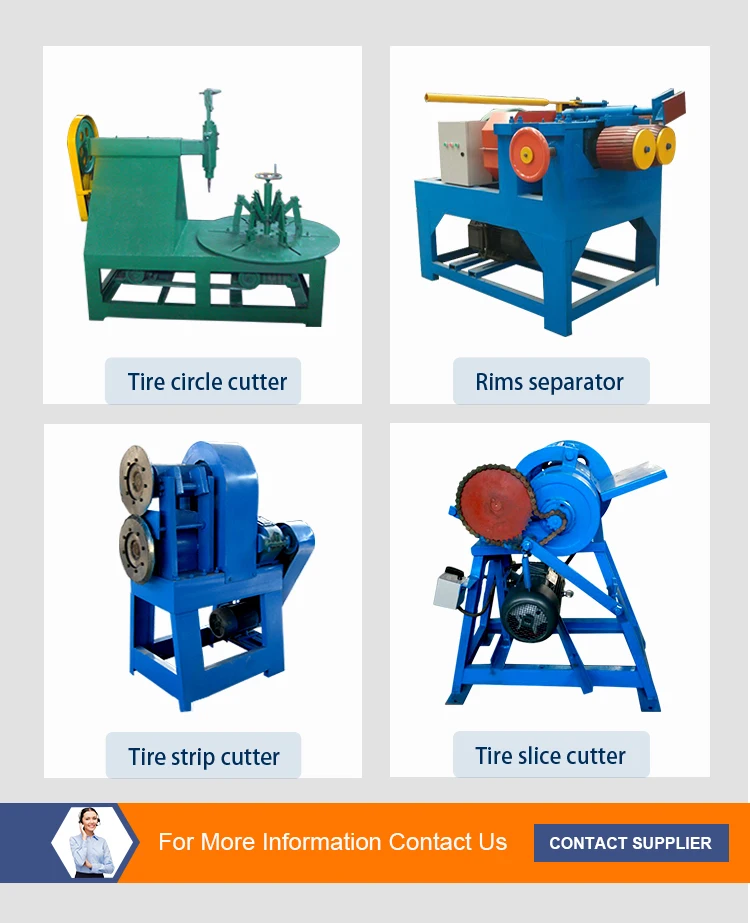

Semi-automatic tire recycling line:

Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder
