kaishan KT11 crawler type oilfield used drilling rig machine
- Category: >>>
- Supplier: Zhejiang Xinyu Machinery Co. Ltd.
Share on (60834359793):
Product Overview
Description
Product Description
KT11 integrated DTH drilling rig is powered by Cummins diesel engine. It can drill 100-140 mm vertical, inclined and horizontal holes by means of both ends of the screw compression system and hydraulic transmission system.
It is mainly used for drilling blasting holes and pre-cracking holes in open-pit mines and stone works.
The drilling rig is equipped with automatic connecting and unloading rod system and drilling rod lubrication module, which can realize single operation and reduce mine operators.
The main control action of the driller is integrated on a handle, which is easy to operate and equipped with anti-sticking drilling system. The drilling angle and depth indication can be selected to simplify the drilling process control and improve the drilling quality. Efficient dust collection system, spacious cab, high-power heating and cooling air conditioning and high-quality audio equipment provide a high-quality operating environment to maximize operator efficiency.

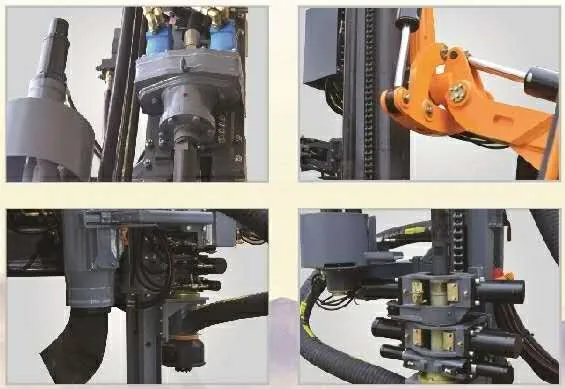

Detailed Images
Model | KT11 | Drilling Diameter | 100-140mm |
Weight | 15500kg | Hardness of lock | f=6-20 |
Transportation Dimension | 9100*2520*3600mm | Dill pipe specifications | φ76*4000mm |
Air pressure | 20bar | Engine | Cummins C325 |
Air disaplacement | 18m³/min | Output power | 242kw/2200rpm |
Drilling depth | 32m | Maximum propulsive force | 25KN |
