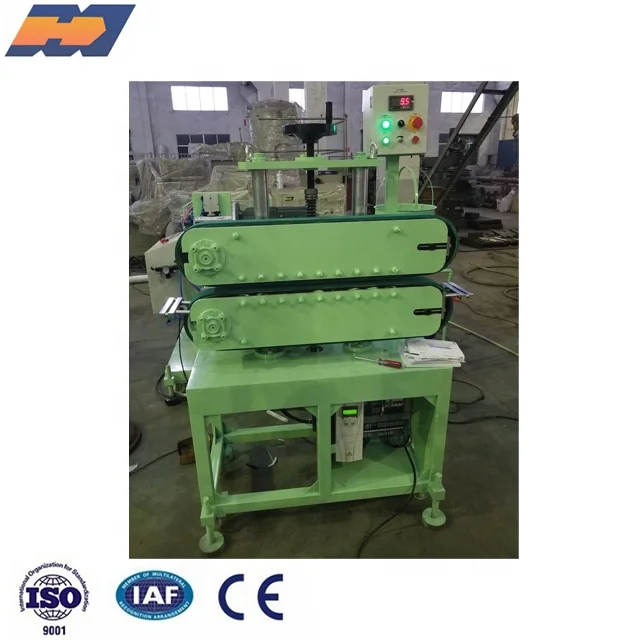

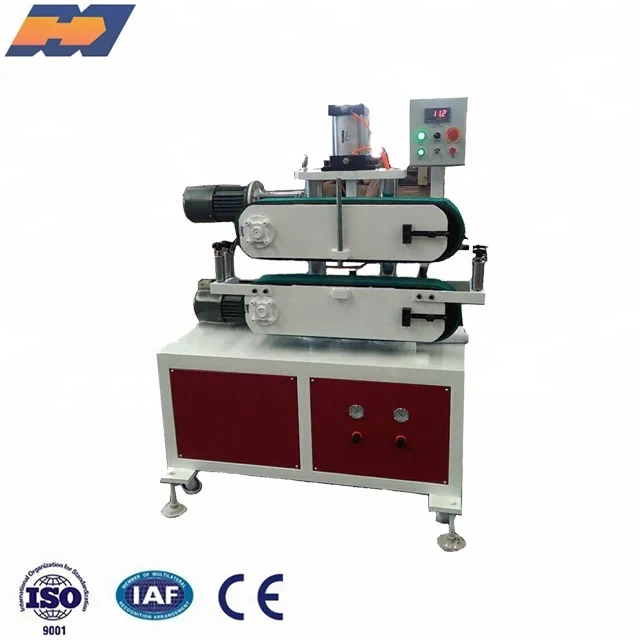

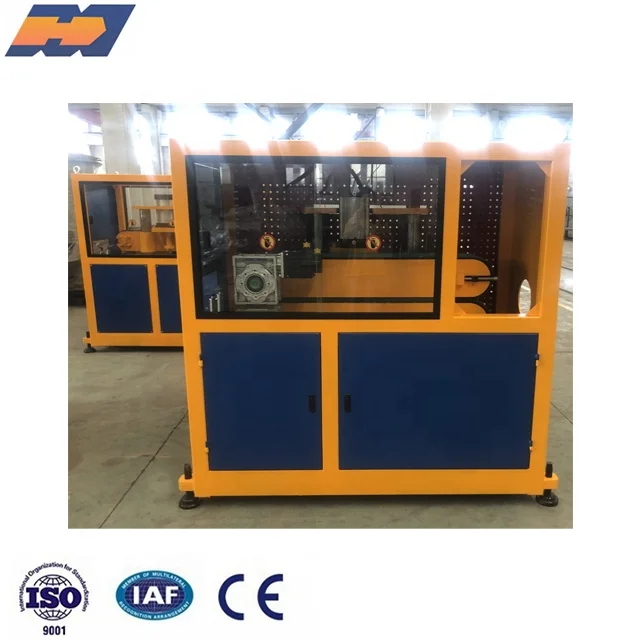

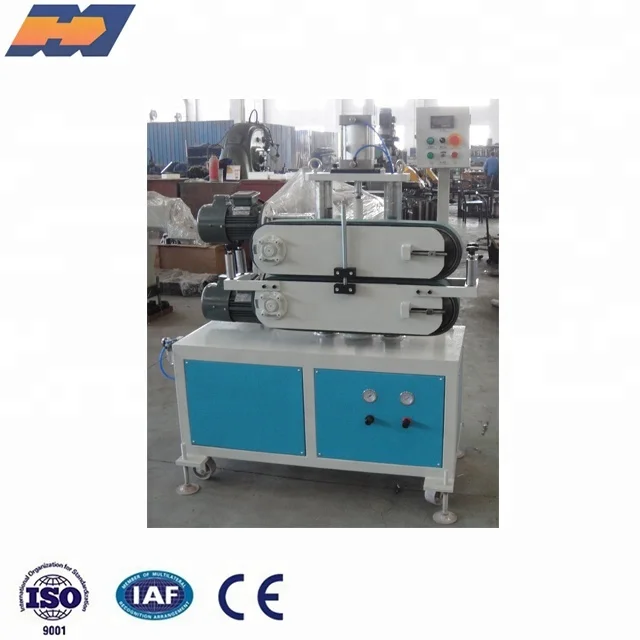

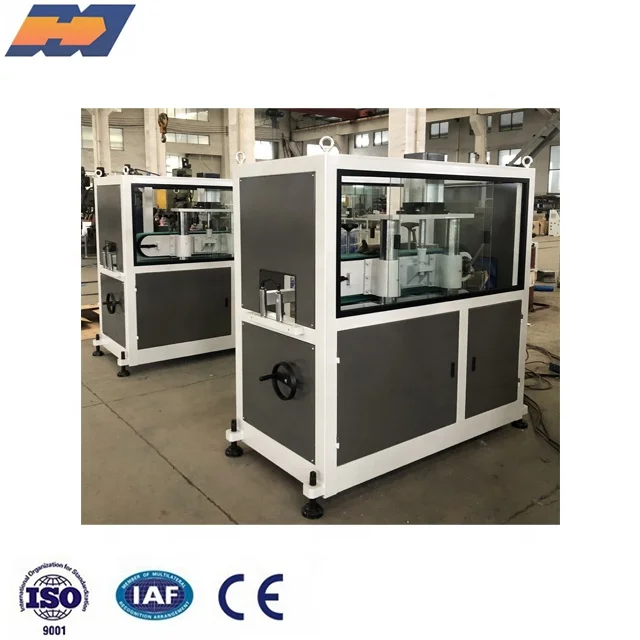

DY rubber belt haul off machine for plastic profile haul off machine

Product Overview

Description

OUR HUAMING MACHINERY COMPANY WEBSITE:WWW.HUAMING.CN

Machine receiving customization



 Haul-off Machine



1. Usage & scope of application
DY series tractor is rubber block type which adopts double hauling mode. DY-D series tractor is rubber belt type for plastic profile. It adopts twin rubber belt hauling mode. Both of these two series are used together with plastic extruder for hauling the plastic pipes, plastic flexible pipes and kinds of plastic profiles. The application range is wide and operation is easy. Our tractors can be driven in many different ways to meet almost all the requirements for extruding products. It is an necessary auxiliary machine for plastic extruding & processing.

2. Characteristics:
Double hauling mode is used for wide range application;
The speed regulation range is wide as stepless speed regulation is adopted;
Uniformly hauling speed;
Low noise;
Compact structure & beautiful appearance;
Coding length-counting device is selectable for precisely measuring.



Technical Standards of DY(D) series Haul-off Machine:

Model	DY-600D	DY-1	DY-2	DY-3	DY-3A
Drawing speed (m/min)	0.3-10(customizable)			0.4-5	0.3-5
Max. drawing size(mm)	80×80	120×120	150×150	210×160	210×160
Max. drawing hight(mm)	800-1000	800-1000	1000-1100	950-1050	800-4000
Drawing power(kw)	0.75	1.5	3	4	5.5
Appearance size(mm)	1000×550×1500	1250×650×1600	1550×800×1750	2740×1200×1800	2200×1000×1750
Weight(kg)	400	500	700	1200	300



Technical Standards of DYC series Haul-off Machine:

Model	DYC1-800	DYC1-1500	DYC2-2000
Drawing speed: m/min	1-10	0.5-8	0.5-8
Max.drawing height:mm	950-1100	950-1100	950-1100
Drawing power:kw	2.2	4	5.5
Appearance size:mm	1800×885×1720	2200×900×1720	2800×1015×1720





If you are interested,pls fee free to contact me. Whatsapp/Wechat:008618921980633
