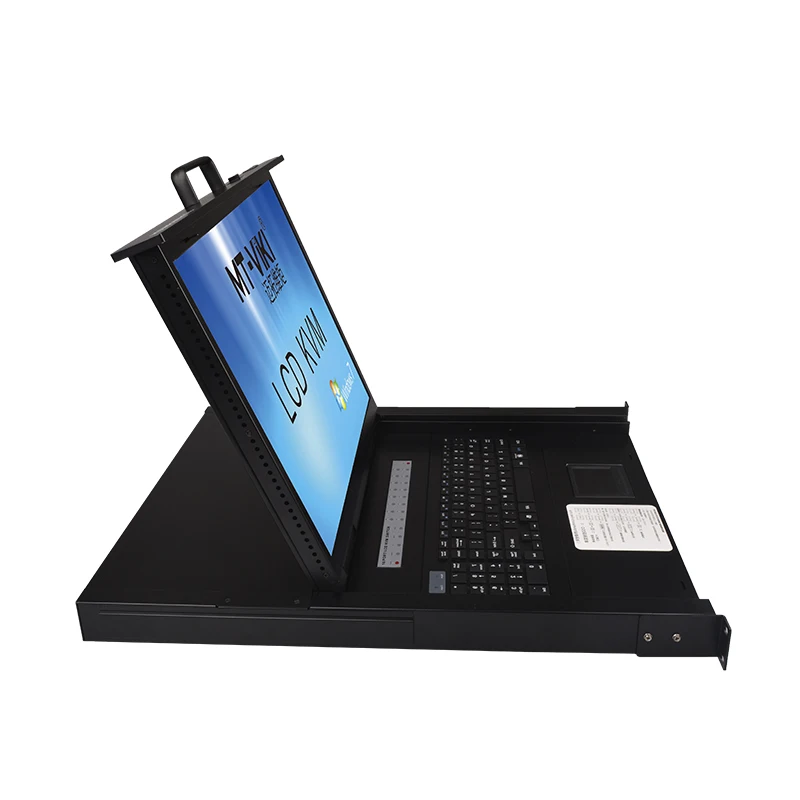

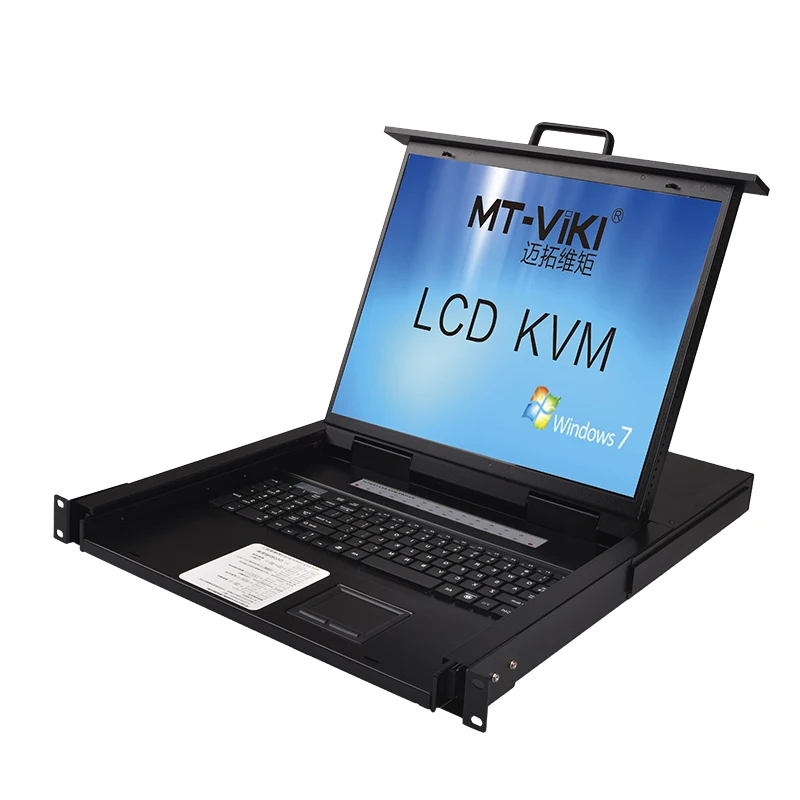

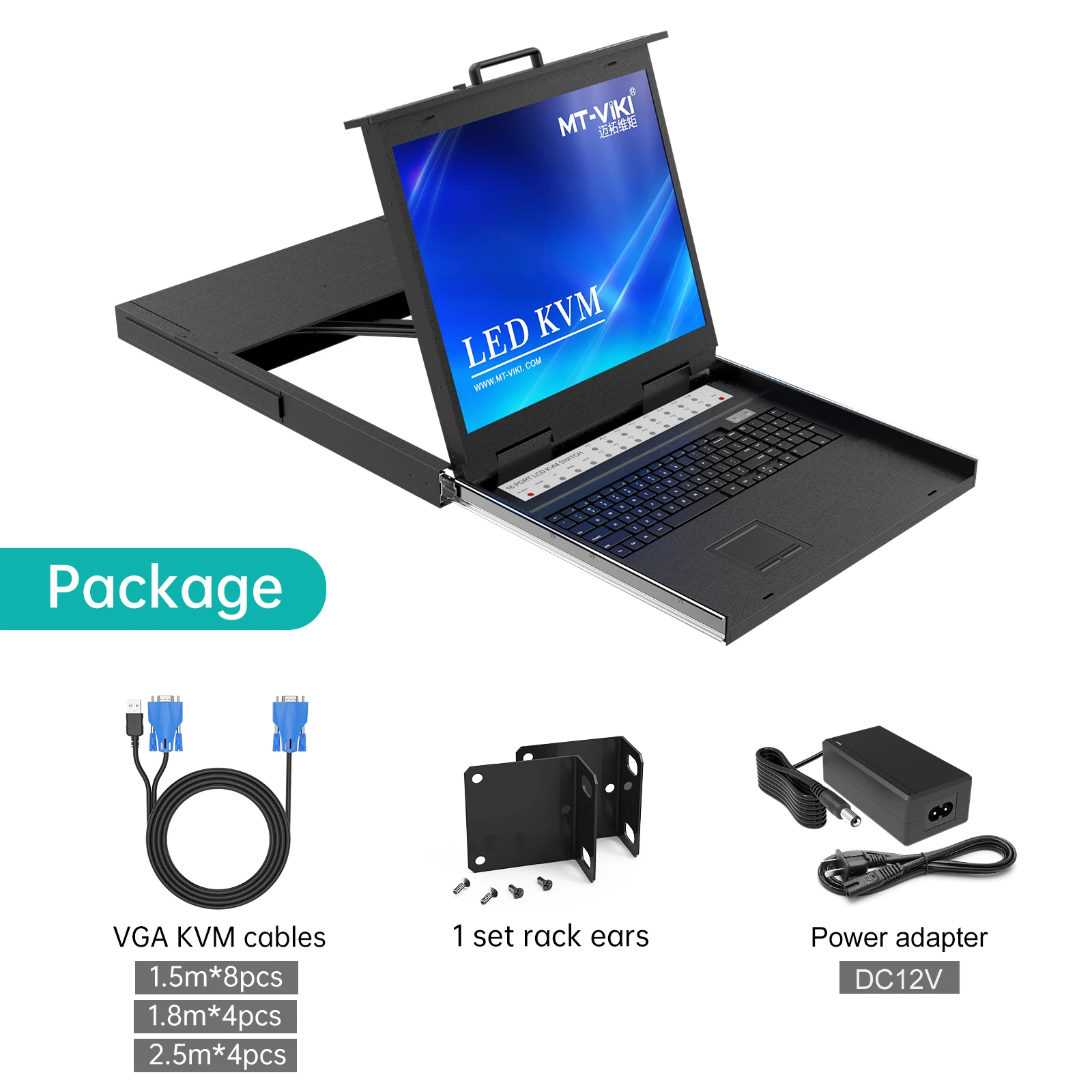

19 inch VGA LCD KVM Switch 16 port, MT VIKI 16 in 1 out KVM Console 1U Rack 16 pack Cables
- Category: KVM Switches >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (60834429805):
Product Overview
Description
Product Specification:
19-inch display / mouse / keyboard / smart switcher
Support resolution: 1280*1024

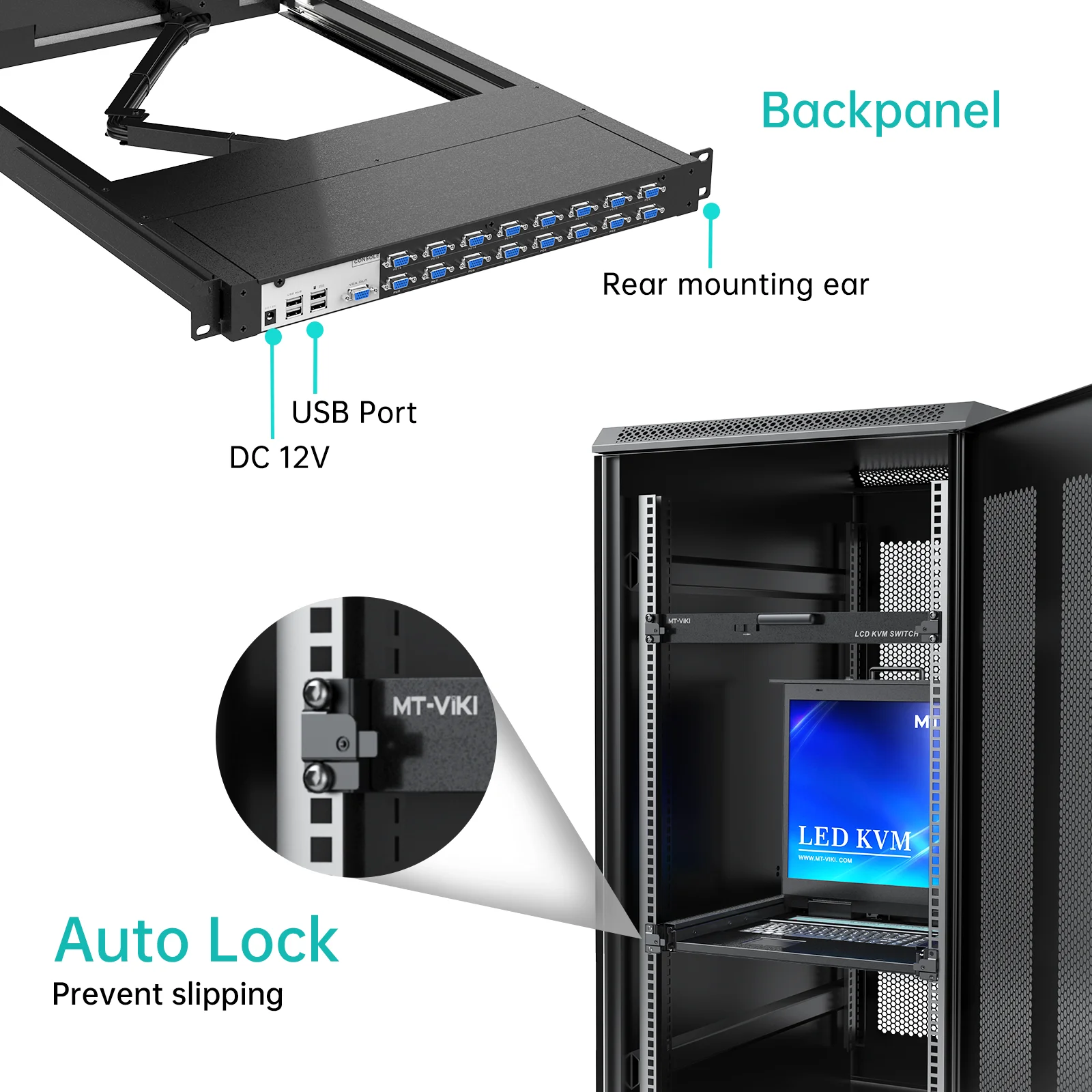

LCD liquid crystal display adjustment function, the rail with automatic locking Device
Pull-out design, you can adjust the length to fit the rack space
102-key keyboard and TouchPAD touch slide mouse
Product Data:
| 8 Port | 16 Port | ||
| LCD | Screen style | XGA TFT LCD | |
| Screen size | 4:3 19 inch | 4:3 19 inch | |
| Visual area | 340(H)x270(V) | 340(H)x270(V) | |
| Resolution | 1280*1024 | 1280*1024 | |
| Color display | 16.7M | 16.7M | |
| Brightness | 300(cd/m2) | 300(cd/m2) | |
| Contrast | 1000/1 | 1000/1 | |
| Pixel interval | 0.264(H)x0.264(W) | 0.242(H)x0.242(W) | |
| Life span | LCD MTBF>50000H,Backlight MTBF>30000H | ||
| Power consumption | Max.24W | Max.24W | |
| Built-in Keyboard | Keyboard design | 102 keys | |
| Compatibility | IMB/AT,support Microsoft Windows9X,/Me/nt/2k/XP | ||
| Keyboard interface | PS/2 | ||
| Life span | >1.000.000times | ||
| Mouse touch pad(2 button) | Hardware interface | PS/2 | |
| Operate system | Support Microsoft Windows9X/Me/nt/2k/XP | ||
| Life span | >1.000.000times | ||
| Power input | DC 12V | ||
| Shell color | Black | ||
| Housing | Galvanized electrolytic plate | ||
| Dimension(LxWxH) | 48*57.07*4.4CM | ||
| N.W./G.W. | 15KG/22.4KG | ||
| Cabinet installation depth | 600mm-810mm(select proper hang ring) | ||
| Working temperature | -45-60℃ | ||
| Storage temperature | -20-65℃ | ||
