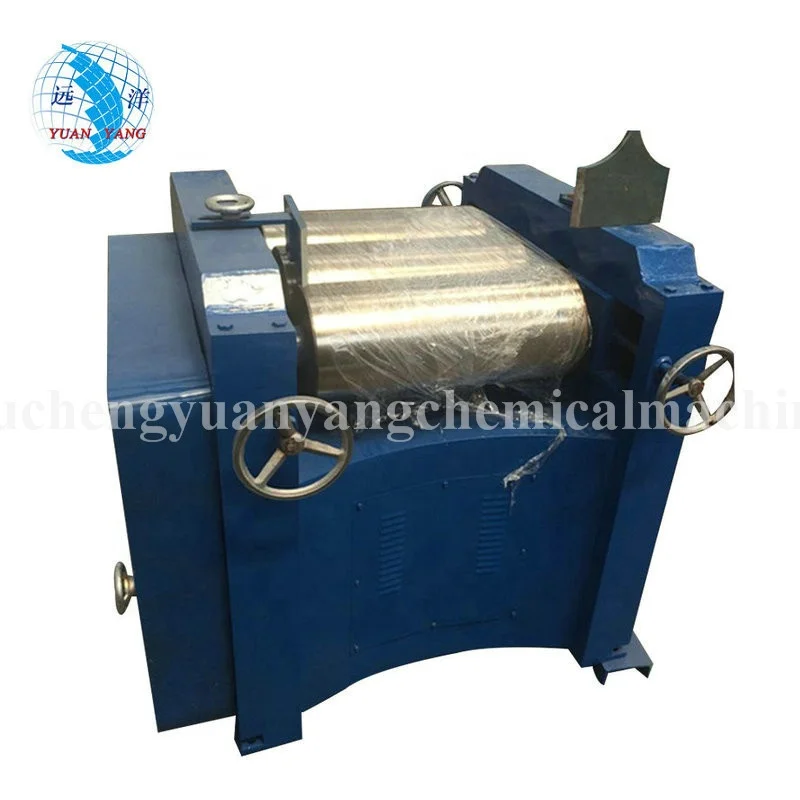

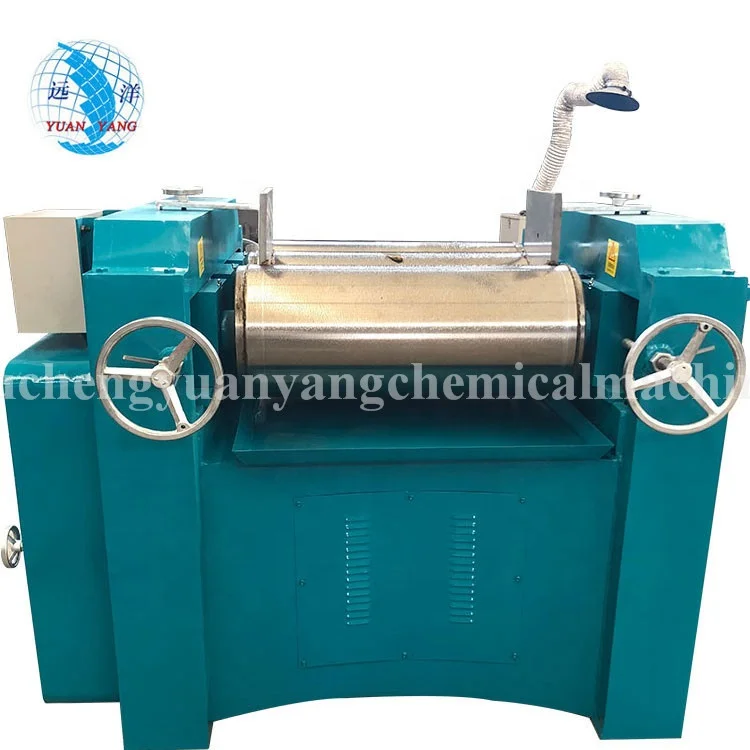

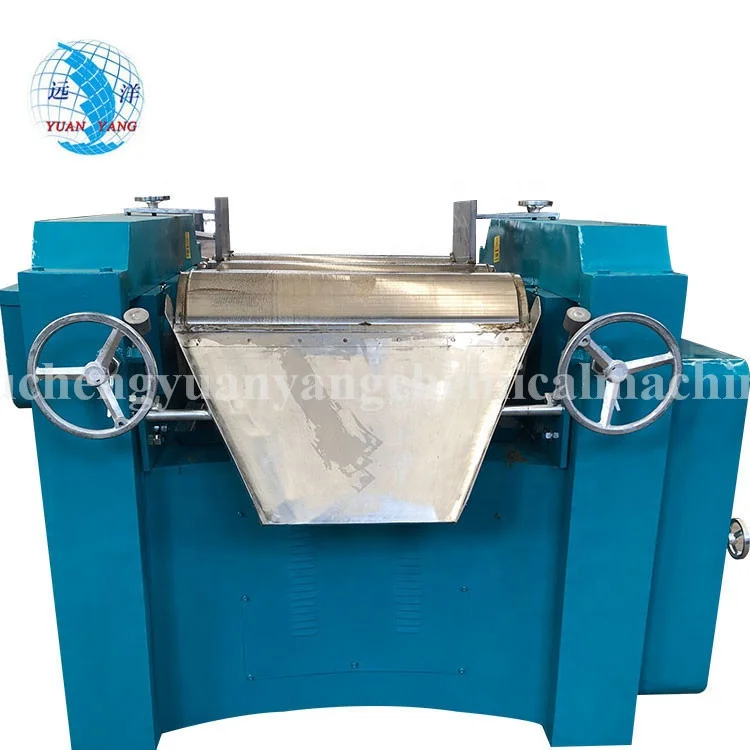

100 200kg/hour Offset ink production Three roll Grinding mill machine

Product Overview

Description





Application:

----------Three roll Mill is an ideal and effective grinding and dispersing equipment for high viscosity product, mainly used in various of paint, ink, pigment, plastic, cosmetic, soap, ceramics, rubber, and other liquid and paste materials grinding.



Structure & Working principle:

-----------It has three rollers ( roller is made of high wear alloy cast iron) mounted on an iron frame with the center on the straight line. Can be horizontally installed, or slight tilted. Through the horizontal three roller surface extrusion and different speed friction to achieve the grinding effect.

Roller is hollow can be cooled by water. Material was added between the middle and back rollers.



Due to the three rollers rotating in different direction ( speed increases from back to front ), generate a good grinding effect. After grinding, material is scraped by scraper in front of the front roller.



Model:

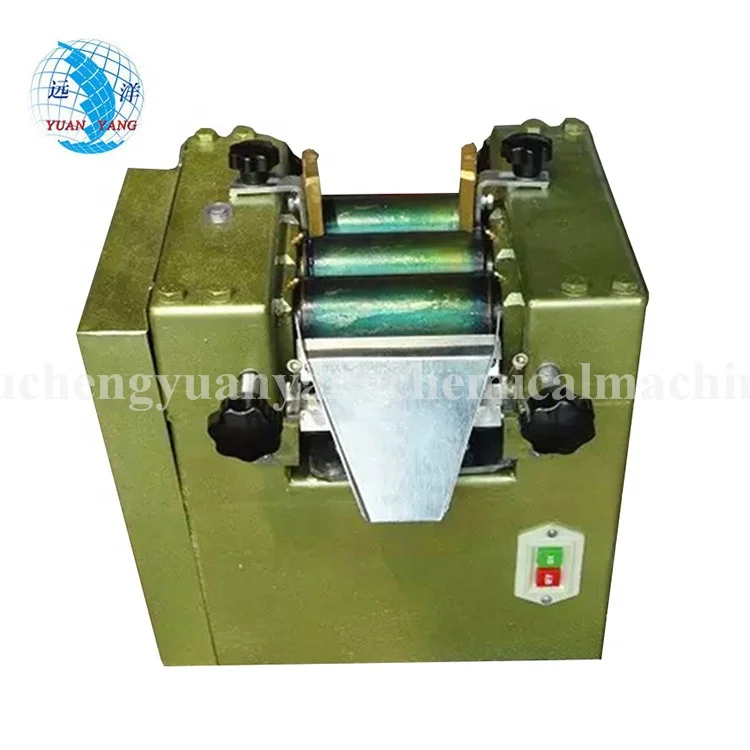

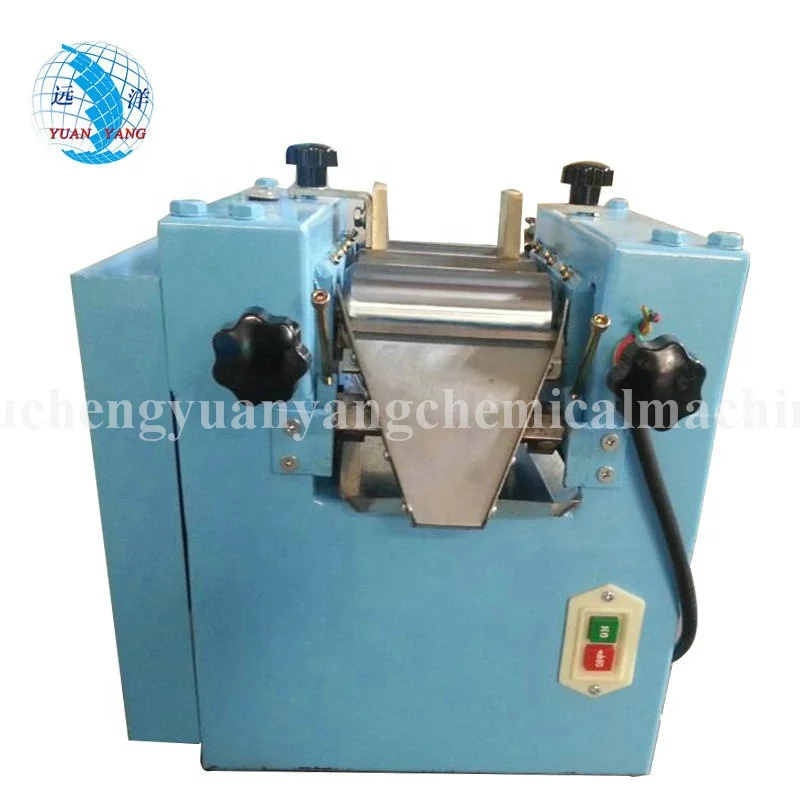

-----------S65 (1-5 kg/h), S150 (10-50 kg/h)



-----------S260 ( 100-200 kg/h), S315 ( 200-300 kg/h)



-----------S405 ( 300-400 kg/h),S405L ( 400-500 kg/h)

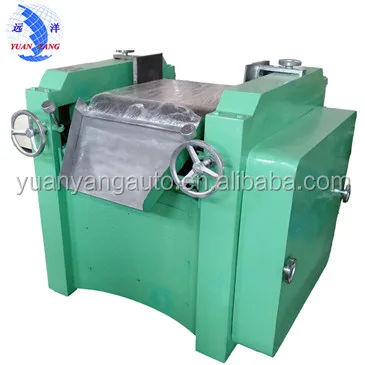

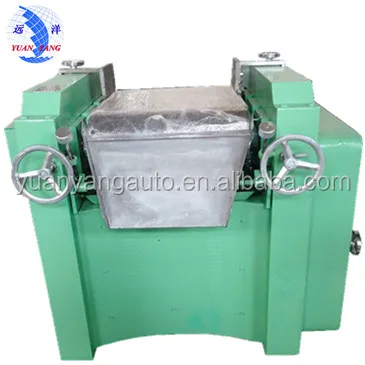

Model	S260
Roller Diameter	260 mm
Roller working face Length	620  mm
Rotation speed	Fast roller = 155 RPM
	Middle roller = 55RPM
	Slow roller = 19 RPM
Electric motor	7.5 KW
Power supply	380V,50Hz,3 Phase



↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
Click here to get more information!























Zhucheng Yuanyang Trading Co.,Ltd was founded in 1996, located in Zhucheng city, Shandong, china. We specialized in chemical machinery’s R&D and manufacturing more than 20 years, have rich experience and professional manufacturing, sales and technical team.



Company has been done exporting since 2008, with reliable quality and moderate price, we do business with customers from all over the world and won good reputation.



We always put the product quality and customer’s satisfaction in the first place, make perfection more perfect, and wholeheartedly serve all the new and old customers.











l  All inquires will be replied within 24 hours.



l  Stand in customer’s position, and service you from the perspective of customers.



l  Explore customer needs in depth, do customization according to different request.



l  Experienced technical and sales team for professional question solution.



l  All sold equipment has a lifetime maintenance advice service.



l  Our aim is let customer has good purchase experience not only pre-sales and after-sales.





Q:What’s our company strength?

A:

 1.We have more than 15 years experience of developing and manufacturing.

 2.Professional team including pre-sales, in-sale, after-sales service. technician and maintenance, will proceed comprehensive and multi-angle communication with clients.

 3. Reliable quality and moderate price.

4, 12 months warranty and lifetime maintenance.

5, According to buyer’s request, provide customization service.

6, We will always pay attention to product’s quality and user experience, and try our best to solve problem and remove the buyer’s worries.



Q:How about the delivery time?

A:It will be controlled within 7-30 working days for single machine, and 30-50 working days for production line.



Q: What about payment terms?

A:T/T,LC,Western union & Trade assurance order by Alibaba all acceptable and welcome.
