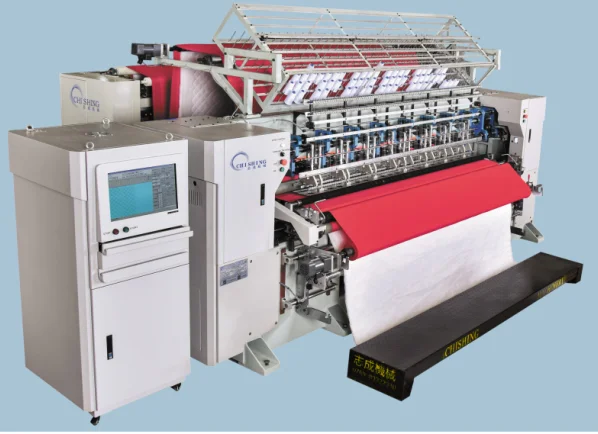

2.4 Meters Lock Stitch High Speed Quilting Machine Digital Control with Panasonic Motor

Product Overview

Description

2.4 Meters Lock Stitch High Speed Quilting Machine Digital Control with Panasonic Motor



 Main application and performances:



It is  widely use for Bedspreads ,air-condition quilt,mattress panel,matress protectors,sofa cushions and sofa protectors .



 1. Multi - span independent pattern (360°, 180° patterns are available)

2. Automatic pause in the case that the upper thread or the bottom thread breaks, automatic needle - lifting; and computerized speed adjustment.

3. Available features such as high rigidity, high speed of running, low vibration, low noise, and no collision.

4. Computerized control system of new generation to ensure the precision of quilting and reduce excessive parameter adjustment and pattern modification .

5. Computer drawing method to ensure the precise of pattern and facilitate the operation.

6.Strong functions of pattern - combining and multi - span quilting to enable you to quilt different patterns in the textile of different sizes .

7. Function of state detection and prompt to make you know the running state of the machine.



Quilting machine Technical data:



Mattress quilting machine
Machine code	CS94	CS94
Function Spec	2 Needle row (94 Inch)	3 Needle row (94 Inch)
Size	5350* 1450 * 2200mm	5350 * 1450 * 2200mm
Weight	4000KG	4500KG
MAX.Needles Quantity	188 pcs	282 pcs
Stroke	203.2mm(8")	304.8mm(12")
Quilting Width	2388mm	2388mm
Running Rate	200-800r/m	200-800r/m
Needle Distance	25.4mm	25.4mm
Rating Power	3.5kw	3.5kw
Voltage	380v	380v
Needle Model	16/19	16/19
Quilting Thickness	≤30mm ≤400g/m2	≤30mm ≤400g/m2





Detailed pictures

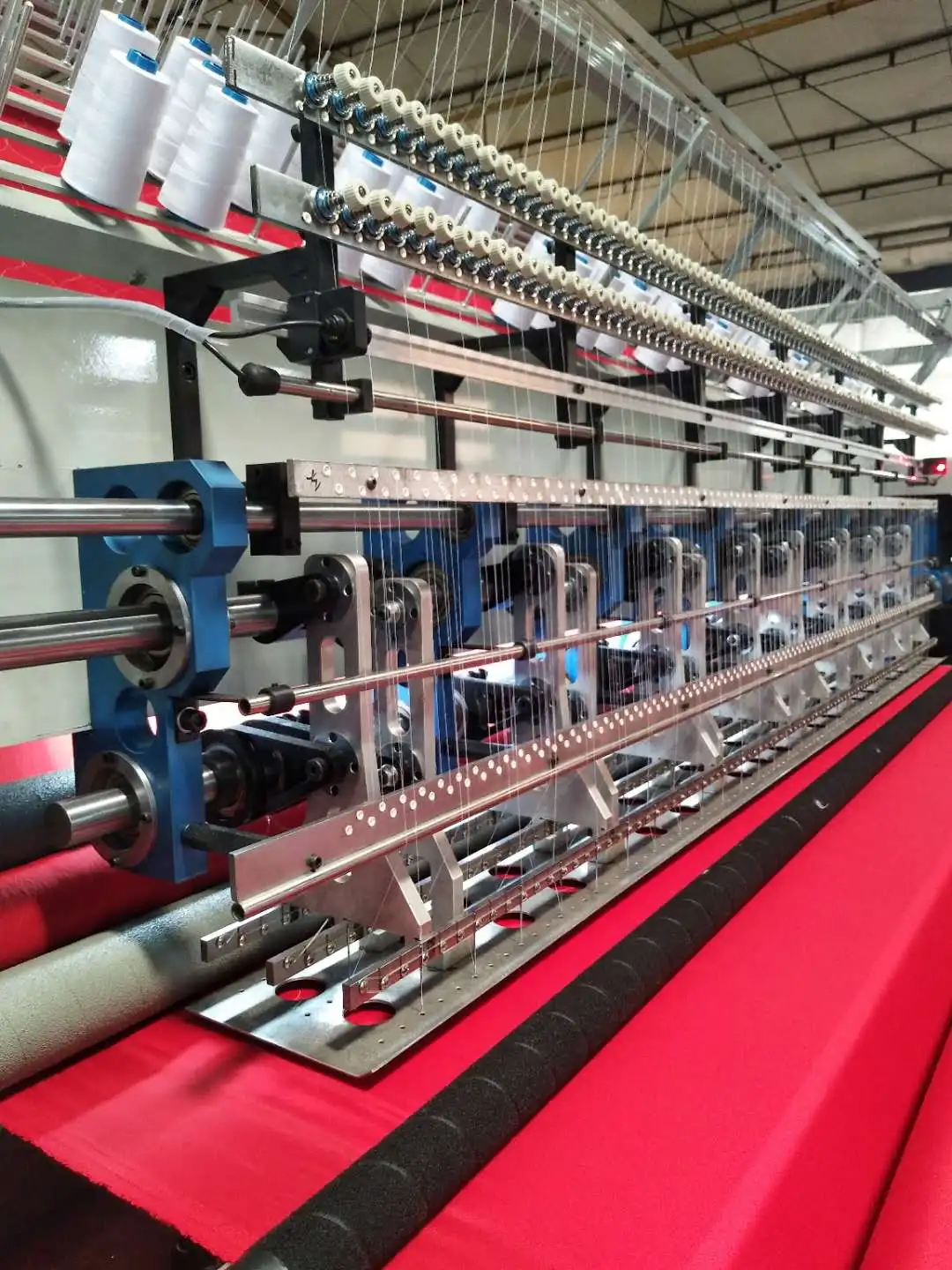

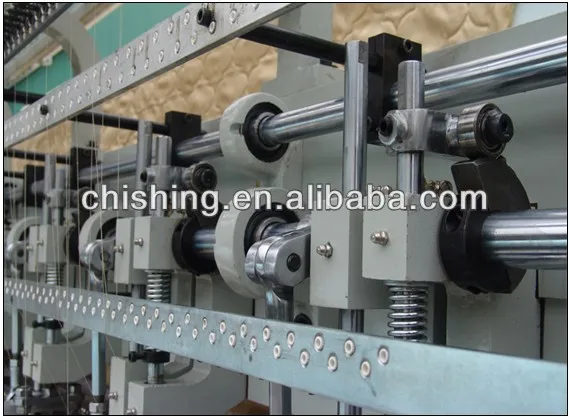

Needles parts:

Chishing chooses West Germany needles. Choosing what kind of needles depends on different sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS.
Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.

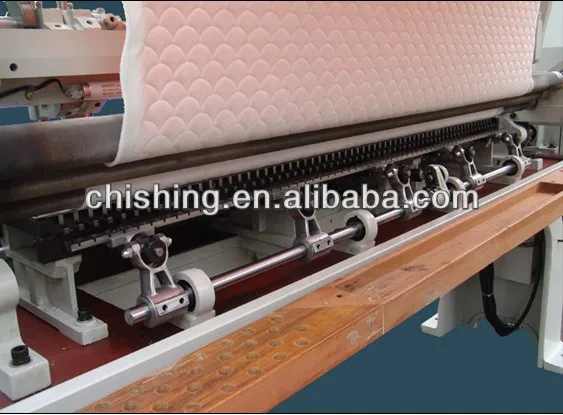

Shuttles parts:

Chishing imports HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.









After-sale service:



1) Installation & Commissioning: The seller can provide the installation, commissioning



and training service in buyer's factory, while the buyer needs to pay for VISA application,



air ticket, accommodation, and (if necessary) interpreting fee for seller’s technician.



2)  After one year, the buyer needs to pay USD200/day/person as service charge, as well



 as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting



fee for seller’s technician.



2. Warranty:For the machine above,the seller provides one year warranty starting from the



moment the seller dispatches the machines. For the detailed guarantee period of each



part, please refer to the operation manual.Wearing parts,consumption material and the



 damage incurred by the buyer's incorrect operation are out of warranty range.
